Torque Calibration Tools


Testing of torque wrenches, torque screwdrivers and other torque measurement devices

Our torque calibration tools are used for the testing of various torque testers. Not only manual, but also digital torque wrenches, torque screwdrivers and other torque testers can be calibrated and verified.

Special applications

Hydraulic torque wrenches, torque multipliers and impact wrenches cannot be measured with regular test systems. The forces and vibrations emerging during the testing of such devices are enormous and lead to a quick failure with regular devices. Therefore we offer specially designed, robust test devices with measuring ranges up to 68,000 Nm for these applications.

How a torque tool tester works

The measurement is carried out using a load cell. Thanks to the compact, easy-to-use structure, our calibrators enable quick and easy calibration and verification of your tools. In addition to the compact solutions, there is also the option of operating sensors with an external display. Most devices are equipped with a data output, which enables analysis and processing of the measured data on a computer. Some systems support direct Excel export, so depending on the model, the values ​​can be read in real time on the easy-to-read LCD display, stored in the device's data memory or transferred to a computer in real time.

A torque wrench calibration tool is available especially for torque wrenches. These test stands enable an absolutely accurate calibration of your torque wrenches with repeatable measurement results.

If, despite the large selection, you have not found the right device, please contact us. We would be happy to create an individual solution concept.



Filter


Application

Measuring Accuracy

Data Storage

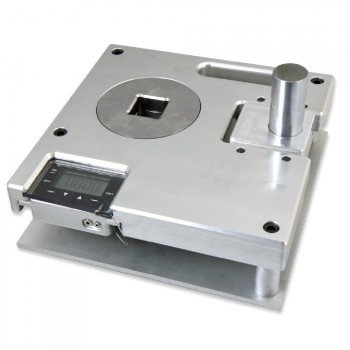

TT-QC Torque Tool Tester for quick tool inspection

TT-QC
  • Bench mount torque tester for quick tool verification
  • Ranges up to 1355 Nm
  • Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
Price € 978,00 - € 1.430,00
More information

TT-QCM Torque Tool Tester for torque tool calibration

TT-QCM
  • Verification and calibration of wide range of torque wrenges and torque tools
  • Ranges up to 2710 Nm
  • Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
Price € 2.015,00 - € 2.217,00
More information

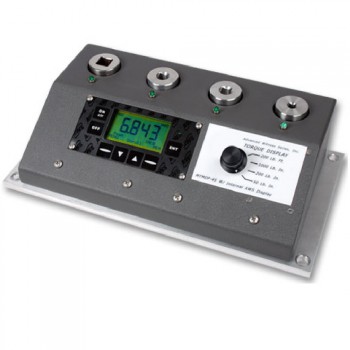

MTM Multi-Range Torque Tester

MTM
  • Multi-Channel Torque Tester for Power Drivers & Wrenches
  • 18 Ranges up to 6780 Nm
  • Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • Programmable high/low setpoints
Price € 2.702,00 - € 3.905,00
More information

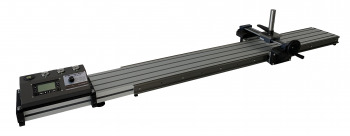

TWT-2000-MTM4 Torque Wrench Loader

TWT-2000-MTM4
  • Tool for torque wrench calibration/verification
  • Compatible with many torque tool testers and wrenches
  • Manually operated
  • Capacity up to 1500 Nm
  • Developed by Checkline Europe B.V.

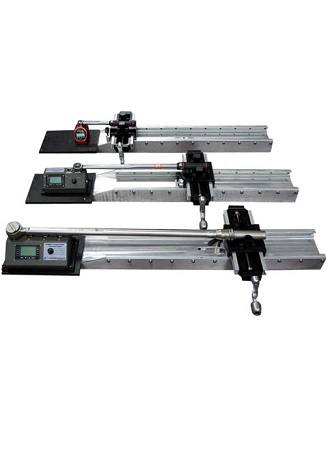

TWT-400 Torque Wrench Test Stand

TWT-400
  • Calibrates and verifies torque wrenches with display (analog and digital) or without display
  • Flexible design for various torque wrench lengths and brands
Price € 1.695,00 - € 3.895,00
More information

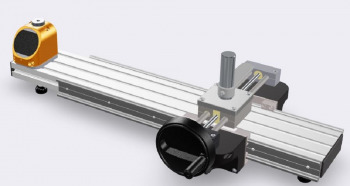

AWS-1000 Series Torque Wrench Loader

AWS-1000 Series
  • Mechanical Torque Loader
  • 3 Ranges up to 1000 lb-ft / 1350 Nm
Price € 3.954,00 - € 5.024,00
More information

TT-QCMBS Torque Tester for Nutrunners

QCMBS
  • Test stand for power wrenches
  • 2 measuring range up to 2710 Nm
  • Eight (8) selectable construction units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • RS-232 data output
  • Complete system consisting of test stand, test device and screwdriver simulator
Price € 5.145,00
More information

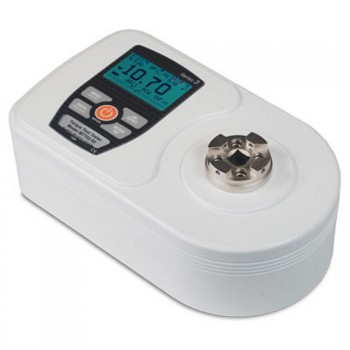

Series-TT02

Series-TT02
  • Torque Tester for Hand Tools
  • 3 ranges up to 1150 Ncm
  • Units of measure: Ncm, Nm, ozFin, lbFin, lbFft (selectable)
  • USB, RS-232, Mitutoyo (Digimatic) and analog outputs
Price € 1.214,00
More information

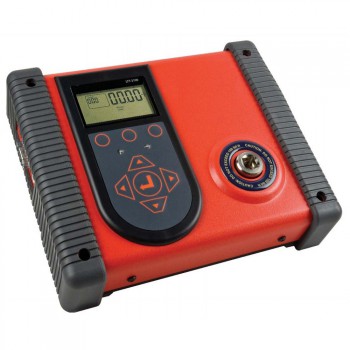

TT-3000 Series Torque Testers with 16 measurement ranges

TT-3000
  • Torque Tester for testing click, dial, and digital wrenches, plus most power tools including impulse and DC electric
  • 16 Ranges up to 1016 Nm
  • Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • RS-232 output
Price € 1.410,00 - € 1.787,00
More information

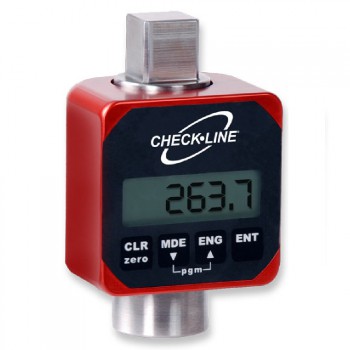

ILTT Inline Torque Tester

ILTT
  • Inline torque tester for quick tool verification
  • Ranges up to 13.560 Nm
  • Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • 3 years warranty
Price € 1.462,00 - € 2.823,00
More information

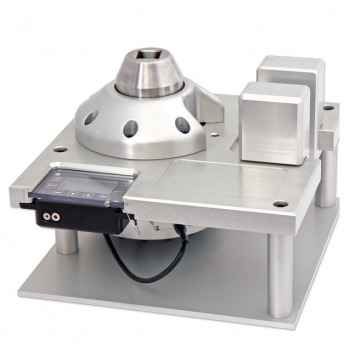

HYDP Hydraulic Torque Wrench Tester System

HYDP
  • Hydraulic Torque Wrench Test System
  • Designed for precision testing of high range hydraulic, pneumatic and electric torque drivers up to 33.895 Nm
Price € 2.928,00 - € 9.418,00
More information

TT-IMP Impact Wrench Torque Tester

TT-IMP
  • Impact Wrench Torque Tester
  • Capacities up to 6.800 Nm
  • Integrated reaction arm
Price € 3.839,00 - € 6.102,00
More information

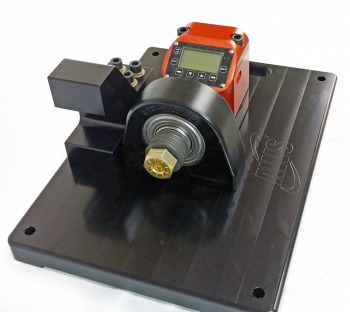

HYRD Torque Tester for multipliers, rotating and geared torque wrenches

HYRD
  • Test system for powered torque multipliers and pneumatic and electric power wrenches
  • 4 measuring ranges with up to 10100 Nm
  • Complete system consisting of test stand, ball-bearing screw joint simulator and test device
Price € 4.289,00 - € 6.696,00
More information

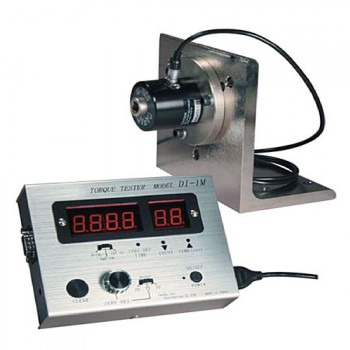

DI-1M Digital Torque Tester for Air Tools & Impact Wrenches

DI-1M
  • Air Tool & Impact Wrench Digital Torque Tester
  • 4 Ranges up to 362.0 lb-ft / 50.00 kg-m / 500.0 N-m
  • Selectable Units: lb-ft, kg-m and N-m
  • NOTE: This Torque Tester is not CE certified
Price € 2.572,00
More information

Series I Torque Tester Torque Tester for Electric Drivers & Wrenches

Series I Torque Tester
  • Torque Tester for Power Drivers & Wrenches
  • 3 ranges up to 1500 N
  • Units of measure: lb-in, oz-in, kg-cm, N-cm and N-m (selectable)
  • 20 mm drive for socket wrenches
  • NOTE: This Torque Tester is not CE certified

LTT Torque and Angle Analyzer with integrated Bench Stand

LTT
  • Torque Transducer with Integrated Bench Stand
  • Ideal for checking torque on hand and non-geared power tools
  • 16 Ranges up to 5000 Lb-ft

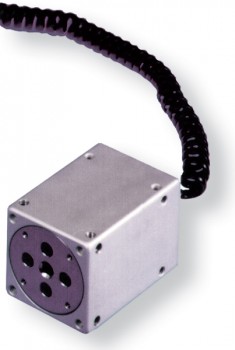

R52 Series Torque Sensor for calibrating tools

R52 Series
  • Torque tool testing
  • External sensor to be used with the 3i or 5i series force/torque displays
  • Mounting holes for bench mounting
  • Capacities from 10 ozFin to 100 lbFin (7 to 1150 Ncm)
  • Bi-directional
Price € 760,00 - € 808,00
More information

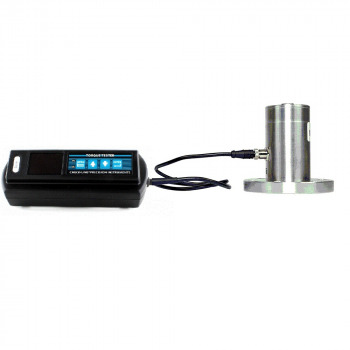

STC Torque Sensor For Tool Calibration - STC Series

STC
  • Torque tool testing
  • Mounting holes for bench mounting
  • Bi-directional

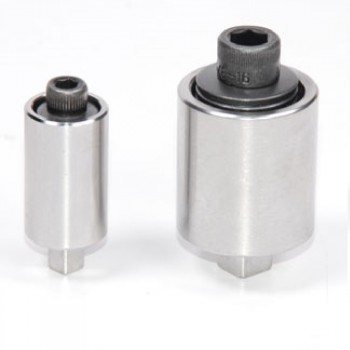

RDF Joint Simulators / Run Down Fixtures

RDF
  • Joint Simulators / Run Down Fixtures
  • Required for accurate torque measurement for power-driven torque controled tools
  • They simulate the conditions found when using the tool in real-world conditions
Price € 149,00 - € 1.475,00
More information

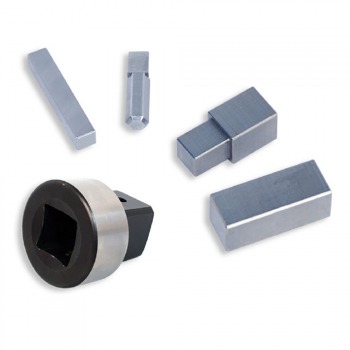

TT-DA Insert-, and Drive Adapters

TT-DA
  • Insert-, and drive adapters
  • For calibration purposes

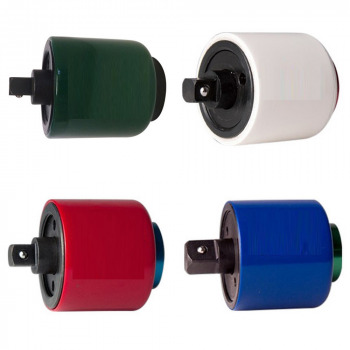

TL-IT Inline Torque Limiter

TL-IT
  • Specified Preset
  • Typical Lifespan: 40.000 Cycles
  • Includes NIST Traceable Calibration Cert
  • Made in the USA
  • Torque Ranges: from 0.33 Nm up to 339 Nm
Price € 209,00 - € 606,00
More information

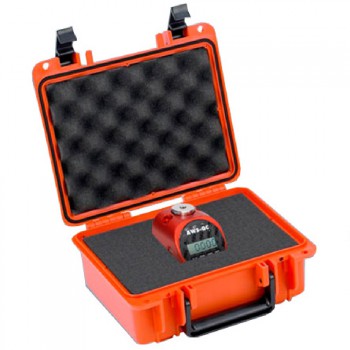

TT-QC-CC Waterproof Carrying Case

TT-QC-CC
  • Waterproof Carrying Case for TT-QC
Price € 125,00
More information

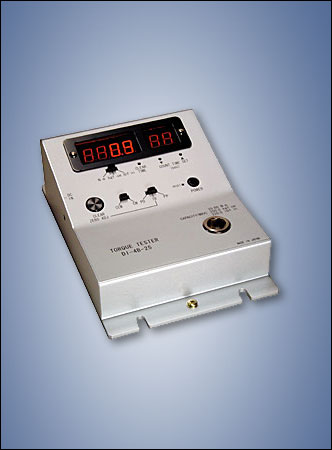

DI-4B-25

DI-4B-25
  • Air Tool & Impact Wrench Digital Torque Tester
  • Capacity:
    0.1~220.0 lbf-in
    0.1~250.0 kgf-cm
    0.01~25.00 N-m
  • Selectable Units: lb-ft, kg-m and N-m
  • NOTE: This Torque Tester is not CE certified

TT-CA

TT-CA
  • TT-CA  Radius Arms up to 2000 N-m
  • TT-CA-.1MA High Accuracy Calibration Arm 0.1 meter radius 11 N-m Max
    TT-CA-.25MA High Accuracy Calibration Arm 0.25 meter radius 340 N-m Max
    TT-CA-.5MA High Accuracy Calibration Arm 0.5 meter radius 750 N-m Max
    TT-CA-1MA High Accuracy Calibration Arm 1.0 meter radius 2000 N-m Max
  • The radius arms are available in 2 versions:
    High Accuracy Arms are for use with +/-0.25% tolerance transducers / ​Standard Accuracy Arms are for use with +/-0.5% tolerance transducers
Price € 1.440,00 - € 4.427,00
More information
