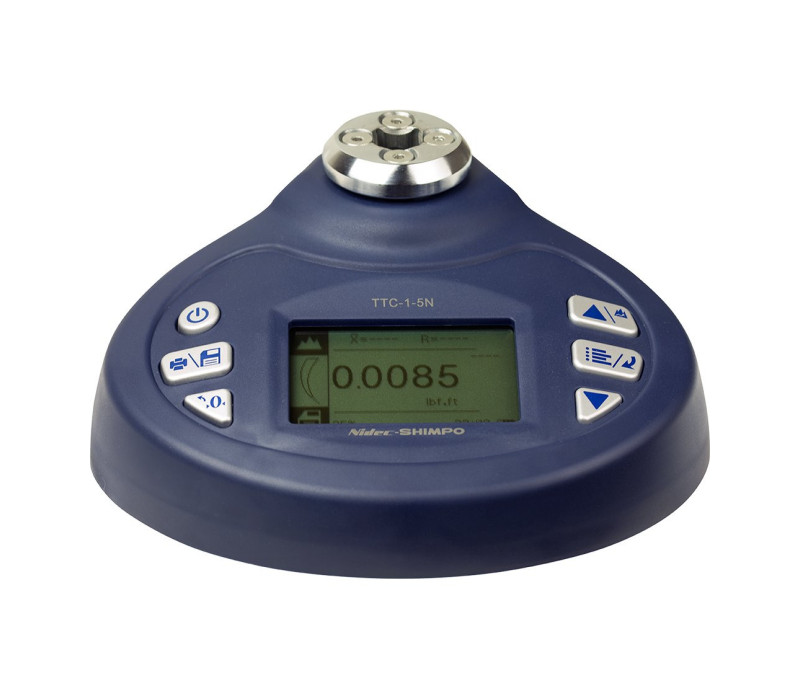

TTC-I Torque Tester

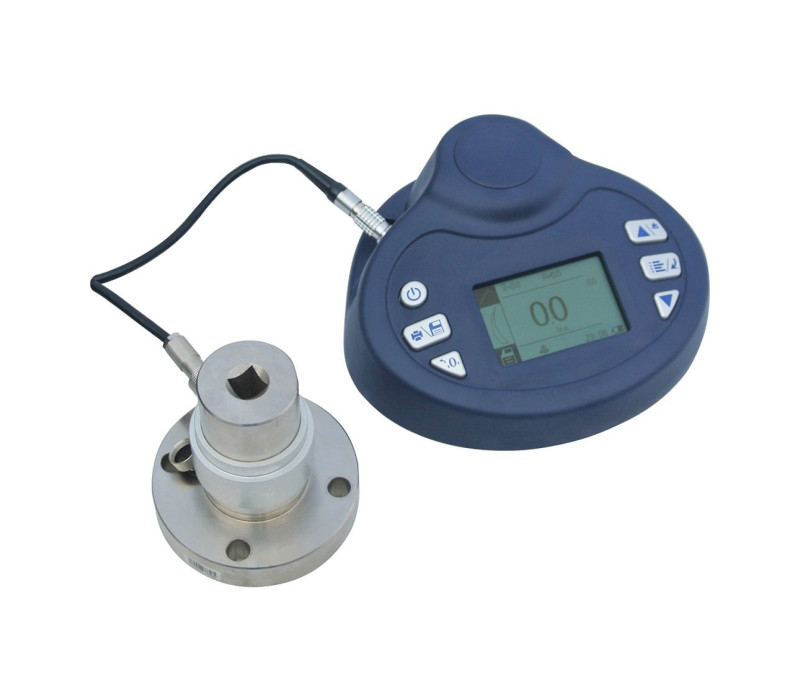

TTC-E- Torque Tool Tester Externe Loadcell

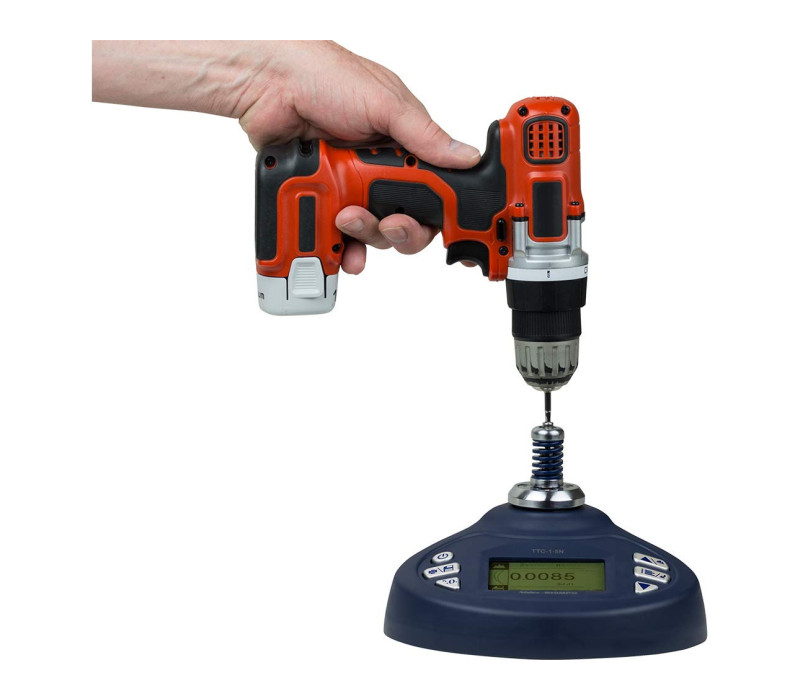

TTC-I Torque Tester with power tool

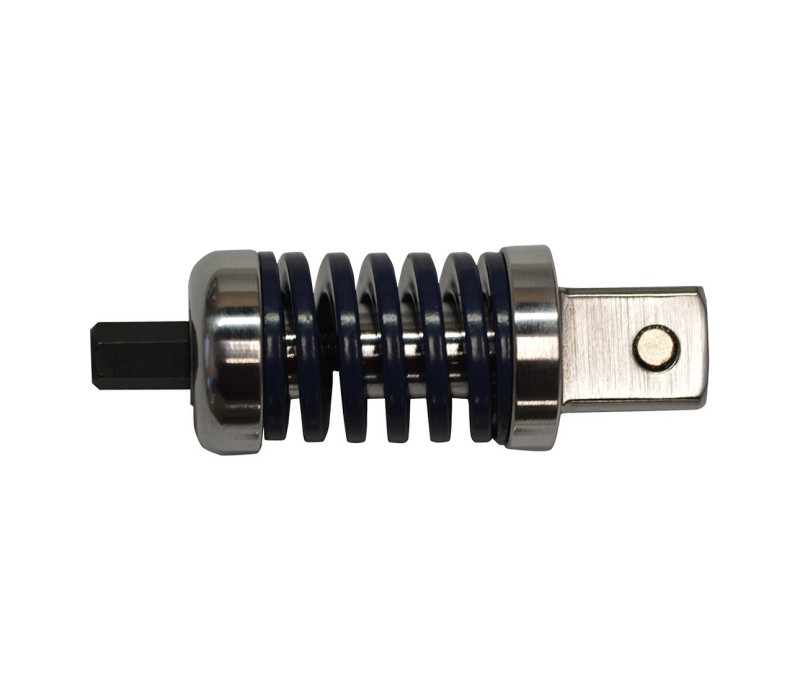

TTC-RD-2 rundown Adapter 2-N-m Capacity

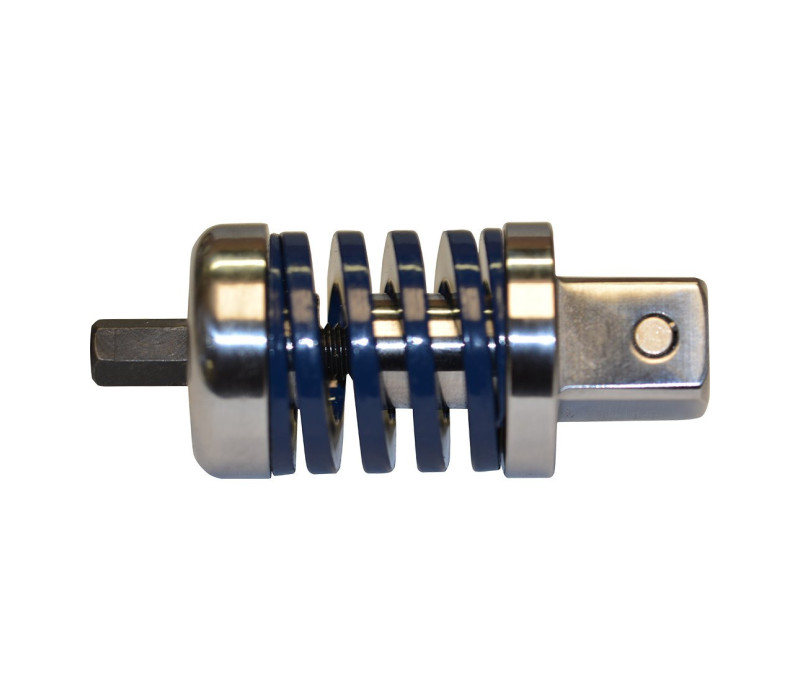

TTC-RD-6 rundown Adapter 6-N-m Capacity

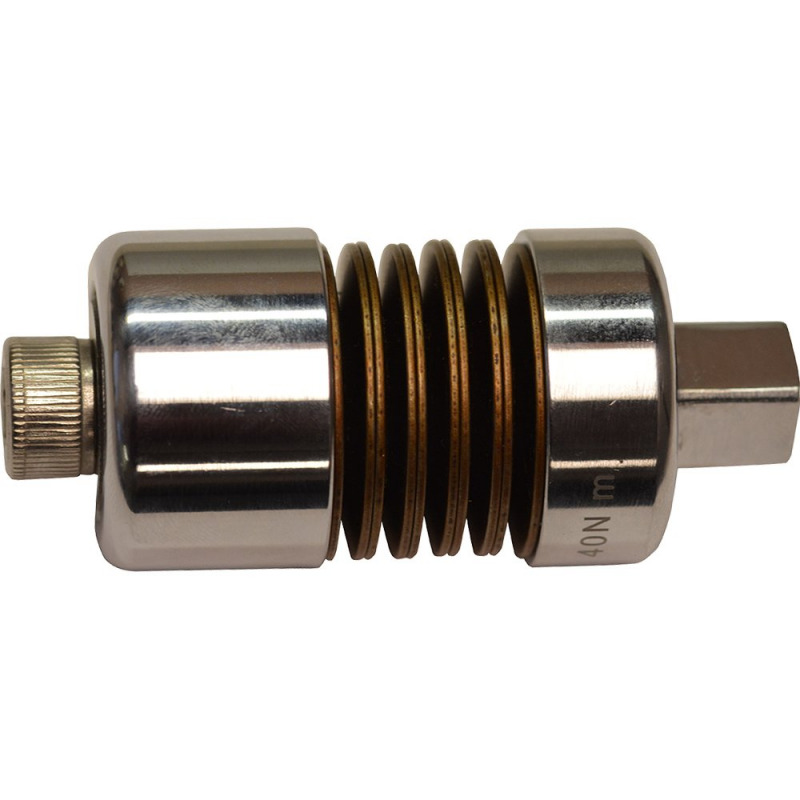

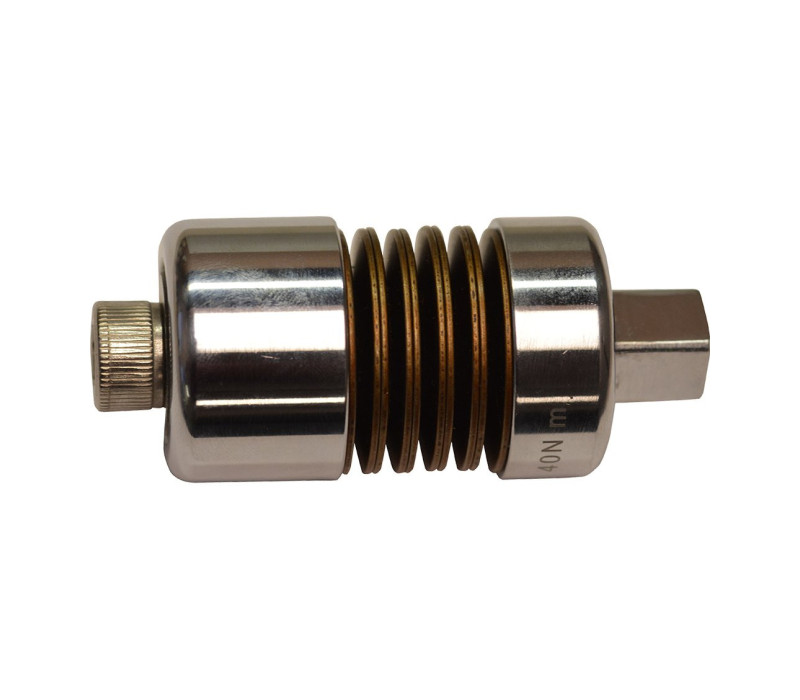

TTC-RD-40 rundown Adapter 40-N-m Capacity

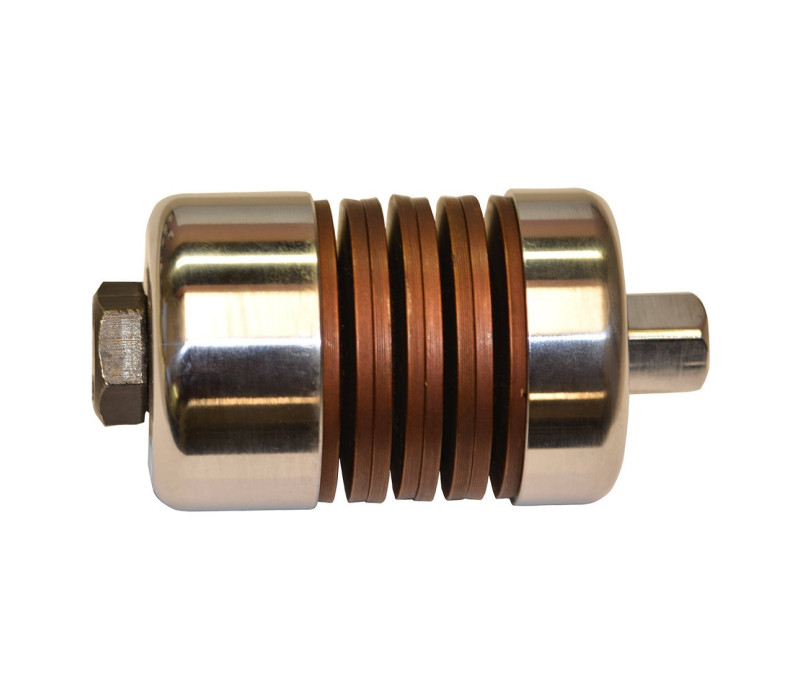

TTC-RD-100 rundown Adapter 100-N-m Capacity

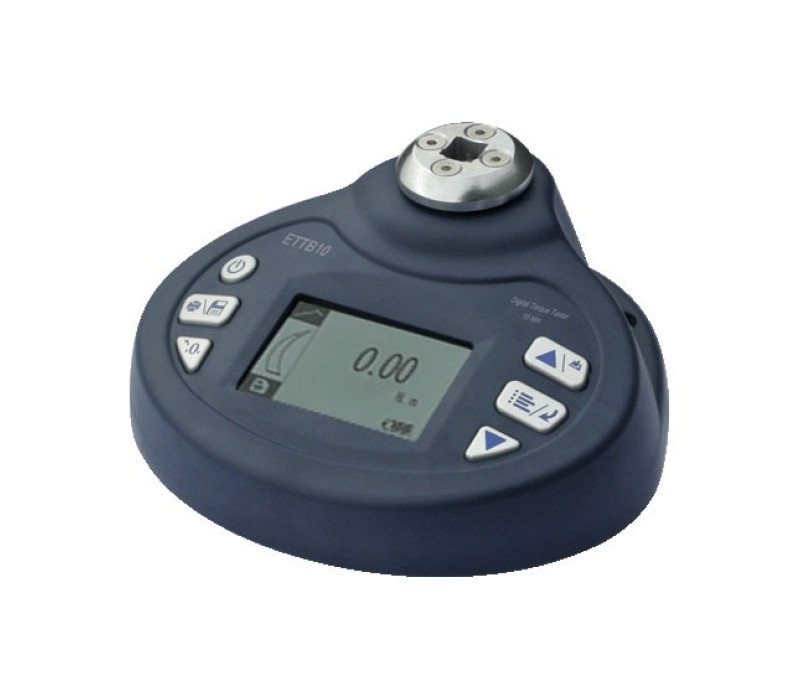

TTC Torque Tool Tester

The Checkline TTC Torque Tool Tester is easy to install and perfectly suitable for quick tool inspection. It comes in 9 Torque ranges from 2 N-cm up till 800 N-m.

The models TTC-I up till 100 N-m come with an integrated sensor. The models TTC-E from 200 up till 800N-m come with an external sensor.

Bidirectional accuracy is ± 0,3% of reading over 5 to 100% capacity
6 modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak
Selectable engineering units: N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range)

Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a period of time, Auto First Peak which resets the first peak after a period of time, Double Peak which provides two separate peak readings from programmed decreases. Preset operation with programmable tolerance thresholds for quick pass fail tool test is available in all modes.

The TTC Torque Tool Tester Series is accurate and can be used to test the torque on wide range of torque tools. Such as:

Torque wrenches,
Manual screwdrivers,
Electric screwdrivers,
Pneumatic screwdrivers
Other torque controlled power tools. (Not suitable for impact torque tools)

The TTC Torque Tool Tester Series can be used with the integrated rechargeable battery (Battery Life Approx. 16 Hours continuous on full charge) or with the included AC adapter.

The analog bar graph on the backlit, reversible LCD shows the current torque position compared to the full scale range. in CW and CCW direction. Pass/fail icons produce live test feedback allowing instant determination of the results.

The TTC Torque Tool Tester comes standard with USB and RS-232 outputs. The TTC’s software enables the uploading of data and the additional statistical analysis with its auto-calculation of the selected values.

Solid lightweight aluminum housing
6 modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak
0.3% accuracy and measuring ranges up to 800 N-m
Pass / Fail Testing with LED indication
Data storage for up to 1000 readings
USB and RS232 communication for data export
Runs on rechargeable batteries or using the AC adapter

The TCC-I Torque Tool Tester comes with:

USB cable
Charger adapter
Calibration certificate with data
Printer cable
Square driver adapter connector (Ranges to 200 N-m only)
Instruction manual English
Free Software

Range by Unit (Resolution)

Model	N-m	Resolution N-m	N-cm	Resolution N-cm	kgf-cm	Resolution kgf-cm	in-lbf	Resolution in-lbf	ft-lbf	Resolution ft-lbf
TTC-I-2	2	0.0002	200	0.02	20	0.002	17.7	0.002	1.48	0.0002
TTC-I-5	5	0.0005	500	0.05	50	0.005	43.3	0.005	3.7	0.0005
TTC-I-10	10	0.001	1000	0.1	10	0.01	88.5	0.01	7.4	0.001
TTC-I-20	20	0.002	2000	0.2	200	0.02	177	0.02	14.8	0.002
TTC-I-50	50	0.005	5000	0.5	500	0.05	443	0.05	36.8	0.005
TTC-I-100	100	0.01	10000	1	1000	0.1	885	0.1	74	0.01
TTC-E-200	200	0.02	-	-	2000	0.2	1770	0.2	148	0.02
TTC-E-500	500	0.05	-	-	5000	0.5	4425	0.5	368	0.05
TTC-E-800	800	0.1	-	-	8000	1	7080	1	590	0.1

Calibrated Range	5-100% Full Scale, bi-directional
Accuracy	±0.3% of measured value over 5 to 100% capacity
Tool Socket Size	TTC-2/5/10: 1/4” & 1/2” (6.3 & 12.5 mm) TTC-20/50/100/200: 3/8” & 1/2” (10 & 12.5 mm) TTC-500/800: 3/4” (19 mm)
Selectable measuring units	N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range)
Overload Protection	120% of Full Scale
Sampling Rate	2000 Hz
Peak Capture Rate	0.05 s
Display	Pantalla LCD retroiluminada de matriz de 160 x 128 puntos
Display Update Rate	10 times/sec
Memory	1000 data
Set Point	Programmable High and Low Limits
Battery Indication	Battery icon flashes when low
Charger/Adapter	Universal USB charger, input 100 to 240 V ac 50/60 Hz
Operating Temperature	-10 to 40°C
Humidity Limit	20 to 80% RH
Power	3.6 V dc 1600 mAH Ni-MH
Battery Life	Approximately 16 Hours continuous on full charge
Output	USB, serial port RS-232, High and low limit NPN
Dimensions	197 x 180 x 83 mm
Weight	TTC-I models: 1.5 kg / TTC-E models: Display 1,2 kg & TTC-E-200/500/800 External Sensor: 2 kg
Certification	CE
Warranty	1 year
Shipping Weight	TTC-I models: 3,0 kg / TTC-E models: 4,6 kg

Products

Item	Product	Price	Quantity	Action
136401	TTC-I-2 -Torque Tester - 2 Nm
138279	TTC-I-5 -Torque Tester - 5Nm
139020	TTC-I-10 - Torque Tester - 10 Nm
139022	TTC-I-20 - Torque Tester - 20 Nm
139023	TTC-I-50 - Torque Tester - 50 Nm
139024	TTC-I-100 -Torque Tester - 100 Nm
139025	TTC-E-200 - Torque Tester, External Sensor - 200Nm
139026	TTC-E-500 - Torque Tester, External Sensor - 500 Nm
139027	TTC-E-800 -Torque Tester, External Sensor - 800 Nm

Accessories

Item	Product	Price

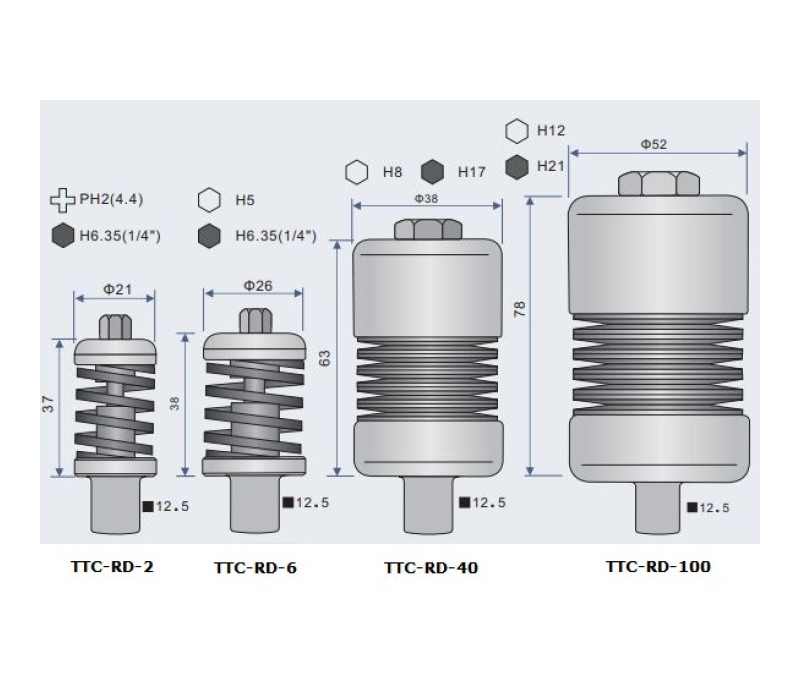

138280	TTC-RD-2 - Rundown adapter - 2 Nm
139028	TTC-RD-6 - Rundown adapter - 6 Nm
139029	TTC-RD-40 - Rundown adapter 40 Nm
139030	TTC-RD-100 - Rundown adapter 100 Nm
137073	USB - Power Supply Adapter 1A/5W/1 Port - EU version	€ 4,00
139033	TTC-BAT - Replacement Battery for TNC & TTC

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
