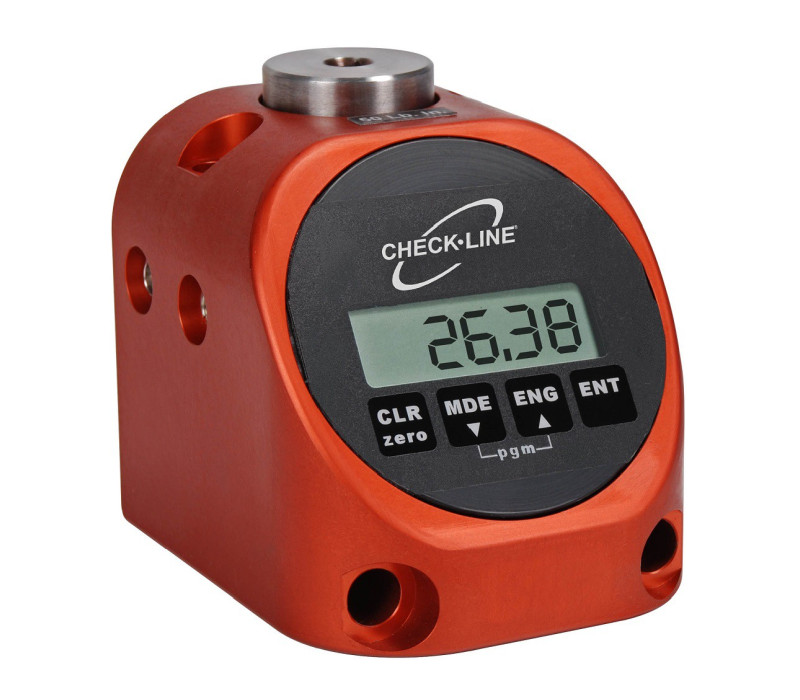

Torque Tool Tester TT-QC with Digital Display

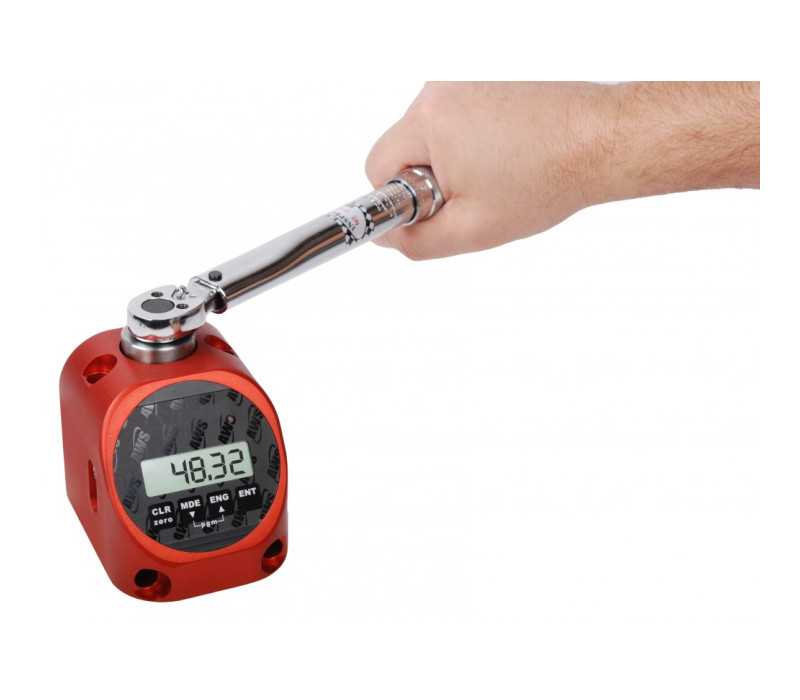

TT-QC Torque Tool Tester checking a click-type torque wrench

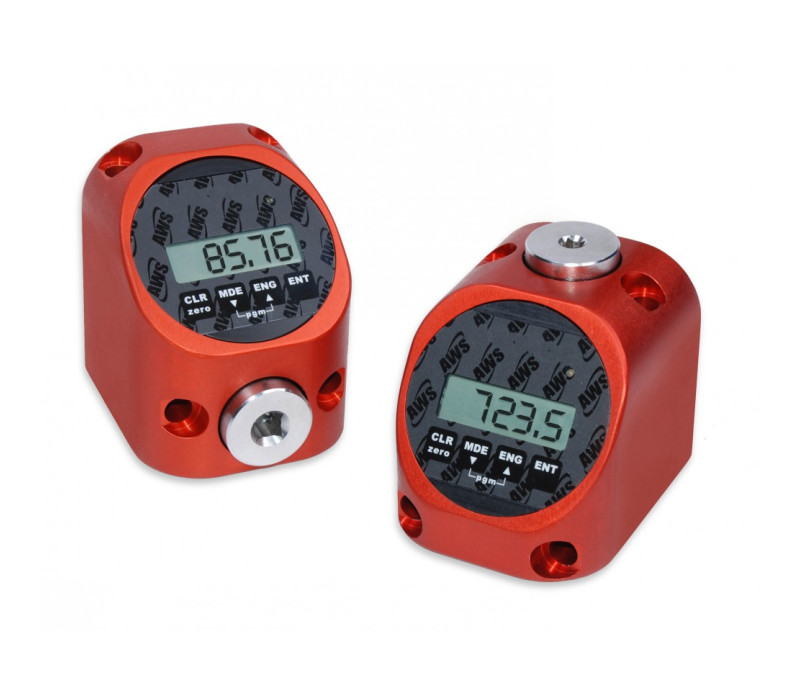

TT-QC Torque Tool Testers in two sizes

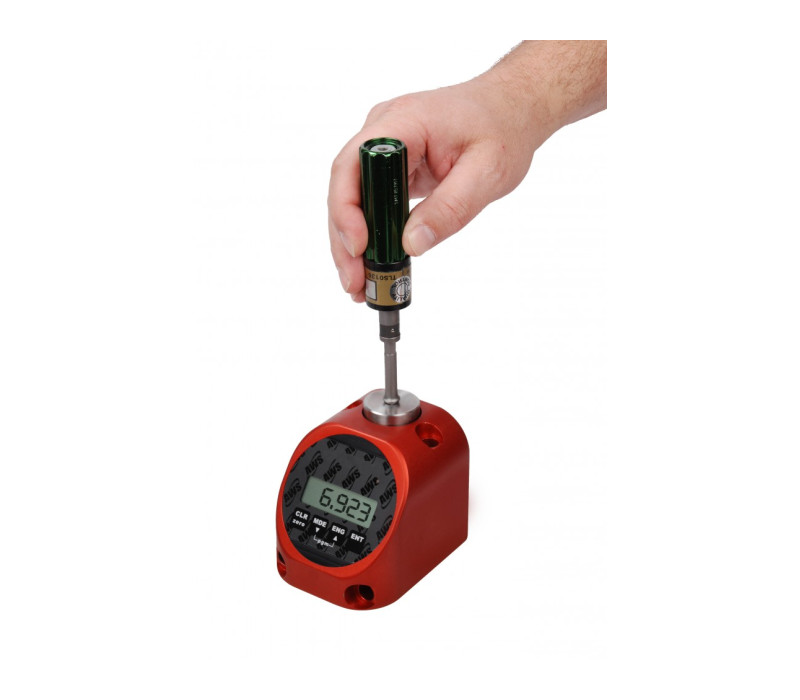

TT-QC Torque Tool Tester checking a torque screwdriver

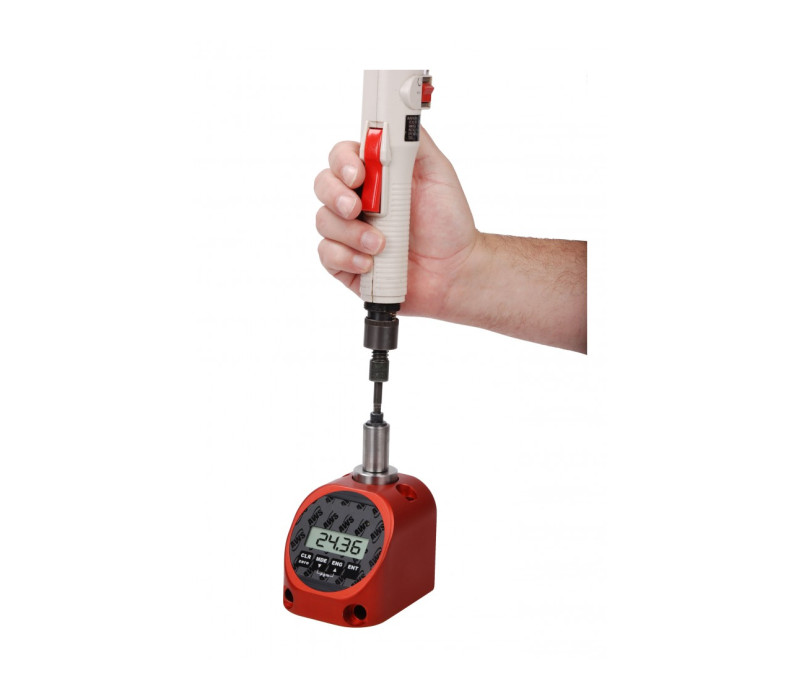

TT-QC Torque Tool Tester checking an electric screwdriver

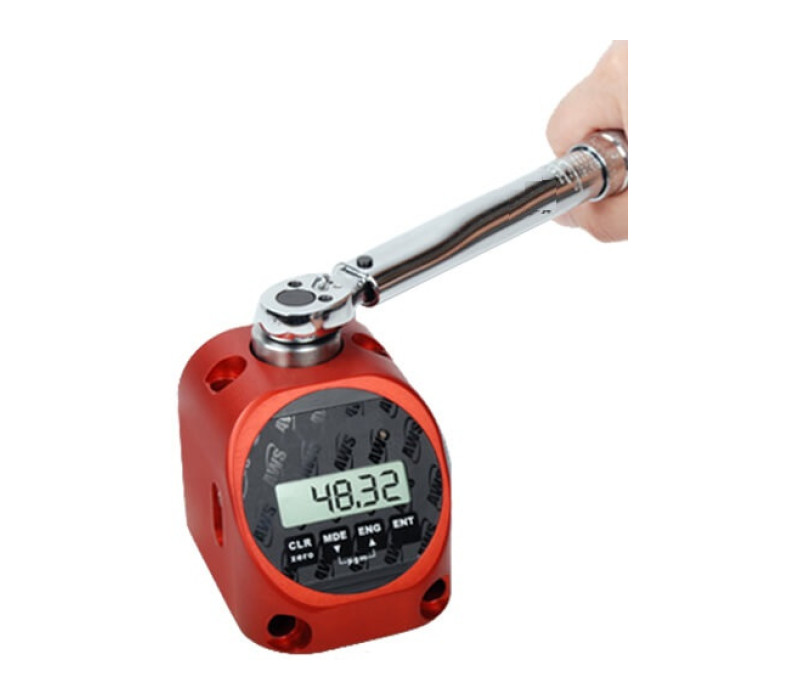

TT-QC Torque Tool Tester with a ratchet torque wrench

TT-QC Torque Tool Tester for Quick Torque Verification

Bench-mounted torque tester for quick verification of torque wrenches, screwdrivers and compatible power tools

The TT-QC Torque Tool Tester is designed for fast torque-tool checks at the workstation. It measures torque in both clockwise and counter-clockwise directions and is suitable for checking click, dial and digital torque wrenches, torque screwdrivers and compatible powered torque tools.

Three operating modes — Track, Peak and First Peak — support different tool types and verification methods. High and low limits provide immediate visual feedback, while internal memory can store up to 999 readings for later review or transfer through the RS-232 interface.

The TT-QC can be configured for horizontal or vertical tool testing. The optional QC-ROTARY swivel mount allows the display orientation to be changed where greater mounting flexibility is required.

Powered tools require a suitable run-down fixture / joint simulator. The TT-QC is not intended for testing impact wrenches or use with torque multipliers.

MODEL:

0,035 -0,35
0,07 -0,7
0,12 - 1,12
0,14-1,4
0,28-2,8
0,56-5,6
1.12-11
1,6-16
2,8-28
5,6-56
8,4-84
11,2-11
13,5-135
20-203
33-338
67-670
81-810
101-1016

Order now

Bidirectional accuracy of ±1% of indicated reading over 10–100% of capacity
Track, Peak and First Peak operating modes
Eight selectable engineering units: oz·in, lb·in, lb·ft, N·m, cN·m, kgf·cm, gf·cm and kgf·m
High and low limits with visual LED indication
Internal memory for up to 999 readings
RS-232 serial data output for transferring measurement data
Suitable for horizontal or vertical torque-tool testing
Rechargeable NiMH battery provides approximately 10–12 hours of continuous use
Solid machined aluminium housing
Includes NIST-Traceable Calibration Certificate with data

TT-QC Torque Tool Tester
Run-down fixtures for 1/4" and 3/8" drive models up to 1000 lbf·in
AC adapter/charger
NIST-Traceable Calibration Certificate with data

Calibrated Range	10–100% of capacity, bidirectional
Accuracy	±1% of indicated reading within the calibrated range, bidirectional
Operating Modes	Track, Peak and First Peak
Engineering Units	oz·in, lb·in, lb·ft, N·m, cN·m, kgf·cm, gf·cm, kgf·m
Display	4 active digits
Memory	Up to 999 readings
Limits	Programmable high and low limits with visual LED indication
Data Output	RS-232 serial output
Power	Internal rechargeable NiMH battery and AC adapter/charger
Battery Life	Approximately 10–12 hours of continuous use
Operating Temperature	0–50 °C
Housing	Machined aluminium
Dimensions	Approx. 79 × 95 × 82 mm (3.125 × 3.75 × 3.25 in) The TT-QC-750f-3/4 uses a larger housing
Weight	Approx. 1.1 kg (2.5 lb)
Warranty	1 year

Measuring ranges

Model	Measuring range	Square drive
TT-QC-50z-1/4-E	0.0353–0.353 N·m3.53–35.3 N·cm0.36–3.6 kgf·cm0.0036–0.036 kgf·m0.026–0.26 lbf·ft0.312–3.12 lbf·in5–50 ozf·in	1/4"
TT-QC-100z-1/4-E	0.0706–0.706 N·m7.06–70.6 N·cm0.72–7.2 kgf·cm0.0072–0.072 kgf·m0.0521–0.521 lbf·ft0.625–6.25 lbf·in10–100 ozf·in	1/4"
TT-QC-10i-1/4	0.113–1.13 N·m11.3–113 N·cm1.15–11.5 kgf·cm0.0115–0.115 kgf·m0.0833–0.833 lbf·ft1–10 lbf·in16–160 ozf·in	1/4"
TT-QC-200z-1/4-E	0.141–1.41 N·m14.1–141 N·cm1.44–14.4 kgf·cm0.0144–0.144 kgf·m0.104–1.04 lbf·ft1.25–12.5 lbf·in20–200 ozf·in	1/4"
TT-QC-25i-1/4	0.282–2.82 N·m28.2–282 N·cm2.88–28.8 kgf·cm0.0288–0.288 kgf·m0.208–2.08 lbf·ft2.5–25 lbf·in40–400 ozf·in	1/4"
TT-QC-50i-1/4	0.565–5.65 N·m56.5–565 N·cm5.76–57.6 kgf·cm0.0576–0.576 kgf·m0.417–4.17 lbf·ft5–50 lbf·in80–800 ozf·in	1/4"
TT-QC-100i-1/4	1.13–11.3 N·m113–1130 N·cm11.5–115 kgf·cm0.115–1.15 kgf·m0.833–8.33 lbf·ft10–100 lbf·in160–1600 ozf·in	1/4"
TT-QC-150i-1/4	1.69–16.9 N·m169–1695 N·cm17.3–173 kgf·cm0.173–1.73 kgf·m1.25–12.5 lbf·ft15–150 lbf·in240–2400 ozf·in	1/4"
TT-QC-250i-3/8	2.82–28.2 N·m282–2825 N·cm28.8–288 kgf·cm0.288–2.88 kgf·m2.08–20.8 lbf·ft25–250 lbf·in400–4000 ozf·in	3/8"
TT-QC-500i-3/8	5.65–56.5 N·m565–5649 N·cm57.6–576 kgf·cm0.576–5.76 kgf·m4.17–41.7 lbf·ft50–500 lbf·in800–8000 ozf·in	3/8"
TT-QC-750i-3/8	8.47–84.7 N·m847–8474 N·cm86.4–864 kgf·cm0.864–8.64 kgf·m6.25–62.5 lbf·ft75–750 lbf·in1200–12,000 ozf·in	3/8"
TT-QC-1000i-3/8	11.3–113 N·m1130–11,298 N·cm115–1152 kgf·cm1.15–11.5 kgf·m8.33–83.3 lbf·ft100–1000 lbf·in1600–16,000 ozf·in	3/8"
TT-QC-100f-1/2	13.6–136 N·m1356–13,558 N·cm138–1383 kgf·cm1.38–13.8 kgf·m10–100 lbf·ft120–1200 lbf·in1920–19,200 ozf·in	1/2"
TT-QC-150f-1/2-E	20.3–203 N·m2034–20,337 N·cm207–2074 kgf·cm2.07–20.7 kgf·m15–150 lbf·ft180–1800 lbf·in2880–28,800 ozf·in	1/2"
TT-QC-250f-1/2	33.9–339 N·m3390–33,895 N·cm346–3456 kgf·cm3.46–34.6 kgf·m25–250 lbf·ft300–3000 lbf·in4800–48,000 ozf·in	1/2"
TT-QC-500f-3/4	67.8–678 N·m6779–67,791 N·cm691–6913 kgf·cm6.91–69.1 kgf·m50–500 lbf·ft600–6000 lbf·in9600–96,000 ozf·in	3/4"
TT-QC-600f-3/4	81.3–813 N·m8135–81,349 N·cm830–8295 kgf·cm8.3–83 kgf·m60–600 lbf·ft720–7200 lbf·in11,520–115,200 ozf·in	3/4"
TT-QC-750f-3/4	102–1017 N·m10,169–101,686 N·cm1037–10,369 kgf·cm10.4–104 kgf·m75–750 lbf·ft900–9000 lbf·in14,400–144,000 ozf·in	3/4"

Don't see the range you need? Custom ranges are available — please contact us to discuss your requirements.

Options

Option	Description
QC-ROTARY	Swivel mount allowing the display to be viewed in horizontal or vertical mounting positions — available on request
QC-Cal Soft	PC software for adjustment of QC calibration, including ICBL-USB data cable — available on request
AWS-QC-CAL	Calibration box for the QC series — available on request
Replacement transducer shafts	Replacement transducer shafts including factory installation and calibration — available on request
Run-down fixtures for larger drives	Run-down fixture kits for 1/2", 3/4" and larger drive models are optional — available on request

Products

Item	Product	Price
134907	TT-QC-50z-1/4-E Torque Tester - 0,035-0,35 Nm	€ 1.469,00
131125	TT-QC-100z-1/4-E Torque Tester - 0,07-0,7 Nm	€ 1.469,00
132853	TT-QC-10i-1/4 Torque Tester - 0,12-1,12 Nm	€ 1.346,00
130275	TT-QC-200z-1/4-E Torque Tester - 0,14-1,4 Nm	€ 1.346,00
130221	TT-QC-25i-1/4 Torque Tester - 0,28-2,8 Nm	€ 1.346,00
130280	TT-QC-50i-1/4 Torque Tester - 0,56-5,6 Nm	€ 1.346,00
130039	TT-QC-100i-1/4 Torque Tester - 1.12-11 Nm	€ 1.346,00
131246	TT-QC-150i-1/4 Torque Tester - 1,6-16 Nm	€ 1.346,00
132206	TT-QC-250i-3/8 Torque Tester - 2,8-28 Nm	€ 1.346,00
132080	TT-QC-500i-3/8 Torque Tester - 5,6-56 Nm	€ 1.346,00
125191	TT-QC-750i-3/8 Torque Tester - 8,4-84 Nm	€ 1.346,00
132919	TT-QC-1000i-3/8 Torque Tester - 11,2-112 Nm	€ 1.346,00
130468	TT-QC-100f-1/2 Torque Tester - 13,5-135 Nm	€ 1.592,00
131167	TT-QC-150f-1/2-E Torque Tester - 20-203 Nm	€ 1.592,00
132263	TT-QC-250f-1/2 Torque Tool Tester - 33-338 Nm	€ 1.592,00
134175	TT-QC-500f-3/4 Torque Tester - 67-670 Nm	€ 1.592,00
134176	TT-QC-600f-3/4 Torque Tester - 81-810 Nm	€ 1.592,00
134177	TT-QC-750f-3/4 Torque Tester - 101-1016 Nm	€ 1.961,00
134178	TT-QC-1000f-1 Torque Tester - 135-1350 Nm

Accessories

Item	Product	Price
130689	TTS-SOFT Software for TT-Series with cable	€ 169,00
136686	TTS-SC Software for TT, MTM- series with cable	€ 333,00
140085	Tools v2 Software with database and certificate manager	€ 1.843,00
133398	RDFAHE-100 - 100 Lb-ft / 135 Nm Washer Encapsulated Rundown Fixture, 1/2" Drive	€ 640,00
134609	RDFAHE-150 - 150 Lb-ft / 200 Nm Washer Encapsulated Rundown Fixture, 1/2" Drive	€ 640,00
134612	RDFAHE-250 - 250 Lb-ft / 340 Nm Washer Encapsulated Rundown Fixture, 1/2" Drive	€ 640,00
133678	TT-QC-World, Universal Adapter for TT-QC

All prices shown exclude VAT and shipping costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

TT-QC Torque Tool Tester for Quick Torque Verification

Features

Specifications

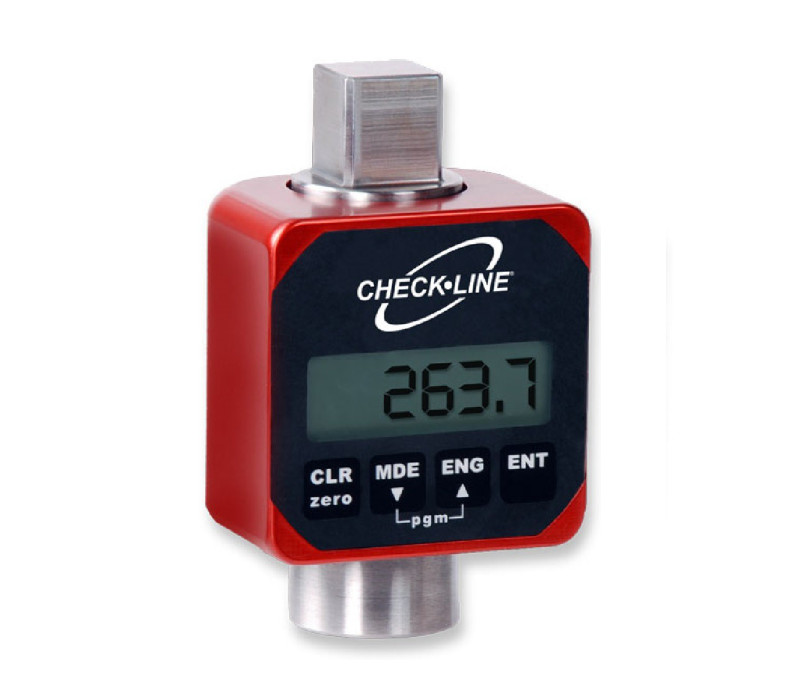

Inline Torque Tester
