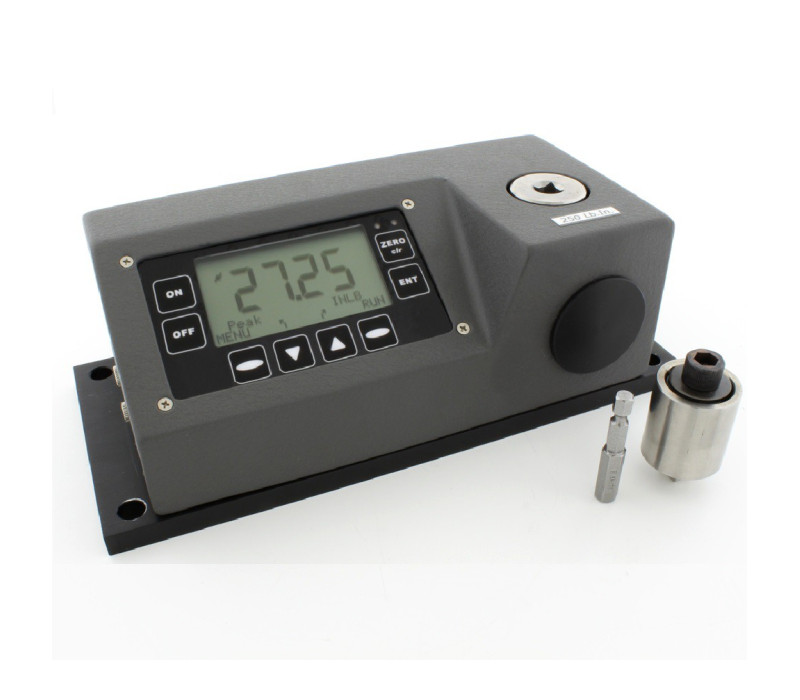

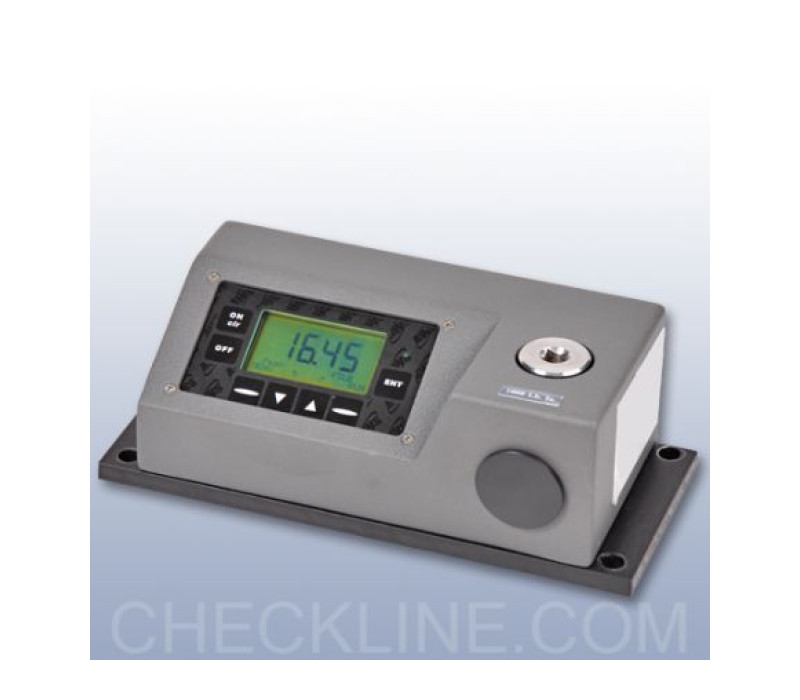

    Series Torque Testers with 16 measurement ranges

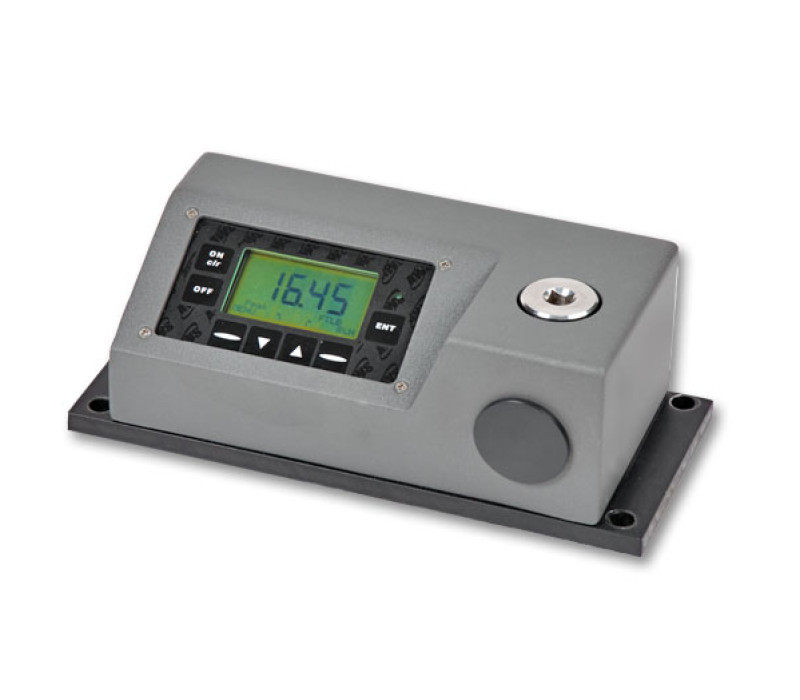

    The powerful and versatile TT-3000 Series Torque Testers fulfill the demands of modern production facilities at a low cost. These testing systems accommodate many testing requirements and most power tools including pulse and DC electric. Furthermore the TT-3000 Series Torque Testers are perfectly suited for testing click, dial, and digital wrenches.

    The data memory allows the storage of 999 data points for later viewing or sending them via the standard RS232 port to a local printer or PC. The unique lock switch facility allows tamper-proof operation. High and low limits are easily set and a panel mounted LED visually notifies the user when the torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations, and rundown fixtures for power/pulse tool testing.

    N.B.: This torque tester is not suitable for testing impact wrenches or for use with force multipliers and a screw simulator is needed for the use of electrical, hydraulic and pneumatic tools.
    Price from € 1.853,00
    Order now
    • Bidirectional accuracy of ±0.5% of indicated reading
    • Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
    • 3 modes of operation: Track, Peak, and 1st Peak
    • NiMH rechargeable batteries provide 8-10 hours continuous use
    • Joint Simulator supplied with all 1/4", & 3/8" drives, optionally available on 1/2", 3/4" & 1" drives.

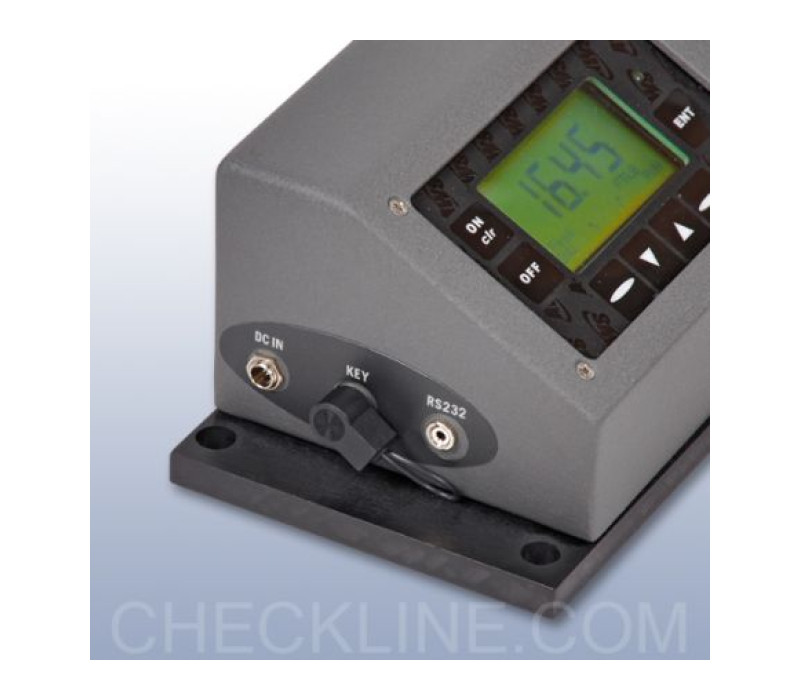

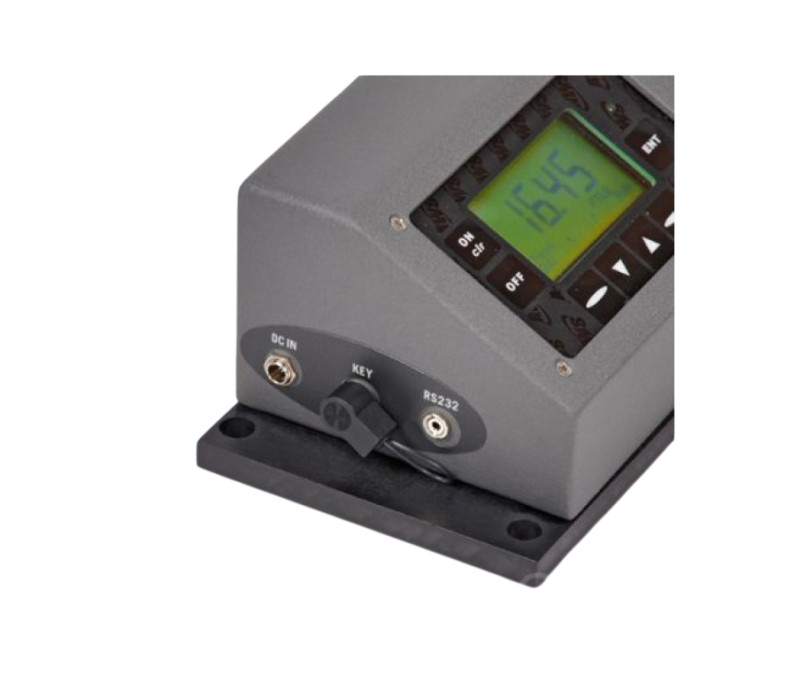

    • RS-232 Output
    • Selectable power tool filtering speeds: 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 1500 Hz and 2000 Hz

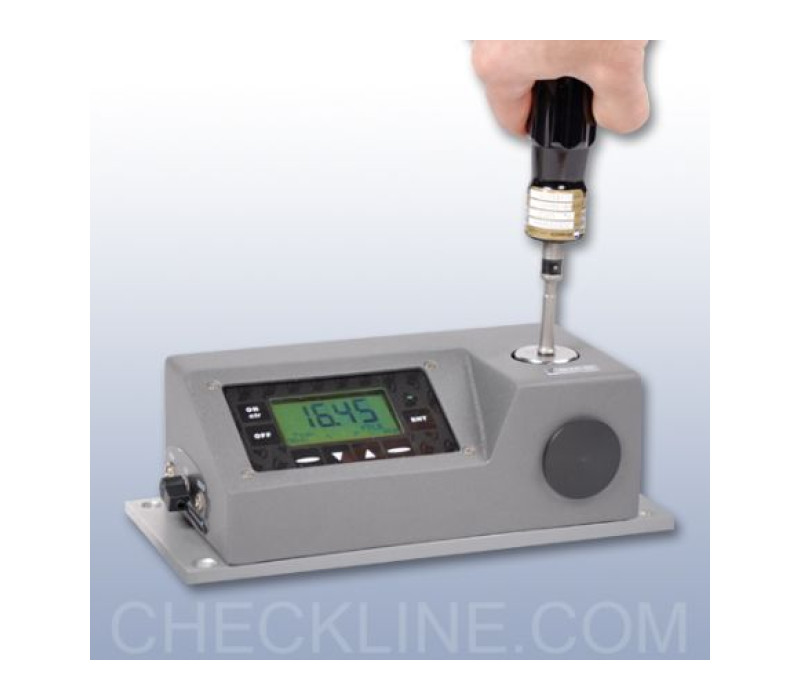

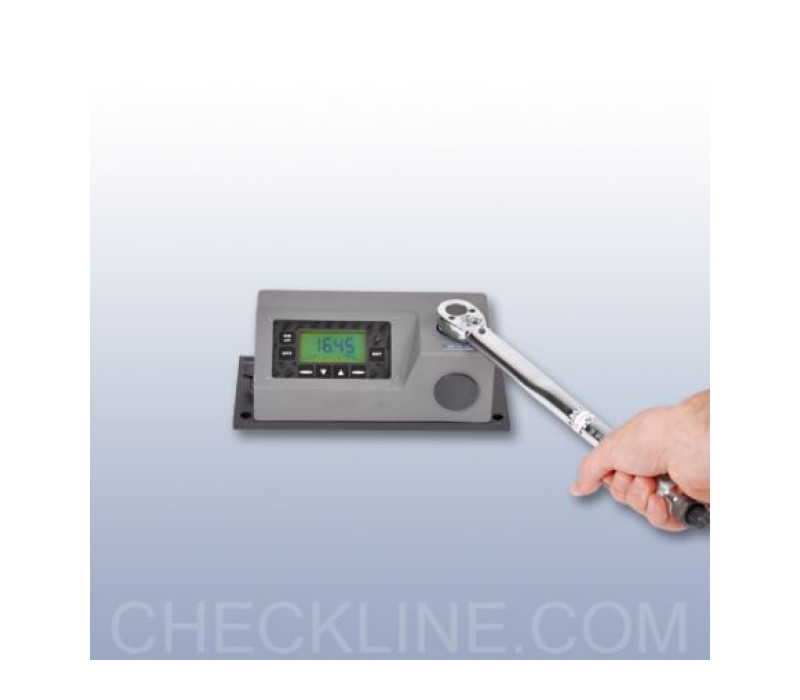

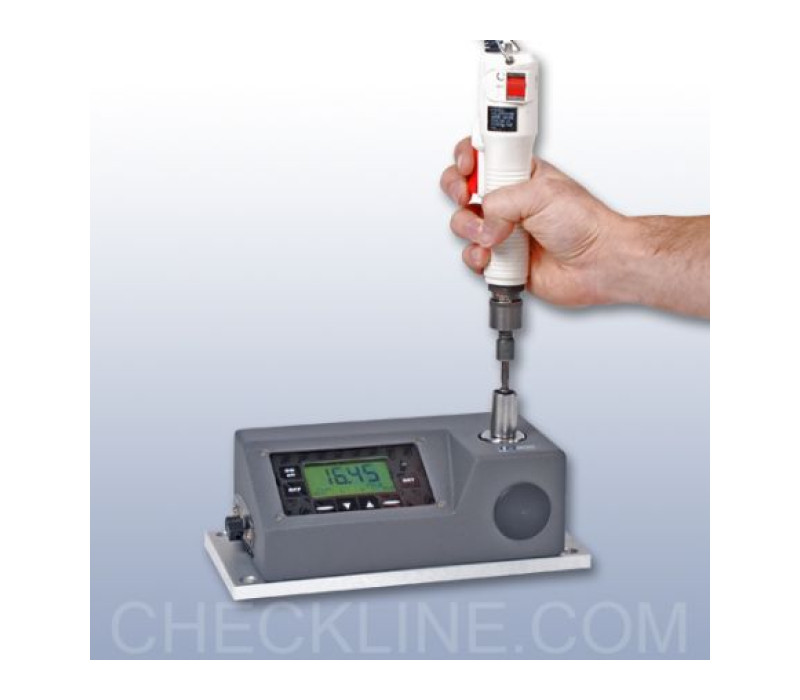

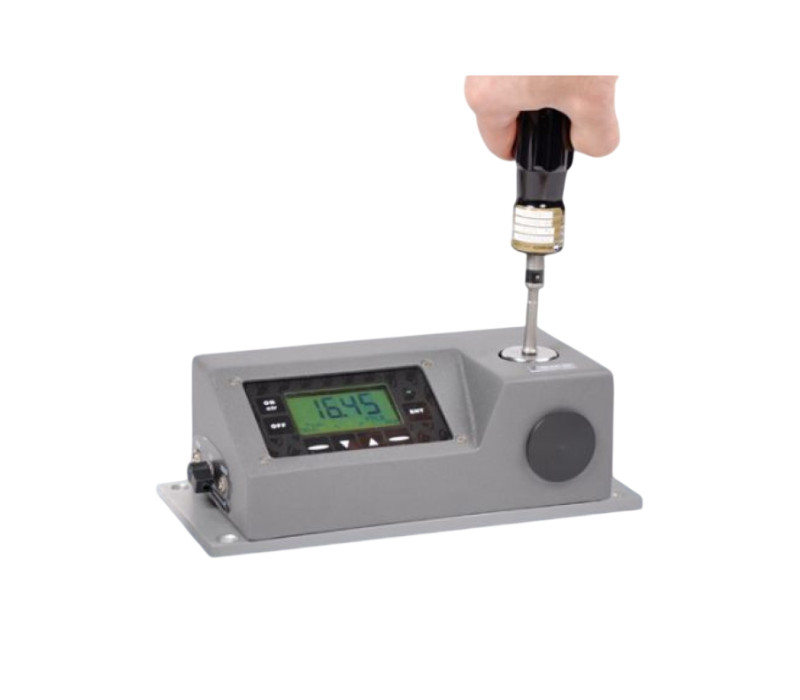

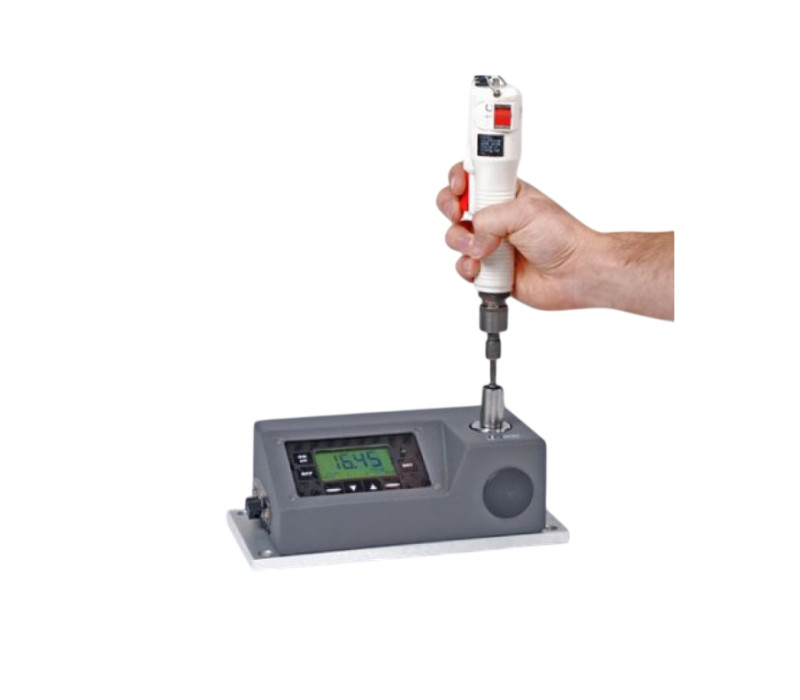

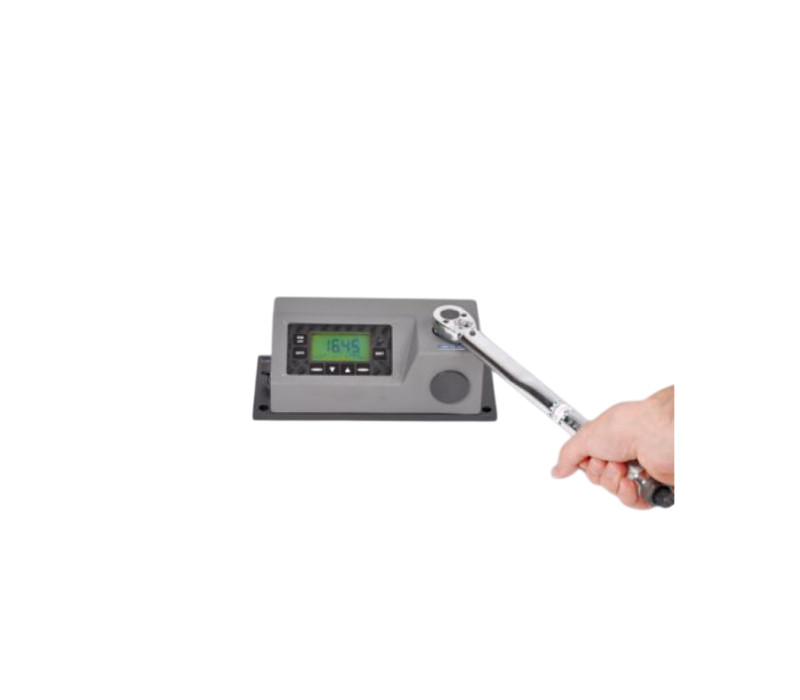

    • For testing click, dial, and digital wrenches, plus most power tools including impulse and DC electric
    • Includes NIST - Traceable Calibration Certificate with Data
    Y1 no header
    Don't see the range you need? Custom ranges are available, please call us to discuss your application.

    ER - Extended Range Option increases certified range to 5-100% (instead of 10-100%)

    Dimensions-TT-3000
    Calibrated Range10-100% Full Scale, bi-directional (Standard)
    Extended Range5-100% Full Scale, bi-directional (ER Option)
    Accuracy±0.5% of indicated (within calibrated range)
    Resolution4 Active Digits
    Overload Protection200% Full Scale bi-directional
    Operating ModesTrack, peak, 1st peak
    FilteringSelectable; 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 1500 Hz and 2000 Hz
    MemoryData storage of up to 999 readings
    Data OutputRS-232
    Display62 x 62 mm backlit LCD
    Alarm LimitsPanel Mounted LED for Visual Alarm Limits
    PowerNiMH rechargeable batteries provide 8-10 hours continuous use
    Weight6-9 lbs, depends on number of transducer
    Operating Temperature32 - 120°F (0 - 50°C)
    Warranty1 Year
    Calibration CertificateIncludes NIST Traceable calibration certificate with data
    Standard AccessoriesJoint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
    Optional AccessoriesJoint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option

    Related Products

    Browse Related Products

    SMD-SC Torque software for data collection & analysis

    SMD-SC Torque software for data collection & analysis

    RDF Joint Simulators / Run Down Fixtures

    RDF Joint Simulators / Run Down Fixtures

    Torque Tool Tester for quick tool inspection

    Torque Tool Tester for quick tool inspection

    MTM Multi-Range Torque Tester

    MTM Multi-Range Torque Tester

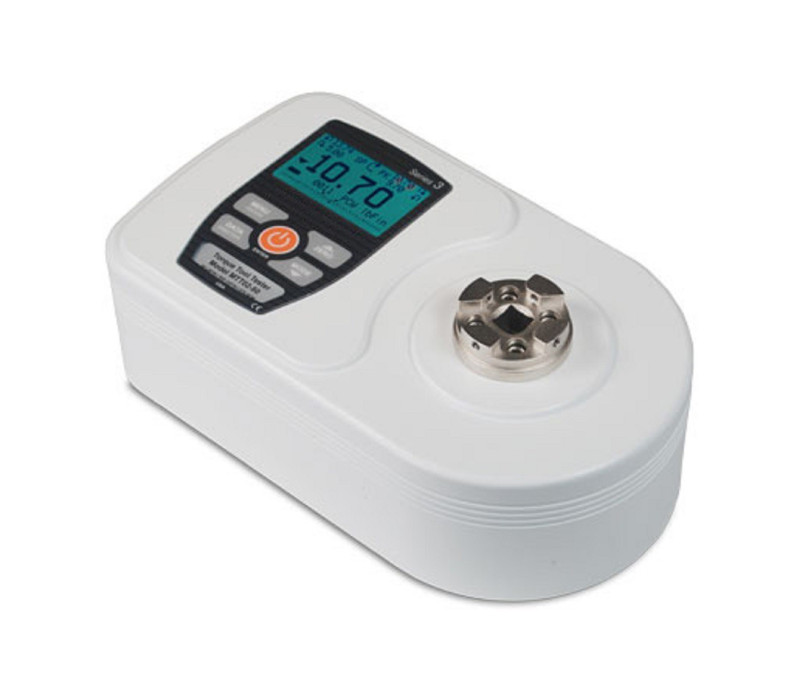

    Series-TT02 Torque Tool Tester for (Electric) Screw Drivers

    Series-TT02 Torque Tool Tester for (Electric) Screw Drivers

    Cic-Torque Torque Instrument Calibration

    Cic-Torque Torque Instrument Calibration

    Order Now

    Products
    Item Product Price  Quantity Action
    135832TT-30050E Torque Tester - 3,53-35,3 Ncm, 1/4" Sq. Dr. € 1.853,00
    131124TT-3001E Torque Tester - 7-70 Ncm, 1/4" Sq. Dr. € 1.853,00
    132621TT-3011E Torque Tester - 11-112 Ncm, 1/4" Sq. Dr. € 1.853,00
    130687TT-3002E Torque Tester - 14-140 Ncm, 1/4" Sq. Dr. € 1.853,00
    132963TT-3012E Torque Tester - 0.28 - 2.8 Nm 1/4" Sq. Dr. € 1.853,00
    130538TT-3005E Torque Tester - 56-560 Ncm, 1/4" Sq. Dr. € 1.853,00
    132896TT-3010E Torque Tester - 1,12-11,2 Nm, 1/4" Sq. Dr. € 1.853,00
    132624TT-3015E Torque Tester - 1,6-16 Nm, 1/4" Sq. Dr. € 1.853,00
    132625TT-3025E Torque Tester - 2,8-28 Nm, 3/8" Sq. Dr. € 1.853,00
    132626TT-3050E Torque Tester - 5,6-56 Nm, 3/8" Sq. Dr. € 1.853,00
    132627TT-3075E Torque Tester - 8,4-84 Nm, 3/8" Sq. Dr. € 1.853,00
    132628TT-30100E Torque Tester - 11,2-112 Nm, 3/8" Sq. Dr. € 1.853,00
    132629TT-3100E Intellect Torque Tester - 13,5-135 Nm, 1/2" Sq. Dr. € 2.039,00
    132630TT-3150E Intellect Torque Tester - 20-203 Nm, 1/2" Sq. Dr. € 2.039,00
    132631TT-3250E Intellect Torque Tester - 33-338 Nm, 1/2" Sq. Dr. € 2.039,00
    130483TT-3500E Intellect Torque Tester - 67-670 Nm, 3/4" Sq. Dr. € 2.132,00
    132632TT-3750E Intellect Torque Tester - 101-1016 Nm, 3/4" Sq. Dr. € 2.132,00
    Accessories
    Item Product Price  Quantity Action
    132897ER - Extended Range option for TT-3000-series / QCM Torque Testers (per transducer) € 143,00

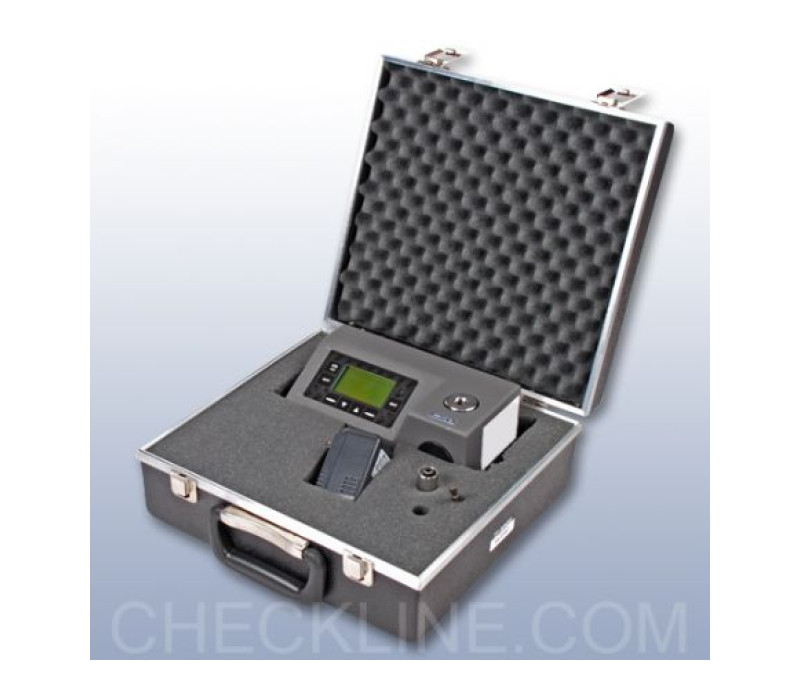

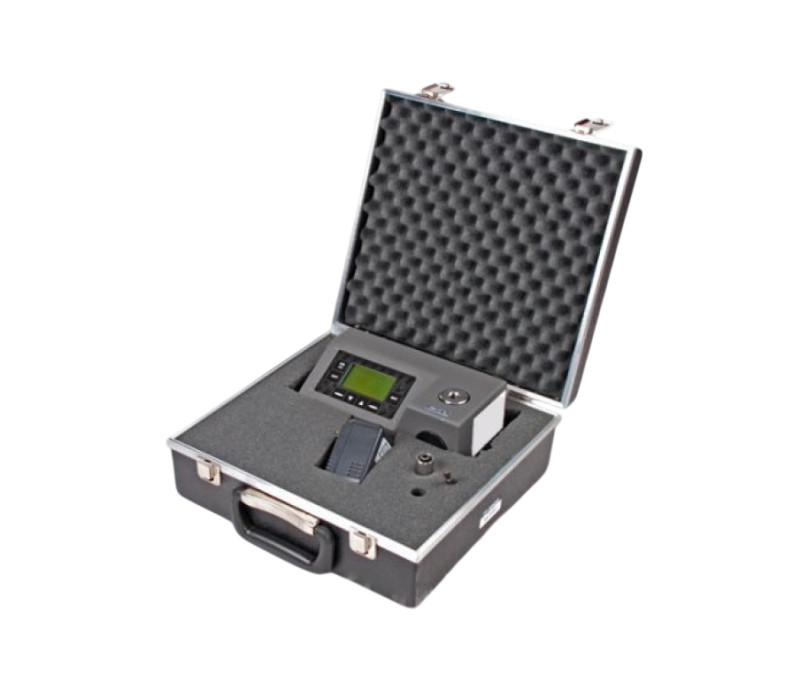

    131982TT-3000-CC - Carrying Case for 3000 Series
    134023TT-3000-EXT - Additional Input for external transducer € 255,00
    130689TTS-SOFT Software for TT-Series with cable € 153,00
    135457TT-QCM-World-Replacement AC-Adapter/Charger for QCM-MTM (220V AC) € 49,00
    136686TTS-SC Software for TT, MTM- series with cable € 302,00
    135559UPG-25 - Upgrade accuracy from ± 0.5% to ± 0.25% - PER TRANSDUCER € 179,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
