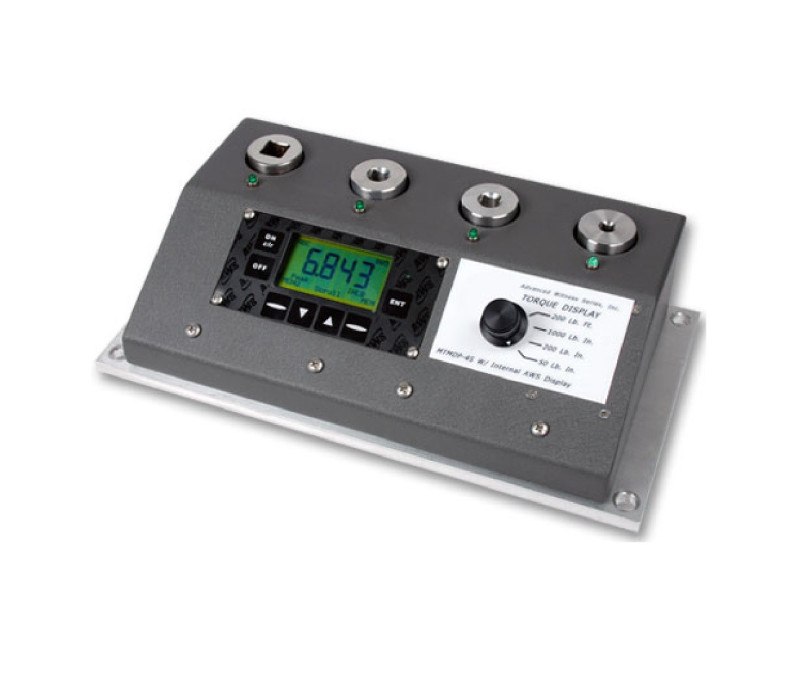

    MTM Multi-Range Torque Tester

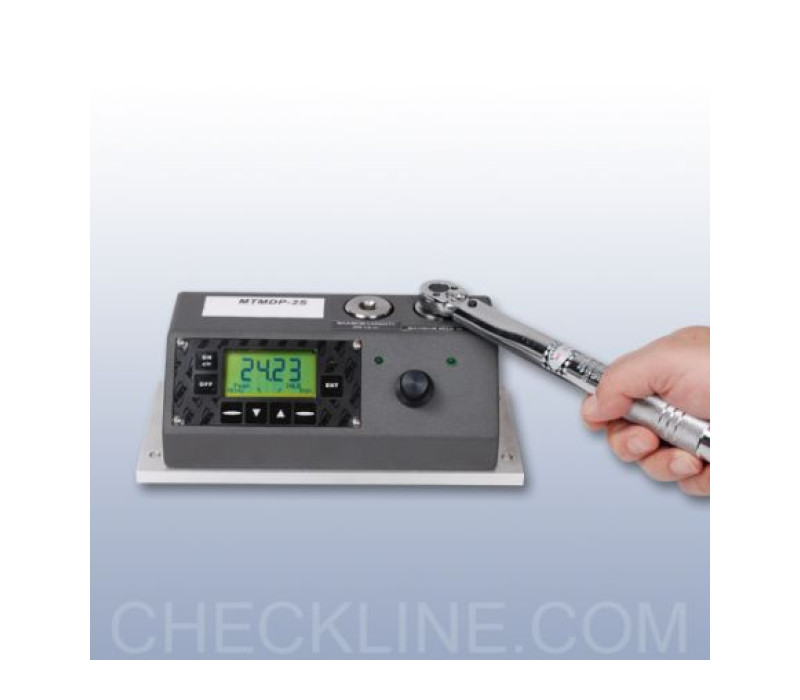

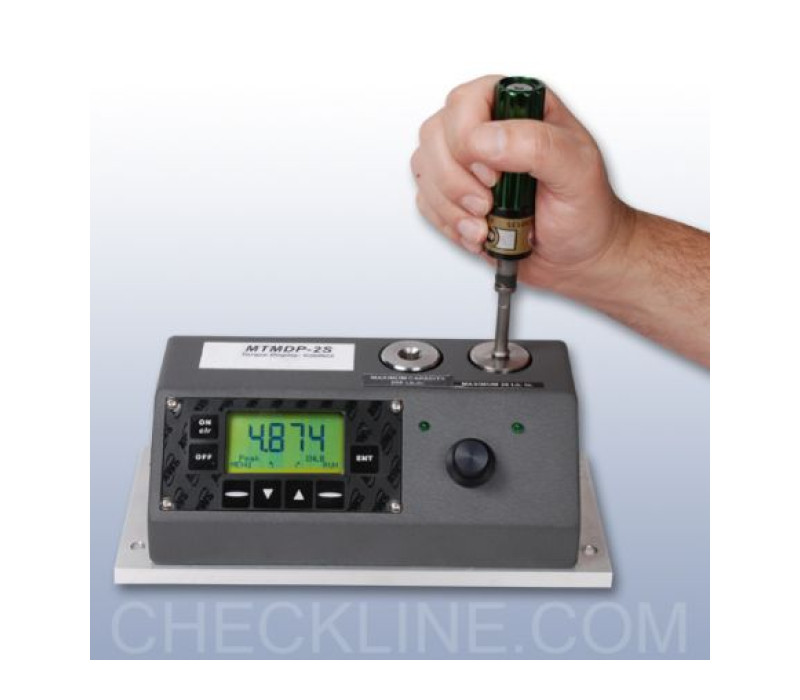

    The MTM Series of torque transducers are designed to provide an economical way to measure and calibrate multiple torque tools. The MTMDP models (MTMDP-2S pictured) have an integrated display for a fully integrated tester. Historically, transducers had to be purchased individually and then connected to a display via a switch box or a group of cables. With the MTM series, this has become much easier: up to 4 transducers can be integrated in one compact housing. There is a small footprint that allows clean, well-organized work space. This helps eliminate the endless searching for cables, adapters, and other accessories that may be needed. Features such as independent CW and CCW calibration, multi-point linearization, metrology grade transducer shafts, and overload protection to 200% of full scale are standard. All of the above translate to a better product for you at an unbeatable price. * MTMDP-2 coupled with an MTM-4.

    Price from € 3.229,00
    Order now
    • Available with 2, 3 or 4 torque transducers
    • Selectable units of: Ft-lb, IN-lb, IN-oz, KGF-m, KGF-cm, GF-cm, CN-m, N-m
    • Small footprint of the MTM allows for a clean, well-organized work space
    • 200% Overload protection
    • LED Indicator Shows Active Transducer
    • External transducers can be connected with cable input
    • Includes NIST Traceable calibration certificate with data for each transducer
    • Replaceable shaft design. If one shaft is damaged, replace that shaft, not the entire unit.
    • Hi-Lo Limits for Go-NoGo testing of tools
    Torque Ranges
    Model Range Drive Size
    1. ITIO-10*
    1 - 10 ozf-in
    0.1 - 0.6 lbf-in
    0 - 0.1 lbf-ft
    72 - 720 gf-cm
    0.1 - 0.7 kgf-cm
    0 - 0 kgf-m
    0.7 - 7.1 N-cm
    0 - 0.1 N-m
    		 1/4"
    2. ITIO-50
    5 - 50 ozf-in
    0.3 - 3.1 lbf-in
    0 - 0.3 lbf-ft
    360 - 3600.4 gf-cm
    0.4 - 3.6 kgf-cm
    0 - 0 kgf-m
    3.5 - 35.3 N-cm
    0 - 0.4 N-m
    		 1/4"
    3. ITIO-100
    10 - 100 ozf-in
    0.6 - 6.3 lbf-in
    0.1 - 0.5 lbf-ft
    720 - 7200.8 gf-cm
    0.7 - 7.2 kgf-cm
    0 - 0.1 kgf-m
    7.1 - 70.6 N-cm
    0.1 - 0.7 N-m
    		 1/4"
    4. ITI-10
    16 - 160 ozf-in
    1 - 10 lbf-in
    0.1 - 0.8 lbf-ft
    N/A
    1.2 - 11.5 kgf-cm
    0 - 0.1 kgf-m
    11.2 - 112 N-cm
    0.1 - 1.1 N-m
    		 1/4"
    5. ITI-25
    40 - 400 ozf-in
    2.5 - 25 lbf-in
    0.2 - 2.1 lbf-ft
    N/A
    2.9 - 28.8 kgf-cm
    0 - 0.3 kgf-m
    28.2 - 282 N-cm
    0.3 - 2.8 N-m
    		 1/4"
    6. ITI-50
    80 - 800 ozf-in
    5 - 50 lbf-in
    0.4 - 4.2 lbf-ft
    N/A
    5.8 - 57.6 kgf-cm
    0.1 - 0.6 kgf-m
    56.4 - 564 N-cm
    0.6 - 5.6 N-m
    		 1/4"
    7. ITI-100
    160 - 1600 ozf-in
    10 - 100 lbf-in
    0.8 - 8.3 lbf-ft
    N/A
    11.5 - 115 kgf-cm
    0.1 - 1.2 kgf-m
    112 - 1129.8 N-cm
    1.1 - 11.2 N-m
    		 1/4"
    8. ITI-250
    400 - 4000 ozf-in
    25 - 250 lbf-in
    2.1 - 20.8 lbf-ft
    N/A
    28.8 - 288 kgf-cm
    0.3 - 2.9 kgf-m
    282 - 2824.6 N-cm
    2.8 - 28.2 N-m
    		 3/8"
    9. ITI-500
    800 - 8000 ozf-in
    50 - 500 lbf-in
    4.2 - 41.6 lbf-ft
    N/A
    57.6 - 576 kgf-cm
    0.6 - 5.8 kgf-m
    564 - 5649.2 N-cm
    5.6 - 56.4 N-m
    		 3/8"
    10. ITI-1000
    N/A
    100 - 1000 lbf-in
    8.3 - 83.3 lbf-ft
    N/A
    115 - 1152.1 kgf-cm
    1.2 - 11.5 kgf-m
    N/A
    11.2 - 112 N-m
    		 3/8"
    11. ITF-100
    N/A
    120 - 1200 lbf-in
    10 - 100 lbf-ft
    N/A
    138 - 1382.5 kgf-cm
    1.4 - 13.8 kgf-m
    N/A
    13.5 - 135 N-m
    		 1/2"
    12. ITF-150
    N/A
    180 - 1800 lbf-in
    15 - 150 lbf-ft
    N/A
    207 - 2073.8 kgf-cm
    2.1 - 20.7 kgf-m
    N/A
    20.3 - 203 N-m
    		 1/2"
    13. ITF-250
    N/A
    300 - 3000 lbf-in
    25 - 250 lbf-ft
    N/A
    345 - 3456.4 kgf-cm
    3.5 - 34.5 kgf-m
    N/A
    33.8 - 338 N-m
    		 1/2"
    14. ITF-500
    N/A
    600 - 6000 lbf-in
    50 - 500 lbf-ft
    N/A
    691 - 6912.7 kgf-cm
    6.9 - 69.1 kgf-m
    N/A
    67.7 - 677 N-m
    		 3/4"
    15. ITF-600
    N/A
    720 - 7200 lbf-in
    60 - 600 lbf-ft
    N/A
    829 - 8295.3 kgf-cm
    8.3 - 82.9 kgf-m
    N/A
    81.3 - 813 N-m
    		 3/4"
    16. ITF-750
    N/A
    900 - 9000 lbf-in
    75 - 750 lbf-ft
    N/A
    N/A
    10.3 - 103 kgf-m
    N/A
    101 - 1016.9 N-m
    		 3/4"

    *The accuracy of the ITIO-10 is ±1% from 10–100% of capacity.

    **Ranges exceeding 750 ft-lbs are supplied as external, cable-connected sensors. Please contact us for further information.

    All 1/4" and 3/8" drive transducers are supplied with an additional threaded joint simulator ("run-down").

    Therefore, if you wish to test electric or pneumatic tools, an additional threaded joint simulator ("run-down") is required.

    Calibrated Range10-100% Full Scale, bi-directional (Standard)
    Extended Range5-100% Full Scale, bi-directional (ER Option)
    Accuracy±0.5% of indicated (within calibrated range)
    Resolution4 Active Digits
    Overload Protection200% Full Scale bi-directional
    Operating ModesTrack, Peak, 1st Peak
    FilteringSelectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
    MemoryData storage of up to 999 readings
    Data OutputRS-232
    Display62 x 62mm backlit LCD
    Alarm LimitsPanel Mounted LED for Visual Alarm Limits
    PowerNiMH rechargeable batteries provide 8-10 hours continuous use
    Weight6-12 lbs, depends on number of transducers and configuration
    Operating Temperature0 - 50°C (32 - 120°F)
    Warranty1 Year
    Calibration CertificateIncludes NIST Traceable calibration certificate with data for each transducer
    Standard AccessoriesJoint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
    Optional AccessoriesJoint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option

    SMD-TTS Software

    Related Products

    Browse Related Products

    SMD-SC Torque software for data collection & analysis

    SMD-SC Torque software for data collection & analysis

    RDF Joint Simulators / Run Down Fixtures

    RDF Joint Simulators / Run Down Fixtures

    Series Torque Testers with 16 measurement ranges

    Series Torque Testers with 16 measurement ranges

    Cic-Torque Torque Instrument Calibration

    Cic-Torque Torque Instrument Calibration

    Torque Wrench Loader

    Torque Wrench Loader

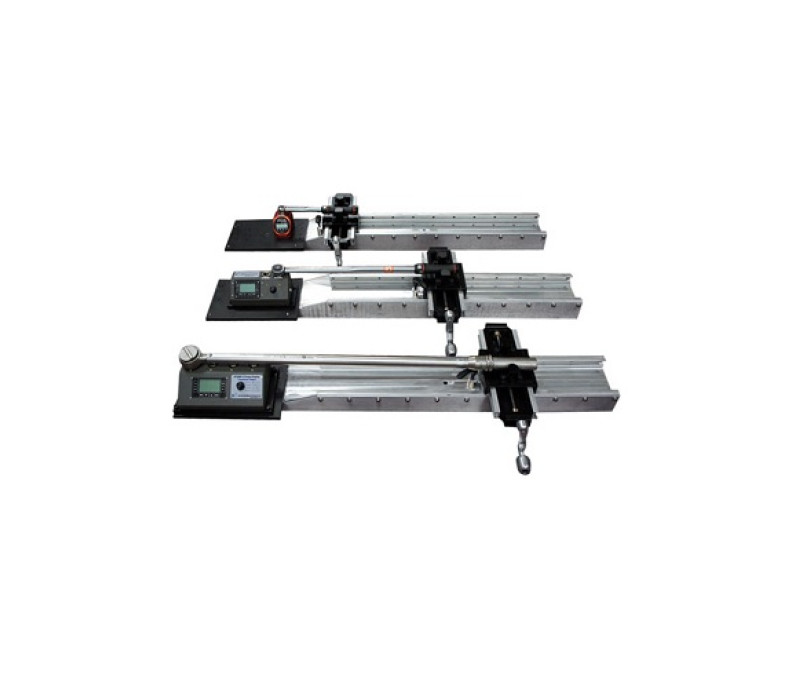

    AWS-1000 Series Torque Wrench Loader

    AWS-1000 Series Torque Wrench Loader

    Order Now

    Products
    Item Product Price  Quantity Action
    132633MTMDP-2S Torque Tester with built-in display, 1000 lbf-in / 112 Nm Max Capcatity € 3.229,00

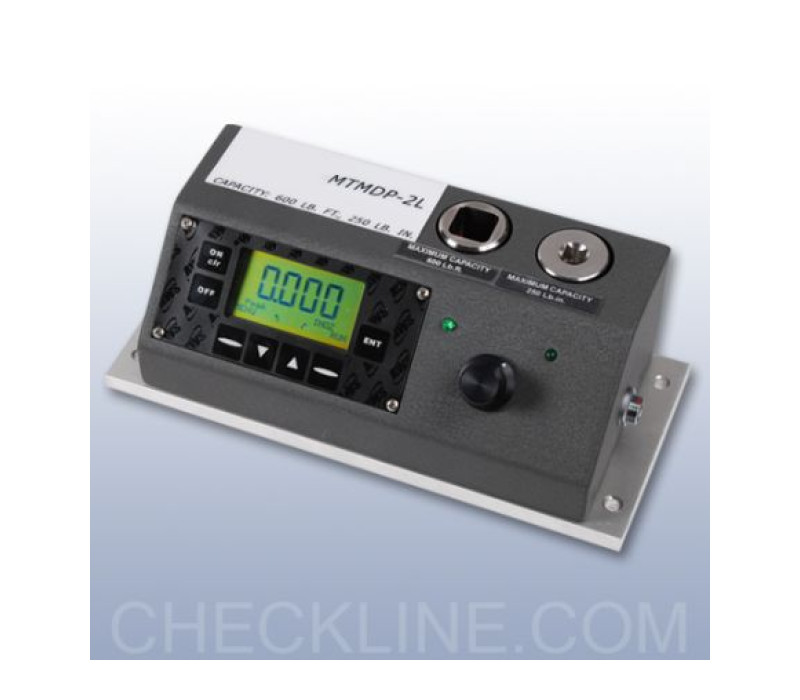

    132634MTMDP-2L Torque Tester with built-in display, 750 lbf-ft / 1015 Nm Max Capcatity € 3.708,00

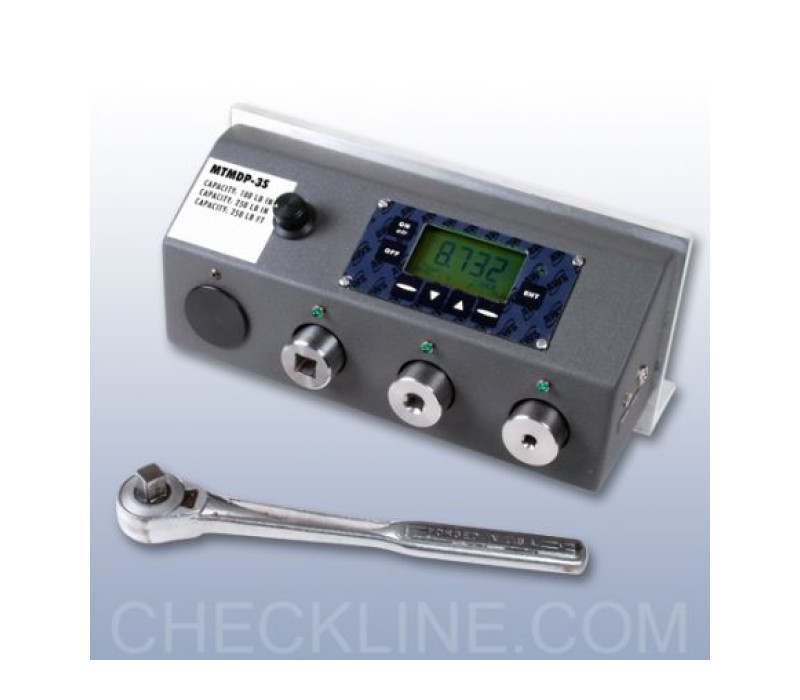

    132635MTMDP-3S Torque Tester with built-in display, 1000 lbf-in / 112 Nm Max Capcatity € 4.187,00
    132636MTMDP-3L Torque Tester with built-in display, 750 lbf-ft / 1015 Nm Max Capcatity € 4.426,00

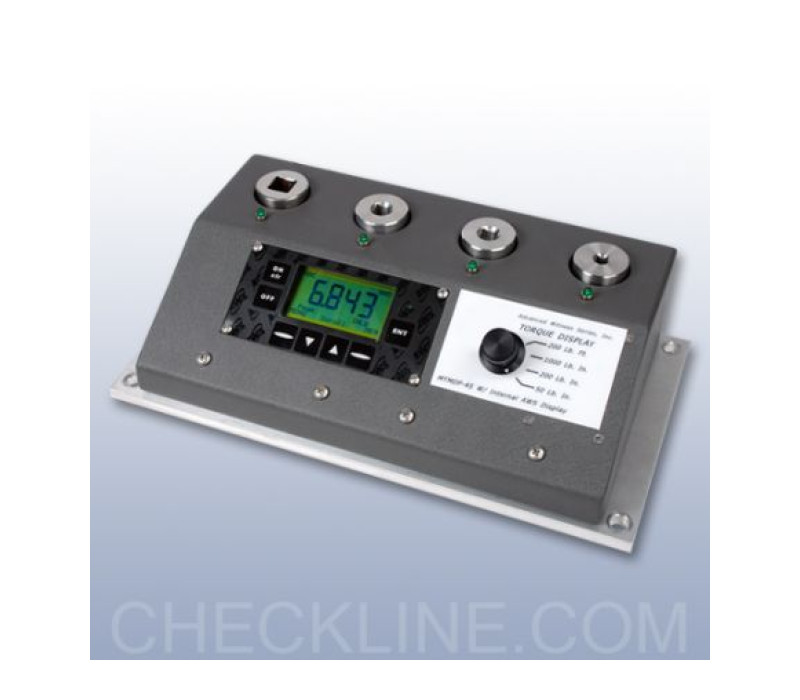

    132637MTMDP-4S Torque Tester with built-in display, 1000 lbf-in / 112 Nm Max Capcatity € 4.426,00
    132638MTMDP-4L Torque Tester with built-in display, 750 lbf-ft / 1015 Nm Max Capcatity € 4.666,00
    Accessories
    Item Product Price  Quantity Action
    135559UPG-25 - Upgrade accuracy from ± 0.5% to ± 0.25% - PER TRANSDUCER € 178,00
    132897ER - Extended Range option for TT-3000-series / QCM Torque Testers (per transducer) € 143,00
    130689TTS-SOFT Software for TT-Series with cable € 165,00
    136686TTS-SC Software for TT, MTM- series with cable € 324,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
