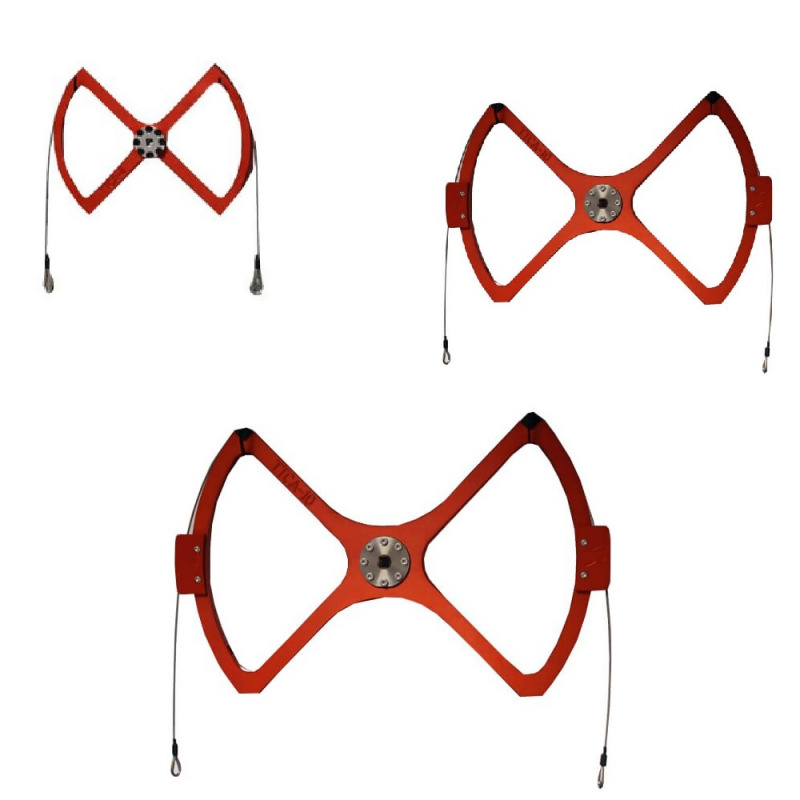

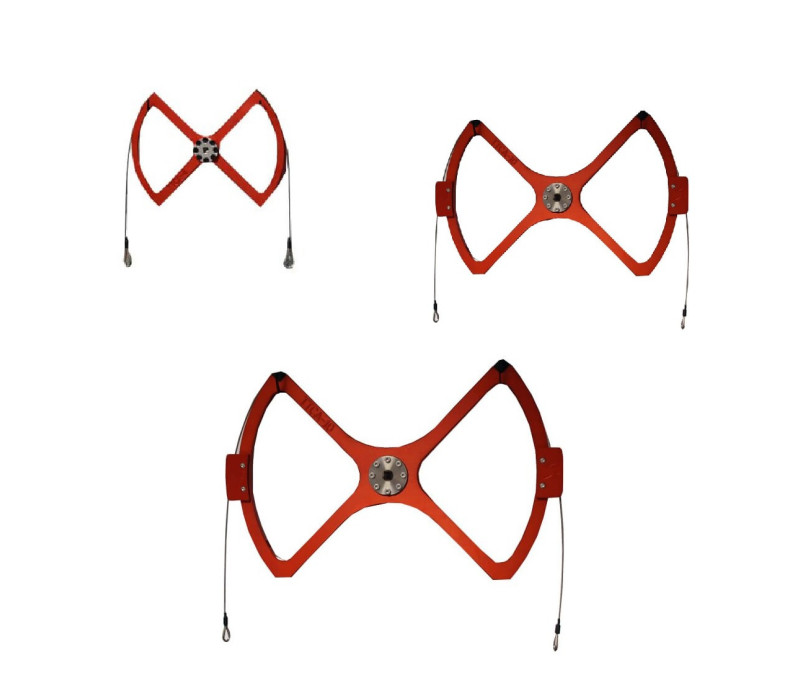

    TT-CA Radius Arms / Torque Arms

    The Checkline TT-CA  Radius Arms are designed for calibration and verification of torque measuring equipment.

    The radius arms are available in 2 versions:
    - High Accuracy Arms are for use with +/-0.25% tolerance transducers
    - Standard Accuracy Arms are for use with +/-0.5% tolerance transducers.

    High Accuracy version: 0.025% Accuracy

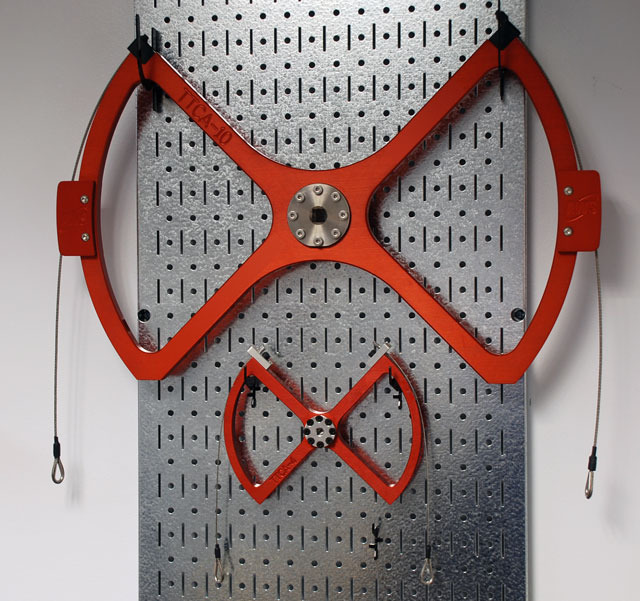

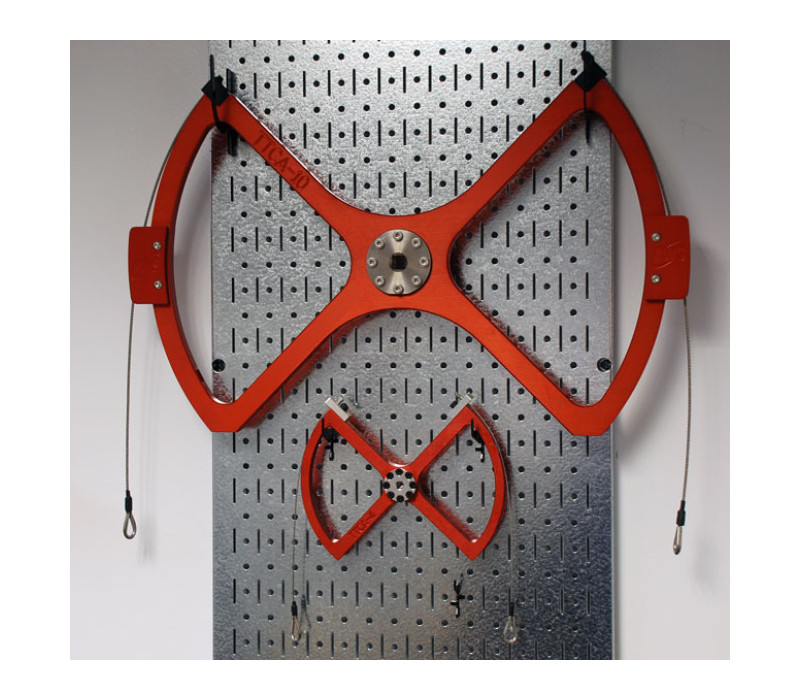

    • TT-CA-.1MA High Accuracy Calibration Arm 0.1 meter radius 11 N-m Max
    • TT-CA-.25MA High Accuracy Calibration Arm 0.25 meter radius 340 N-m Max

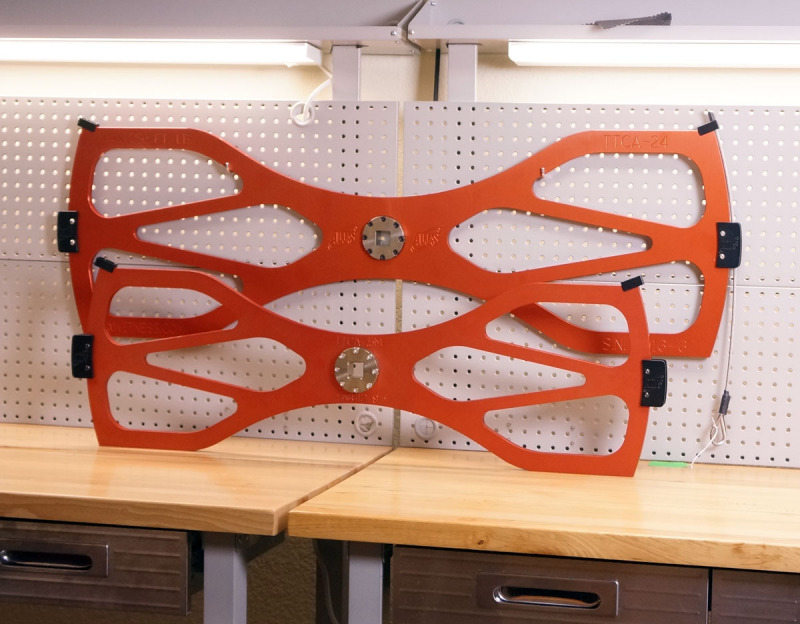

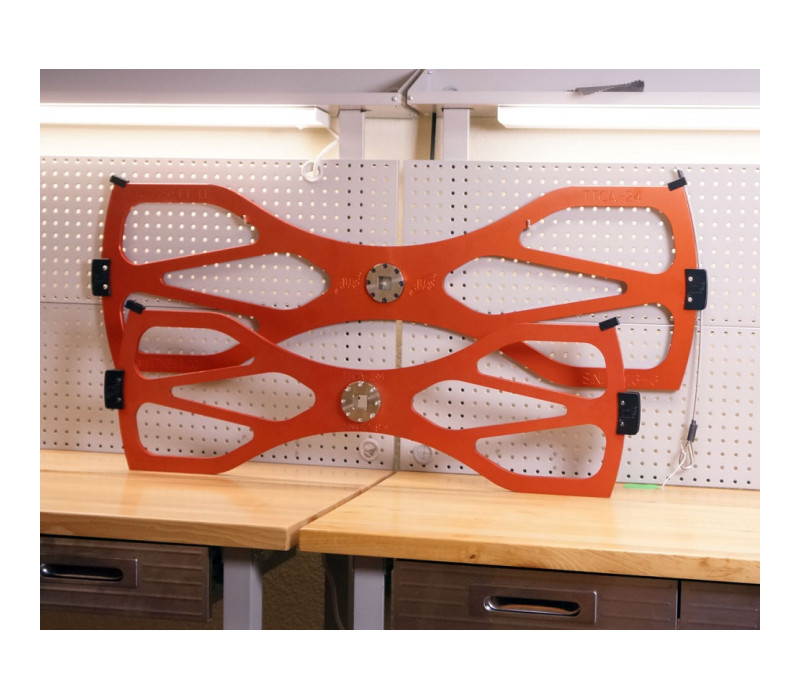

    • TT-CA-.5MA High Accuracy Calibration Arm 0.5 meter radius 750 N-m Max

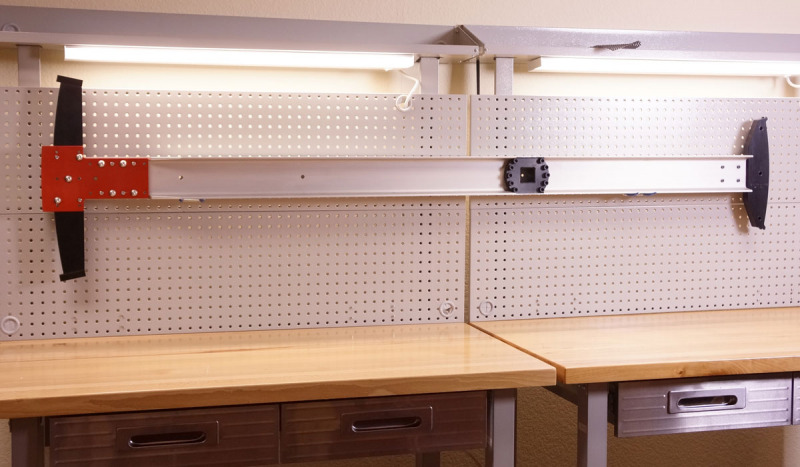

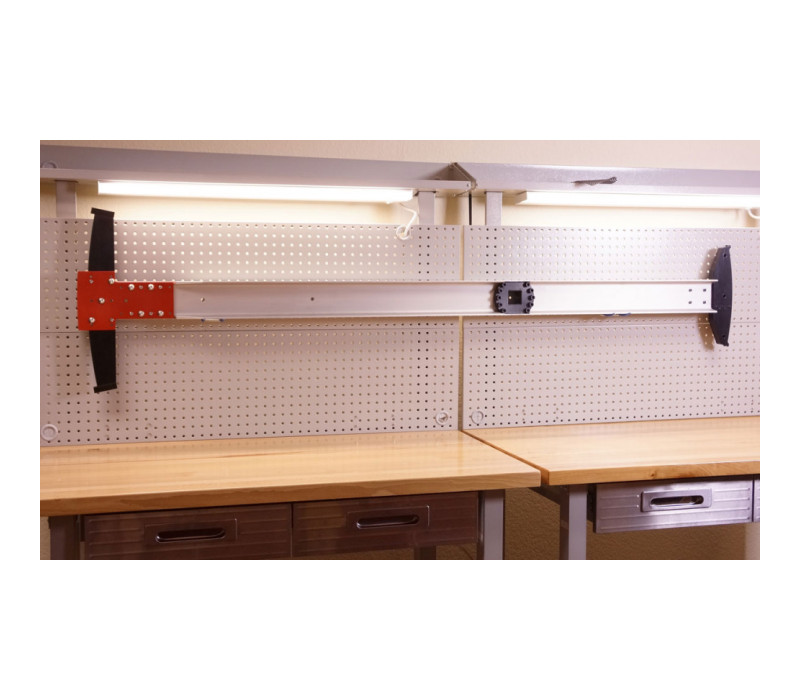

    • TT-CA-1MA High Accuracy Calibration Arm 1.0 meter radius 1500 N-m Max

    Standard version: 0.625% Accuracy

    • TT-CA-.1M Calibration Arm 0.1 meter radius 11 N-m Max
    • TT-CA-.25M  Calibration Arm 0.25 meter radius 340 N-m Max
    • TT-CA-.5M  Calibration Arm 0.5 meter radius 750 N-m Max
    • TT-CA-1M Calibration Arm 1.0 meter radius 1500 N-m Max
    These radius arms are used by Metrology Labs and Quality Control (QC) Departments  to test and adjust torque torque transducers and sensors.

    We offer a range of arms from 10 to 100 cm in length to calibrate equipment up to 1500 N-m.

    The Checkline TT-CA Radius Arms include single weight pans.
    Standard operating procedure is to install the arm, attach the weight pan then zero out the weight pan. The TT-CA calibration arms also include a wire with a loop on each side so you can supply your own certified hanger with slotted weights.

    Note: Weights sold separately and are not available from Checkline.
    Price from € 1.525,00
    Order now
    • TT-CA  Radius Arms up to 2000 Nm
    • TT-CA-.1MA High Accuracy Calibration Arm 0.1 meter radius 11 Nm Max
      TT-CA-.25MA High Accuracy Calibration Arm 0.25 meter radius 340 Nm Max
      TT-CA-.5MA High Accuracy Calibration Arm 0.5 meter radius 750 Nm Max
      TT-CA-1MA High Accuracy Calibration Arm 1.0 meter radius 1500 Nm Max
    • The radius arms are available in 2 versions:
       High Accuracy Arms are for use with +/-0.25% tolerance transducers / ​Standard Accuracy Arms are for use with +/-0.5% tolerance transducers
    D1 no header
    ModelRadiusCapacity (Max)DriveAccuracy
    TT-CA-.1MA0,10 meter11 N-m1/4" female square0,025%
    TT-CA-.25MA0,25 meter340 N-m1/2" female square0,025%
    TT-CA-.5MA0,50 meter750 N-m1" female square0,025%
    TT-CA-1MA1,00 meter2000 N-m1.5" female square0,025%
    TT-CA-.1M0,10 meter11 N-m1/4" female square0,625%
    TT-CA-.25M0,25 meter340 N-m1/2" female square0,625%
    TT-CA-.5M0,50 meter750 N-m1" female square0,625%
    TT-CA-1M1,00 meter1500 N-m1.5" female square0,625%

    Order Now

    Products
    Item Product Price  Quantity Action
    133582TT-CA-.1MA High Accuracy Calibration Arm 0.1 meter radius 11 N-m Max € 1.895,00
    136348TT-CA-.25MA High Accuracy Calibration Arm 0.25 meter radius 340 N-m Max € 2.196,00
    133584TT-CA-.5MA High Accuracy Calibration Arm 0.5 meter radius 750 N-m Max € 2.851,00
    133586TT-CA-1MA High Accuracy Calibration Arm 1.0 meter radius 1500 N-m Max € 4.246,00
    136381TT-CA-.1M Calibration Arm 0.1 meter radius 11 N-m Max € 1.525,00
    133583TT-CA-.25M Calibration Arm 0.25 meter radius 340 N-m Max € 1.850,00
    136191TT-CA-.5M Calibration Arm 0.5 meter radius 750 N-m Max € 2.496,00
    136347TT-CA-1M Calibration Arm 1 meter radius 1500 N-m Max € 3.996,00
    Accessories
    Item Product Price  Quantity Action
    136439TTCA-CB - Counter Balance for TTCA-1M(A) and TTCA-48(A) € 475,00
    133680CA2525 - Radius Arm Adapter 1/4" Male Square to 1/4" Male Square € 225,00
    137618CA2538 - Radius Arm Adapter 1/4" Male Square to 3/8" Male Square
    137854CA3838 - Radius Arm Adapter 3/8" Male Square to 3/8" Male Square
    137855CA5025 - Radius Arm Adapter 1/2" Male Square to 1/4" Male Square € 225,00
    136736CA5038 - Radius Arm Adapter 1/2" Male Square to 3/8" Male Square € 225,00
    137620CA5050 - Radius Arm Adapter 1/2" Male Square to 1/2" Male Square € 225,00
    137856CA1050 - Radius Arm Adapter 1" Male Square to 1/2" Male Square € 275,00
    137857CA1075 - Radius Arm Adapter 1" Male Square to 3/4" Male Square € 275,00
    137858CA1010 - Radius Arm Adapter 1" Male Square to 1" Male Square € 275,00
    137859CA1510 - Radius Arm Adapter 1.5" Male Square to 1" Male Square
    136735CA2525H - Radius Arm Adapter 1/4" Male Square to 1/4" Male Hex € 225,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
