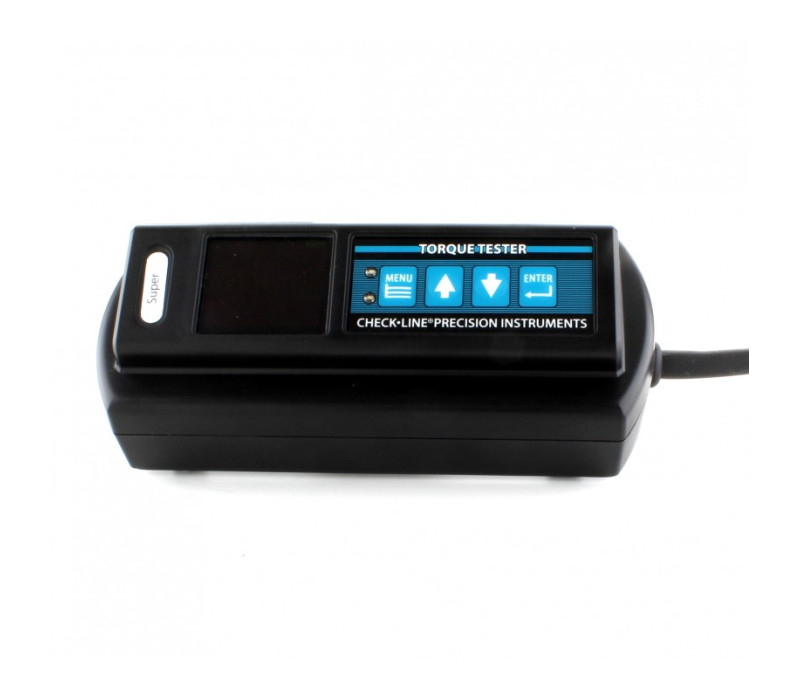

TC-DT-D Display unit for TC-DT torque sensors

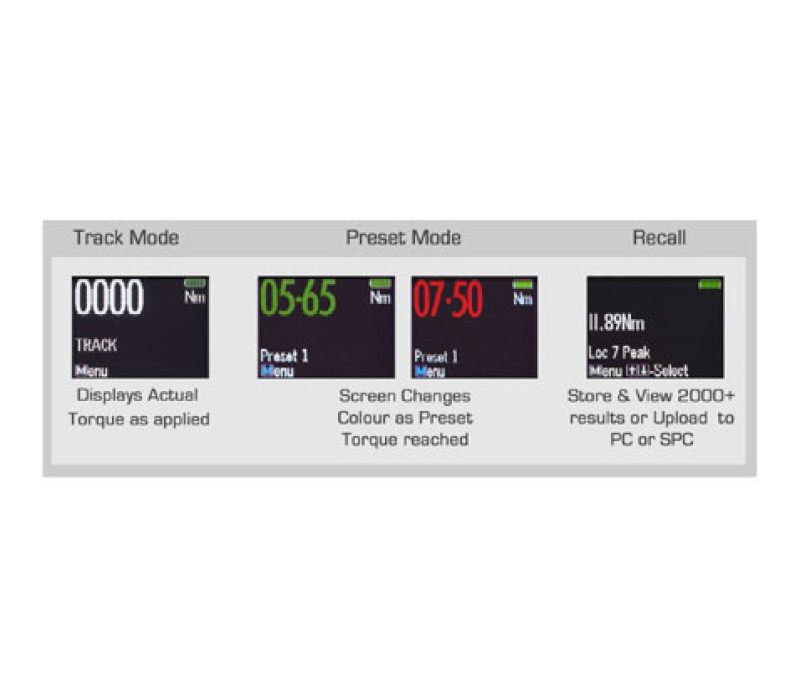

Display of the TC-DT torque tool tester

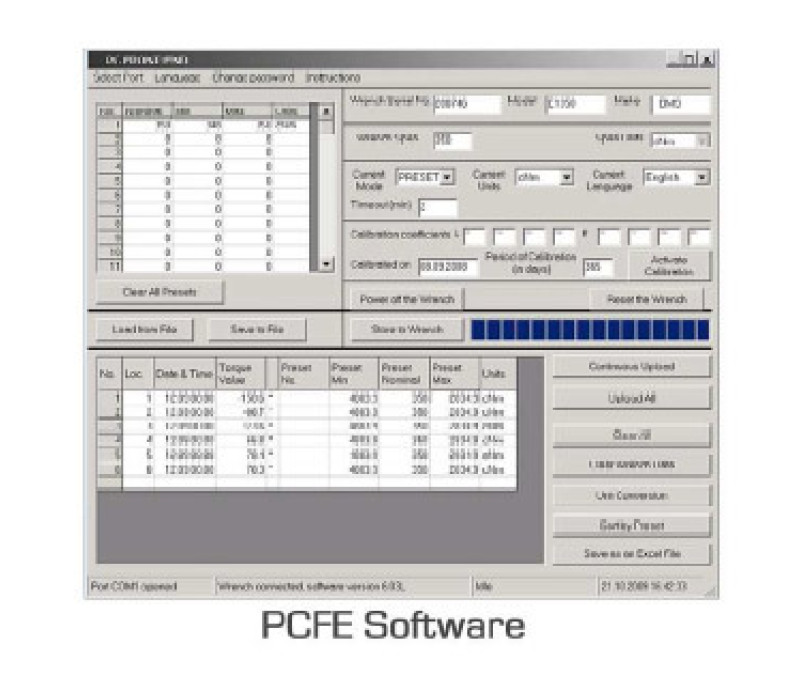

TC-DT Data transfer software

Torque tool tester with interchangeable loadcells

Name: Torque tool tester with interchangeable loadcells
SKU: 127456

Calibration and Inspection of Torque Measuring Instruments

The TC-DT Torque Tester has an external display unit and allows for quick and accurate inspection and calibration of manual torque measuring instruments such as torque screwdrivers, torque wrenches, shear wrenches and more. Adding an optional trailing attachment also allows torque testing of pneumatic and power tools.

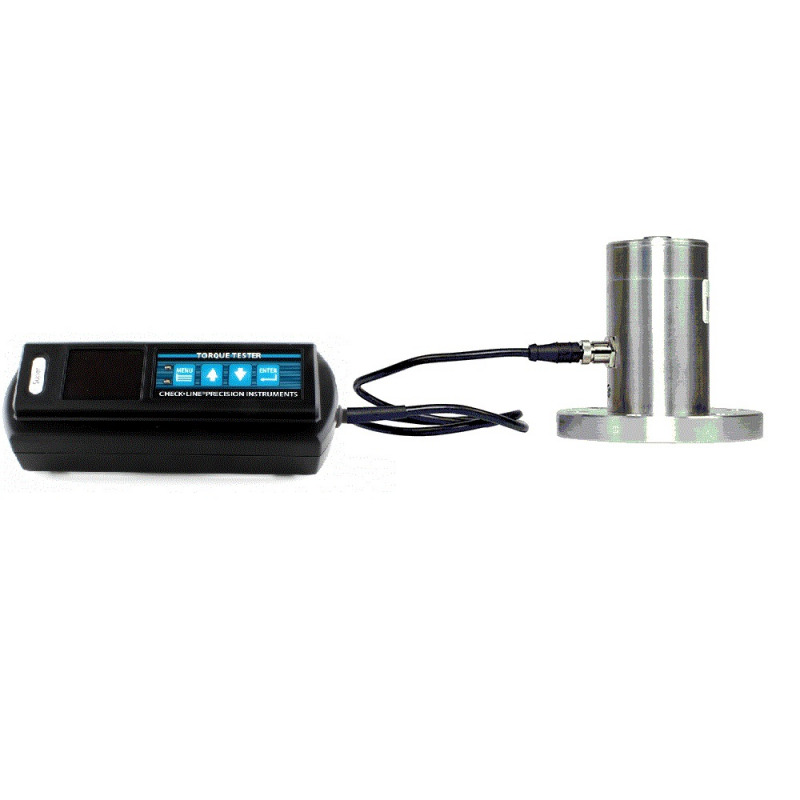

The TC-DT-D display unit connects directly to the TC-DT sensors via a cable.
The range of TC-DT torque sensors can cover a measuring range from 5 Ncm to 2000 Nm. By combining different torque sensors it is possible to achieve very large measuring ranges.

The readings are easy to read from the OLED display and can be exported via USB to the included Windows software

Data transfer via Bluetooth is available at an additional cost. The integrated data storage makes it possible to store more than 2000 measurements for later recall or export to a computer.

Furthermore, you can save 99 presets for testing your torque wrenches from your torque wrenches in the TC-DT-D display unit.

The TC-DT torque tool tester has an accuracy of ± 0.5% of the indicated value over the full calibrated measuring range.

Test parameters can be set via the display unit TC-DT-D. You can choose from different operating modes: Track, Peak, Preset and Click-Torque.

Please note that using electric, hydraulic and pneumatic tools requires a screw simulator. The max speed of rotation is 1200 RPM.

This torque tester is not suitable for testing impact wrenches, nor for use with force multipliers.

Price from € 575,50

Order now

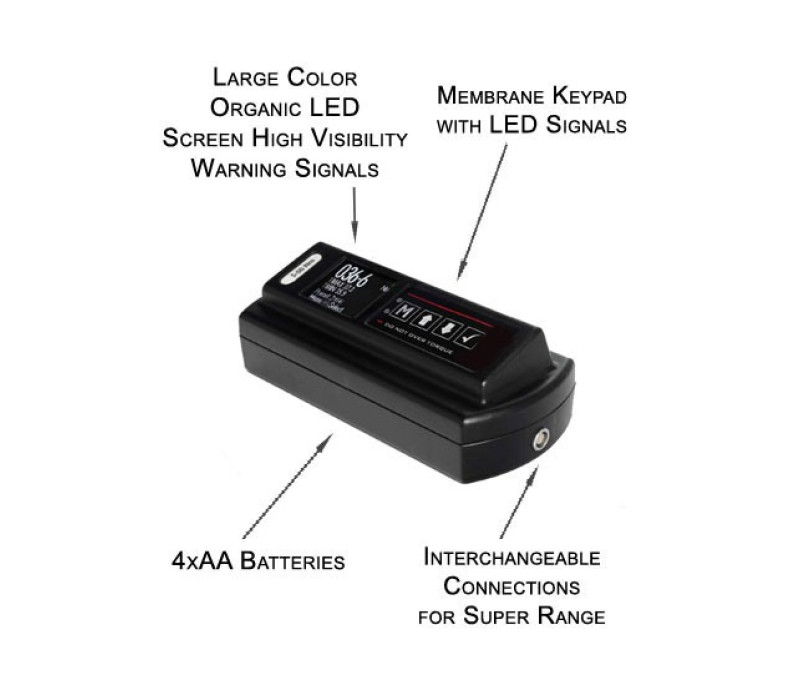

Large OLED display with high visibility and warning signals

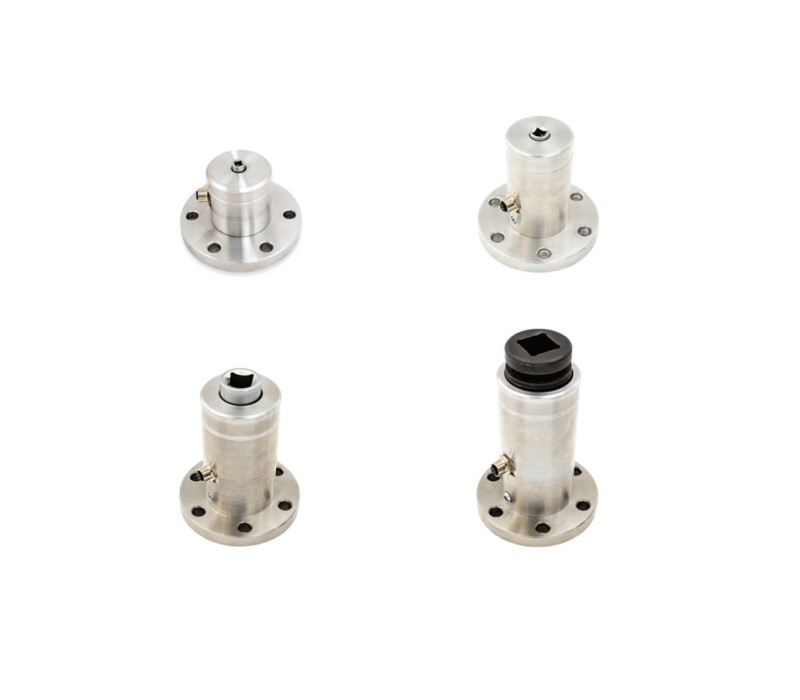

Interchangeable load cells with external display unit
Measuring range 5 Ncm up to 2000 Nm
Selectable measuring units: Ncm, Nm, Oz.in, Lb.in, Lb.ft, Kgf.cm, Kgf.m
Accuracy ± 0,5% of the indicated value
More than 180 hours of battery life
Traceable calibration certificate & software included

For a complete measuring system you need the TC-DT-D display unit and at least one TC-DT torque sensor.

A complete system includes:

Data transfer software
Users manual
Traceable calibration certificate

Operating Modes

Mode
Track	In Track mode the data can viewed on the display in real-time.
Peak	In Peak mode the highest measured value remains in the display.
Preset	In Preset mode up to 99 presets for pass/fail testing can be stored and recalled. The gauge provides visual and acustic warnings when deviating from the preset.
Click-Torque	In Click-Torque mode the 1st Peak is kept in the display, as long as it is higher than 10% of the sensor's capacity. This mode is especially useful for manual click-torque wrenches.

Torque Ranges

Model	Capacitiy	Drive
TC-DT-50C	5 - 50 Ncm	1/4"
TC-DT-150C	15 - 150 Ncm	1/4"
TC-DT-200C	20 - 200 Ncm	1/4"
TC-DT-350C	35 - 350 Ncm	1/4"
TC-DT-500C	50 - 500 Ncm	1/4"
TC-DT-10N	1 - 10 Nm	1/4"
TC-DT-20N	2 - 20 Nm	1/4"
TC-DT-50N	5 - 50 Nm	3/8"
TC-DT-100N	10 - 100 Nm	3/8"
TC-DT-200N	20 - 200 Nm	1/2"
TC-DT-340N	34 - 340 Nm	1/2"
TC-DT-600N	60 - 600 Nm	3/4"
TC-DT-800N	80 - 800 Nm	3/4"
TC-DT-1000N	100 - 1000 Nm	3/4"
TC-DT-1500N	150 - 1500 Nm	1"
TC-DT-2000N	200 - 2000 Nm	1"

Calibrated Measuring Range	10-100% of capacity
Accuracy	± 0,5% of indicated value
Max RPM	1200 RPM for power to tools using an optional rundown fixture
Display	4 digits OLED
Operation	CW & CCW
Battery Lifetime	180 hours
Power Supply	4xAA Standard batteries or rechargeable
Auto Power Save	Automatic power off
Data Output	USB Bluetooth optional
Data Storage	2094 values
Presets with Alarm	99 PresetsVisual and acoustic alarms
Weight	Display unit: 0,75 kg Sensors: 50 Ncm - 20 Nm: 0,72 kg 50 Nm - 340 Nm: 1,2 kg 600 Nm: 1,6 kg 800 Nm - 1000 Nm: 2,8 kg 1500 Nm - 2000 Nm: 3,8 kg
Calibration Certificate	Traceable calibration certificate included
Warranty	1 year
