QCMBS Torque tester for power screwdrivers

Torque Tester for Nutrunners

Name: Torque Tester for Nutrunners
SKU: 127329

The torque tester QCMBS for power nut runners may be deployed with conventional torque wrenches and other torque tools. There are 2 versions of the TT-QCMBS according to two available measurement ranges: the TT-QCMBS-1KRD (135-1350 Nm) and the TT-QCMBS-2KRD (271-2710 Nm).

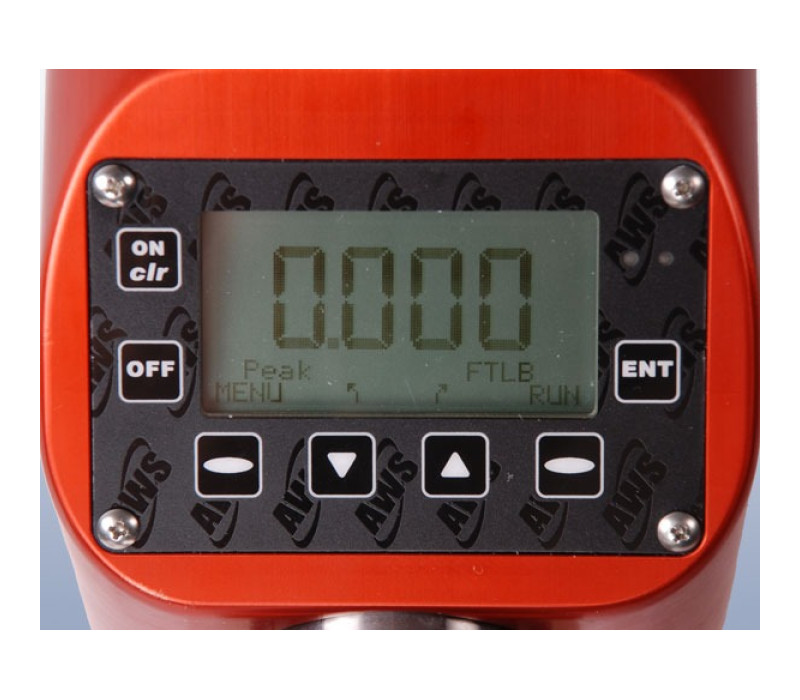

Easy and quick set up of the device is made possible through the large LCD display with its simple menu.

The TT-QCMBS offers a data storage capacity of up to 999 readings. By installing the optional software, data can also be exported to a printer, or PC. Furthermore, measurement protocols can automatically be generated through real-time data transmission to Excel.

Please note that in order to be able to test powered torque tools,a screwdriver simulator is needed. A safe testing of your tools is assured with the stable mounting of the TT-QCM torque tester and the respective screwdriver simulator. The power wrench is also supported by a storage area to absorb eventual shocks and thus prevent eventual damaging of the measuring cell.

* Not suitable for impact wrenches

Price from € 5.408,00

Order now

RS-232 data output
2 years warranty

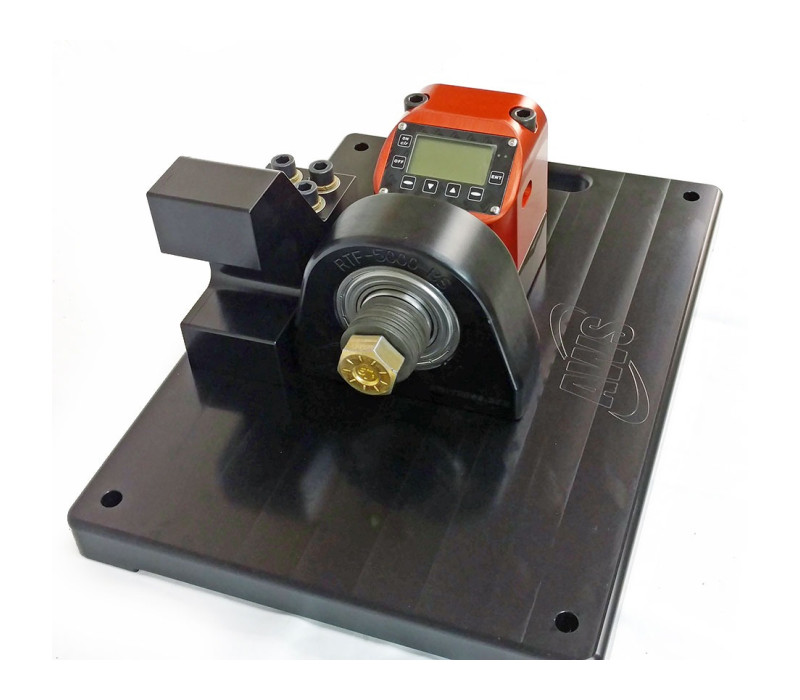

Complete test system, including test stand, screwdriver simulator and TT-QCM torque tester
Including NIST traceable calibration certificate
± 0.5% accuracy of the displayed measured value
3 measurement modes, Track, Peak and 1st Peak
8 selectable measuring units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm

The TT-QCMBS system is delivered comes in a kit with the following included:

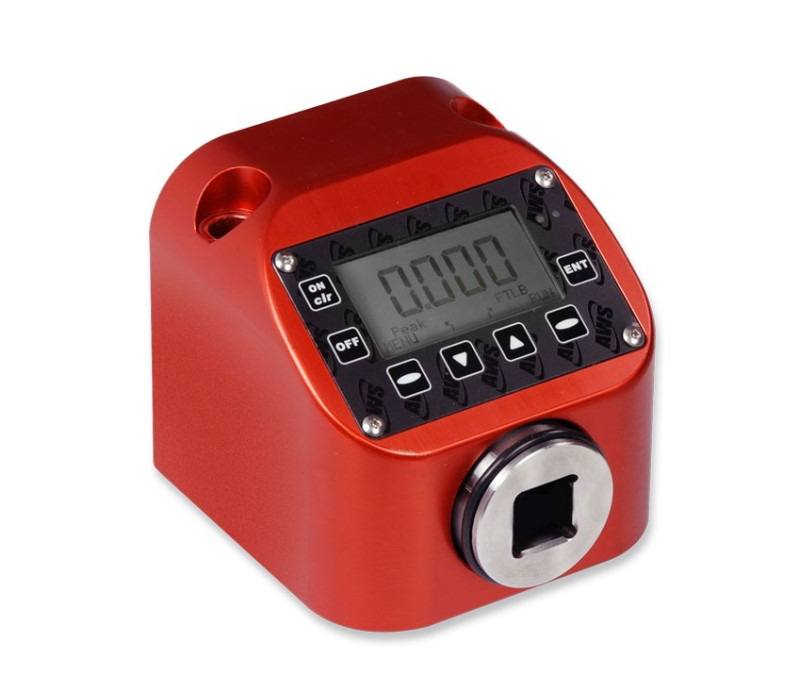

TT-QCM torque tester
Screwdriver simulator
Test bench
Operation manual
NIST traceable calibration certificate

Measurement range:	10 - 100% capacity, bidirectional
Accuracy:	± 0.5% of the displayed measured value (within the calibrated measuring range, bidirectional)
Resolution:	4 digits
Operating modes:	Track, Peak & 1st Peak
Filter:	Selectable, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 1500 Hz and 2000 Hz
Data output:	RS-232 (Optional cable & software requires)
Data storage:	999 readings
Limit alarm:	LEDs in the display for visual limit value display
Power supply:	NiMH battery, AC adapter / charger (included)
Operating temperature:	0 - 50°C
Guarantee:	2 years
Calibration certificate:	Including NIST traceable calibration certificate

Products

Item	Product	Price	Quantity	Action
137025	TT-QCMBS-1KRD - Torque Testsystem - 135-1350 Nm	€ 5.408,00
137026	TT-QCMBS-2KRD - Torque Testsystem - 271-2710 Nm	€ 5.900,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
