Series-TT02 Torque Tool Tester for (Electric) Screw Drivers

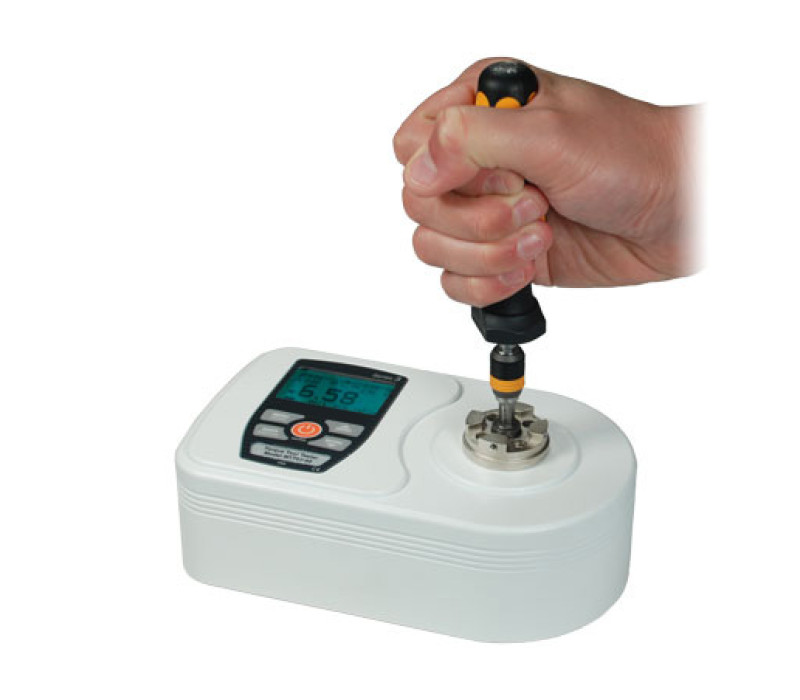

To operate the TT02 torque tester, simply place the torque tool into the universal receptacle and twist. The readout will show the real time or peak torque value in the clockwise or counterclockwise direction. Shown here witha manual torque tool.

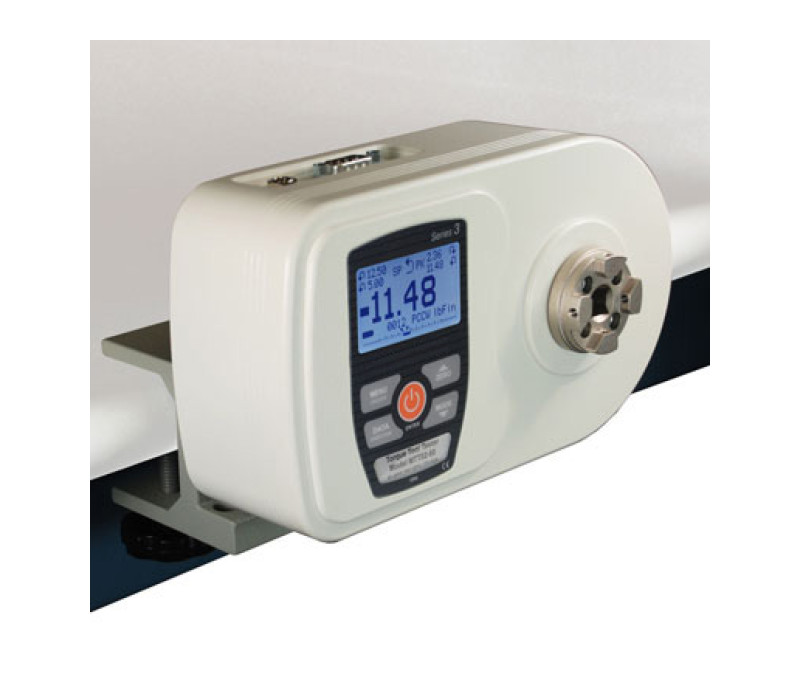

Optional mounting kit secures the TT02 to a bench for horizontal orientation.

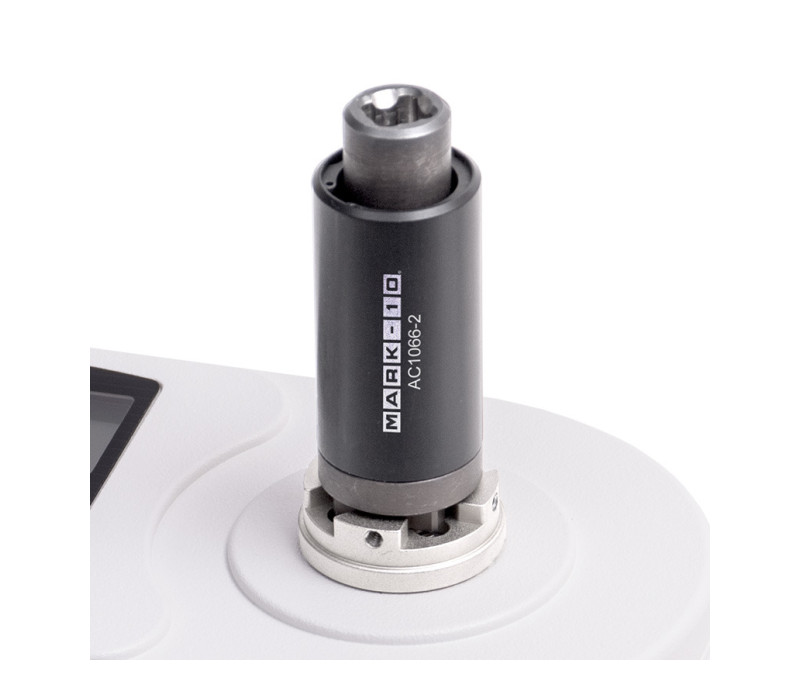

Optional AC1066-1 and AC1066-2 rundown fixtures feature an enclosed design, and are available in two models to simulate soft and hard joints.

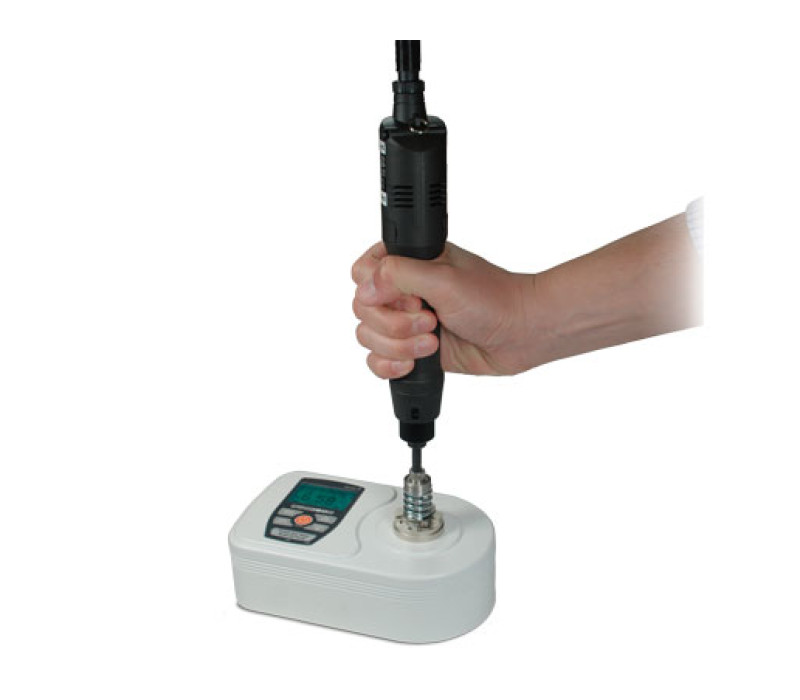

Typical application involving a power torque driver with optional rundown fixture.

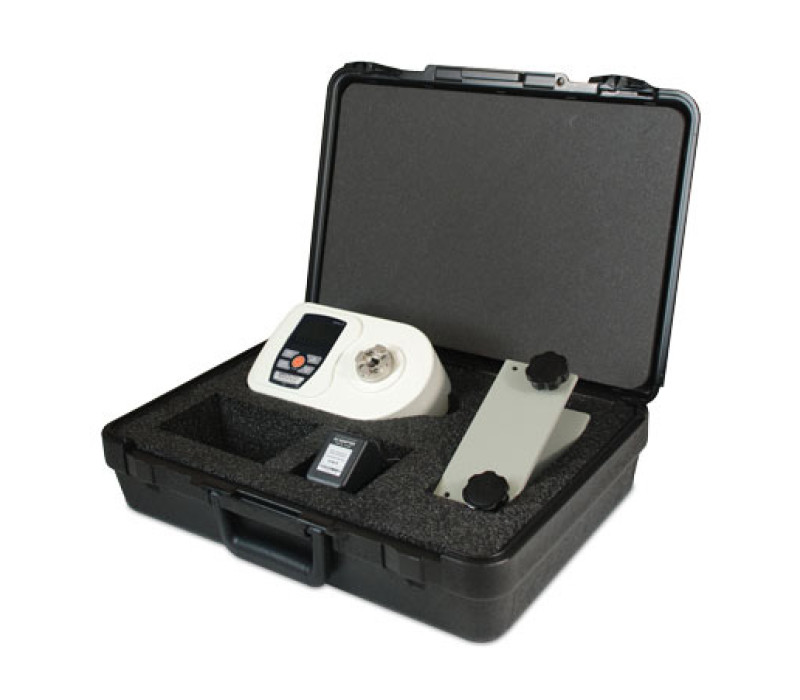

Optional carrying case provides storage space for the TT02 tester, rundown fixtures, bench mounting kit, AC adapter, and accessories.

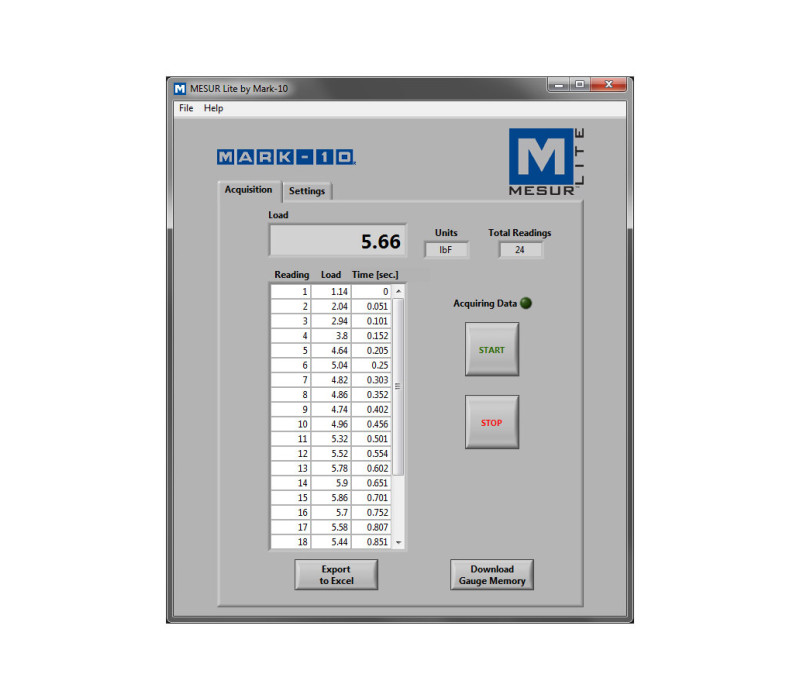

MESUR® Lite is a basic data collection program which tabulates data received from a Mark-10 force or torque gauge and allows for exporting of data to Excel.

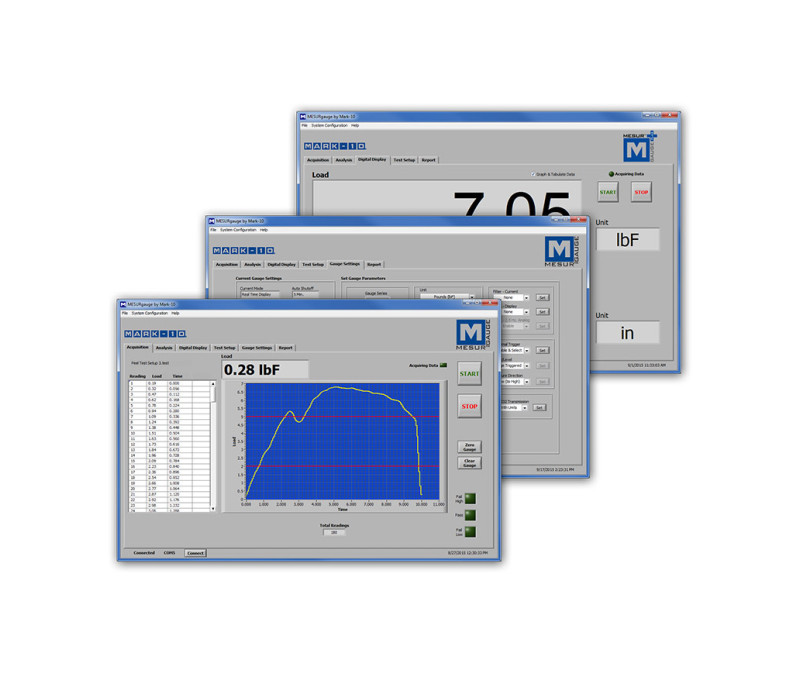

MESUR® gauge is an advanced data collection program designed to interface with Mark-10 gauges and test stands. The program tabulates and plots load vs. time, and provides a number of sophisticated test setup, analysis, and reporting tools.

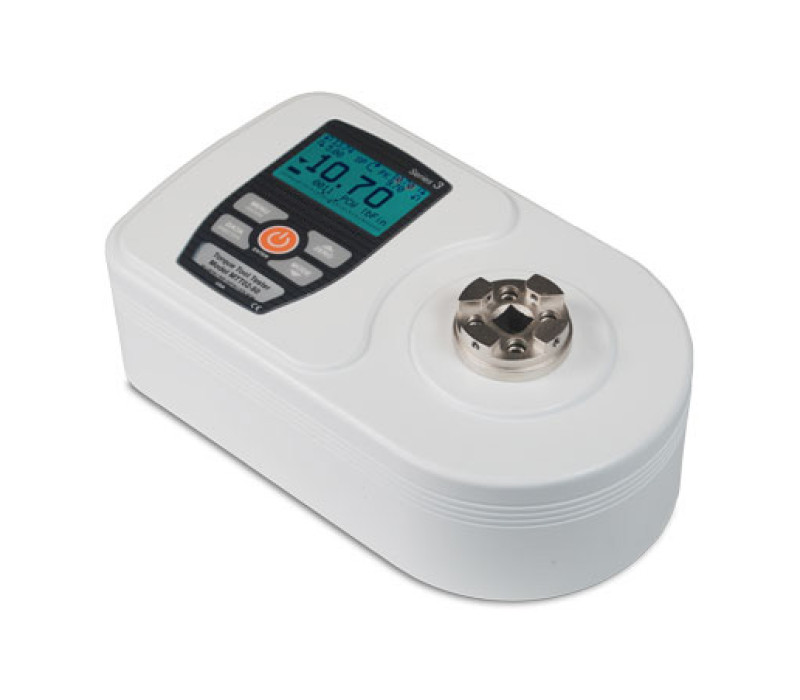

Series-TT02 Torque Tool Tester for (Electric) Screw Drivers

The Series TT02 torque tool testers provide a solution for testing smaller powered and manual torque tools like screwdrivers and wrenches.
This compact torque tester is equipped with a universal 3/8”square and comes standard with a 1/4” hex to 3/8” adapter, measures torque in both directions and calculates 1st and 2nd peaks for click type tools.
The TT02 provides reliable and consistent results with its accuracy of 0,3% and 7000 Hz sampling rate. An internal memory storage of 1000 measurements combined with USB, RS-232, Mitutoyo, and analog outputs assure all data is saved and can be processed. Password protection saves the data from an accidental delete or unauthorized changes to setup or calibration.
Data is transferred to a computer through the standard USB cable and MESUR® Lite data acquisition software. Downloaded data can be exported to Excel for further processing
An optional rundown fixture, AC1066-1 and/or -2, can be used to simulate soft and hard joints.
The TT02 is not suited for use with impact tools.
- First / second peak capture for CW and CCW directions
- 3/8” square receptacle accommodates common bits and attachments
- High-speed 7000 Hz sampling rate accurately captures peak torque values
- 1000-point data memory with statistics and outputs
- USB, RS-232, Mitutoyo, and analog outputs
- Break detection: automatic output, data storage, and zeroing upon tool click/slip automates testing processes
- Programmable set point indicators and outputs for pass/ fail determination
- Password protection prevents unauthorized changes
- 5 selectable units of measurement
- Battery or AC operation

Dimensions of the TT02 Torque Tester,
All dimensions are noted in Inches with metric sizes in [mm] behind.
The Series TT02 is delivered including the following items:
- 1/4” hex to 3/8” square adapter
- AC adapter
- Battery
- Quick-start guide
- USB data cable
- Resource CD with user manual
- MESURlite software
- MESURgauge demo software

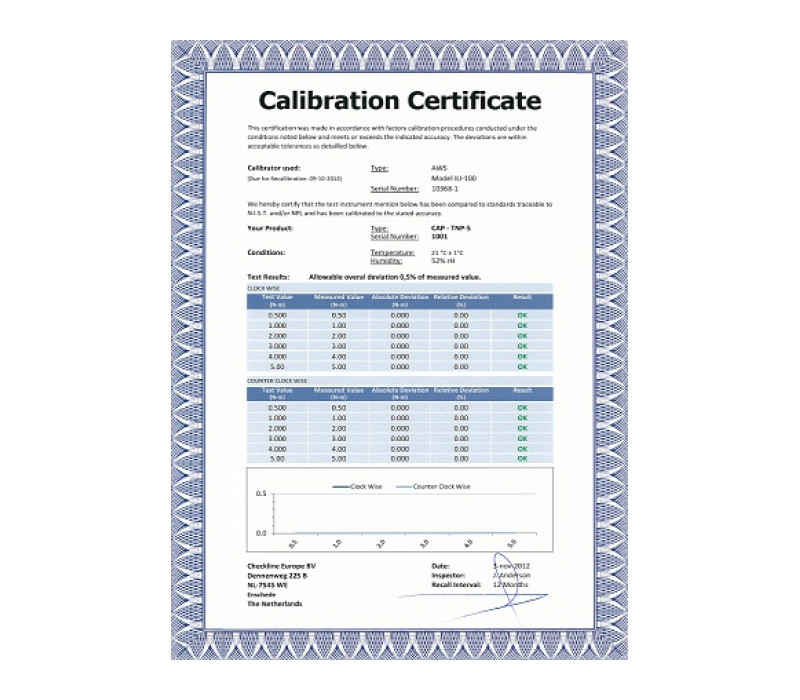

- NIST traceable calibration certificate
Torque Ranges
| Model | Ranges | Resolution | |||
|---|---|---|---|---|---|
| MTT02-12 | 135 Ncm 1.35 Nm 192 ozFin 12 lbFin |
0.1 Ncm 0.001 Nm 0.1 ozFin 0.005 lbFin |
|||
| MTT02-25 | 290 Ncm 2.9 Nm 400 ozFin 25 lbFin |
0.2 Ncm 0.002 Nm 0.2 ozFin 0.01 lbFin |
|||
| MTT02-50 | 570 Ncm 5.7 Nm 800 ozFin 50 lbFin |
0.5 Ncm 0.005 Nm 0.5 ozFin 0.02 lbFin |
|||
| MTT02-100 | 1150 Ncm 11.5 Nm 1600 ozFin 100 lbFin |
0.5 Ncm 0.005 Nm 1 ozFin 0.05 lbFin |
| Accuracy | ±0.3% of full scale |
| Sampling rate | 7000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low |
| Battery Life | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Measurement units | Nm, Ncm, ozFin, lbFin, lbFft |
| Outputs | USB / RS-232: Configurable up to 115,200 baud. Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices Analog: ±1 VCD, ±0.25% of full scale at capacity General purpose: Three open drain outputs, one input Set points: Three open drain lines |
| Configurable Settings | 1st/2nd peak, digital filters, outputs, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration |
| Safe overload | 150% of full scale (display shows “OVER” at 110% and above) |
| Weight | 2.6 kg (5.8 lb) |
| Environmental Requirements | 5°C - 45°C (40°F - 100°F) <96% humidity (non-condensating) |
| Warranty | 3 years (see individual statement for further details) |
