Series-7 Professional Digital Force Gauge

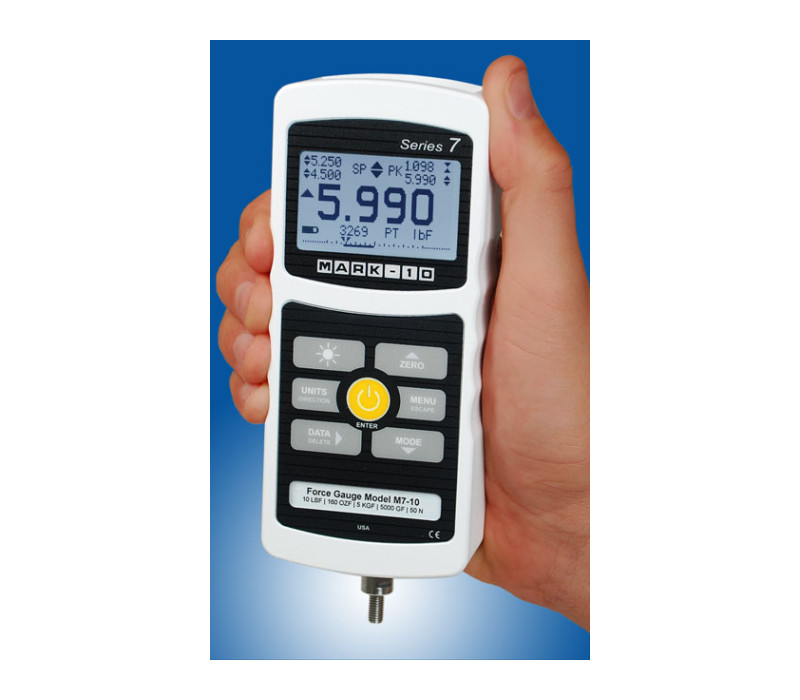

Series-7 gauges feature a rugged aluminum housing with large, easily legible graphic display.

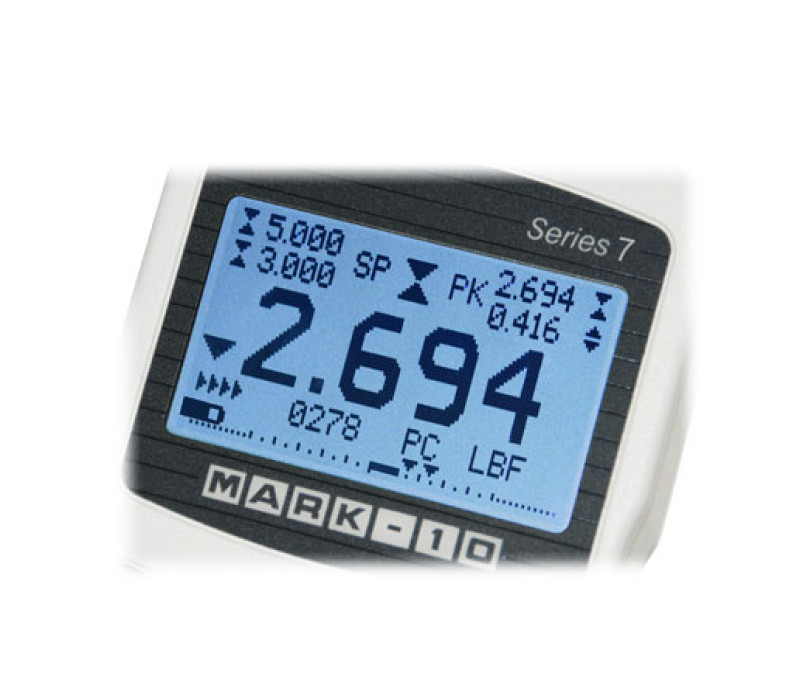

The backlit display features large, easily legible digits, peak readings, set point indicators, analog load bar graph, and more.

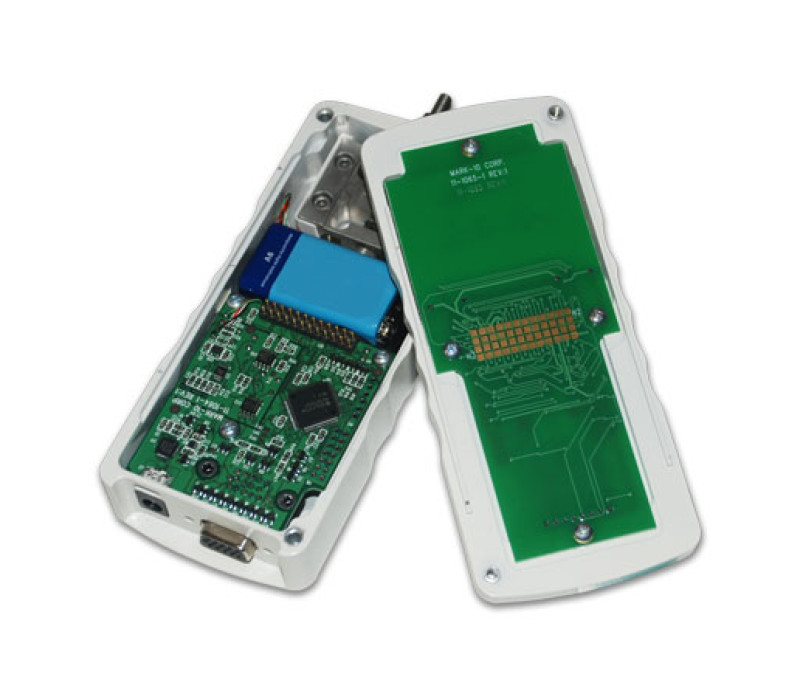

Mark-10 Force Gauges feature a unique reversible housing, allowing the gauge to be used with the load cell shaft oriented up or down, while the display and keys remain upright.

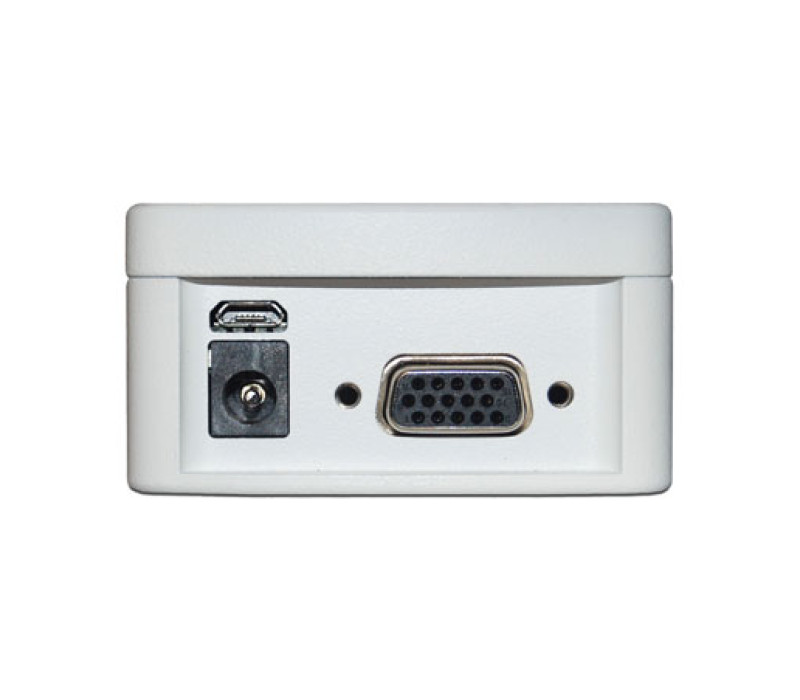

The USB, DB-15, and power connectors are recessed into the gauge housing for better protection.

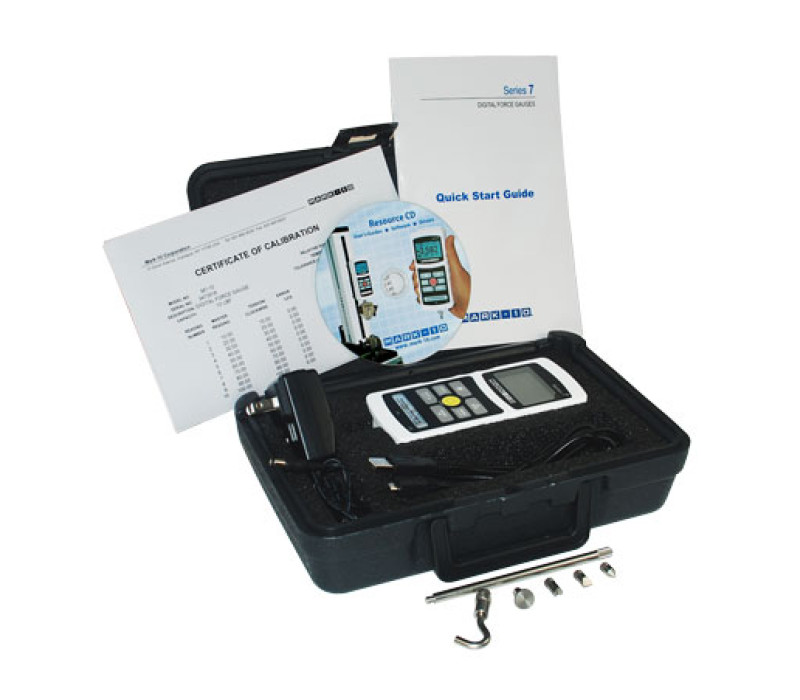

Model M7 shown with included items, see In The Box section for more details.

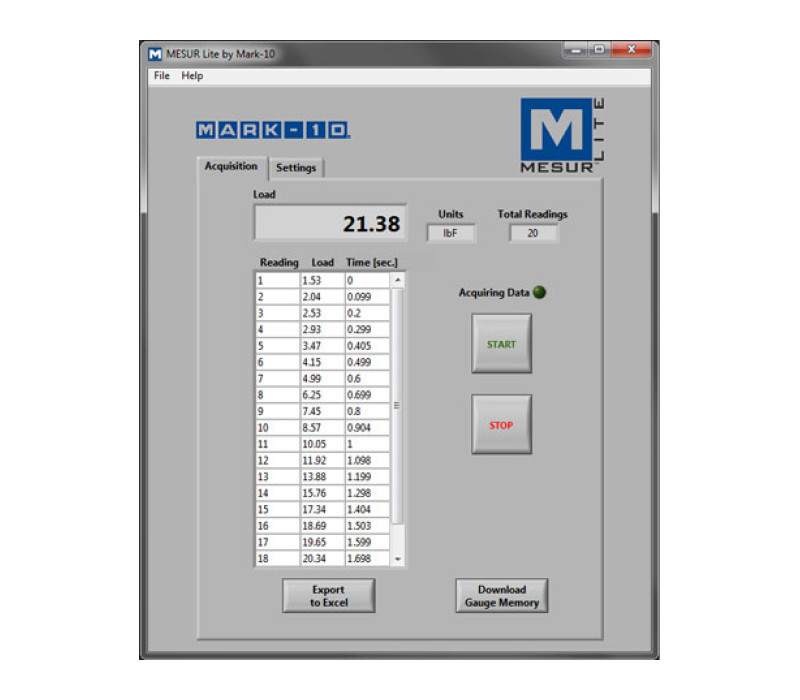

MESUR® Lite is a basic data collection program which tabulates data received from a Mark-10 force or torque gauge and allows for exporting of data to Excel.

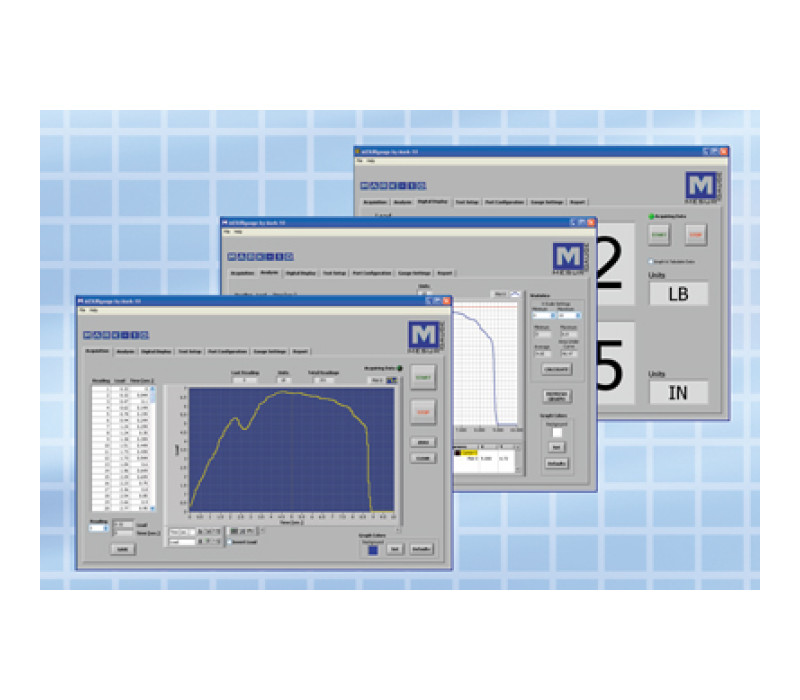

MESUR® gauge is an advanced data collection program designed to interface with Mark-10 gauges and test stands. The program tabulates and plots load vs. time, and provides a number of sophisticated test setup, analysis, and reporting tools.

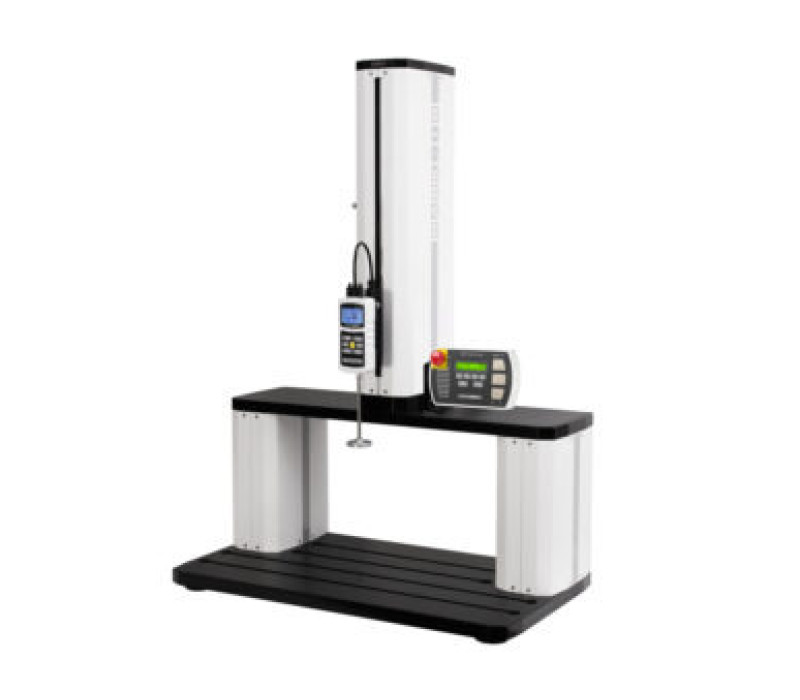

Series-7 Force Gauge attached to a motorized ESM303 with double column extension.

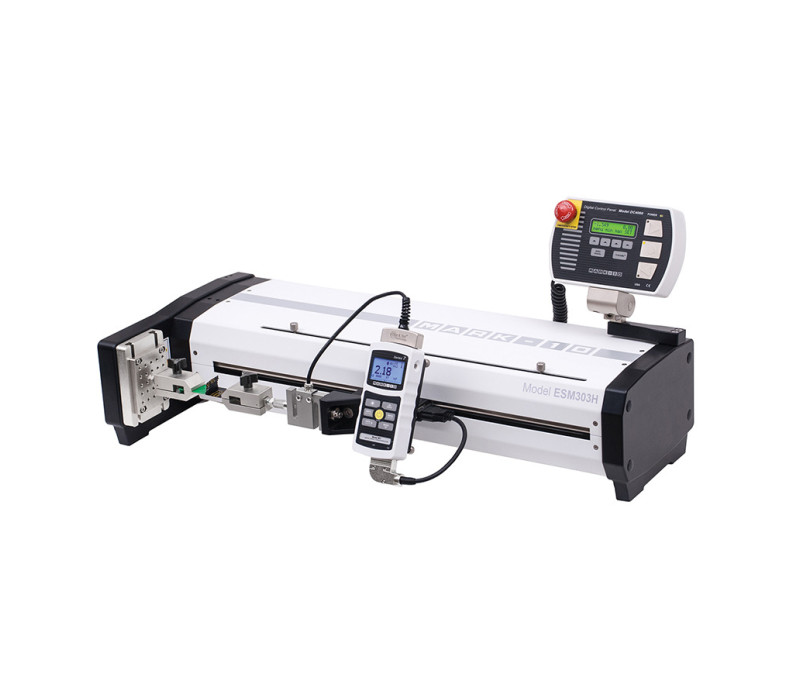

ESM303H horizontal test stand with Series-7 Force Gauge attached.

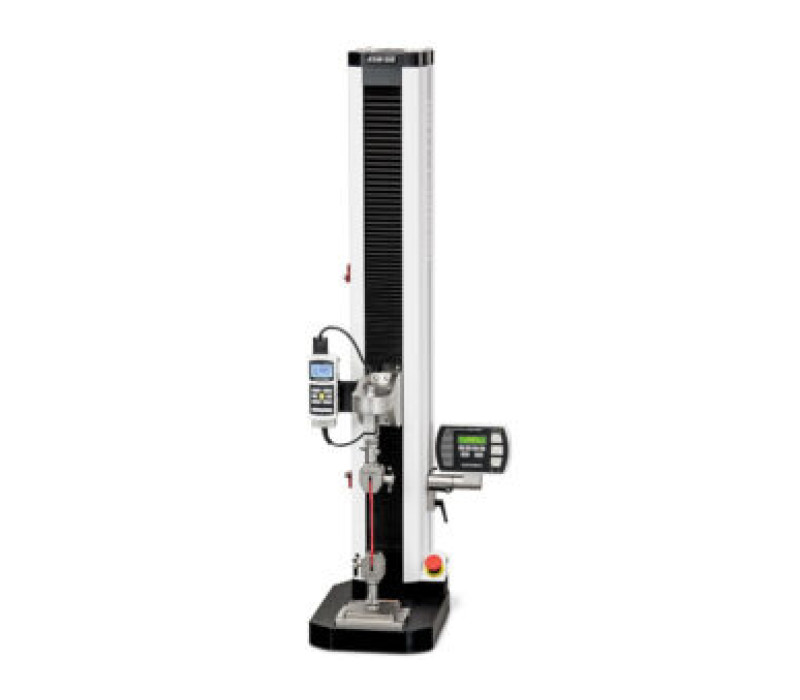

Series-7 mounted to an ESM1500 with attachments engaged in a tensile test.

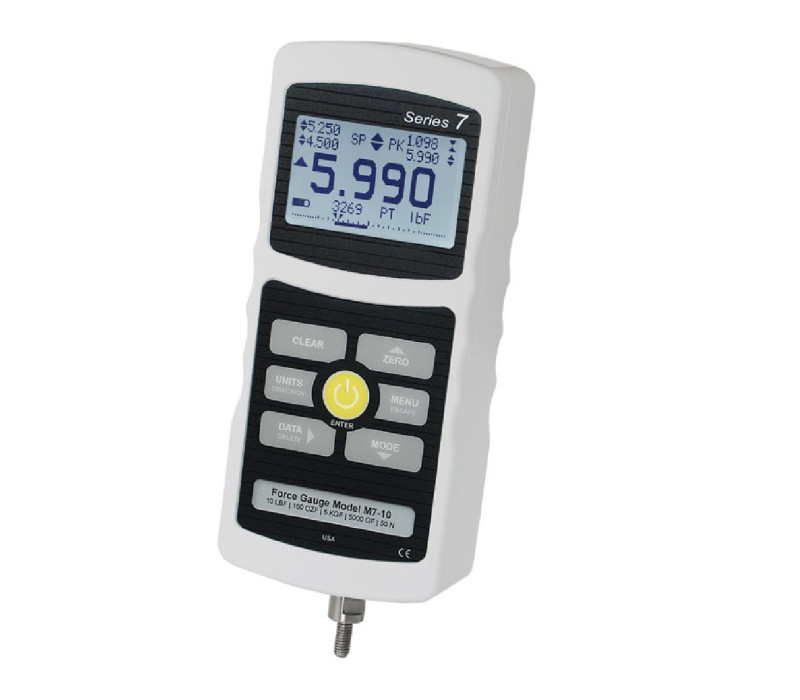

Series-7 Professional Digital Force Gauge

Name: Series-7 Professional Digital Force Gauge
SKU: 127057

The Professional Series-7 Force Gauges are among the most sophisticated force gauges available.
Like the Series 5 the Series-7 is compatible with a large range of motorized and manual test stands like the ESM-303 to 1500 series.
Combined with a wide variety of attachments this versatile gauge creates reliable test results with an accuracy of ±0,1% combined with a sampling rate of 14.000 Hz.

Available in 11 ranges from 0,5 kN (0.12 lbF) to 2,5 kN (500 lbF) the Series-7 Force Gauges cover a broad force measurement spectrum.

Equipped with the same features as the Series-5 Force Gauges the Series-7 adds, among other features, a larger memory of up to 5000 readings, a higher sampling rate and high speed continues data capture.
Other added features are user defined Unit of Measurement and a coefficient of friction (COF) unit of measurement.
The Series-7 Force Gauges can be equipped with a foot switch that can automate common force gauge and indicator functions.

Data connectivity is provided through RS-232, Mitutoyo (Digimatic), USB or analog outputs.

The Digital Mark-10 Series Force gauge range is available in a variation of 5 gauges with each gauge type available in a scale of force ranges.
Each type of gauge has its own specifications, the table below shows the main specifications of each gauge type.
All gauges types are equipped with a rechargeable battery, a back lit display and reversible aluminum housing.
The Series-# Digital Force Gauges are designed to be used for measuring tension and compression forces.

All gauges except for the Series-7 come with MESUR^® Lite data acquisition software.
MESUR^® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Mark-10 Digital Force Gauges are versatile instruments, in general they are combined with additional equipment to a purposely build system to perform the required tasks.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.

Price from € 1.745,00

Order now

High-speed sampling rate: 14.000 Hz
Averaging mode - calculates average readings over time
Continuous data capture of up to 5.000 data points, at up to 14.000 Hz, downloadable to a PC
External trigger mode - for switch contact testing or remotely stopping display update
Individual data point memory for up to 5.000 data points, downloadable to PC
Sample break detection with auto functions, including stopping movement on the ESM301 test stand
Footswitch function - configure up to 3 functions per footswitch activation
USB, RS-232, Mitutoyo, and analog outputs
1st / 2nd peak detection
Automatic output / data storage / zeroing upon various event completions
7 units of measurement, plus Coefficient of Friction, and user-defined unit with configurable name
Programmable set points, with indicators and outputs
Password protection, configurable for individual keys and calibration
Includes NIST Traceable Calibration Certificate with 10 pt data. ISO-17025 certificate option available
3 Year warranty

Series-7 Force Gauges are shipped as shown at left, and include the following accessories:

Extension rod *
Hook *
Cone *
Chisel *
V-Groove *
Flat *
Coupling *
Carrying case
USB cable
AC adapter
Battery
Certificate of calibration with data

* The specific accessory depends on the force gauge model. See Included Accessories section for details.

Force Ranges, Capacity & Resolutions

Model	lbF	ozF	kgF	gF	N	kN	mN
M7-012	0,12 x 0,00002	2 x 0,0005	-	50 x 0,01	0.5 x 0,0001	-	500 x 0,1
M7-025	0,25 x 0,00005	4 x 0,001	-	100 x 0,02	1 x 0,0002	-	1000 x 0,2
M7-05	0,5 x 0,0001	8 x 0,002	-	250 x 0,05	2,5 x 0,0005	-	2500 x 0,5
M7-2	2 x 0,0005	32 x 0,01	1 x 0,0002	1000 x 0,2	10 x 0,002	-	-
M7-5	5 x 0,001	80 x 0,02	2,5 x 0,0005	2500 x 0,5	25 x 0,005	-	-
M7-10	10 x 0,002	160 x 0,05	5 x 0,001	5000 x 1	50 x 0,01	-	-
M7-20	20 x 0,005	320 x 0,1	10 x 0,002	10000 x 2	100 x 0,02	-	-
M7-50	50 x 0,01	800 x 0,2	25 x 0,005	25000 x 5	250 x 0,05	-	-
M7-100	100 x 0,02	1600 x 0,5	50 x 0,01	50000 x 10	500 x 0,1	-	-
M7-200	200 x 0,05	3200 x 1	100 x 0,02	-	1000 x 0,2	1 x 0,0002	-
M7-500	500 x 0,1	8000 x 2	250 x 0,05	-	2500 x 0,5	2.5 x 0,0005	-

Load Cell Thread Specifications

Gauge	M7-012 – M7-100	M7-200 - M7-500
Load Cell Thread	#10-32 UNF	5/16-18 UNC

LCD Display

Display

Reversible Housing

Reversible housing

Specialized Gauge Featuress

Series-7 gauges feature several functions typically found in more complex instruments, such as materials testers, data acquisition systems, and PLCs. The following unique features are highlighted:

	High Speed Data Capture & Storage Series-7 can capture and store up to 5.000 continuous data points at a rate of up to 14.000 readings per second. This unique function is ideal for capturing switch activation forces, sharp breaks, and other short-duration applications. Configurable start and stop triggers are provided. The data acquisition rate is variable and can be slowed to also capture longer events, such as structure relaxation, material expansion, and others. Data from the storage buffer can be exported to data collection software such as MESUR^®gauge for further analysis and graphing. Using a Series-7 gauge could replace cumbersome and expensive data acquisition hardware and software.
	Footswitch Command String Integrate your footswitch / automation system with a Series-7 gauge to improve testing ergonomics and efficiency; no need for multiple key presses. Up to three steps may be programmed for a single footswitch activation. Select from several commands, including request peak reading, zero the display, save to memory, and others. Time delays can be inserted between each step.
	Automatic Data Output / Save / Zero / I/O Pin Toggle Upon completion of several event types, the Series-7 can perform the following productivity-enhancing functions: Automatically save the peak reading to memory. Transmit the peak reading via USB, RS-232, or Mitutoyo output. Zero the display. Toggle an I/O pin, for example to stop movement of an ESM303 test stand. Applicable events include: Sample break detection (also applicable to samples which slip, click, or otherwise reach a peak, then fall). Completion of an averaging sequence. External trigger (ex. switch activation). 1st / 2nd peak capture (ex. tensile testing).
	User-defined Unit of Measurement Series-7 gauges display 6 standard units of measurement. One additional user-defined unit is provided for unique applications. A base unit is specified, along with a multiplier, and 5-character name. Typical applications: To measure the torque produced by pressing on a lever in a mechanical assembly, configure the multiplier based on the length of the lever, thereby converting a unit such as N into Ncm. To measure the pressure produced by a circular compression plate on a foam sample, configure the multiplier based on the area of the plate, thereby converting a unit such as lbF into psi.

Included accessories

Accessory	M7-012 - M7-20	M7-50 - M7-100	M7-200 - M7-500
Extension Rod	G1024	G1024	G1031
Cone	G1026	G1026	G1033
Chisel	G1025	G1025	G1032
V-Groove	G1027	G1027	G1034
Flat	G1029	G1029	G1036
Hook	G1028	G1038	G1035
Coupling	-	G1039	G1037

Series-7 Force Gauge models M7-012 tot M7-500 all have the same dimensions

All dimensions are noted in Inches with metric sizes in (mm) behind.

Force Gauge comparison table

	Series-7 Professional	Series-5 Advanced	Series-4 Performance	Series-3 Basic	Series-2 Economical
Accuracy	±0,1%	±0,1%	±0,2%	±0,3%	±0,5%
Sampling rate	14.000 Hz	7.000 Hz	3.000 Hz	2.000 Hz	500 Hz
Resolution	1/5000	1/5000	1/2000	1/1000	1/1000
Units of measurement	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, ozF, gF, kgF, N, kN, mN (depending on model)	lbF, gF, kgF, N (depending on model)	lbF, kgF, N
Outputs	USB, RS-232, Mitutoyo, Analog	USB, RS-232, Mitutoyo, Analog	USB, RS-232, Mitutoyo, Analog	USB	No
- RS-232	Configurable up to 230.400 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	No	N/A
- USB	Configurable up to 230.400 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	Configurable up to 115.200 baud	N/A
- Mitutoyo (Digimatic)	Serial BCD suitable for all Mitutoyo SPC-compatible devices	Serial BCD suitable for all Mitutoyo SPC-compatible devices	Serial BCD suitable for all Mitutoyo SPC-compatible devices	No	N/A
- Analog	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	±1 VDC, ±0,25% FS at capacity. Positive for compression, negative for tension	N/A	No
- General purpose I/O	Three open drain outputs, one input	Three open drain outputs, one input	Three open drain outputs, one input	N/A	No
- Set point	Three open drain lines	Three open drain lines	Three open drain lines	N/A	No
Mesur-Lite software included	Yes	Yes	Yes	Yes	No
Data output functionality	Automatic output or by pressing DATA button, or requesting from a PC or other device.	Automatic output or by pressing DATA button, or requesting from a PC or other device.	By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).	By pressing DATA button, or requesting from a PC or other device (currently displayed reading only).	N/A
ASCII command set for external control	Full command set	Full command set	“?” only (request current reading)	“?” only (request current reading)	N/A
Interface w/MESUR® gauge and MESUR® Lite	Full communication	Full communication	Single point or continuous data output only	Single point or continuous data output only	N/A
Interface with ESM303 / 750 / 1500 test stands	Full communication, including PC control	Full communication, including PC control	Limited to force data, overload protection, and force set points	N/A	No
Data memory	5.000 readings, with output	1.000 readings, with output	50 readings, with output	No	No
Data memory deletion	Any individual data point, or clear all	Any individual data point, or clear all	Any individual data point, or clear all	N/A	N/A
Statistic calculations and output to PC	Max, min, mean, std. dev., number of readings, with output	Max, min, mean, std. dev., number of readings, with output	Max, min, mean, std. dev., number of readings, with output	N/A	N/A
Break detection	Yes	No	No	No	No
1st / 2nd peak detection	Yes	No	No	No	No
Programmable footswitch command string	Yes	No	No	No	No
Averaging mode	Yes	Yes	No	No	N/A
External trigger mode	Yes	Yes	No	No	No
Analog load bar graph shown on display	Yes	Yes	Yes	Yes	No
Set points (for pass / fail indication)	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	Yes with high / low indicators, markers on analog bar graph, and outputs	No
Password protection	Yes, for calibration and individual keys	Yes, for calibration and individual keys	No	No	No
Peak readings always displayed	Yes	Yes	Yes	Yes	No (Peak mode must be selected)
Programmable audible tones	Yes	Yes	Yes	Yes	No
Calibration procedure	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)	Configurable number of data points (up to 10 in each direction)
Overload outputs	Dedicated pins for tension and compression	Dedicated pins for tension and compression	Dedicated pins for tension and compression	No	N/A
Safe overloads	150% of full scale (display shows warning at 110% and above)	150% of full scale (display shows warning at 110% and above)	150% of full scale (display shows warning at 110% and above)	150% of full scale (display shows warning at 110% and above)	150% of full scale (display shows warning at 110% and above)

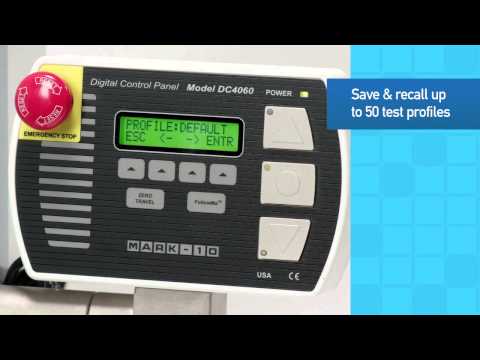

Video

▶

Video

▶

Force Gauge Comparison Chart

Series-7 Data Sheet

Series-7 Quick Start Manual

Series-7 Instruction Manual

Solid models Series-7

C# Code Example

LabVIEW Serial Write / Read VI

CE declaration of Conformity Series-7 Gauges

UKCA Declaration of Conformity Series-7 Gauges

Accuracy	±0,1% of full scale ±1 digit
Sampling rate	14.000 Hz
Power	AC or rechargeable battery.Multi-step low battery indicator is displayed. Gauge shuts off automatically when power is too low.
Battery life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Meaurement units	lbF, ozF, gF, kgF, N, kN, mN (depending on model)
Outputs	USB/RS-232: Configurable up to 115.200 baud. Automatic output available up to 250 Hz. Including Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VCD, ±0,25% of full scale at capacity General purpose:Three open drain outputs, one input Set points: Three open drain lines
Configurable settings	Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe overload	200% of full scale (display shows “OVER” at 110% and above)
Weight (gauge only)	M7-012 - M7-100: 0,45 kg [1.0 lb] M7-200 - M7-500: 0,54 kg [1.2 lb]
Shipping weight	M7-012 - M7-100: 1,4 kg [3.0 lb] M7-200 - M7-500: 1,5 kg [3.2 lb]
Included Accessories	Carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.
Environmental requirements	4 - 40°C [40 – 100°F], max. 96% humidity, non-condensing
Warranty	3 years

Products

Item	Product	Price
133865	M7-012 Digital Force Gauge - 0,5 N	€ 3.168,00
133866	M7-025 Digital Force Gauge - 1,0 N	€ 3.168,00
133867	M7-05 Digital Force Gauge - 2,5 N	€ 1.928,00
133868	M7-2 Digital Force Gauge - 10 N	€ 1.745,00
133869	M7-5 Digital Force Gauge - 25 N	€ 1.745,00
133870	M7-10 Digital Force Gauge - 50 N	€ 1.745,00
133871	M7-20 Digital Force Gauge - 100 N	€ 1.745,00
133872	M7-50 Digital Force Gauge - 250 N	€ 1.745,00
133873	M7-100 Digital Force Gauge - 500 N	€ 1.745,00
133874	M7-200 Digital Force Gauge - 1000 N	€ 1.928,00
133875	M7-500 Digital Force Gauge - 2500 N	€ 2.755,00

Accessories

Item	Product	Price
132825	Cable, serial, Series 7/5/4 to RS-232 DB-9	€ 73,00
132876	Cable, USB, Series 7/5/4/3 to PC	€ 28,00
132826	Replacement battery, 8.4V NiMH	€ 18,00
131954	AC1030 AC adapter/charger, 110V US	€ 41,00
131955	AC1031 AC adapter/charger, 220V Europe	€ 41,00
132878	AC1032 AC adapter/charger, 220V UK	€ 41,00
132879	AC1035 AC adapter/charger, 220V Australia	€ 41,00
136844	AC1051 Footswitch for Series 7/Model 7i	€ 188,00
134333	AC1052 Mounting plate, Mark-10 gauges, 0.12 - 500 lbF capacities (0.5 to 2,500 N)	€ 55,00

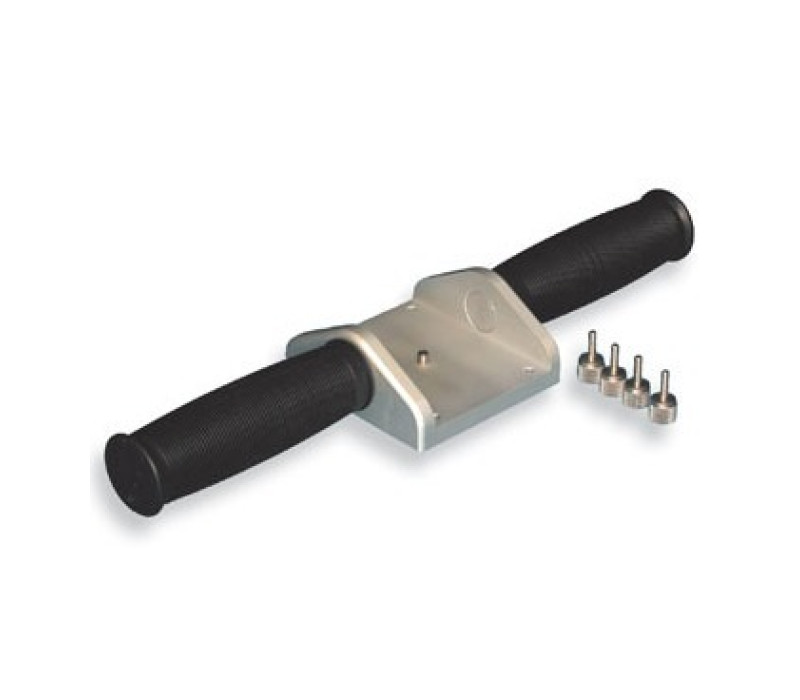

131956	AC1002 Double Handle Grips for Force Gauges Series 4/5/7	€ 133,00

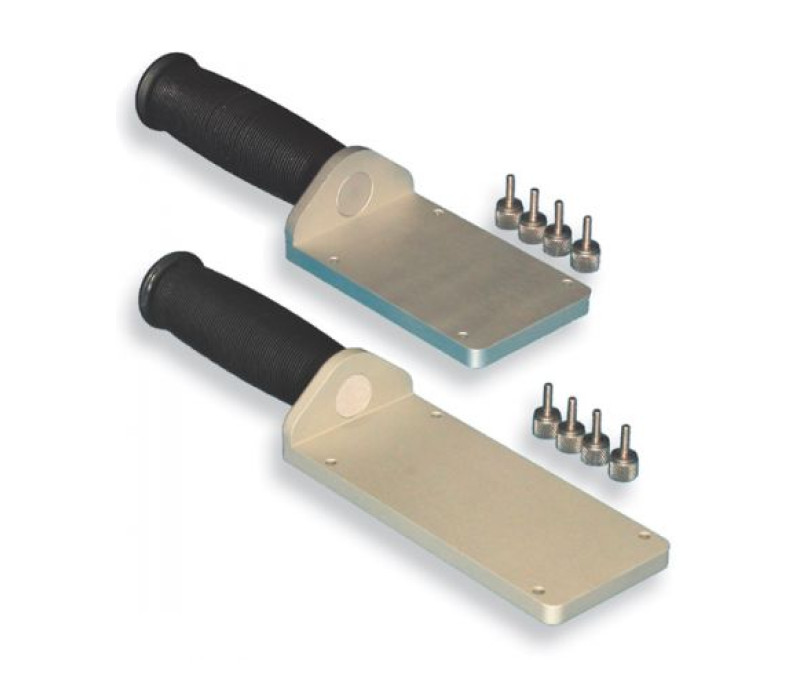

126886	AC1002-1 Handle grip for Series 7/5/4 gauges, single grip	€ 124,00
130819	15-1005 MESURgauge PLUS Load & Travel Analysis Software, 1 license	€ 652,00
136830	15-1005-5 MESURgauge Plus Load & Travel Analysis Software, 5 licenses	€ 2.580,00

All mentioned prices are excluding VAT & excluding shipment costs.
