Series E Series E - ergonomic force gauge for compression and traction

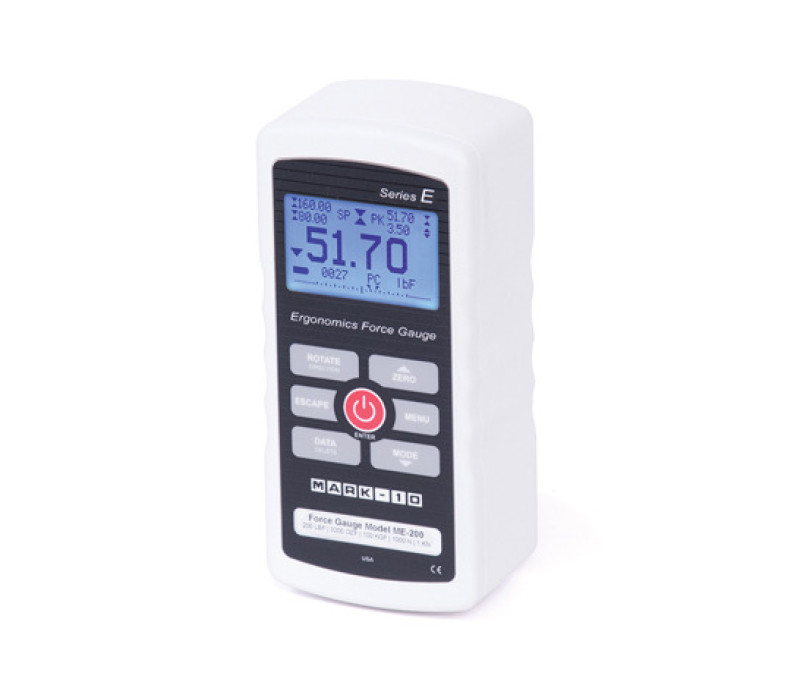

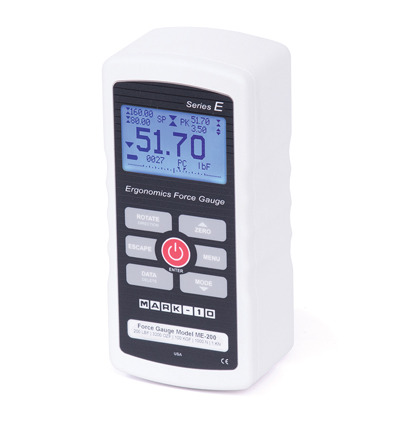

Series E force gauges are rugged and accurate, available in three measuring ranges, 500, 1000 and 2500N.

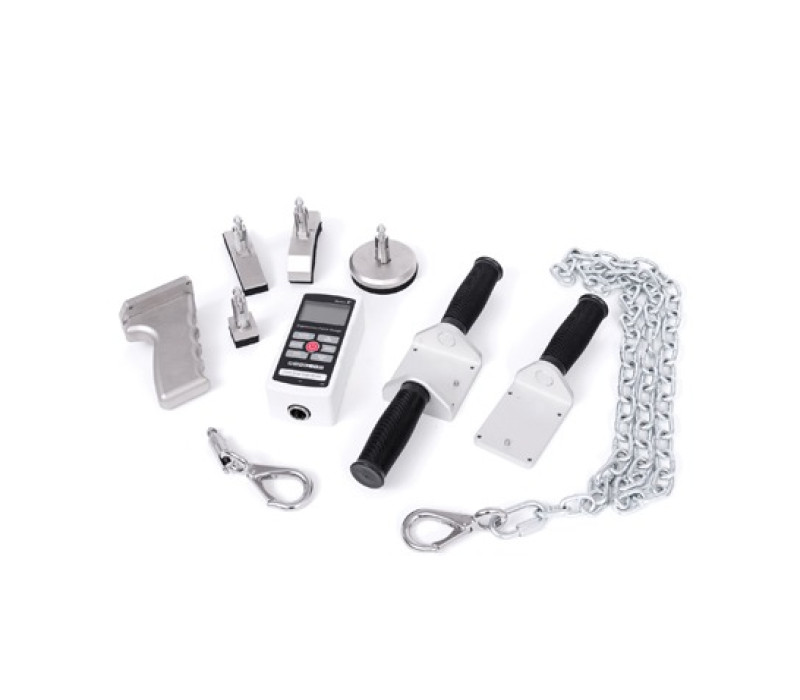

Versatile configurable ergonomic force gauge

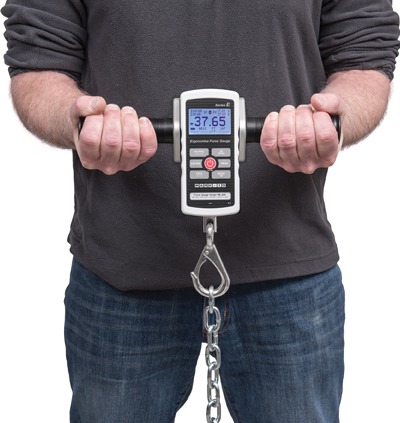

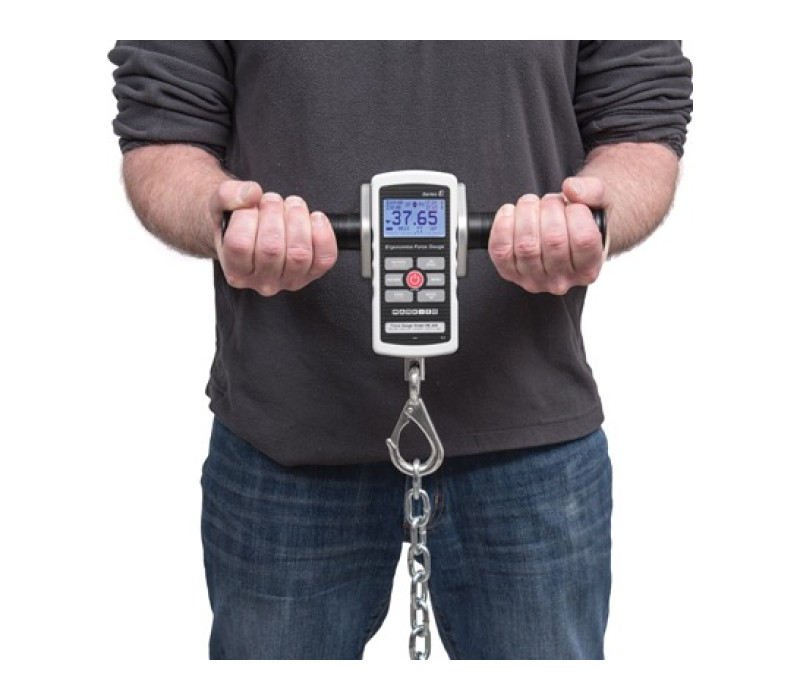

Lifting application possible with chains and rakes

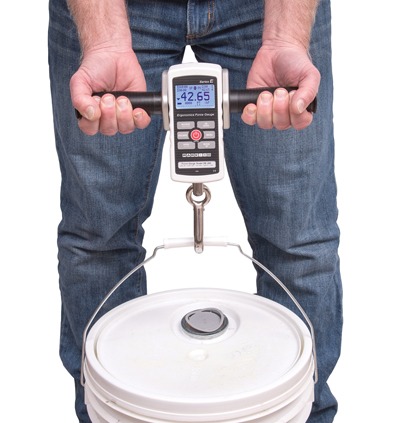

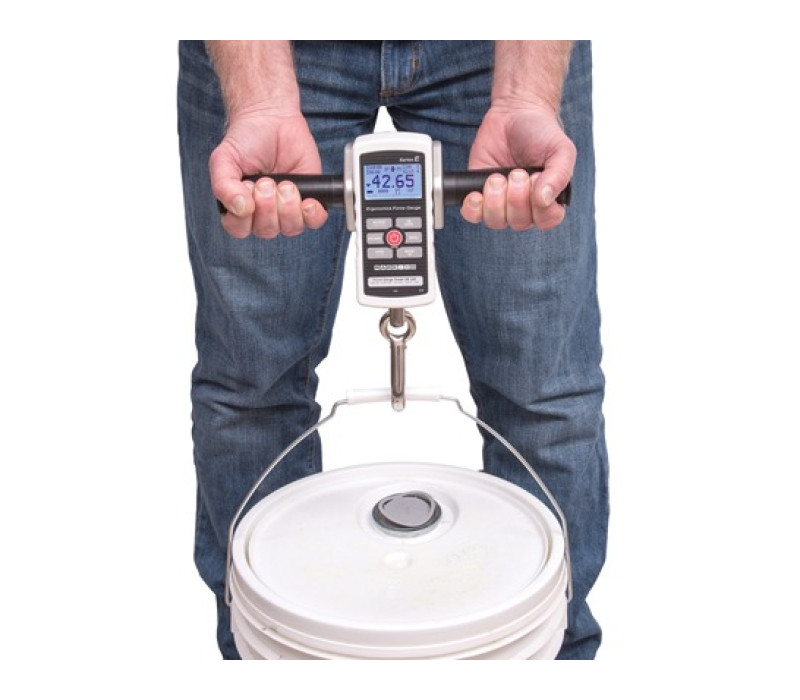

Lifting / traction application

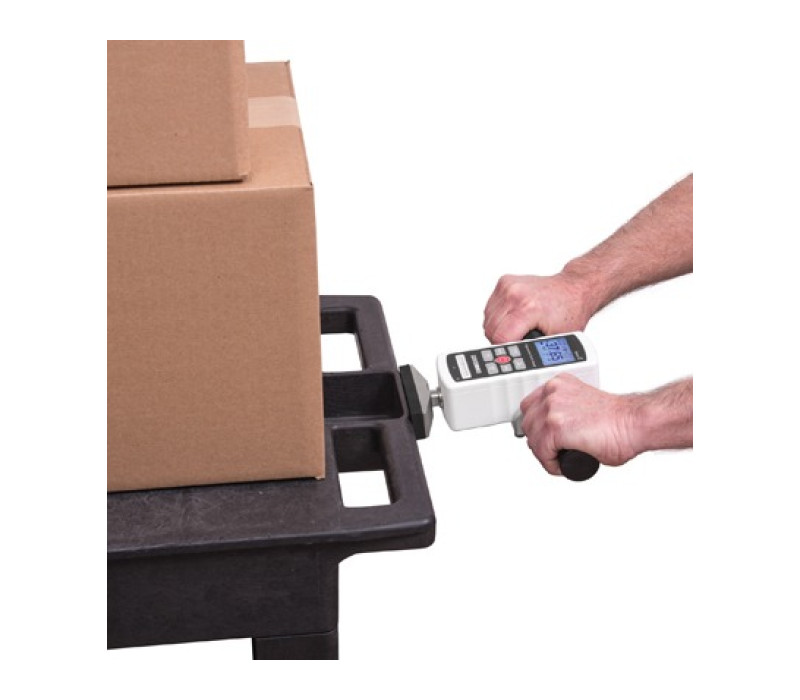

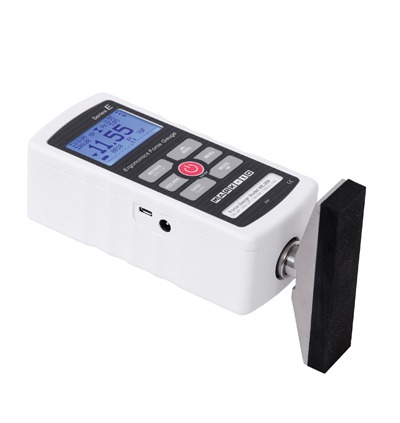

Pressure force application

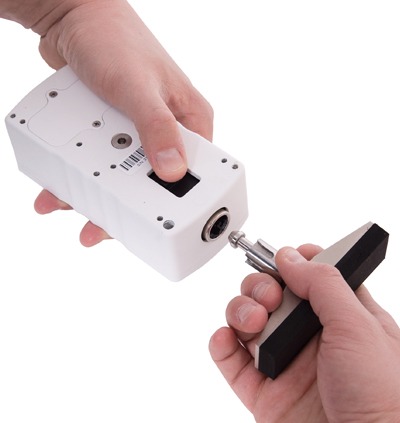

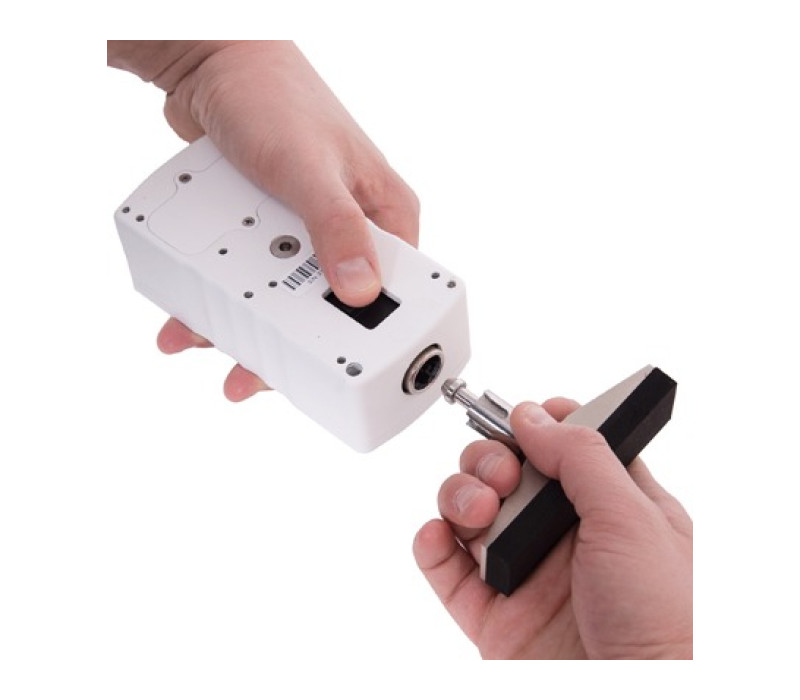

Innovative Click-Lock ™ technology guarantees perfect alignment of the accessories and protects the device from damage caused by the accessories. To remove the accessory simply push the button

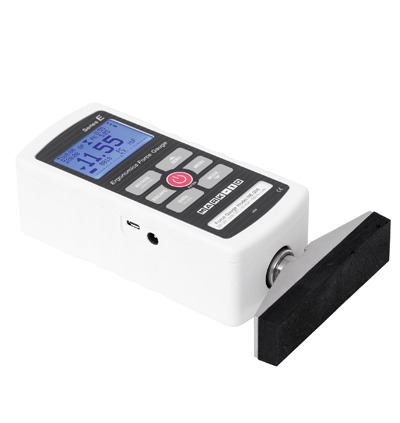

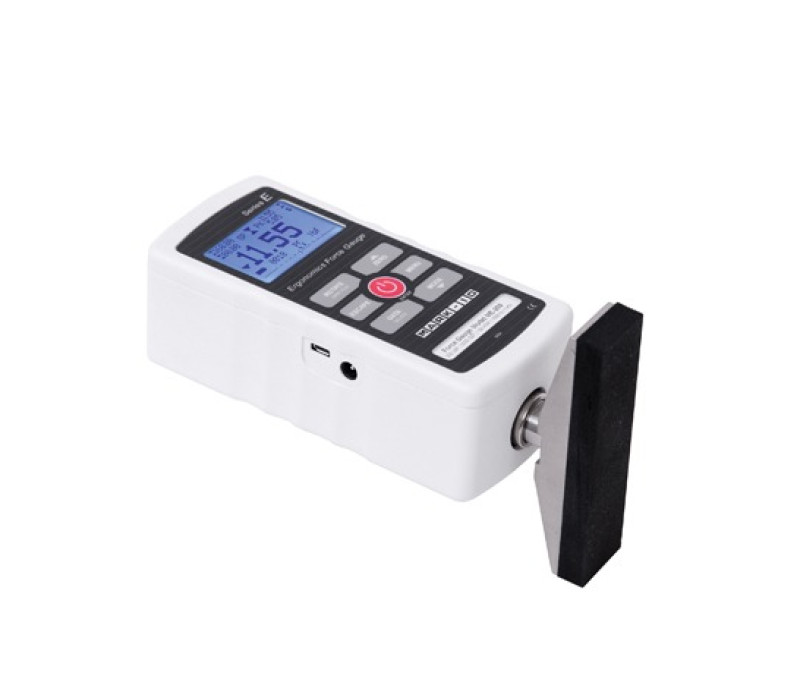

Attachment can be clicked into 90° oientation

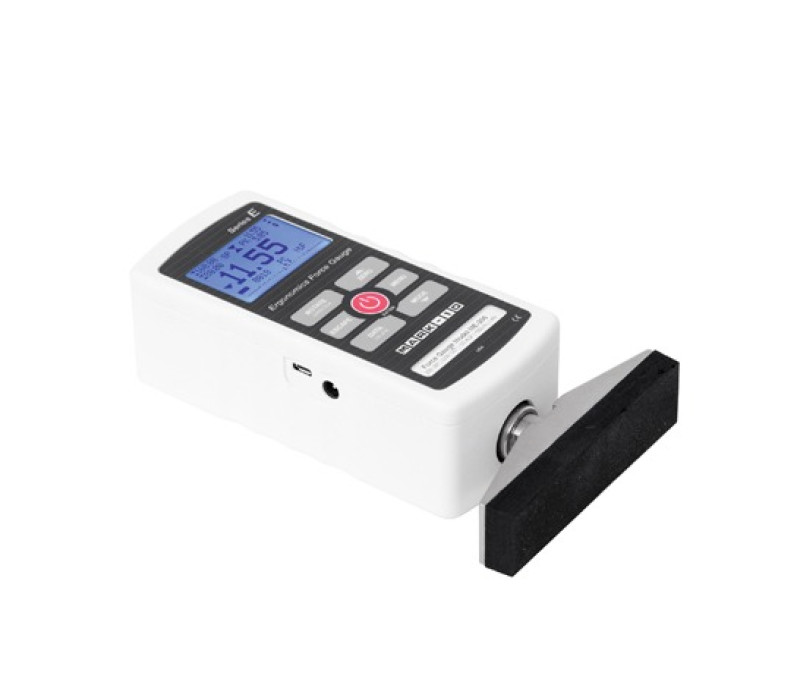

Attachment can be clicked into 180° orientation

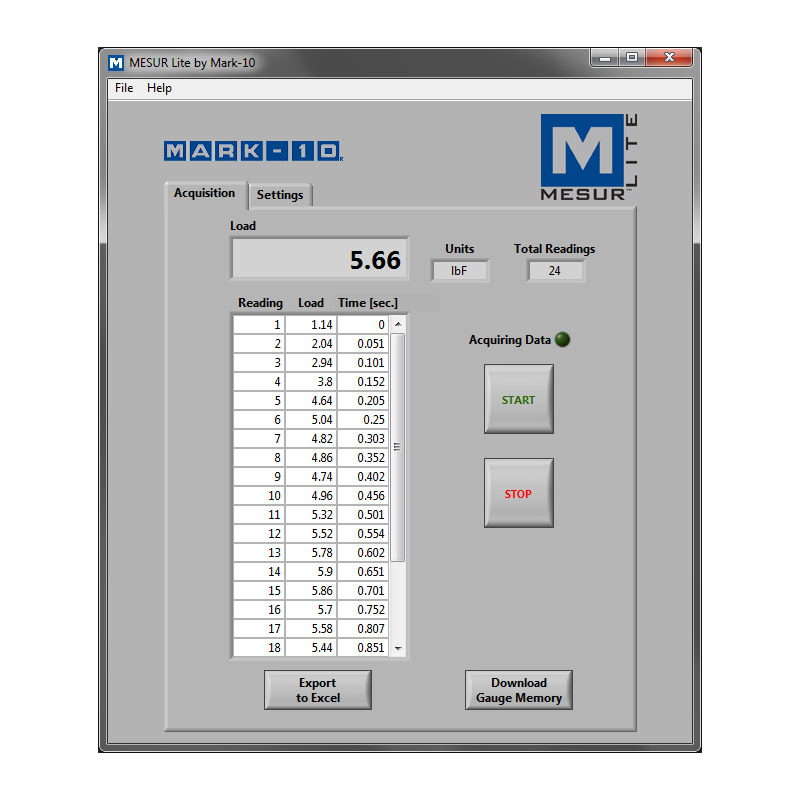

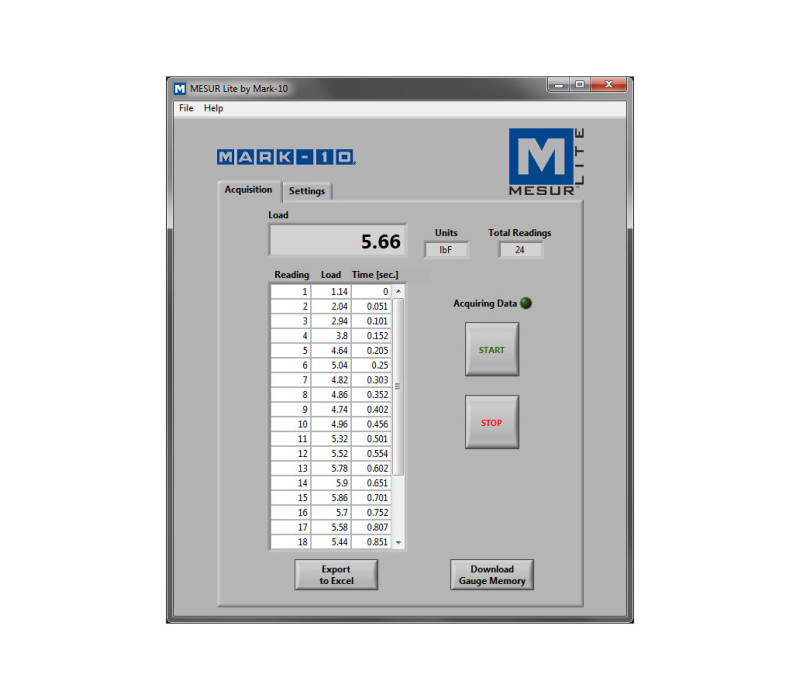

MESUR® Lite is a basic data collection program which tabulates data received from a Mark-10 force or torque gauge and allows for exporting of data to Excel.

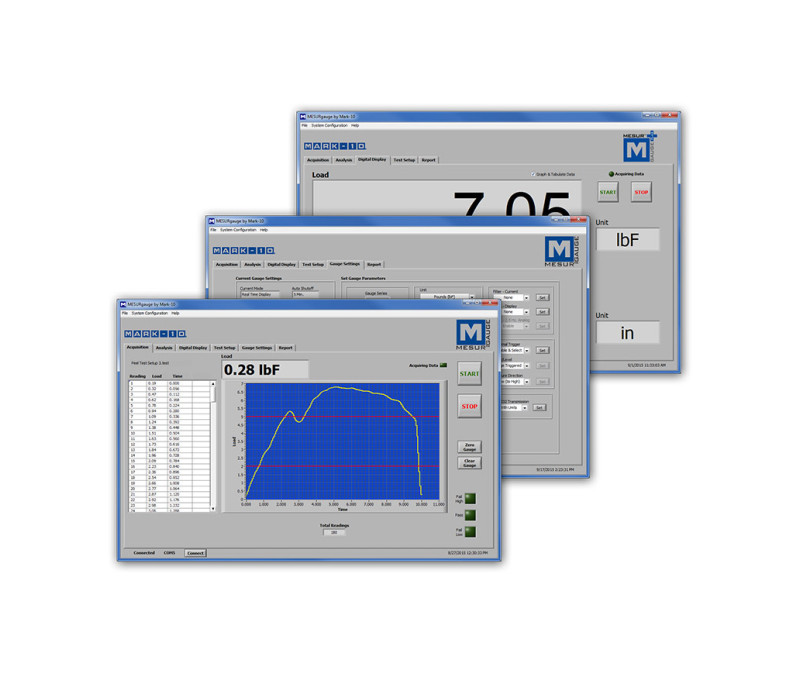

MESUR® gauge is an advanced data collection program designed to interface with Mark-10 gauges and test stands. The program tabulates and plots load vs. time, and provides a number of sophisticated test setup, analysis, and reporting tools.

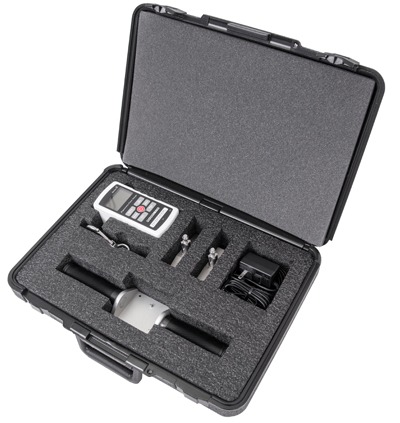

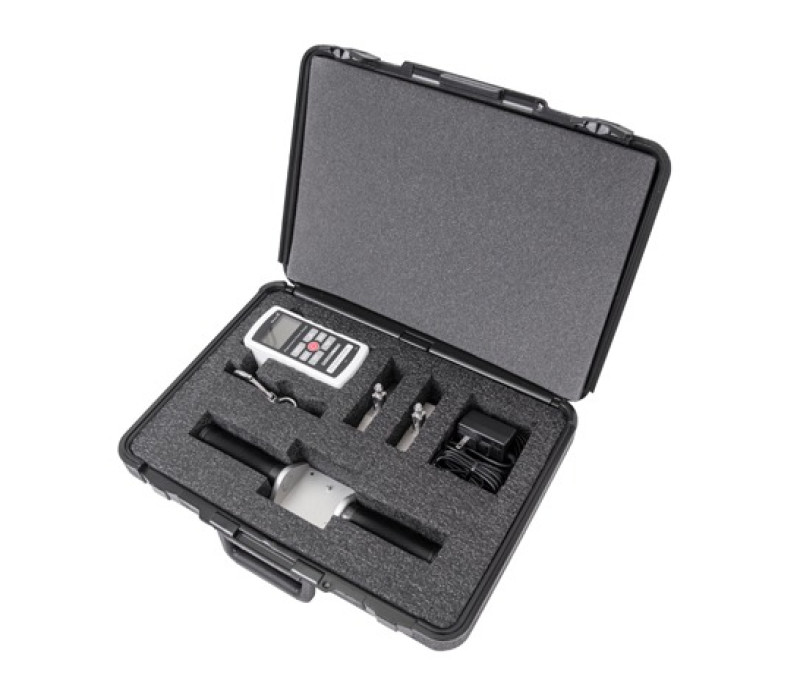

E1000 small carrying case for the basic kit

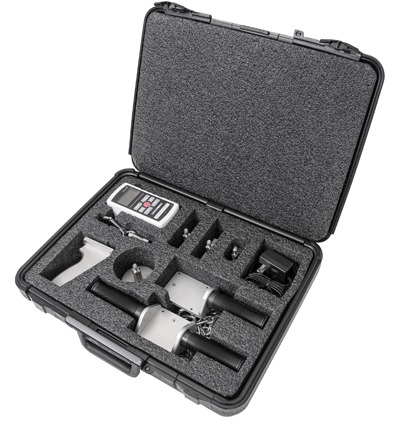

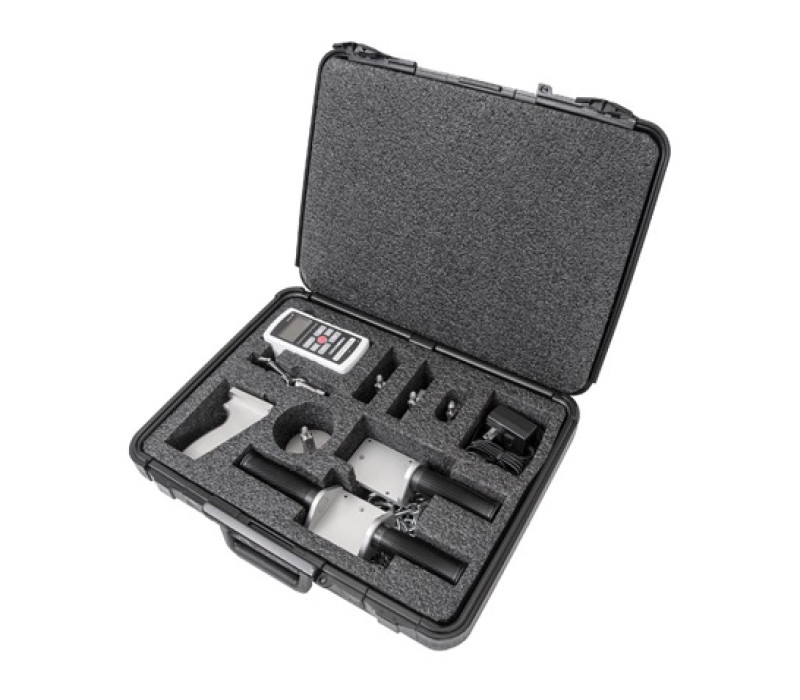

E1001 large carry case for the extended kit

Series E - Ergonomics Force Gauge for Compression and Traction

Name: Series E - Ergonomics Force Gauge for Compression and Traction
SKU: 127295

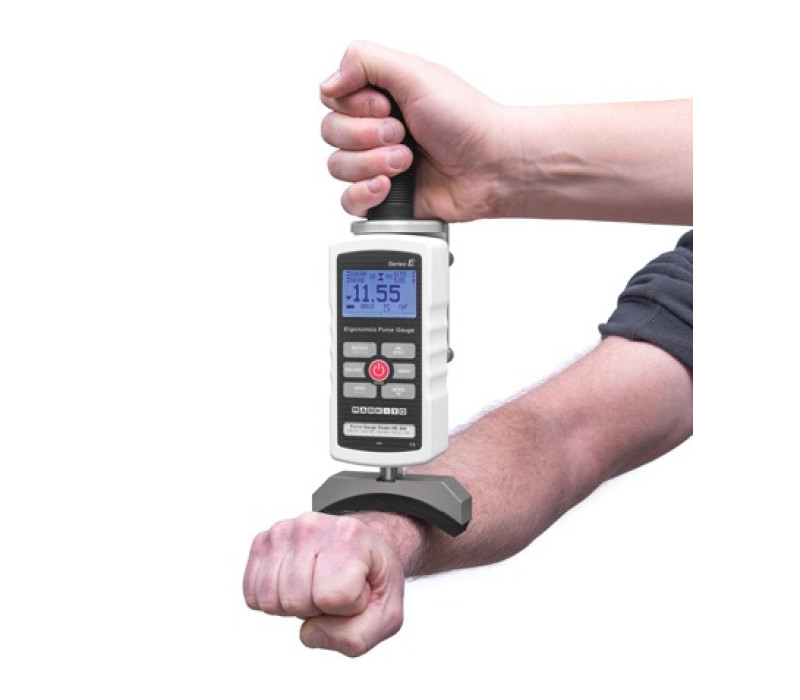

The Series-E ergonomic gauge is developed with tasks like ergonomic analysis, strength assessment and work place design in mind.

This device is wel suited to test applications like the force required to open a (fire)door, lift an item or device or open a drawer.
The different attachments can be used to simulate the actual task and measure the force needed to perform it.

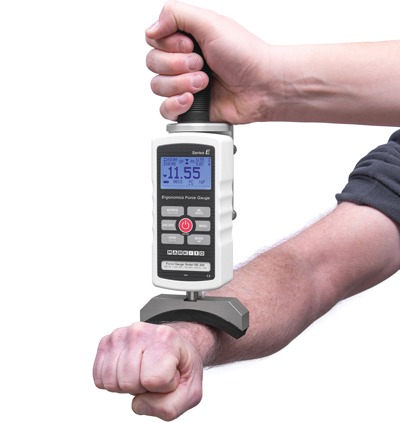

Another application is to measure (muscle)strength, especially when people physically challenged it is possible to measure their strength to adapt the circumstances to their abilities.

It features the innovative Click-Lock^®technology system which makes it easy to change attachments, as no fastening is required, this reduces the risk of damaging the instrument.
Accessories can be attached and removed, adjusted and locked in 90 ° or 180 ° orientation. An adapter is available to use conventional threaded attachments.

With an accuracy of 0,2% and a sampling rate of 7000Hz and a wide range of attachments the Series-E is up to any task required.
There are three different capacity force gauges (500, 1000 and 2500N) available.

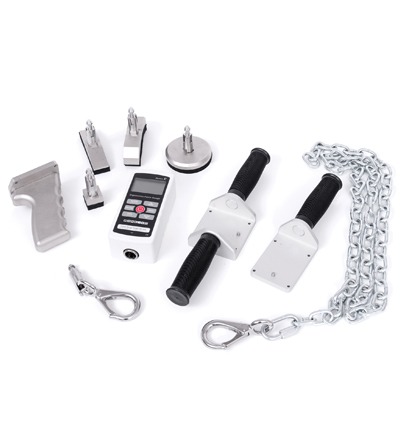

The Series-E is available as a gauge only with the option to acquire individual attachments or as pre-configured, advanced or a professional, kit.

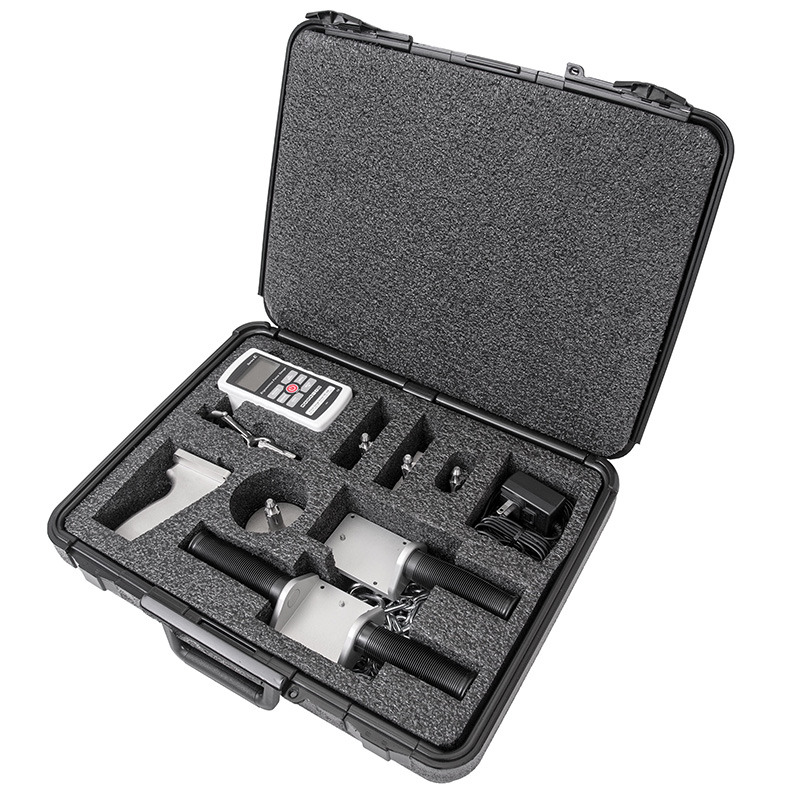

The kits come standard in a rugged carrying case with gauge and all attachments.

An additional myometer conversion kit is offered to extend the versatility of this device.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.

Price from € 1.079,00

Order now

Data memory for 5000 measured values - measured values can be stored manually or continuously with up to 7000 Hz
Measures compressive and tensile force peak values
Statistical functions for stored measured values
Versatile and configurable ergonomic force gauge
MESUR ™ Lite data processing software
Three available measuring ranges: 500, 100 and 2500 Newton
Click-Lock ™ attachment technology for accessories
USB data output
Programmable highs and lows for pass / fail tests
Mode for averaging the forces over a given time

Capacity x Resolution

Model	N	kN	lbF	kgF	gF	ozF
ME-100	500 x 0,2	-	100 x 0.05	50 x 0,02	5000 x 20	1600 x 1
ME-200	1000 x 0,2	1 x 0,0002	200 x 0.05	100 x 0,02	-	3200 x 1
ME-500	2500 x 0,5	2,5 x 0.0005	500 x 0.1	250 x 0,2	-	8000 x 2

D2 no header

Model No.	Description	EM-#00E Gauge only	EKE-#00-1E Advanced kit	EKE-#00-2E Professional kit
ME-#00 (100/200/500)	Force gauge	S	S	S
08-1022	AC adapter with EU prong	S	S	S
AC1118	Battery (rechargeable)	S	S	S
AC1111	USB cable	S	S	S
E1002	Padded attachment, square	O	O	S
E1003	Padded attachment, rectangular	O	S	S
E1004	Padded attachment, curved	O	S	S
E1005	Padded attachment, circular	O	O	s
E1006	Hook	O	S	S
E1007	Chain / hook assembly	O	O	S
E1008	Single handle grip	O	O	S
E1009	Double handle grip	O	S	S
E1010	Pistol grip	O	O	S
E1011	Grip adapter, 5/16-18F	O	O	O
E1012	Looped cable	O	O	O
E1013	Myometer kit	O	O	O
12-1049	Carrying case	S	-	-
E1000	Carrying case, small	O	S	-
E1001	Carrying case, large	O	O	S
Mesur lite		S	S	S
Mesur gauge		O	O	O
S = standard O = option Other power connectors on request.

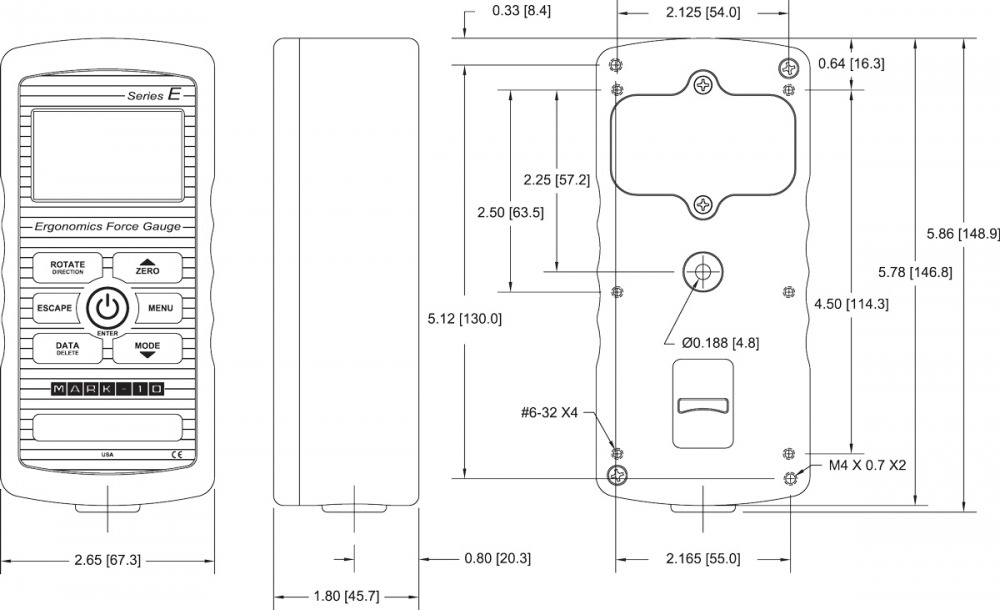

Series-E ergonomic Force Gauge models 100, 200 and 500 all have the same dimensions

All dimensions are noted in Inches with metric sizes in (mm) behind.

Ergonomics Force Gauges Comparison Chart

	EK3 kit (Series-3)	EKE kit (Series E)	EKM5 Myometer (Series-5)
Accuracy	±0.3%	±0.2%	±0.1%
Sampling rate	2000 Hz	7000 Hz	7000 Hz
Units of measurement	lbF, kgF, N	lbF, ozF, kgF, N, kN	lbF, ozF, kgF, N, kN
Data outputs	USB	USB	USB, RS-232, Mitutoyo, analog
Averaging mode	-	Yes	Yes
On-board data memory & statistics	-	Yes up to 5000 readings	Yes 1.000 readings, with output
Continuous data capture	-	Yes	Yes
Accessory mounting	Traditional mounting threads	Click-LockTM Technology	Traditional mounting threads
Password protection	-	Yes	Yes
Available accessories:	-	-	-
- Single handle grip	Yes	Yes (in professional kit)	Option
- Double handle grip	Yes	Yes (both kits)	Option
- Padded attachment, curved	Yes	Yes (both kits)	Option
- Padded attachment, flat	Yes	Yes (both kits)	Option
- Padded attachment, square	Yes	Yes (in professional kit)	Option
- Padded attachment, circular	-	Yes (in professional kit)	-
- Hook	-	Yes (both kits)	-
- Chain / hook assembly	-	Yes (in professional kit)	-
- Pistol grip	-	Yes (in professional kit)	Option
Myometer kit	-	Option	Yes
MESUR-Lite software included	Yes	Yes	Yes

Video

▶

Comparison Chart - Ergonomics Gauges

Series-E data sheet

ME-#00 gauge Quick start

EKE-#00 kit Quick start

Series-E user manual

Series-E LabVIEW Serial Write / Read VI

CE declaration of conformity

UKCA declaration of conformity

Precision:	± 0.2% of full scale
Sampling rate:	7000 Hz
Power supply:	AC power adapter or battery-powered. Multi-level battery indicator always informs about the current state of charge. Automatic shut-off when the power is to low
Battery life:	Backlight on: up to 7 hours of continuous use Backlight off up to 24 hours of continuous use
Measuring units:	lbF, ozF, gF, kgF, N, kN (depending on the model)
USB data output:	Configurable up to 115,200 baud
Secure overload:	200% of full scale (display shows “OVER” at 110% and above)
Calibration:	NIST traceable calibration certificate with test data
Weight:	0,8 kg
Delivery includes:	Carrying Case, Universal AC Adapter, Batteries, USB Cable, Resource CD (USB Driver, MESUR ™ Lite Software, MESUR ™ gauge MESUR ™ gauge Plus 90-Day Trial and Instruction Manual), NIST traceable calibration certificate
Warranty:	3 years
