TE-RFS Multi-Configuration Tension Sensor


Made in GermanySeveral Ranges up 500 Kg (5000 N / 1100 lbs)

The new CHECK-LINE Model TE-RFS Tension Sensor measures the running line tensions of wires, optic fibers and cables. It is designed to minimize the effects of different material rigidities when measuring on a variety of material sizes and also features a unique "tri-tens" system where the material can be threaded through the 3 rollers in 3 distinct paterns.

Its unique strain-gauge design delivers excellent measurement precision and stability as well as providing maximum overload protection.

5-Roller version is offered to minimize tension fluctuations in applications where the process material vibrates, oscillates or is unsteady.

The 2 additional rollers mounted on top of the process material are mounted on adjustable brackets allowing them to be positioned so that they slightly contact the material.

They provide additional control to insure that the process material travels over the three primary rollers (located under the material) in a smooth and even fashion.

5 roller version

Features
  • Based on the precision tension sensor RFS
  • Measure a wide range of materials without need to adjust calibration, when using threading pattern "D"
  • Wear-resistant, ball-bearing guide rollers
  • Minimizes material deflection

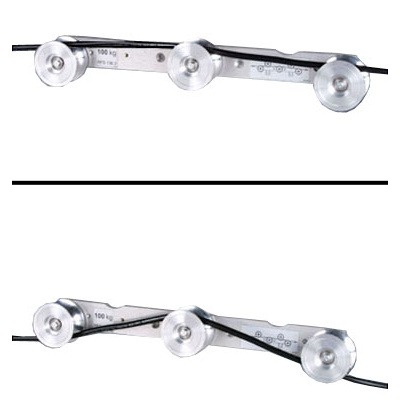

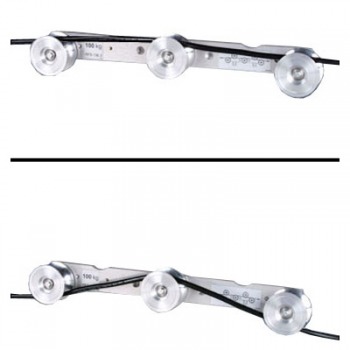

Material Threading Patterns


Pattern D


Pattern E


Pattern F
Click images to enlarge

Dimensions
Dimensions Tension Sensors TE-RFS


Related Products

TS621 Strain Gauge Amplifier


  • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
  • 0-10VDC analog output

More details

TS621 Strain Gauge Amplifier

DPM502 Digital Tension Indicator


  • Selectable “damping function” reduces display fluctuations
  • 24V DC power supply with galvanic isolation

More details

DPM502 Digital Tension Indicator

MU621 Tension Indicator/Amplifier Console


  • For strain gauge sensors
  • 1 to 4 measuring channels

More details

MU621 Tension Indicator/Amplifier Console

HCC-Easy Data Transfer & Analysis Program For Honigmann Tension Sensors


  • Real time display of measured values graphically and digitally, indicating the actual value in tension units
  • Export data in ASCII format

More details

HCC-Easy Data Transfer & Analysis Program For Honigmann Tension Sensors

Specifications
Accuracy
± 1.5% Full Scale or better
Tension Ranges (Kg)
Several Ranges up 500 Kg (5000 N / 1100 lbs)
Outer Roller Spacing (c:c)
300 - 600 mm (depending upon material rigidity)
Guide Rollers
V Grooved, U Grooved or Flat Cylindrical (with or without flanges)
Roller Material
Natural Aluminum, Hard Coat Aluminum, Ceramic Plasma-Coated Aluminum & Hardened Steel
Overload Protection
200% +
Calibration Certificate
Optional
