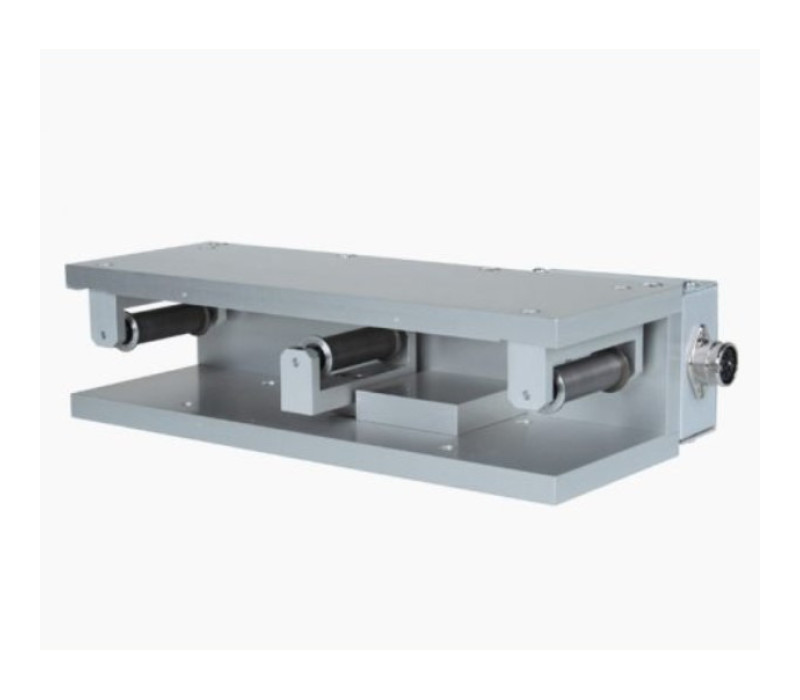

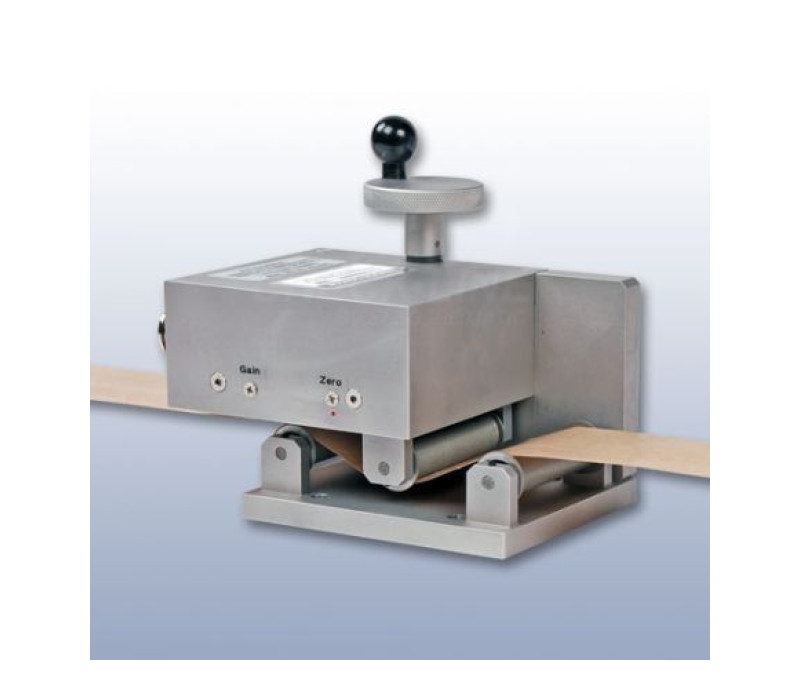

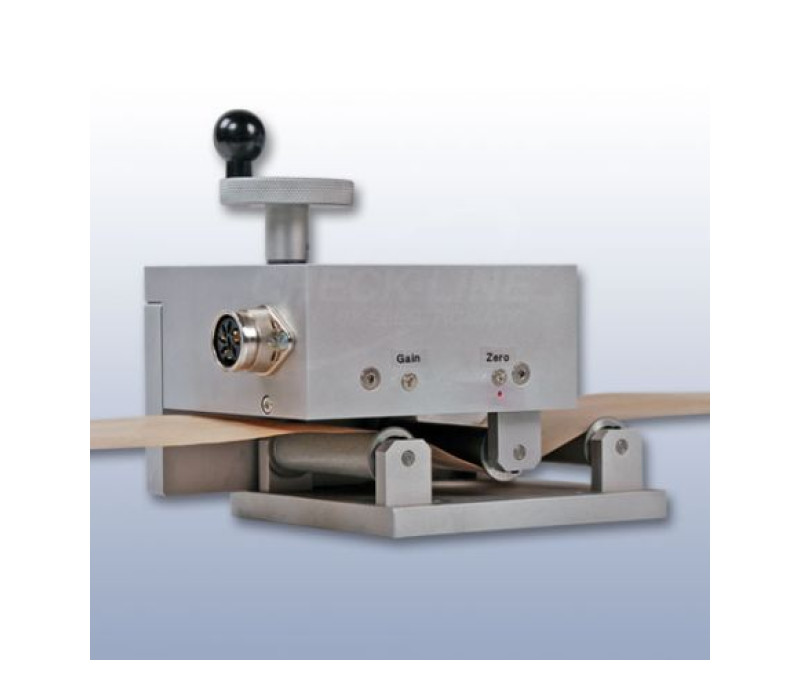

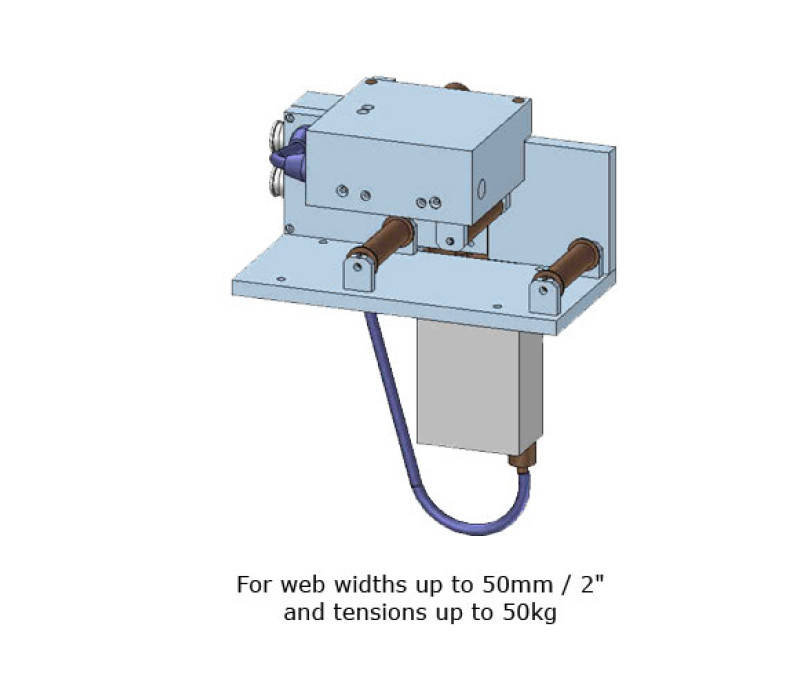

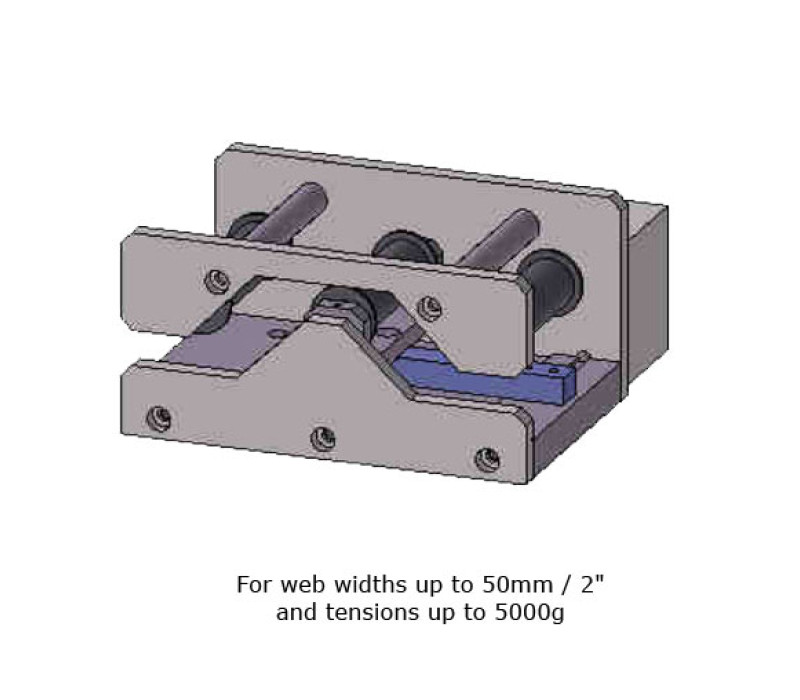

    TSB2 Tension Sensor

    Made in Germany Tension meter for continuous measuring low and high tensions of textile ribbons, films, foils, fiber bunches etc.

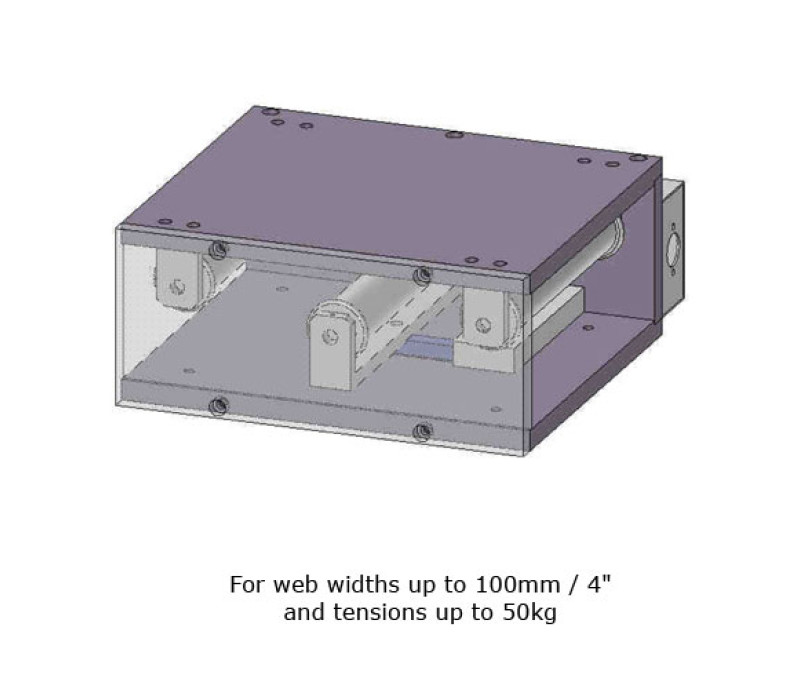

    Tape rollers mounted on both sides, max. width 100 mm with several tension ranges up to 100Kg.

    Tension meter is available with digital output for data processing with PC
    • Dual-flanged outer guide rollers with various widths from 10 mm up to 100 mm
    • Various output signals:
      - analog (0-1V DC)
      - RS232 (optional)
      - 0-10V DC (optional)
    • Cylindrical tape roller, ball-bearing mounted
    • Integrated measuring amplifier
    • Easy calibration to customized material by operator
    • Rugged aluminum housing
    • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

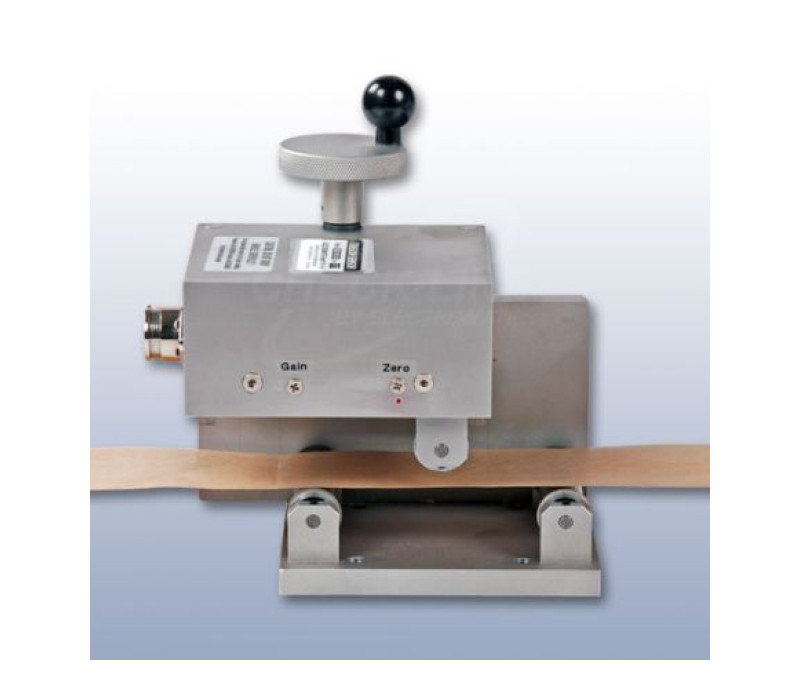

    • Optional hand-wheel feature to open/close roller system for easy threading of material

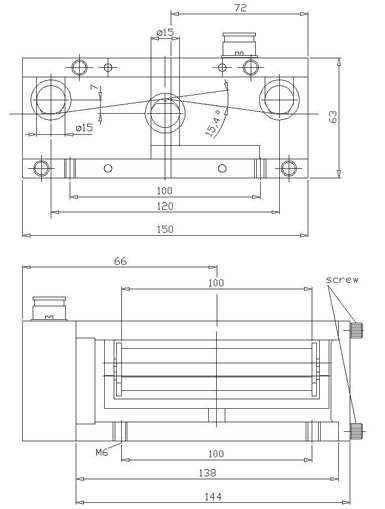

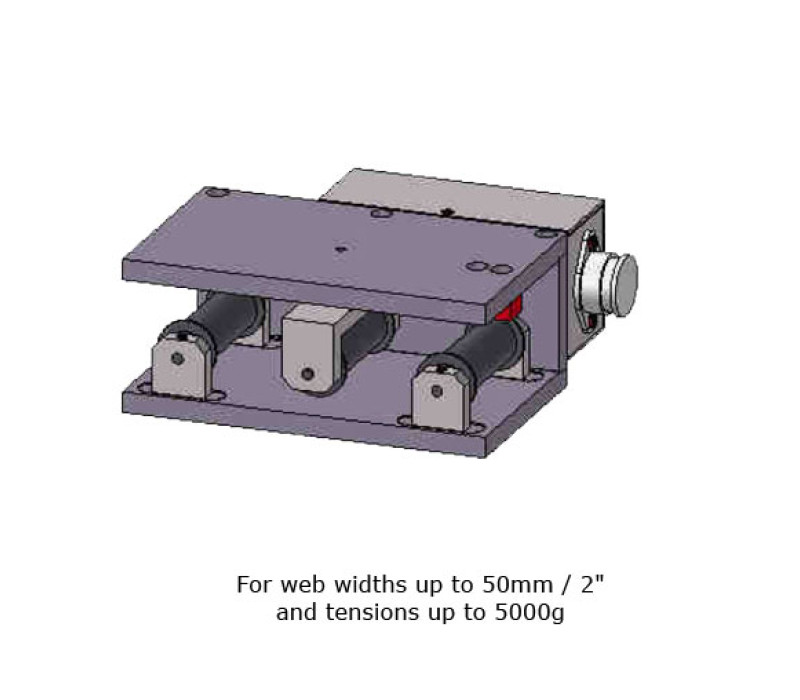

    Dimensions-TSB2
    Dimensions-TSB2
    Dimensions-TSB2
    Available Models
    Model Tension Range* Roller Width (mm)
    TSB2-500 0 – 500 cN 20, 30, 36, 41, 50, 100
    TSB2-1000 0 – 1000 cN 20, 30, 36, 41, 50, 100
    TSB2-2000 0 – 2000 cN 20, 30, 36, 41, 50, 100
    TSB2-5000 0 – 5000 cN 20, 30, 36, 41, 50, 100
    TSB2-10K 0 – 10 daN 15, 20, 30, 36, 41, 50, 100
    TSB2-20K 0 – 20 daN 15, 20, 30, 36, 41, 50, 100

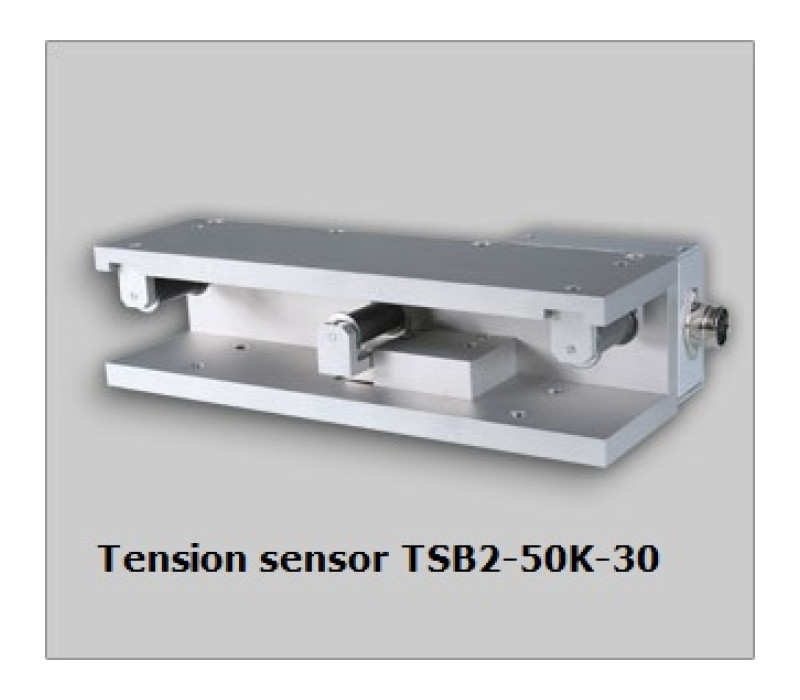

    TSB2-50K 0 – 50 daN 15, 20, 30, 36, 41, 50, 100
    TSB2-100K 0 – 100 daN 15, 20, 30, 36, 41, 50, 100
    Other tension ranges and measuring head widths available on request.
    Other measuring units available, such as g.
    * Outer dimensions of front plate



    Important for your order: Please specify model and roller width! Small dual-flanged outer guide rollers are standard. All 3 rollers can be equipped with one flange, if the material to be measured is wider than the rollers. Please request when you order.

    Calibration to customized material:If process material differs significantly from the manufacturer's calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.

    Output Signal


    Standard

    Output signal: 0 – 1 V DC


    Code A2

    Output signal: 0 – 10 V DC


    Code A3

    Output signal: 4 – 20 mA


    Code A10

    Output signal: mV/V
    For sensors without amplifier
    incl. firmly connected cable with open ends, 2 m long

    How to order

    To order tension sensor TSB2:
    Please indicate the complete item number:

    Model with tension range Roller width in mm Code output signal (if not standard) Complete item No.
    TSB2-10K + 20 + A2 = TSB2-10K-20-A2
    Accessories (optional)
    E10061 - Diode Plug with Bayonet Cap Diode Plug
    Diode Plug suitable for sensors of TS series,
    cable outlet 3.5 – 6 mm
    Order number: E10061

    EK0603, EK0605 and EK0610 - Connecting Cable with 2 diode plugs
    Connecting cable with 2 diode plugs, for analog output and voltage signal.
    For connecting the TS sensor to the display unit SCD-1.
    Order number: EK0603, Length 3 m
    Order number: EK0605, Length 5 m
    Order number: EK0610, Length 10 m

    EK0612, EK0614 and EK0615 - Connecting Cable with 1 diode plug and open ends

    Connecting cable with 1 diode plug and open ends, for analog output and current signal.
    For connecting sensors of TS series to the display unit SC-PM.
    Order number: EK0612, Length 3 m
    Order number: EK0614, Length 5 m
    Order number: EK0615, Length 10 m

    Other cable length available on request!

    Tape Rollers
    Order-code Line Speed vmax. … m/min Roller Material
    15 1000 Hard coated aluminum
    20 1000 Hard coated aluminum
    30 1000 Hard coated aluminum
    36 1000 Hard coated aluminum
    41 1000 Hard coated aluminum
    50 1000 Hard coated aluminum
    100 1000 Hard coated aluminum
    Output Signal Options
    Dimensions
    TSB2 User Manual
    Accuracy±1 % full scale ±1 digit other calibration material: ±3 % full scale or better
    Overload protection100% of tension range
    Measuring roller deflectionMax. 0.5 mm
    Measuring principleStrain gauge bridge
    Natural frequencyApprox. 500 Hz, depending on tension range
    Temperature driftless than ±0.05 % full scale/ºC
    Output signalStandard: 0 - 1 V DC (analog) impedance: ≥ 5 kΩ
    Option: 0 - 10 V DC (analog), or 4-20 mA (current) digital RS 232
    Signal processing:Analog (option: digital)
    Damping (fg)Standard: 30 Hz (other values on request)
    Temperature range10 - 45 ºC
    Air humidity85 % RH, max.
    Power supply+12 - 24 V DC, max. 50 mA regulated
    Housing materialAluminum
    Weight, net (gross)E. g. model TSB2-2000-50 approx. 1000g (1400 g)

    If sensor is ordered only: 1 diode male plug without connecting cable

    If sensor and display unit is ordered: 1 connecting cable, tension sensor with packaging, operating instructions, and Certificate of Compliance with the order 2.1 according EN 10204 free of charge

    Related Products

    Browse Related Products

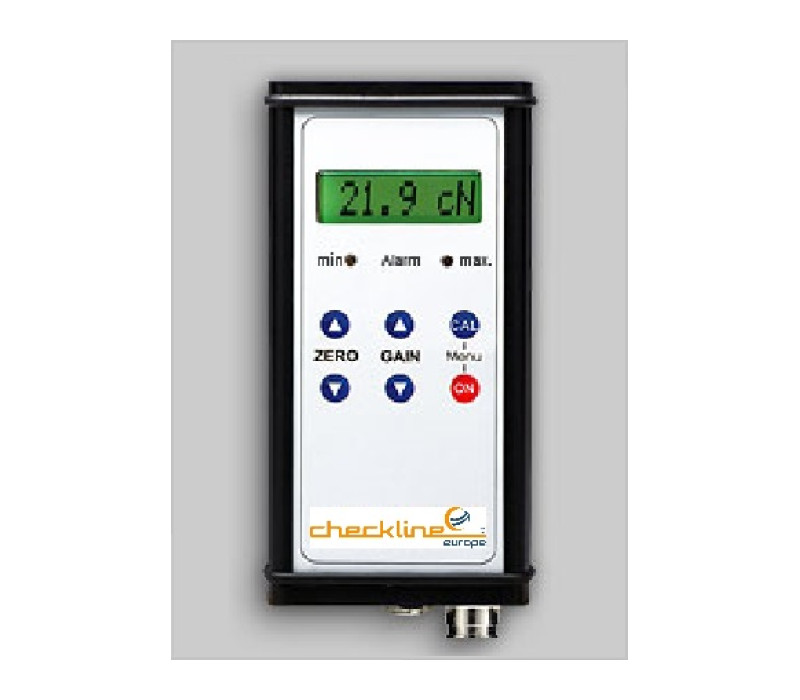

    SCD-1 Display Unit
