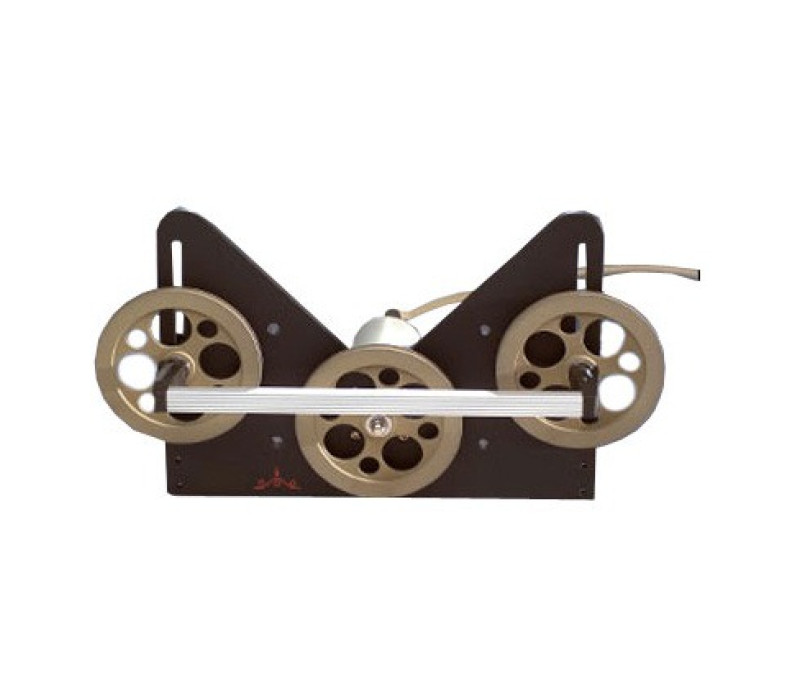

    TSF - Optic Fiber Tension Sensor

    Made in Germany 6 Tension Ranges
    0–100 g up to 0–5.00 Kg

    Large 70 mm aluminum rollers minimize bending of material which might damage or break the fragile filament.

    The outer rollers are mounted on a movable plate to minimize contact when measurements are not being made.

    Tension ranges of 10Kg and higher are available without moveable outer rollers.

    Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.

    Request price >>

    • 70mm V-grooved rollers are rated for speeds up to 5000 m/min
    • Specify TE-CABLE-CC 5 ft. connecting cable (optional, longer lengths are available upon request)
    • Frequency response of 100 Hz
    • 0-1 V DC output, proportional to tension (0-10 V DC optional)
    • Precision strain gauge sensing insures highest accuracy
    • Optional rollers are available for a wide variety of material profiles
    • Surface mount electronics provide long-term reliability

    Tension Ranges

    Model Ranges
    TSF-100 0-100 g
    TSF-200 0-200 g
    TSF-500 0-500 g
    TSF-1K 0-1000 g
    TSF-2K 0-2000 g
    TSF-5K 0-5.00 Kg
    Dimensions-TF
    TSF Data Sheet
    Accuracy± 1.5% FS or better
    Sensor Excitation12 - 18 VDC, 21mA
    Middle Roller Deflection0.5 mm (maximum)
    Sensor Output0-1 V DC (standard)
    0-10 V DC (optional)
    proportional to tension
    Overload Protection150% FS
    Housing MaterialAluminum
    Spacing of Outer Rollers190 mm
    Roller Diameter (Root)70 mm
    Roller MaterialHard-Anodized Aluminum
    Maximum Linear Speed5000 m/min
    5000 m/min40 to 105° F (5-40° C)
    Frequency Response100 Hz
