TSB1 Tape & Band Tension Sensor

TSB1 Tape & Band Tension Sensor

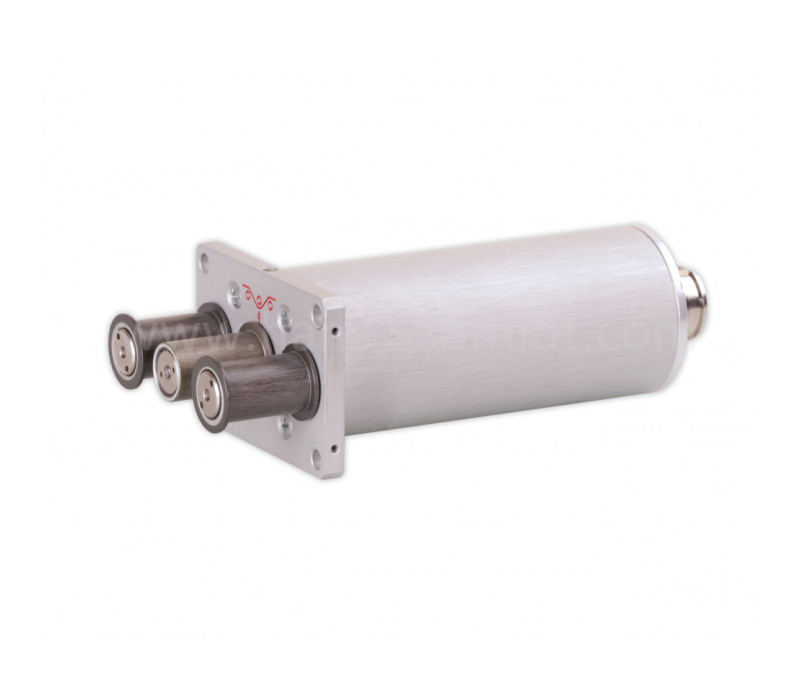

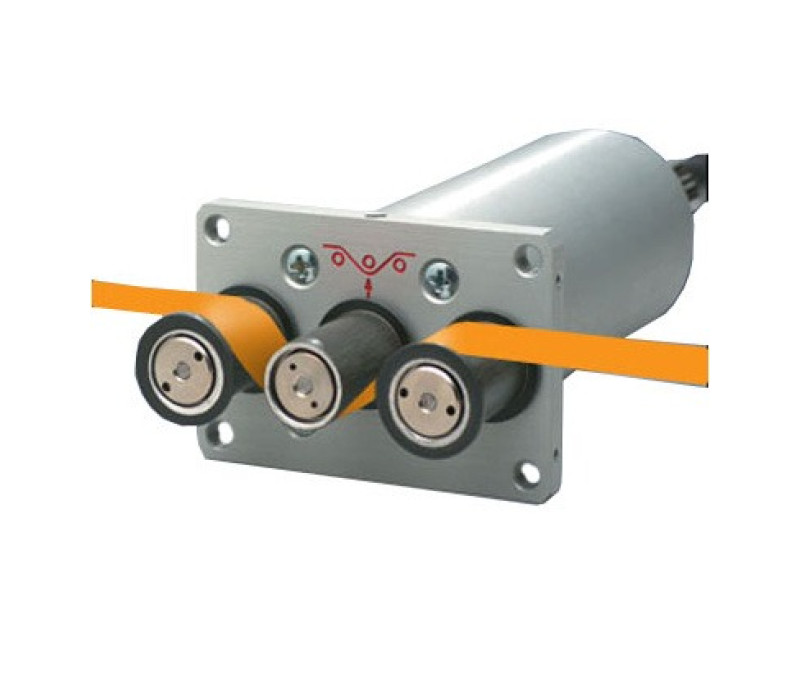

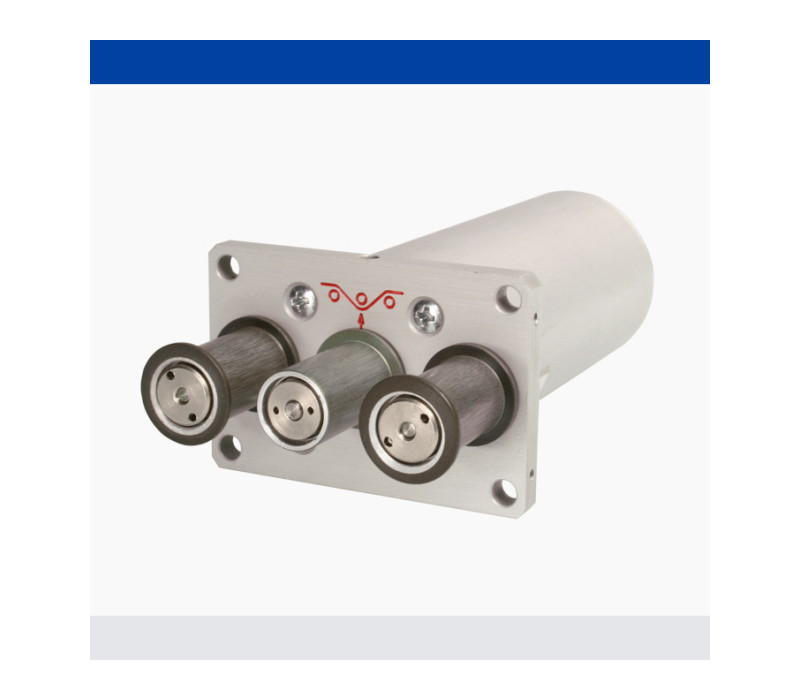

TSB1 Tension Sensors with dual-flanged, cylindrical rollers are ball bearing mounted to provide a friction-free path for tapes, bands and narrow webs/warps up to 30mm wide.

This Stationary Electronic Tension sensor is suitable for measuring low tensions of textile ribbons, films, foils, fiber bundles etc

Cylindrical rollers with raised edges on both sides are mounted on ball bearings to provide a friction free path for tapes, tape and narrow webs/strips up to 30mm wide.

8 Tension Ranges
from 0 - 100 cN to 0 - 20 daN

TSB1 Tension Sensors are offered with roller widths of 7, 10, 15, 20 and 30mm

With Output Signals:

Standard: 0 – 1 V DC or optional
Code A2: Output signal: 0 – 10 V DC
Code A3: Output signal: 4 – 20 mA
Code A10: Output signal: mV/V (For sensors without amplifier incl. firmly connected cable with open ends, 2 m long

Note: A wide range of custom designed models and modifications are available upon request.
Please contact us with your questions about your application.

Request price >>

Roller shells are available in aluminum, chrome-plated and plastic
Frequency response of 100 Hz
Precision strain gauge sensing for highest accuracy and repeatability
Optional 5ft. connecting cable
0-1 V DC output, proportional to tension (0-10 V DC optional)
Surface mount electronics provide long-term reliability

Beschikbare Modellen

Model	Tension Range*	Measuring Head Width**	Roller Width:
TSB1-100	0 – 100 cN	60 mm	7, 10, 15, 20 mm
TSB1-200	0 – 200 cN	60 mm	7, 10, 15, 20 mm
TSB1-500	0 – 500 cN	60 mm	7, 10, 15, 20 mm
TSB1-1000	0 – 1000 cN	60 mm	7, 10, 15, 20, 30 mm
TSB1-2000	0 – 2000 cN	120 mm	7, 10, 15, 20, 30 mm
TSB1-5000	0 – 5000 cN	120 mm	7, 10, 15, 20, 30 mm
TSB1-10K	0 – 10 daN	120 mm	7, 10, 15, 20 mm
TSB1-20K	0 – 20 daN	220 mm	7, 10, 15, 20 mm
Other measuring units available, such as g or kg * SCHMIDT calibration material depending on tension range and roller width Outside dimensions of front plate Important for your order:** Please specify the model and roller width. Small dual-flanged outer guide rollers are standard. All 3 rollers can be equipped with one flange, if the material to be measured is wider than the rollers. Please request when you order. Calibration to Custom Material: If the process material deviates significantly from the SCHMIDT calibration material in diameter, stiffness or shape, a special calibration using customer-supplied samples is recommended. For this, a material sample of approximately 5 m must be supplied.

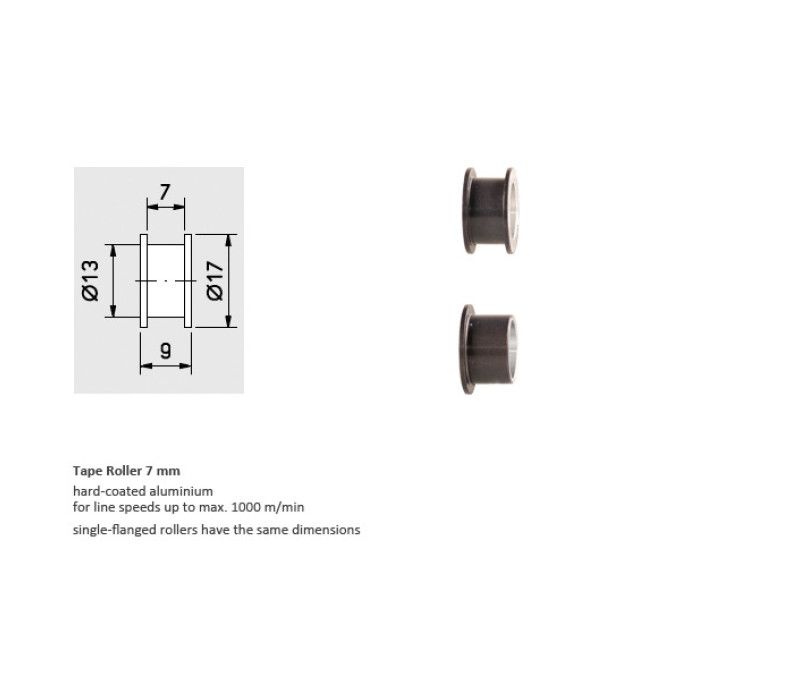

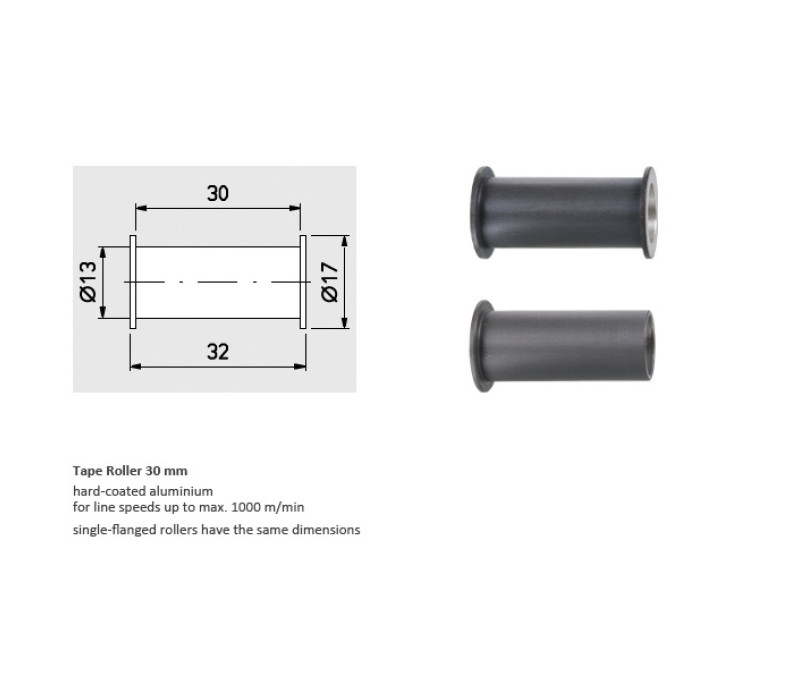

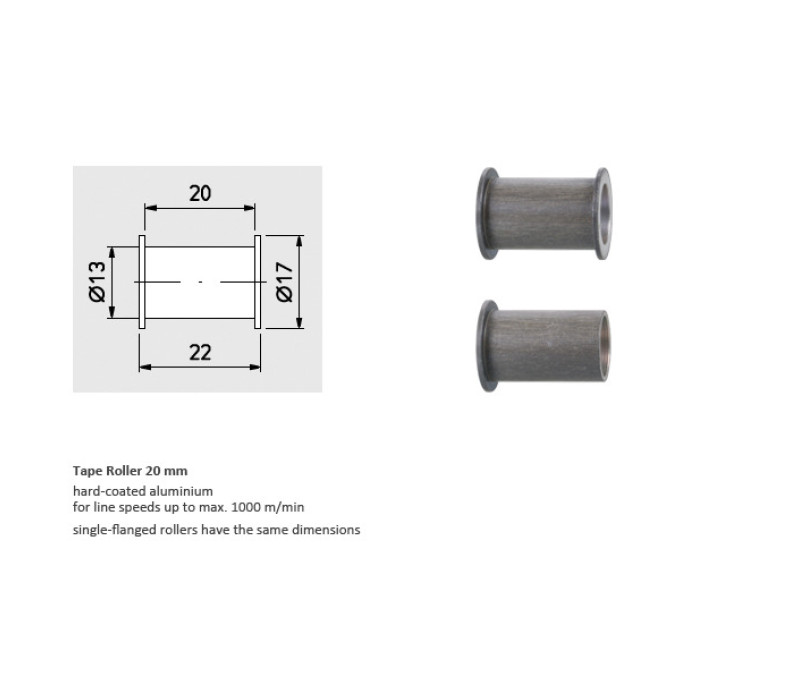

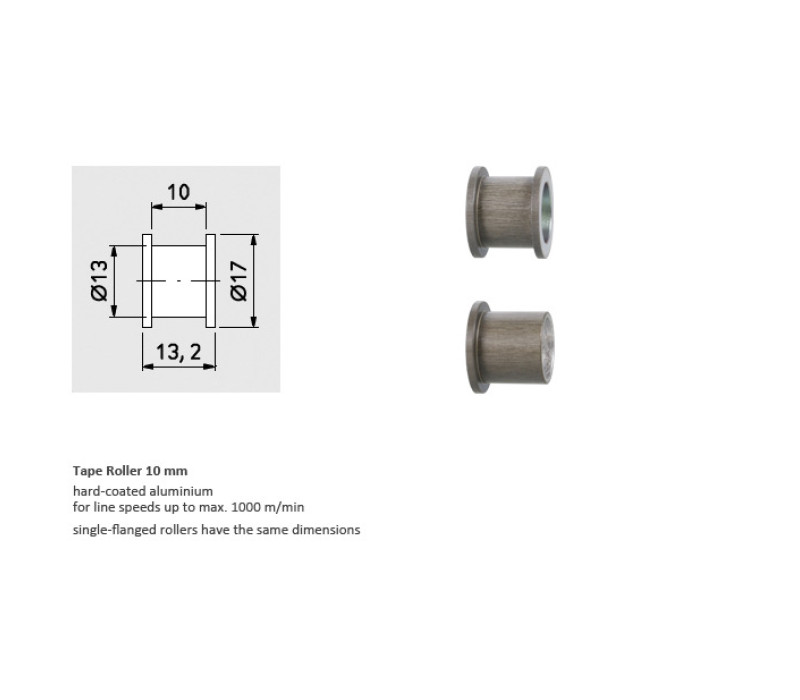

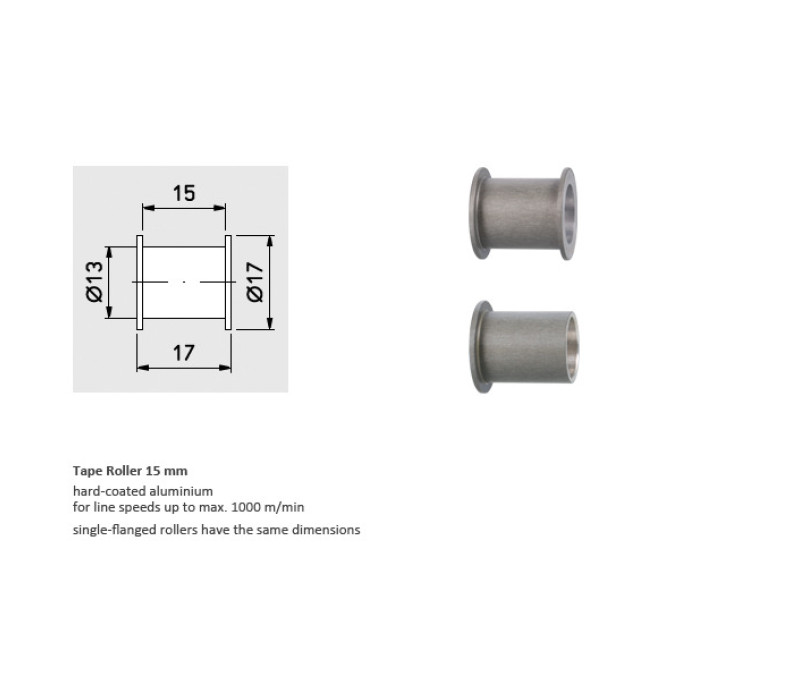

Tape Rollers

Roller Width	Line Speed v_max_. … m/min	Roller Material*
7 mm	1000	Hard-coated aluminum
10 mm	1000	Hard-coated aluminum
15 mm	1000	Hard-coated aluminum
20 mm	1000	Hard-coated aluminum
30 mm	1000	Hard-coated aluminum

*Other roller materials (nickel-plated steel or plastic), as well as special coatings (Code CF – for carbon fiber, NAV optimized, Code KE – ceramic,
Code AH – anti adhesive) are available on request.

Output Signal

Standard

Output signal: 0 – 1 V DC

Code A2

Output signal: 0 – 10 V DC

Code A3

Output signal: 4 – 20 mA

Code A10

Output signal: mV/V
For sensors without amplifier
incl. firmly connected cable with open ends, 2 m long

How to order

To order the tension sensor TSB1:
Please indicate the complete item number:

Model with tension range		Roller width in mm		Code output signal (if not standard)		Complete item No.
TSB1-100	+	15	+	A3	=	TSB1-100-15-A3

Accuracy	± 1% FS ±1 digit with standard material ± 3% FS with other materials
Sensor Excitation	12 - 18 VDC, 21 mA
Middle Roller Deflection	0.5 mm (maximum)
Sensor Output	0-1 V DC (standard) 0-10 V DC (optional) proportional to tension
Overload Rating	150% FS
Housing Material	Aluminum
Maximum Linear Speed	1000 m/min (Standard) 3000 m/min (K) 3000 m/min (k) (optional)
Roller Diameter (Root)	13 mm
Roller Material	Al (standard) Chromed-Plated Steel (ST) (optional) Plastic (PL) (optional)
Frequency Response	100 Hz
Operating Temperature	40 to 105° F (5-40° C)

Accessoires (optional)

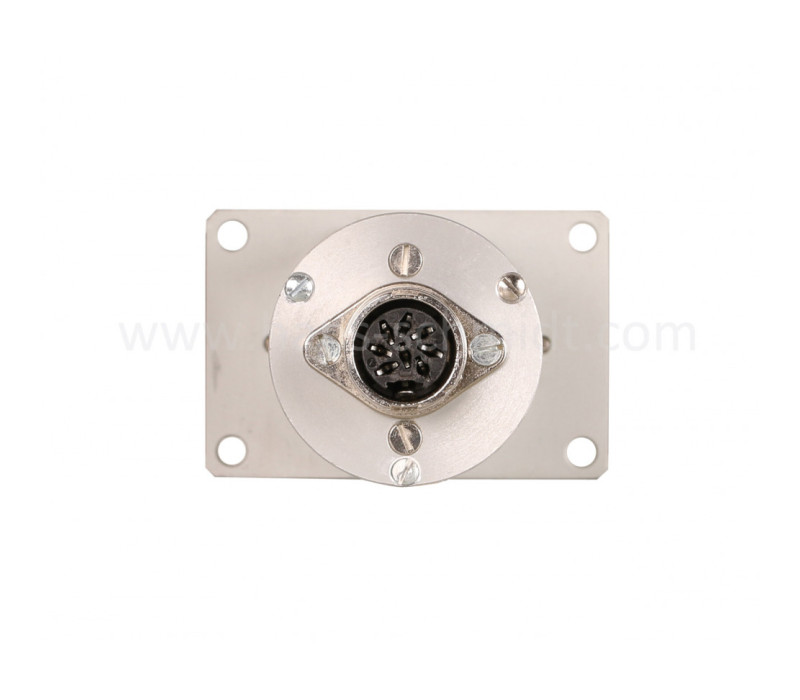

E10061 - Diode Plug with Bayonet Cap Diode Plug
	Diode Plug suitable for sensors of TS series, cable outlet 3.5 – 6 mm Order number: E10061
EK0603, EK0605 and EK0610 - Connecting Cable with 2 diode plugs
	Connecting cable with 2 diode plugs, for analog output and voltage signal. For connecting the TS sensor to the display unit SCD-1. Order number: EK0603, Length 3 m Order number: EK0605, Length 5 m Order number: EK0610, Length 10 m
EK0612, EK0614 and EK0615 - Connecting Cable with 1 diode plug and open ends
	Connecting cable with 1 diode plug and open ends, for analog output and current signal. For connecting sensors of TS series to the display unit SC-PM. Order number: EK0612, Length 3 m Order number: EK0614, Length 5 m Order number: EK0615, Length 10 m Other cable length available on request!

Products

Item	Product
136702	TSB1-100-7 Stationary Tension Meter 0-100 cN
140511	TSB1-5000-15-A2 Tension Meter Stationary 0-5000 cN (15mm Rollers) A2 output

Accessories

Item	Product
134948	Code A2 - Output signal 0 - 10 V DC
134803	Code A3 - Output signal 4 - 20 mA
138143	Code A10 - Output signal mV/V

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
