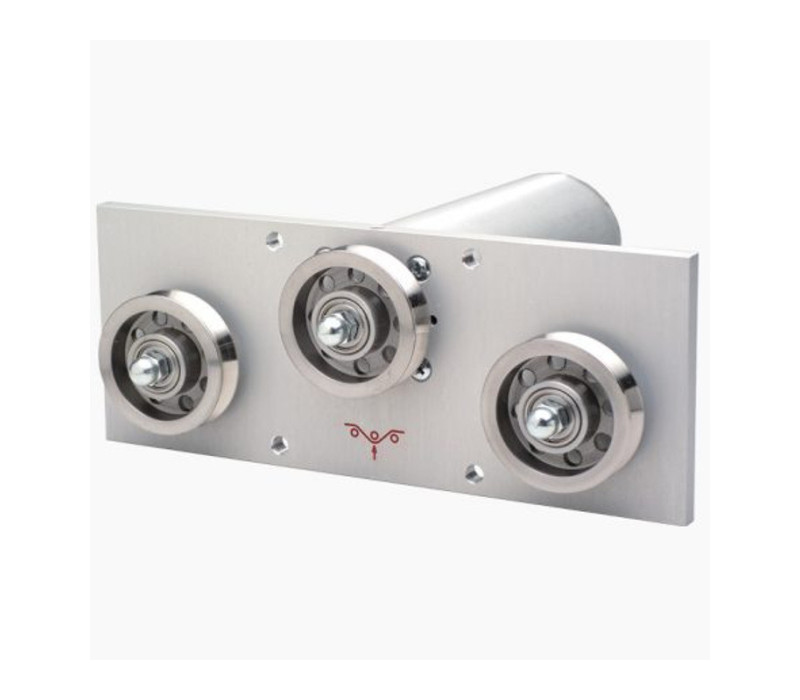

TSH Tension Sensor

Name: TSH Tension Sensor
SKU: 127429

The TSH Stationary electronic tension sensor for flexible material as wires, thin ropes and cables up to 15 mm Ø, as well as flat material up to 10 mm width.
It comes in 6 tension ranges from 0 - 1000 cN up to 0 - 50.00 daN.

Large, hardened guide rollers for minimized material deflection
Versatile tension sensor for quick and easy mounting

The TSH Tension sensor has an integrated measuring amplifier and high accuracy of 1 % Full Scale.

Ball-bearing mounted guide rollers:
– V-grooved (for material with max. 4 mm Ø)
– U-grooved (for material with 3 up to 15 mm Ø)
– Tape grooved (for material with max. width of 10 mm)

Various output signals are available:
– analog: 0 – 1 V (standard), 0 – 10 V (optional)
– current: 4 – 20 mA (optional)
– analog DMS: mV/V (optional)

Request price >>

Standard Features

Tension sensor TSH with rugged aluminum housing
Required power supply +15…24 V DC (regulated)
Certificate of Compliance with the order 2.1 according EN 10204 is included
Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report

Special Features

Tension sensor TSH with integrated measuring amplifier and high accuracy 1 % FS
Ball-bearing mounted guide rollers,
– V-grooved (for material with max. 4 mm Ø)
– U-grooved (for material with 3 up to 15 mm Ø) – tape grooved (for material with max. width of 10 mm)
Various output signals are available:
– analog: 0 – 1 V (standard), 0 – 10 V (optional)
– current: 4 – 20 mA (optional)
– analog DMS: mV/V (optional)
Easy installation, even afterwards, on existing machines
Easy calibration to customized material by operator – zero and gain calibration is required
Measuring principle – load cell with high quality strain gauge bridge
Tension sensor TSH with mechanical overload protection

Tension sensor TSH with transport packaging
Operating instruction in German and English (as requested)
Certificate of Compliance with the order 2.1 according EN 10204 free of charge

Available models

Model	Tension Range*	Measuring Head Width*	SCHMIDT Calibration Material**
TSH-1000	0 – 1000 cN	150 mm	PA: 0.30 mm Ø
TSH-2000	0 – 2000 cN	150 mm	PA: 0.50 mm Ø
TSH-5000	0 – 5000 cN	200 mm	PA: 0.80 mm Ø
TSH-10K	0 – 10 dAN	200 mm	PA: 1.00 mm Ø
TSH-20K	0 – 50 daN	250 mm	PA: 1.50 mm Ø
TSH-50K	0 – 50 daN	250 mm	steel rope 1.50 mm Ø (7x7x0.20)
Other tension ranges and measuring head widths available on request. Other measuring units available, such as g or kg. ^* Outer distance between outside guide rollers or outside dimensions of front plate ^ Suitable for 95 % of applications PA = Polyamide Monofilament Calibration to customized material**: If process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.

Guide Rollers

Order-code	Line Speed v_max_. … m/min	Roller Material
Standard	4000	Hardened steel (max. Ø 4 mm)
Code R1	4000	Hard chrome-plated steel (Ø 3 – 9 mm)
Code R4	1000	Hardened steel steel (Ø 8 – 11 mm) for model TSH-50K and higher
Code R5	1000	Hardened steel steel (Ø 12 – 15 mm) for model TSH-50K and higher
Code B6	2000	Hardened steel, width 6 mm
Code B10	2000	Hardened steel, width 10 mm

Output Signal

Standard

Output signal: 0 – 1 V DC

Code A2

Output signal: 0 – 10 V DC

Code A3

Output signal: 4 – 20 mA DC

Code A10

Output signal: mV/V
For sensors without amplifier
incl. firmly connected cable with open ends, 2 m long

How to order

To order tension sensor TSH:
Please indicate the complete item number.:

Model with tension range		Code guide Rollers (if not standard)		Code output signal (if not standard)		Complete item No.
TSH-10K	+	R1	+	A2	=	TSH-10K-R1-A2

Accessories (optional)

E10061 - Diode Plug with Bayonet Cap Diode Plug
	Diode Plug suitable for sensors of TS series, cable outlet 3.5 – 6 mm Order number: E10061
EK0603, EK0605 and EK0610 - Connecting Cable with 2 diode plugs
	Connecting cable with 2 diode plugs, for analog output and voltage signal. For connecting the TS sensor to the display unit SCD-1. Order number: EK0603, Length 3 m Order number: EK0605, Length 5 m Order number: EK0610, Length 10 m
EK0612, EK0614 and EK0615 - Connecting Cable with 1 diode plug and open ends
	Connecting cable with 1 diode plug and open ends, for analog output and current signal. For connecting sensors of TS series to the display unit SC-PM. Order number: EK0612, Length 3 m Order number: EK0614, Length 5 m Order number: EK0615, Length 10 m Other cable length available on request!

TSH Data Sheet

Products

Item	Product
126594	TSH-1000 Stationary Tension Meter 0-1000 cN
134806	TSH-2000 Stationary Tension Meter 0-2000 cN
137663	TSH-5000 Stationary Tension Meter 0-5000 cN
134947	TSH-50K Stationary Tension Meter 0-50 daN

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
