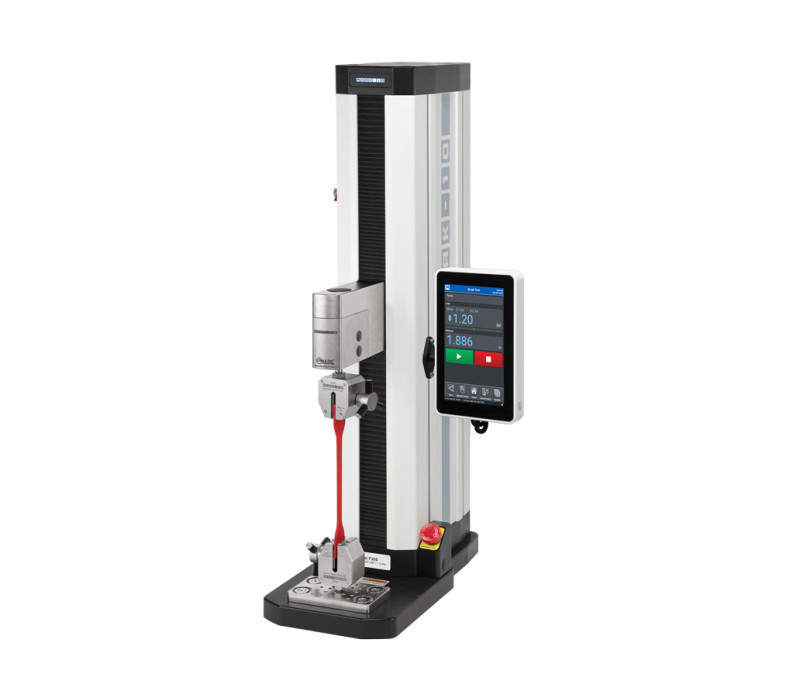

Series-F + EasyMesur F105 / F305 / F505 / F505H Test Stand with EasyMESUR® F105 / F305 / F505 / F505H

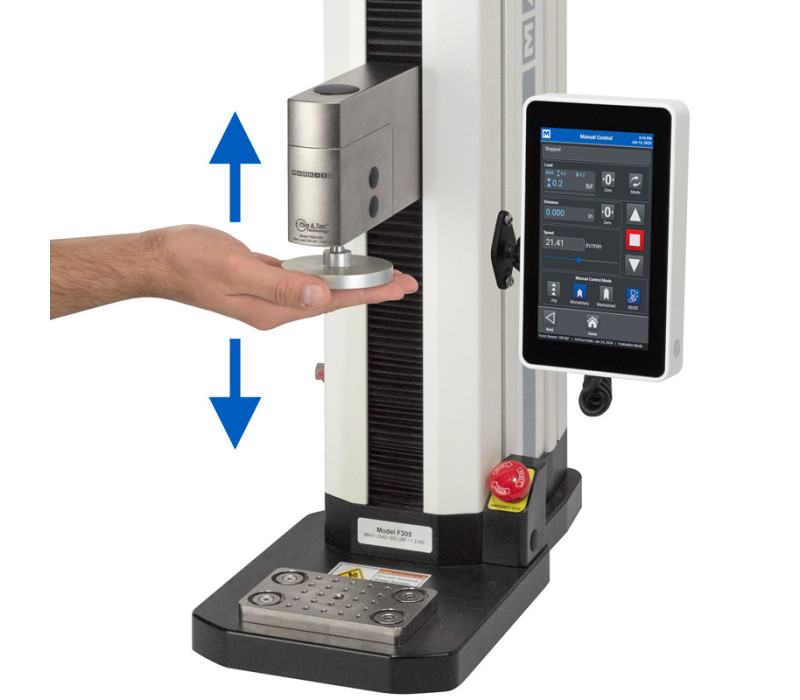

An F305-EM Test Stand performing a tensile test with two G1061 Wedge Grips.

F505H-EM Test Stand sperforming a peel test using two G1008 peel grips.

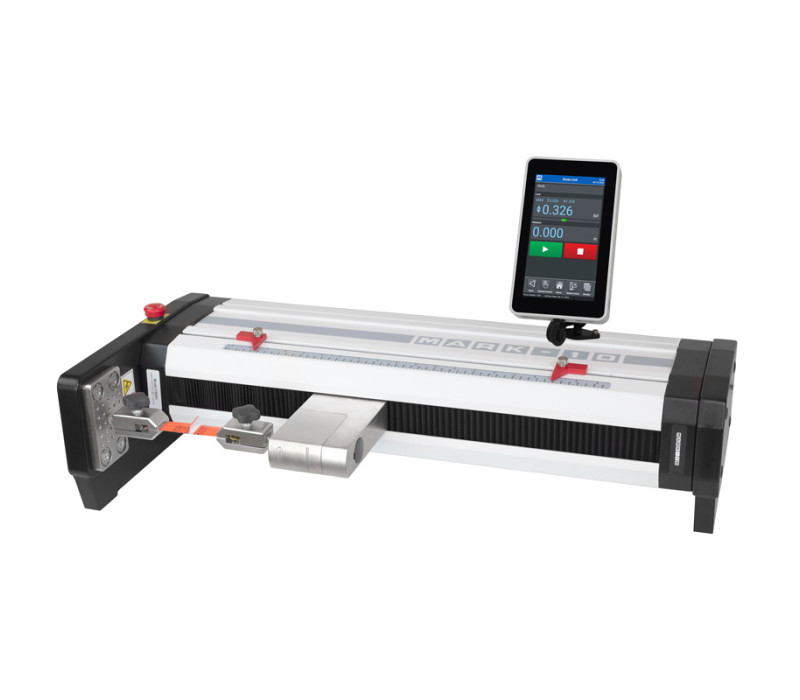

An FS05 Force Sensor mounted to the crosshead of a Series F Test Stand.

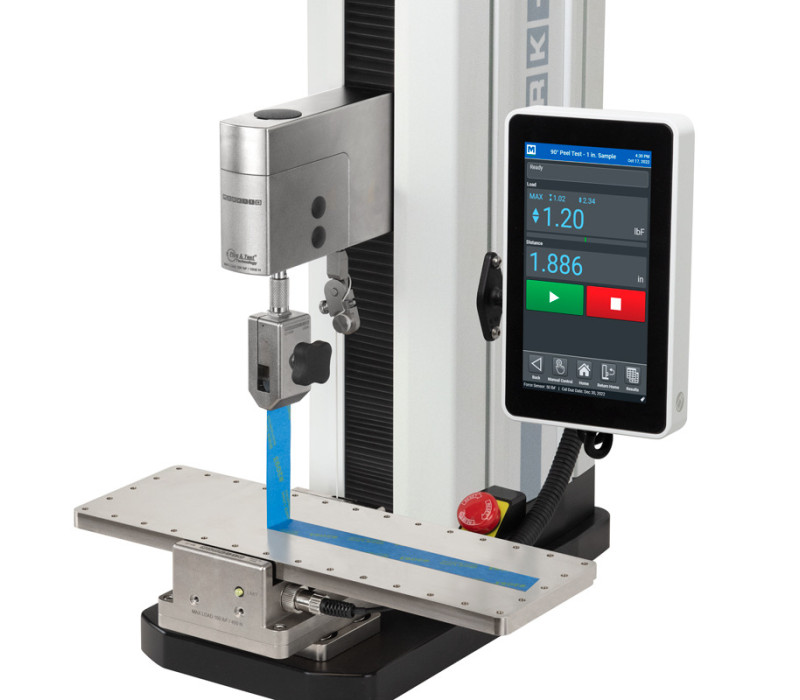

Series F baseplates feature a matrix of threaded holes with floating washers for precise x-y positioning.

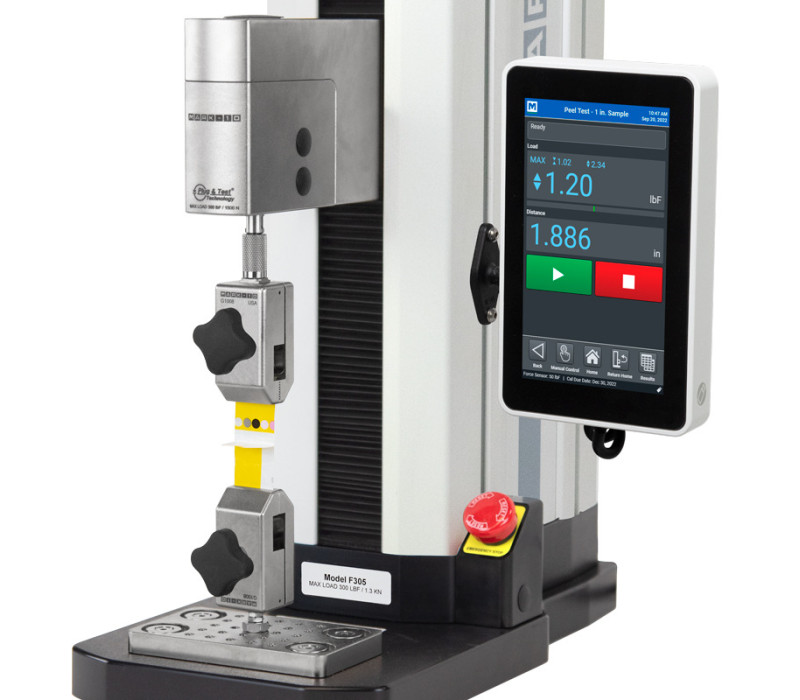

An F305-EM Test Stand shown configured for a vertical peel test with two G1008 Film & Paper Grips.

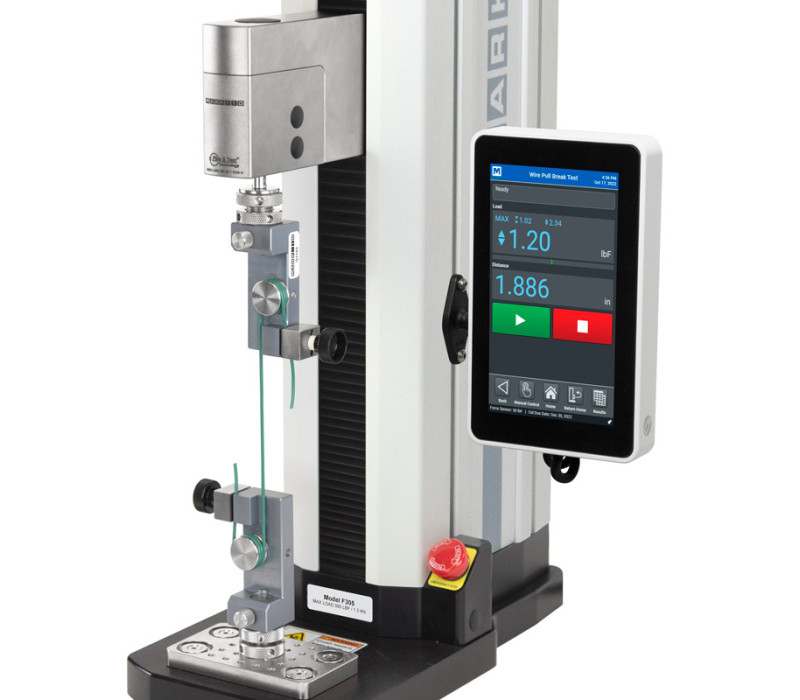

An F305-EM Test Stand is shown configured for a vertical wire pull test with two G1103 Wire / Rope Grips.

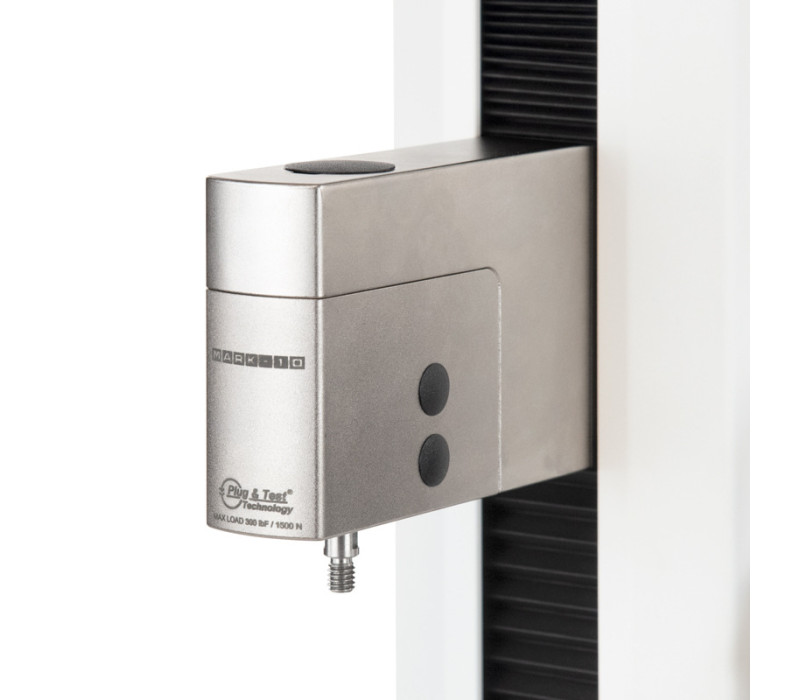

FS05 Force Sensor mounted on the cross head of a Series F test Stand

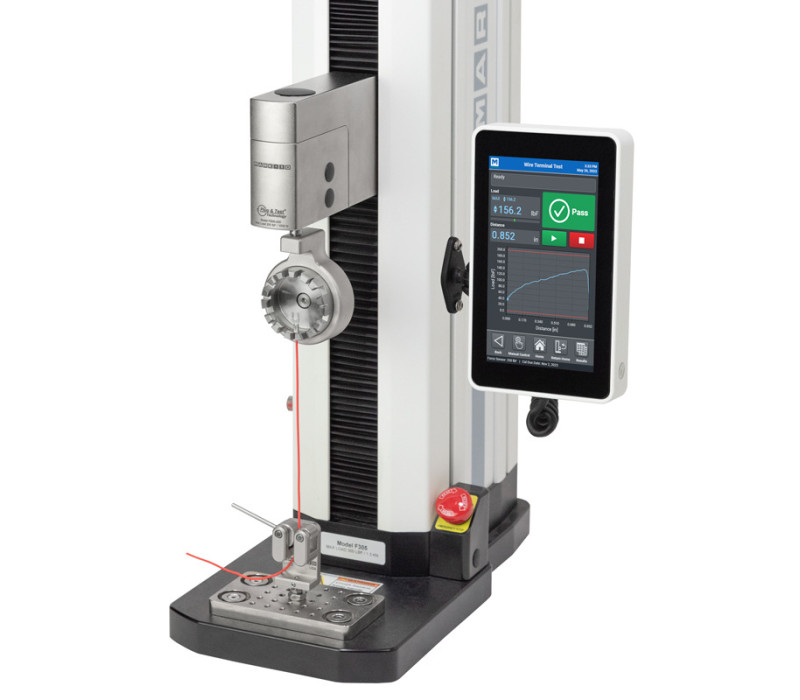

F305-EM wire pull tester with a G1076 wire terminal grip and a G1002 dual roller grip

F505H-EM test Stand equipped with two G1008 fixtures for a peel test

F305-EM with a setup for a 90° peel test using the G1109 fixture

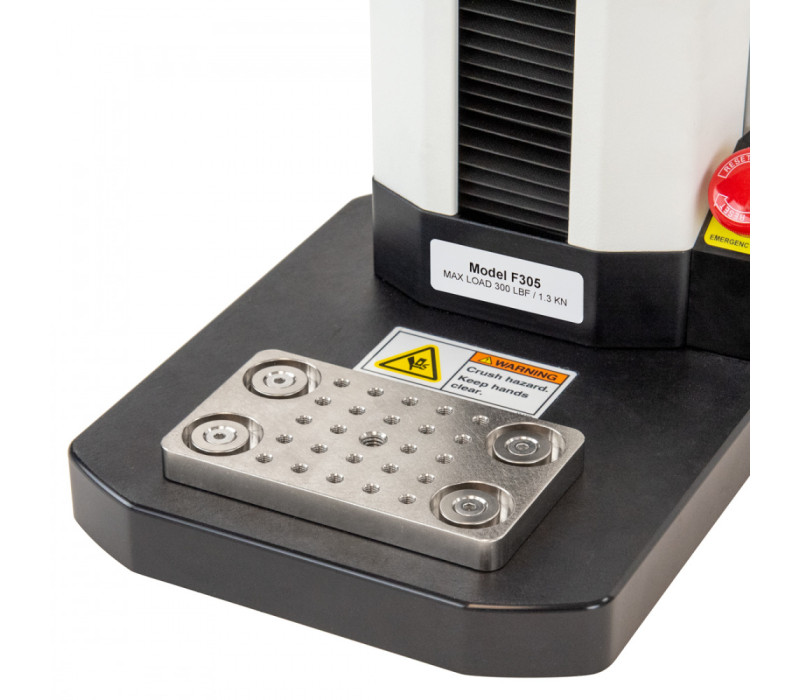

F305-EM threaded baseplate

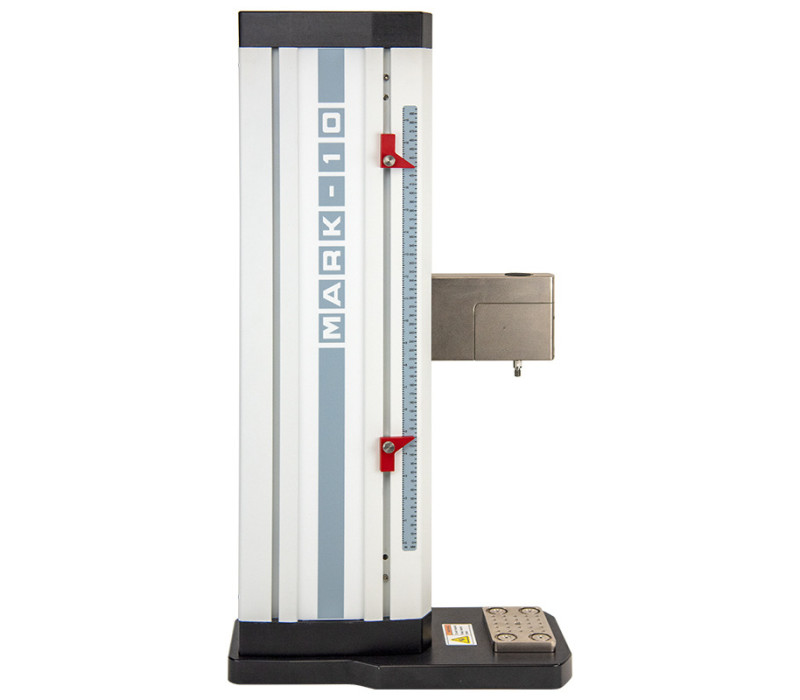

F305-EM sideview shows mechanical travel limit switches

Test Stand with EasyMESUR® F105 / F305 / F505 / F505H

Important Note: The motorised test stand models ESM, ESM301, ESMH-DC, ESM303, and ESM303H have been discontinued and replaced by the F105, F305, F505, and F505H models of the Series-F with EasyMESUR.

The Series-F Easy MESUR® system has been developed as a modular and versatile solution for force measurement in motorised test stands. Equipped with integrated 7" touchscreen panels, these test stands utilise Mark-10’s Plug & Test® system to quickly and easily connect force sensors (both Mark-10 and other manufacturers via the PTAF adapter).

These test stands allow a wide range of tests – including load, break, distance, holding, cyclic, and medium load tests – with results that can be displayed in tables or graphs. In addition, data, reports, and test files can be easily imported and exported via USB-C. All Easy MESUR® systems are shipped in Evaluation Mode, with all functions enabled for 160 hours of operation, ensuring a centralised setup adaptable to various applications.

Key Features:

Load Capacity: Ranging from 0.5 to 2.2 kN to meet diverse measurement needs.
Efficient Operation: Plug & Test® system and integrated 7" touchscreen panels simplify test setup and execution.
Usage Flexibility: Available in vertical or horizontal configurations with custom options tailored to the work environment.
Interface and Connectivity: USB-C ports for direct connection to a PC and external storage.

Key Benefits:

Ease of Use: An intuitive touchscreen interface with built-in assistants simplifies test creation and execution, ideal for non-expert users.
Versatility in Testing: Capable of performing cyclic, load, break, and distance tests, adapting to a wide variety of materials and test conditions.
Maintenance and Support: A modular design that facilitates easy access and replacement of components, reducing downtime and maintenance costs.

Contact us for more information or to place an order. Our team of experts is ready to assist you in selecting and configuring the test stand that best meets your operational and technical requirements, ensuring precise and reliable results in your projects.

Price from € 4.045,00

Shop now

Integrated Force Sensor: Seamless interface for the FS05 force sensor without cables.
Integrated Touchscreen Control Panel: For setting up, running, and analysing data via the Easy MESUR® software.
Test Creation Wizards: Guides that assist the user throughout the configuration process.
Auto Return and Pass/Fail Limits: Automatically resets and evaluates tests against predetermined limits.
System Deflection Compensation: Ensures accurate measurements by compensating for system deviation.
On-Site Upgradable Firmware: In-situ software updates with full password protection.
USB-C Connections: For PC connection and external storage, facilitating data transfer and report management.

The F105-EM, F305-EM, F505-EM, and F505H-EM advanced test stands are shipped as shown, and includes the following accessories:

Control panel, mounting bracket, and hardware
#10-32M medium hook
5/16-18M large hook
#10-32F 2” diameter compression plate
#10-32 F/F coupler
Adapter, 5/16-18M to #10-32F
Set screw, #10-32 x 3/4”
Hex nut, #10-32
Power cord
Allen wrench set

Individual functions

Function	Part Number	Description	Co-requirements
Distance Measurement	EMF001-1	Measure distance, with the ability to zero the reading.	-
Distance Limits	EMF002-1	Stop at user-defined upper and lower distance limits.	- Distance Measurement (EMF001-1)
Preload	EMF003-1	Zero the travel position automatically at a user-defined preload value.	- Distance Measurement (EMF001-1)
High Speed Extension	EMF004-1	Extend the high end of the speed range, dependent upon test stand model.	-
Low Speed Extension	EMF005-1	Extend the low end of the speed range, dependent upon test stand model.	-
Cycling	EMF006-1	Set up to 100,000 cycles, with user-defined upper and lower dwell times. Cycle between any combination of limit switches, travel limits, breaks, and load limits.	- If cycling to distance limits, add Distance Measurement (EMF001-1) and Distance Limits (EMF002-1) - If cycling to a break point, add Break Detection (EMF007-1)
Break Detection	EMF007-1	Stop when a user-defined drop in force occurs.	-
Load Holding	EMF008-1	Stop at, and maintain, a user-defined load for a specified period of time.	-
FollowMe®	EMF009-1	Push and pull on the sensor’s loading shaft to jog the crosshead up and down, ideal for manual positioning prior to a test. Speed increases with applied force.	-
Graphing & Reporting	EMF010-1	Graph load vs. time or distance, view statistics, and generate a report, including graph, results, run data, and other information.	- If graphing load vs. distance, add Distance Measurement (EMF001-1)
PC Control	EMF011-1	Control the test stand with your own application using a supplied library of motion control and data collection serial commands. While PC control is active, the control panel becomes a pendant, limited to basic, manual controls.	- AC1107 cable, test stand to PC
Coefficient of Friction Measurement	EMF012-1	Measure static and dynamic coefficients of friction, with user-defined sled weight.	- G1086 coefficient of friction fixture (suggested)
Spring Rate Measurement	EMF013-1	Measure spring rate, with user-defined start and stop data collection triggers.	- Distance Measurement (EMF001-1) Suggested functions: - Distance Limits (EMF002-1) -Preload (EMF003-1)
These options are available when ordered or at a later date through code activation. A combination or complete options package is also available for a discounted price.

Packages

Package	Part Number	Includes
Distance Measurement	EMP001-1	Distance Measurement (EMF001-1) Distance Limits (EMF002-1) Preload (EMF003-1)
Speed Extension	EMP002-1	High Speed Extension (EMF004-1) Low Speed Extension (EMF005-1)
Advanced Functionality	EMP003-1	Cycling (EMF006-1) Break Detection (EMF007-1) Load Holding (EMF008-1) FollowMe® (EMF009-1)
Complete Options	EMP-COMP-1	All functions

Series-F EasyMESUR®

The F series motorised test stands with EasyMESUR® are designed as standalone, efficient, and easy-to-use systems, ideal for those who do not require an additional force meter. Available in load configurations ranging from 0.5 to 2.2 kN, these devices are perfectly suited to a wide range of industrial and laboratory applications.

Touch Screens and Connectivity: They feature an integrated 7-inch screen and two USB-C ports for easy connection to PCs and external storage devices.
Versatility and Configuration: Available in both vertical and horizontal configurations, with additional options such as distance measurement and cycle control available to enhance functionality.

These benches are ideal for standard applications and can be configured with additional features according to the specific needs of each user. If you need a more advanced solution, try our benches with IntelliMESUR® for extended capabilities and in-depth analysis.

EasyMESUR® vs IntelliMESUR®.

The Series F force testers from Mark-10 are available in 2 versions EasyMESUR® and IntelliMESUR®.

While both systems are designed for testing tensile and compression forces, the sytems serve a different user category. This is reflected in the size of the screen, the possibilities in complexity in setting up and running tests and analyzing the data.

EasyMESUR® is setup as a basic cost effective system that can be modular upgraded with required functionalities. Upgrades come a single functions like distance measurement, load holding, break detection etc., or as packages where functionalities are combined for specific tasks.

The system comes standard in evaluation mode where all functionalities are operational for the first 160 hours of use, aftir this only the purchased functionalities will remain operational. Additional functionalities can be purchased through a code.

EasyMESUR® is operated from a 7”tablet that uses its own software and is not compatible with windows, the system can be operated from a pc using third party software.

IntelliMESUR® comes as a complete advanced platform with only a few available upgrades.
It uses a 10.1” Windows tablet to operate the test stand and it can handle Basic tests like
Limit testing to a load, break, or distance, Height measurement, Load holding, Cycle testing and multi step tests combining the basic tests. With a capture rate of 1000 Hz, a peak load capture rate of 20.000 Hz and a maximum amount of datapoints per run of 1.000.000 all test data is captured and stored.

IntelliMESUR® comes with a test setup wizard and graphing and reporting standard.

The optional materials testing calculations module can Characterize and analyze the behavior of materials, components, and assemblies with a suite of materials testing calculations.

The Coefficient of Friction Testing module measures static and dynamic COF for a wide range of materials according to relevant standards.

EasyMESUR® is the platform to chose when a basic test is required, the stand can be upgraded with specific functionalities to cater flexibility.

IntelliMESUR® is the best platform when advanced tests are required, this platform comes with extended test, analysis and reporting capabilities.

IntelliMesure, EasyMesur Comparison Chart

Feature / Specification	IntelliMESUR®	EasyMESUR®
Basic test wizards	Included	Included
Multi-step tests	Included	-
Extended speed ranges	Included	Option
Distance measurement, distance limits, and preload	Included	Option
Auto-return and cycling	Included	Option
Break detection	Included	Option
Load holding	Included	Option
FollowMe® crosshead positioning	Included	Option
Batch testing	Included	-
Operator prompting	Included	-
Pass / fail limits	Included	Included
Report creator	Included	Option
Results	Large selection	1 per test
Graphing and statistics	Included	Option
Overlay previous runs on graph	Included	-
PC control via third-party application	-	Option
Coefficient of friction (COF) measurement	Option	Option
Overload protection	Included	Included
Accuracy - force sensor	±0,1% or ±0.15% of sensor full scale	±0,1% or ±0,15% of sensor full scale
Accuracy - test stand	±0,1% of sensor full scale	±0,1% of sensor full scale
Distance resolution	0.01 mm	0.02 mm
System deflection compensation	Included	Included
Accuracy - distance	±0.05 mm, at any load or position	±0,15 mm, at any load or position
Accuracy - speed	0,2% of setting	0,2% of setting
Peak load capture rate	20.000 Hz	5.000 Hz
Data acquisition rate	1.000 Hz	100 Hz
Number of data points per run	1.000.000	100.000
Users and permissions	3 permission tiers, unlimited users	1 tier (password access)
Runs on	Windows tablet or PC	Control panel only

7 inch EasyMESUR® control panel

The 7 inch control panel used with the EasyMESUR® controls the specific features of the system and can provide all kinds of data, graphs and reports.


Control panel features The 7" tablet supports 2 USB-C ports for PC and external flash drive connection.	Standard view View load and distance values with clear, simple controls.

Graph view View a graph of load vs. distance or time, with pass/fail status.	Results view View results for each run, with corresponding statistics for the results.
	Secure user access Control user access to sensitive areas, such as test editing and calibration via password.

Series-F Special Features

	Rigid and precise by design Exceptionally rigid stands feature custom extrusion designs, engineered for stiffness. Factory compensation of test stands and force sensors ensure position accuracy of ±0,15mm / 0.006in under any load, at any position. Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.
	Conveniently modular Stand bases can be removed to accommodate column extensions and alternative mounting configurations. Most electronics are housed in a self-contained enclosure, easily accessed and replaced if needed. Integrated T-slots along the column accommodate add-ons.
	Limit switches Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.
	Seamless force sensor interface Series FS05 smart force sensors mount directly to the crosshead of models F105, F305, F505, and F505H, without any connection cables. Ranges available from 0,5 N to 2,5 kN [0.12 to 500 lbF]. Accurate to ±0,1% of full scale. Series FS06 S-beam type force sensors mount to models F105, F305, F505, and F505H, recommended when using heavy and bulky grips. Ranges available from 250 N to 2.5 kN [50 to 500 lbF].
	Easy-to-service electronics Most electronics are housed in an integrated module, easily replaced without special tools or processes.

Plug & Test® sensors and PTAF adapter

Plug & Test® Sensors for the Series F
Mark-10’s Series F test frames employ a specialised version of Plug & Test® sensors for compression and tension testing. These sensors store calibration and configuration details within an internal PCB, allowing seamless interchangeability across multiple frames. Currently, the FS05, FS06, and R07 are available for use with the Series F range.

FS05
- Capacities range from 0.5 kN to 2.5 kN.
- Connects directly to the F105, F305, and F505 test stands.
- Requires the AC1083 adapter for use with the F755 or F1505 frames.

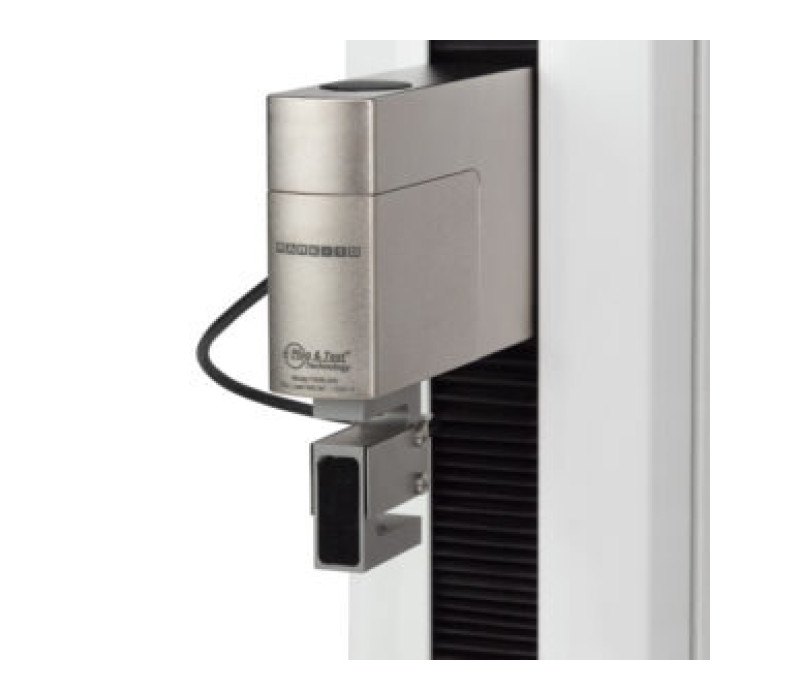

FS06 and R07
- Designed for both compression and tension applications.
- Make use of the Mark-10 operating system within the Series F test stands.

Through Mark-10’s Plug & Test® technology, all sensors store their own configuration and calibration information on-board, ensuring consistent and accurate readings when moved from one test frame to another.

PTAF Adapter
Designed for third-party strain gauge load cells, force, and torque sensors, the PTAF adapter offers exceptional flexibility for your Series F testing system:

Direct Connectivity
- Attaches to F105, F305, and F505 stands without additional hardware.
- Compatible with the F755 and F1505 frames, as well as M5I and M7I indicators, using the AC1083 adapter.
Configurable Capacities
- A user-friendly software utility allows the PTAF to be programmed with a wide library of common capacities, from 0.5 N up to 4,000 kN in force measurement and from 7 Ncm up to 57,000 Nm in torque measurement.
Identification and Interchangeability
- Each adapter can be assigned an identification number, displayed upon power-up or on the test stand’s screen.
- All calibration and configuration data is stored within the adapter’s PCB, enabling quick swapping between sensors and indicators without loss of accuracy.

Whether you require direct connectivity for Mark-10’s native Plug & Test® sensors or need to integrate existing third-party devices, the PTAF adapter provides a versatile, reliable solution for your force and torque measurement needs.


By removing the circuit board and side cover the third party sensor you can be connected to the PTAF adapter	Feed the cable through and connect the wires to the terminal block.

Replace the circuit board and side cover.	The sensor can now be configured using the included , Plug & Test Adapter Configuration software and used on the Series-7 test frame. An extra adapter (AC1083) is required to connect the PTAF to the F755(S)/F1505(S) range test frames.

Dimensions-Series-F + EasyMesur F105 / F305 / F505 / F505H

F105-EM / F305-EM / F505-EM IN [MM]

F05H-EM IN [MM]

Specifications

	Model F105-EM	Model F305-EM	Model F505-EM	Model F505H-EM
Load capacity	0,5 kN	1,5 kN	2,2 kN	2,2 kN
Maximum travel distance	457 mm	457 mm	457 mm	457 mm
standard Speed range	13 - 330 mm/min	13 - 330 mm/min	13 - 330 mm/min	13 - 330 mm/min
Optional speed range:	0,5 – 1,100 mm/min	0,5 – 1,100 mm/min	0,5 – 1,100 mm/min	0,5 – 1,100 mm/min
Load accuracy (% of full scale)	Test stand: ±0,1% Force sensor alone: Series FS05: ±0,1% \| Series R07: ±0,15%	Test stand: ±0,1% Force sensor alone: Series FS05: ±0,1% \| Series R07: ±0,15%	Test stand: ±0,1% Force sensor alone: Series FS05: ±0,1% \| Series R07: ±0,15%	Test stand: ±0,1% Force sensor alone: Series FS05: ±0,1% \| Series R07: ±0,15%
Load sampling rate	5.000 Hz	5.000 Hz	5.000 Hz	5.000 Hz
Data acquisition rate	100 Hz	100 Hz	100 Hz	100 Hz
Speed accuracy	±0,2% of setting, virtually no variation with load	±0,2% of setting, virtually no variation with load	±0,2% of setting, virtually no variation with load	±0,2% of setting, virtually no variation with load
Position accuracy	±0,15 mm, at any load or position	±0,15 mm, at any load or position	±0,15 mm, at any load or position	±0,15 mm, at any load or position
Distance resolution	0,02 mm	0,02 mm	0,02 mm	0,02 mm
Limit switch repeatability	0,03 mm	0,03 mm	0,03 mm	0,03 mm
Power	Universal input 100-240 VAC, 50/60 Hz, 300W	Universal input 100-240 VAC, 50/60 Hz, 300W	Universal input 100-240 VAC, 50/60 Hz, 300W	Universal input 100-240 VAC, 50/60 Hz, 300W
Fuse type	1,2 A, 250V, 3AG, SLO BLO	1,2 A, 250V, 3AG, SLO BLO	1,2 A, 250V, 3AG, SLO BLO	1,2 A, 250V, 3AG, SLO BLO
Weight	27 kg (test stand) 34 kg (shipping weight)	27 kg (test stand) 34 kg (shipping weight)	27 kg (test stand) 34 kg (shipping weight)	32 kg (test stand) 39 kg (shipping weight)
Environmental conditions	Indoor use only Up to 2.000 m above sea level Temperature range: 5 – 35°C Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing Mains supply voltage fluctuations up to ±10 % of the nominal voltage Transient overvoltages up to the levels of Overvoltage Category II Use in environments up to Pollution Degree 2	Indoor use only Up to 2.000 m above sea level Temperature range: 5 – 35°C Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing Mains supply voltage fluctuations up to ±10 % of the nominal voltage Transient overvoltages up to the levels of Overvoltage Category II Use in environments up to Pollution Degree 2	Indoor use only Up to 2.000 m above sea level Temperature range: 5 – 35°C Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing Mains supply voltage fluctuations up to ±10 % of the nominal voltage Transient overvoltages up to the levels of Overvoltage Category II Use in environments up to Pollution Degree 2	Indoor use only Up to 2.000 m above sea level Temperature range: 5 – 35°C Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing Mains supply voltage fluctuations up to ±10 % of the nominal voltage Transient overvoltages up to the levels of Overvoltage Category II Use in environments up to Pollution Degree 2
Conformance	CE and UKCA mark	CE and UKCA mark	CE and UKCA mark	CE and UKCA mark
Warranty	3 years	3 years	3 years	3 years
Load capacity is reduced at higher speeds, as follows: – F305: limited to 1 kN above 610 mm/min – F505 / F505H: limited to 1,5 kN above 610 mm/min

Video

▶

Series-F EasyMESUR brochure

Series ESM / EasyMESUR® Comparison Chart

IntelliMESUR® / EasyMESUR® Comparison Chart

Series-F EasyMESUR manual

Solid Models - F105 / F305 / F505 -EM

Solid Models - F505H-EM

CE – Series F Motorized Force Testers

UKCA – Series F Motorized Force Testers

Products

Item	Product	Price
138731	F105-EM Test frame with EasyMESUR® control panel, vertical, 100 lbF / 0.5 kN	€ 4.045,00
138732	F305-EM Test frame with EasyMESUR® control panel, vertical, 300 lbF / 1.3 kN	€ 4.229,00
138733	F505-EM Test frame with EasyMESUR® control panel, vertical, 500 lbF / 2.2 kN	€ 5.138,00
138734	F505H-EM Test frame with EasyMESUR® control panel, horizontal, 500 lbF / 2.2 kN	€ 5.708,00

Accessories

Item	Product	Price
138735	EMF001-1 Distance measurement function, F105/F305/F505/F505H -EM	€ 1.268,00
138737	EMF002-1 Distance limits function, F105/F305/F505/F505H -EM	€ 354,00
138738	EMF003-1 Preload function, F105/F305/F505/F505H -EM	€ 354,00
138739	EMF004-1 High speed extension, F105/F305/F505/F505H -EM	€ 303,00
138740	EMF005-1 Low speed extension, F105/F305/F505/F505H -EM	€ 303,00
138741	EMF006-1 Cycling function, F105/F305/F505/F505H -EM	€ 423,00
138742	EMF007-1 Break detection function, F105/F305/F505/F505H -EM	€ 423,00
138743	EMF008-1 Load holding function, F105/F305/F505/F505H -EM	€ 423,00
138744	EMF009-1 FollowMe® function, F105/F305/F505/F505H -EM	€ 303,00
138745	EMF010-1 Graphing & reporting function, F105/F305/F505/F505H -EM	€ 978,00
138746	EMF011-1 PC control function, F105/F305/F505/F505H -EM	€ 1.507,00
139775	EMF012-1 COF function for EasyMesur, F105/F305/F505/F505H -EM	€ 423,00
140373	EMF013-1, Spring rate measurement function, F105/F305/F505/F505H -EM	€ 423,00
138750	EMP-COMP-1 Complete options package, F105/F305/F505/F505H -EM	€ 6.329,00
138747	EMP001-1 Distance measurement package, F105/F305/F505/F505H -EM	€ 1.860,00
138748	EMP002-1 Speed extension package, F105/F305/F505/F505H -EM	€ 574,00
138749	EMP003-1 Advanced functionality package, F105/F305/F505/F505H -EM	€ 1.507,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

Test Stand with EasyMESUR® F105 / F305 / F505 / F505H

Features

Dimensions

Individual functions

Packages

IntelliMesure, EasyMesur Comparison Chart

Control panel features

Standard view

Graph view

Results view

Secure user access

Rigid and precise by design

Conveniently modular

Limit switches

Seamless force sensor interface

Easy-to-service electronics

Specifications

Test stand with EasyMESUR® F755 / F755S / F1505 / F1505S

Test stand with IntelliMESUR® F105 / F305 / F505 / F505H

Test Stand with IntelliMESUR® F755 / F1505

Model-5I Advanced Digital Force/Torque Indicator

Model-7i Advanced Force/Torque Indicator

Series FS05 Series FS05 Force Sensors

PTA PTA/PTAF Plug & Test Load Cell Adapter

FS06 Tension and Compression Force Sensors

Buy Now

Test Stand with EasyMESUR® F105 / F305 / F505 / F505H

Features

Dimensions

Individual functions

Packages

IntelliMesure, EasyMesur Comparison Chart

Control panel features

Standard view

Graph view

Results view

Secure user access

Rigid and precise by design

Conveniently modular

Limit switches

Seamless force sensor interface

Easy-to-service electronics

Specifications

Related Products

Accessories

Buy Now
