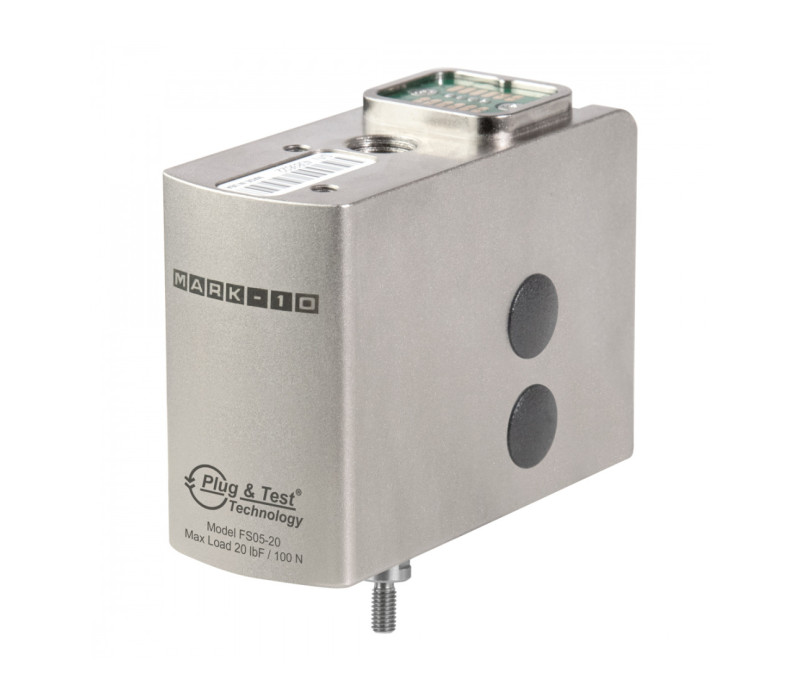

Series FS05 Series FS05 Force Sensors

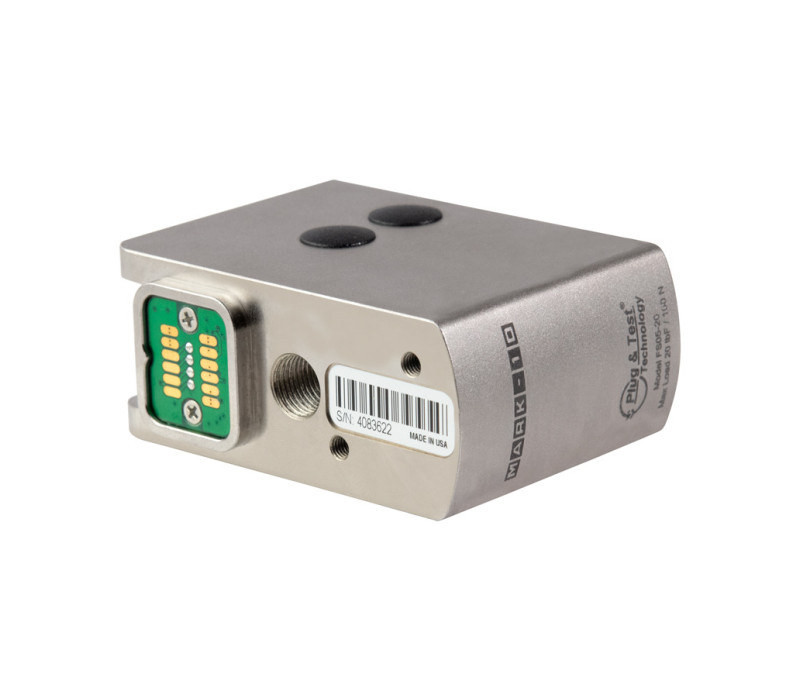

Gold plated contacts and pins ensure a reliable, streamlined connection between the FS05 Force Sensor and the force test stand.

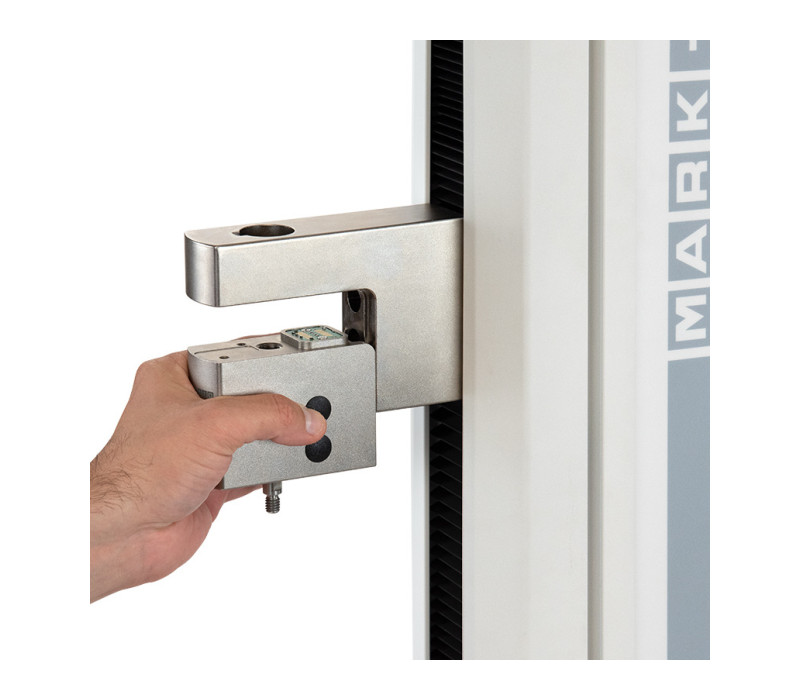

Series FS05 smart force sensors mount directly to the crosshead of models F105, F305, F505 and F505H without any connection cables. Ranges available from 0,5 N to 2,5 kN.

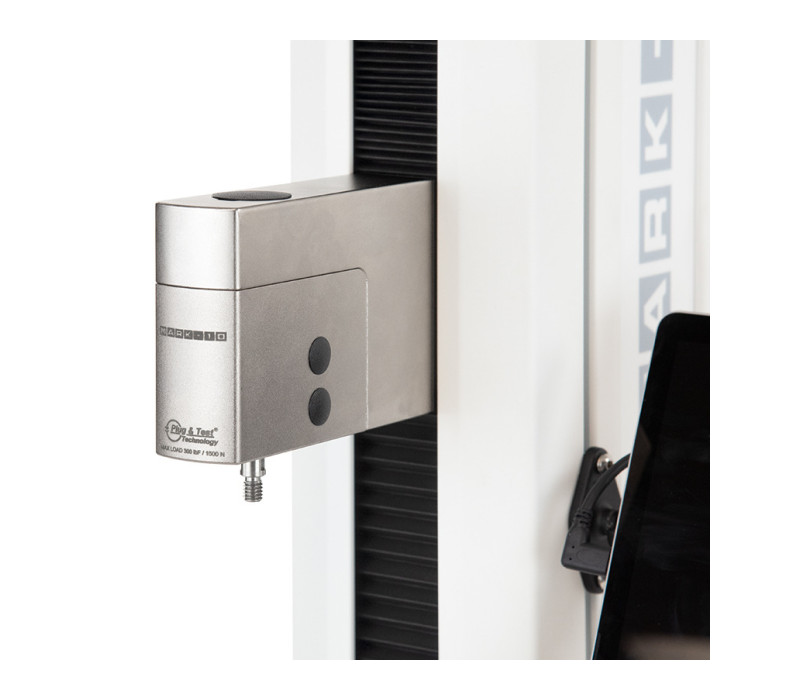

An FS05 Force Sensor mounted to the crosshead of an F305 Force Test Stand.

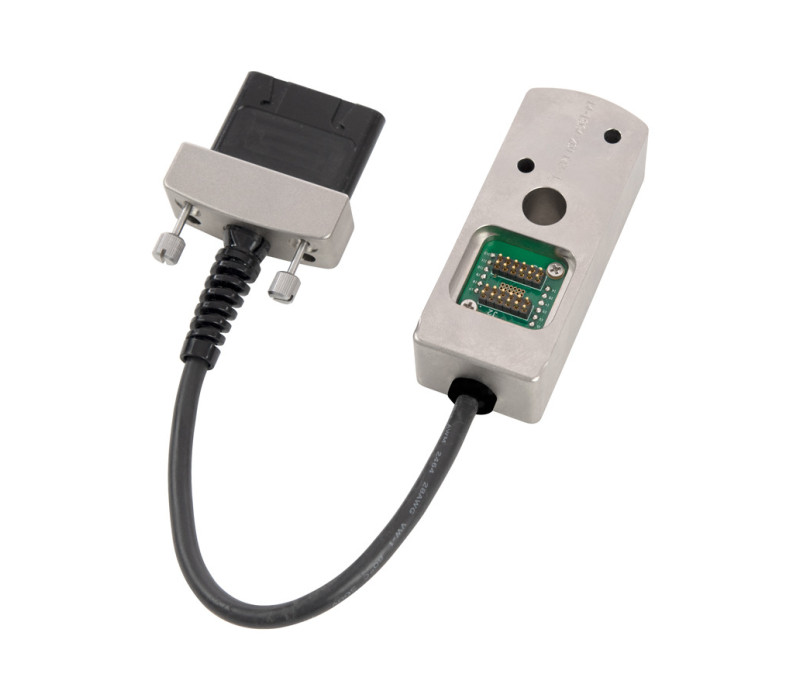

The AC1083 adapter is required to use FS05 force sensors with the following force test stands: F755, F755S, F1505, and F1505S.

SERIES FS05 Series FS05 Force Sensors

Name: SERIES FS05 Series FS05 Force Sensors
SKU: 127403

Tension and Compression Force Sensors

Series FS05 force sensors measure tension and compression forces. They can be mounted directly to the crosshead of models F105, F305, F505, and F505H test frames.

With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter required). Ranges available from 0,5 N to 2,5 kN.

Price from € 1.180,00

Order now

Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required)
Measure tension and compression force
NIST-traceable certificate of calibration with data is included
Warranty: 3 years

Capacity x Resolution

Model	lbF	ozF	gF	kgF	N	kN	mN
FS05-012	0,12 x 0,00002	2 x 0,0005	50 x 0,01	-	0,5 x 0,0001	-	500 x 0,1
FS05-025	0,25 x 0,0001	4 x 0,002	100 x 0,05	-	1 x 0,0005	-	1000 x 0,5
FS05-05	0,5 x 0,0002	8 x 0,005	250 x 0,1	-	2,5 x 0,001	-	2500 x 1
FS05-2	2 x 0,001	32 x 0,02	1000 x 0,5	1 x 0,0005	10 x 0,005	-	-
FS05-5	5 x 0,002	80 x 0,05	2500 x 1	2,5 x 0,001	25 x 0,01	-	-
FS05-10	10 x 0,005	160 x 0,1	5000 x 2	5 x 0,002	50 x 0,02	-	-
FS05-20	20 x 0,01	320 x 0,02	10000 x 5	10 x 0,005	100 x 0,05	-	-
FS05-50	50 x 0,02	800 x 0,5	25000 x 10	25 x 0,01	250 x 0,1	-	-
FS05-100	100 x 0,05	1600 x 1	50000 x 20	50 x 0,02	500 x 0,2	-	-
FS05-200	200 x 0,1	3200 x 2	-	100 x 0,05	1000 x 0,5	1 x 0,0005	-
FS05-300	300 x 0,2	4800 x 5	-	150 x 0,1	1500 x 1	1,5 x 0,001	-
FS05-500	500 x 0,2	8000 x 5	-	250 x 0,1	2500 x 1	2,5 x 0,001	-

F505-012 - FS05-100: #10-32 UNF Thread
FS05-200 - FS05-500: 5/16-18 UNC Thread

Datasheet FS05 Series

Solid Models - FS05 Sensor

Accuracy	± 0.1% of full scale + indicator or test frame
Safe Overload	150% of full scale
Weight	0,9 – 1,4 kg

Products

Item	Product	Price
137865	FS05-012 Force sensor, 0.12 lbF / 2 ozF / 50 gF / 0.5 N / 500 mN	€ 2.199,00
137866	FS05-025 Force sensor, 0.25 lbF / 4 ozF / 100 gF / 1 N / 1000 mN	€ 2.199,00
137867	FS05-05 Force sensor, 0.5 lbF / 8 ozF / 250 gF / 2.5 N / 2500 mN	€ 1.331,00
137868	FS05-2 Force sensor, 2 lbF / 32 ozF / 1 kgF / 1000 gF / 10 N	€ 1.180,00
137869	FS05-5 Force sensor, 5 lbF / 80 ozF / 2.5 kgF / 2500 gF / 25 N	€ 1.180,00
137870	FS05-10 Force sensor, 10 lbF / 160 ozF / 5 kgF / 5000 gF / 50 N	€ 1.180,00
137871	FS05-20 Force sensor, 20 lbF / 320 ozF / 10 kgF / 10000 gF / 100 N	€ 1.180,00
137872	FS05-50 Force sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N	€ 1.180,00
137873	FS05-100 Force sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N	€ 1.180,00
137874	FS05-200 Force sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN	€ 1.331,00
137875	FS05-300 Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN	€ 1.331,00
137876	FS05-500 Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN	€ 1.331,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
