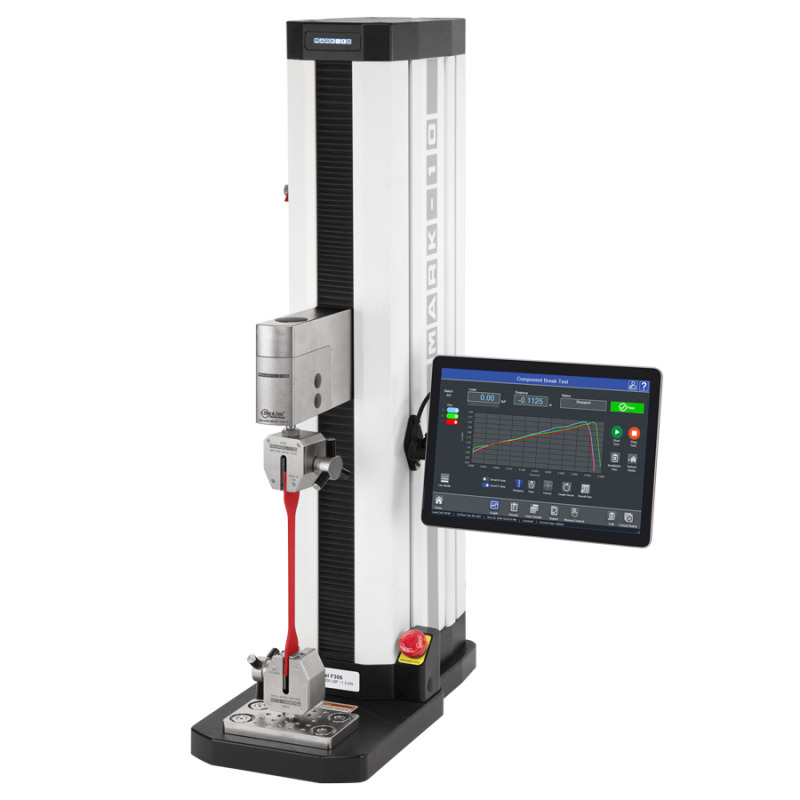

Series F test frames with IntelliMESUR® F105 / F305 / F505 / F505H


Made in the USASeries F Advanced Force Test Stands

Series F force test stands produce tension and compression forces. When combined with a force sensor and IntelliMESUR® software, users can measure force and distance, set up a test, record, analyze, and output data. Series F force test stands are offered in several models, corresponding to different heights and force ranges.

Series FS05 force sensors is required for use with these force test stands.

IntelliMESUR® software is required to run Series F test stands and extract force and distance data from the test stand and force sensor. IntelliMESUR® is offered pre-configured on a tablet with mounting bracket, or as a standalone software application which may be installed on the user’s device.

For test stand part numbers ending in “-IMT”, for example Model F305-IMT, a Windows tablet with attached ball mount and mounting bracket are included. From the home screen, quickly access up to 10 favorite tests. Associate an image with each favorite for easy identification.

With IntelliMESUR®, you can create and run a wide range of basic and multi-step tests, including:

  • Limit testing to a load, break, or distance
  • Height measurement
  • Load holding
  • Cycle testing
  • Multi-step testing, utilizing any combination of the above functions



Run individual runs or batches, and view data in graphical format or results tables. Save or export data as needed, or generate a report. Print or create a PDF report, including results, statistics, graph, system and user information, and comments. Personalize the report with your company logo and an additional image.

Create report templates to save with future reports.


Features
  • Set up, run, and analyze data via the integrated IntelliMESUR® control panel
  • Integrated motion control and data collection solution with seamless interface for FS05 force sensor without cables
  • Plug & Test® system can work with third-party load cells through PTAF adapter
  • Build in test creation wizards
  • FollowMe® function, push and pull on the force sensor to move the crosshead.
  • Auto return function
  • System deflection compensation
  • Overload protection
  • Secure user access with three permission levels

Series-F EasyMESUR® and IntelliMESUR®

The Series-F motorized force testers are developed as a stand-alone measuring test frame, no Force Gauge or Indicator is required to perform measurements.

They come in two versions with integrated touch screens and one version that is connected to your own windows computer.

For each version there are low load versions ranging from 0,5 to 2,5kN and higher load versions ranging from 3,4 to 6,7kN
The lower load ranges come in 3 vertical and one horizontal versions the higher load ranges come in 4 vertical versions.

The EasyMESUR® range has the smaller 7”display and comes in a basic setup.
It is equipped with 2 USB-C ports, one for PC connection and the other for an external flash drive.
Optional functions like Distance measurement, Distance limits, Pre-load, High speed extension. Low speed extension, cycling, break detection, load holding, followMe, graphing and reporting and PC control are available as single option, in packages or as a complete options package.

The IntelliMesur version of the Series-F motorized test stand is available with 10,1”screen or without screen for connection to PC.
It comes with all options from the EasyMESUR® as standard plus some extra features such as Overlay previous runs on graph and the option of COF measurement.

All devices are equipped with basic test wizards to guide you through a test setup.
There are options to extend the colums, add protective screens and a number of sensors in a range of loads compatible to the different test stands.
By using a PTAF adapter various customer supplied sensors can be used, the 705 series and up (3,4kN+) range needs an extra adapter.


EasyMESUR® and IntelliMESUR® Comparison Chart
Feature / SpecificationIntelliMESUR®EasyMESUR®
Basic test wizards IncludedIncluded
Multi-step testsIncluded-
Extended speed rangesIncludedOption
Distance measurement, distance limits, and preloadIncludedOption
Auto-return and cyclingIncludedOption
Break detectionIncludedOption
Load holdingIncludedOption
FollowMe® crosshead positioningIncludedOption
Batch testingIncluded-
Operator prompting Included-
Pass / fail limitsIncludedIncluded
Report creator IncludedOption
ResultsLarge selection1 per test
Graphing and statisticsIncludedOption
Overlay previous runs on graphIncluded-
PC control via third-party application-Option
Coefficient of friction (COF) measurementOption-
Overload protectionIncludedIncluded
Accuracy - force sensor±0,1% or ±0.15% of sensor full scale±0,1% or ±0,15% of sensor full scale
Accuracy - test frame±0,1% of sensor full scale±0,1% of sensor full scale
Distance resolution 0.01 mm0.02 mm
System deflection compensationIncludedIncluded
Accuracy - distance±0.05 mm, at any load or position±0,15 mm, at any load or position
Accuracy - speed 0,2% of setting0,2% of setting
Peak load capture rate20.000 Hz5.000 Hz
Data acquisition rate1.000 Hz100 Hz
Number of data points per run1.000.000100.000
Users and permissions3 permission tiers, unlimited users1 tier (password access)
Runs onWindows tablet or PCControl panel only

Video


10,1 inch IntelliMESUR® display
Quick access Graph screen

Quick access favorites screen

Quickly access up to 10 favorite tests. Associate an image with each favorite for easy identification. Define your own favorites for faster test setup.

Point of view, Graph screen

The Graph view plots force vs. distance or force vs. time. Overlay up to 10 runs for visual comparisons.

result view Multistep

Point of view Results screen

The Results view displays user selected results for each run. Statistics may be applied to selected results.

Multi-step test setup

Building upon basic test wizards, easily incorporate any combination of steps, with the ability to loop a sequence of steps.

Manual control Calibration

Intelligent manual control

Manually control the test frame to obtain quick force and distance results, or manually position the crosshead prior to a test. Select from several actuation methods, including momentary (buttonhold), maintained (button release) motion, jog mode with three distance presets.

Calibrate force sensors

IntelliMESUR® provides an integrated utility, with an intuitive step-by-step wizard. Manual controls allow the technician to use the test frame to apply tension and compression forces. Alternatively you can remove the force sensors for off-site calibration with a Mark-10 Model M7I or M5I indicator.


Special Features
Simple controller interface

Rigid and precise design
Exceptionally firm frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test stands and force sensors ensure position accuracy of ±0,05 mm under any condition. Stepper motors and controllers drive a ballscrew and linear guideway for smooth and quiet operation, with no speed variation under load.

Limit switches Modular design
Frame bases can be removed to accommodate column extensions and alternative mounting configurations. Most electronics are housed in a self-contained enclosure, easily accessed and replaced if needed. Integrated T-slots along the column accommodate add-ons.
Adjustable mounting plate with T-slot base External limit switches
Upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.
Modular design Seamless Force Sensor Interface
Series FS05 smart force sensors mount directly to the crosshead of models F105, F305, F505, and F505H. Ranges available from 0,5 N to 2,5 kN. Accurate to ±0,1% of full scale.

Series R07 S-beam type force sensors accommodate higher force ranges from 250 N to 7,5 kN and are also compatible with Plug & Test® technology. Accurate to ±0,15% of full scale.

FollowMe Easy-to-service electronics
Most electronics are housed in an integrated module, which are easily replaced without special tools or processes.

Complete Kit

The F105, F305, F505, and F505H are shipped as a complete kit, including the following accessories:

  • 1 Control panel, mounting bracket, and hardware (-IMT models only)
  • 1 Mounting bracket, column end (F505H only)
  • 1 USB flash drive containing software installation files (-IM models only)
  • 1 USB dongle (-IM models only)
  • 1 USB cable
  • 1 #10-32M medium hook
  • 1 5/16-18M large hook
  • 1 #10-32F 2” diameter compression plate
  • 1 #10-32 M/F 2” extension rod
  • 1 #10-32 F/F coupler
  • 1 Adapter, 5/16-18M to #10-32F
  • 1 Set screw, #10-32 x 3/4”
  • 2 Hex nuts, #10-32
  • 1 Power cord
  • 1 Allen wrench set
  • 1 NIST-traceable calibration certificate


Dimensions
Dimensions-F105 / F305 / F505 / F505H


Models F105 / F305 / F505



Dimensions-F105 / F305 / F505 / F505H


Model F505H


Accessories

Category Force Gauge Accessories


Large assortment of grips, attachments and other accessories for analog and digital force gauges.

More details

Category  Force Gauge Accessories 0

Series FS05 Series FS05 Force Sensors


  • Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
  • Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required)
  • Measure tension and compression force

More details

Series FS05 Series FS05 Force Sensors 127403

PTA PTA/PTAF Plug & Test Load Cell Adapter


  • Compatible with strain gage-based load cells, force sensors, and torque sensors
  • Program the adapter via USB or RS-232 through the indicator

More details

PTA PTA/PTAF Plug & Test Load Cell Adapter 127060

Specifications
 Model F105Model F305Model F505Model F505H
Load capacity0,5 kN1,5 kN2,2 kN2,2 kN
Maximum travel distance457 mm457 mm457 mm457 mm
Speed range0,5 - 1,100 mm/min0,5 - 1,100 mm/min0,5 - 1,100 mm/min0,5 - 1,100 mm/min
Load accuracy (% of full scale)
  • Test stand: ±0,1%
  • Force sensor alone: Series FS05: ±0,1% | Series R07: ±0,15%
  • Test stand: ±0,1%
  • Force sensor alone: Series FS05: ±0,1% | Series R07: ±0,15%
  • Test stand: ±0,1%
  • Force sensor alone: Series FS05: ±0,1% | Series R07: ±0,15%
  • Test stand: ±0,1%
  • Force sensor alone: Series FS05: ±0,1% | Series R07: ±0,15%
Load sampling rate20.000 Hz20.000 Hz20.000 Hz20.000 Hz
Data acquisition rate1.000 Hz1.000 Hz1.000 Hz1.000 Hz
Speed accuracy±0,2% of setting, virtually no variation with load±0,2% of setting, virtually no variation with load±0,2% of setting, virtually no variation with load±0,2% of setting, virtually no variation with load
Distance accuracy±0,05 mm, factory-compensated at up to full load±0,05 mm, factory-compensated at up to full load±0,05 mm, factory-compensated at up to full load±0,05 mm, factory-compensated at up to full load
Distance resolution0,01 mm0,01 mm0,01 mm0,01 mm
Limit switch repeatability0,03 mm0,03 mm0,03 mm0,03 mm
PowerUniversal input 100-240 VAC, 50/60 Hz, 300WUniversal input 100-240 VAC, 50/60 Hz, 300WUniversal input 100-240 VAC, 50/60 Hz, 300WUniversal input 100-240 VAC, 50/60 Hz, 300W
Fuse type1,2 A, 250V, 3AG, SLO BLO1,2 A, 250V, 3AG, SLO BLO1,2 A, 250V, 3AG, SLO BLO1,2 A, 250V, 3AG, SLO BLO
Weight27 kg (test stand)
34 kg (shipping weight)
27 kg (test stand)
34 kg (shipping weight)
32 kg (test stand)
39 kg (shipping weight)
32 kg (test stand)
39 kg (shipping weight)
Environmental conditionsIndoor use only
Up to 2.000 m above sea level
Temperature range: 5 – 35°C
Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
Mains supply voltage fluctuations up to ±10 % of the nominal voltage
Transient overvoltages up to the levels of Overvoltage Category II
Use in environments up to Pollution Degree 2
Indoor use only
Up to 2.000 m above sea level
Temperature range: 5 – 35°C
Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
Mains supply voltage fluctuations up to ±10 % of the nominal voltage
Transient overvoltages up to the levels of Overvoltage Category II
Use in environments up to Pollution Degree 2
Indoor use only
Up to 2.000 m above sea level
Temperature range: 5 – 35°C
Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
Mains supply voltage fluctuations up to ±10 % of the nominal voltage
Transient overvoltages up to the levels of Overvoltage Category II
Use in environments up to Pollution Degree 2
Indoor use only
Up to 2.000 m above sea level
Temperature range: 5 – 35°C
Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
Mains supply voltage fluctuations up to ±10 % of the nominal voltage
Transient overvoltages up to the levels of Overvoltage Category II
Use in environments up to Pollution Degree 2
ConformanceCE markCE markCE markCE mark
Warranty3 years3 years3 years3 years

Load capacity is reduced at higher speeds, as follows:
– F305: limited to 1 kN above 610 mm/min
– F505 / F505H: limited to 1,5 kN above 610 mm/min

Related Products

F755 / F1505 F755 / F1505 Force Test Frame


  • Set up, run, and analyze data via the integrated IntelliMESUR® control panel
  • Build in test creation wizards
  • Integrated motion control and data collection solution.

More details

F755 / F1505 F755 / F1505 Force Test Frame

Series-F + EasyMesur F105 / F305 / F505 / F505H Series F test frames with EasyMESUR® F105 / F305 / F505 / F505H


  • Integrated Force sensor and seamless interface for FS05 force sensor without cables
  • Integrated touch screen control panel
  • Set up, run, and analyze data via the integrated EasyMESUR® control panel

More details

Series-F + EasyMesur F105 / F305 / F505 / F505H Series F test frames with EasyMESUR® F105 / F305 / F505 / F505H

Series-F + EasyMESUR F755 / F755S / F1505 / F1505S Series F test frames with EasyMESUR® F755 / F755S / F1505 / F1505S


  • Integrated Force sensor and seamless interface for FS05 force sensor without cables
  • Separate USB C connections for PC and external storage
  • Integrated touch screen control panel

More details

Series-F + EasyMESUR F755 / F755S / F1505 / F1505S Series F test frames with EasyMESUR® F755 / F755S / F1505 / F1505S

Series-3I Force/Torque Indicator


  • Interchangeable force and torque sensors through Plug & Test® technology (sensors are sold separately)
  • High-speed 2.000 Hz sampling rate
  • Ultra-compact size

More details

Series-3I Force/Torque Indicator

Series-5I Advanced Digital Force/Torque Indicator


  • Interchangeable force and torque sensors through, separately sold, Plug & Test® technology
  • High-speed 7.000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs

More details

Series-5I Advanced Digital Force/Torque Indicator

Series-7I Advanced Force/Torque Indicator


  • Interchangeable force and torque sensors through Plug & Test® technology (sensors are sold separately)
  • High-speed 14.000 Hz sampling rate
  • Continous data capture of up to 5.000 data points, at up to 14.000 Hz, downloadable to a PC
  • 5 units of measurement, plus Coefficient of Friction and user-defined unit with configurable name

More details

Series-7I Advanced Force/Torque Indicator

Downloads

Buy Now
Products

Product
Price
Quantity
137821
F105-IMT-E-Test frame with IntelliMESUR® pre-loaded tablet control panel, vertical, 100 lbF / 0.5 kN
€ 10.994,00
139054
F305-IMT-E- Test frame with IntelliMESUR® pre-loaded tablet control panel,, vertical, 300 lbF / 1.3 kN
€ 11.606,00
137822
F305-IM-E- Test frame with IntelliMESUR®l Software License, vertical, 300 lbF / 1.3 kN
€ 9.963,00
137823
F505-IMT-E- Test frame with IntelliMESUR® pre-loaded tablet control panel, vertical, 500 lbF / 2.2 kN
€ 12.970,00
137824
F505H-IMT-E- Test frame with IntelliMESUR® pre-loaded tablet control panel, horizontal, 500 lbF / 2.2 kN
€ 13.676,00

Accessories

Product
Price
Quantity
137929
AC1094-1 Single column extension for ESM303 - 150 mm
€ 414,00
137930
AC1094-2 Single column extension for ESM303 - 300 mm
€ 574,00
137931
AC1094-3 Single column extension for ESM303 - 600 mm
€ 725,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request

Contact
Request offer
Your information request is sent!
We'll contact you as soon as possible.
  Information
