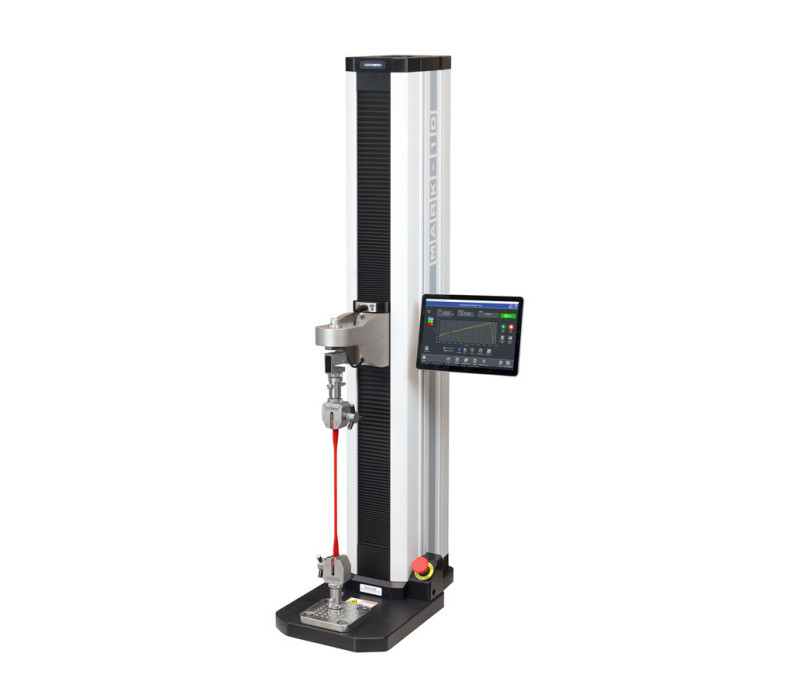

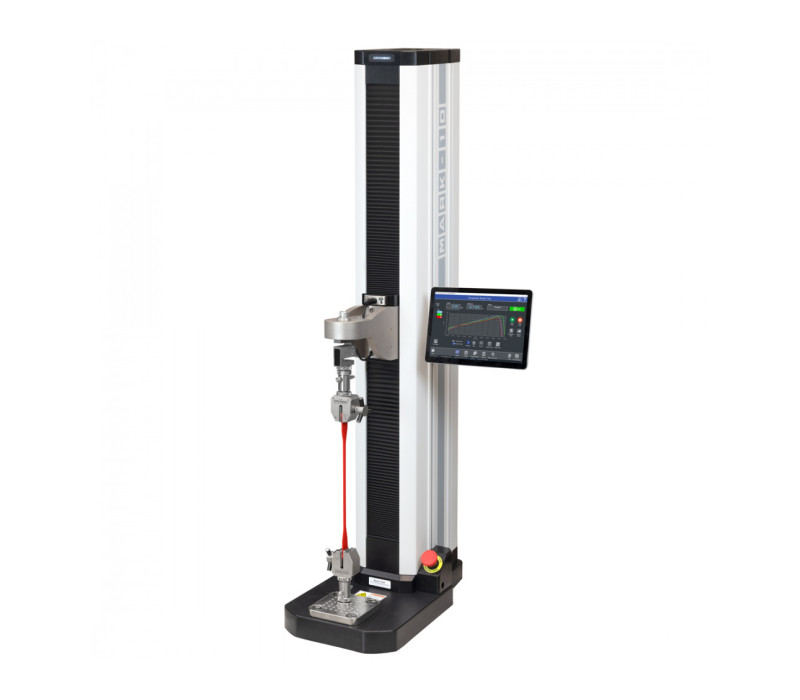

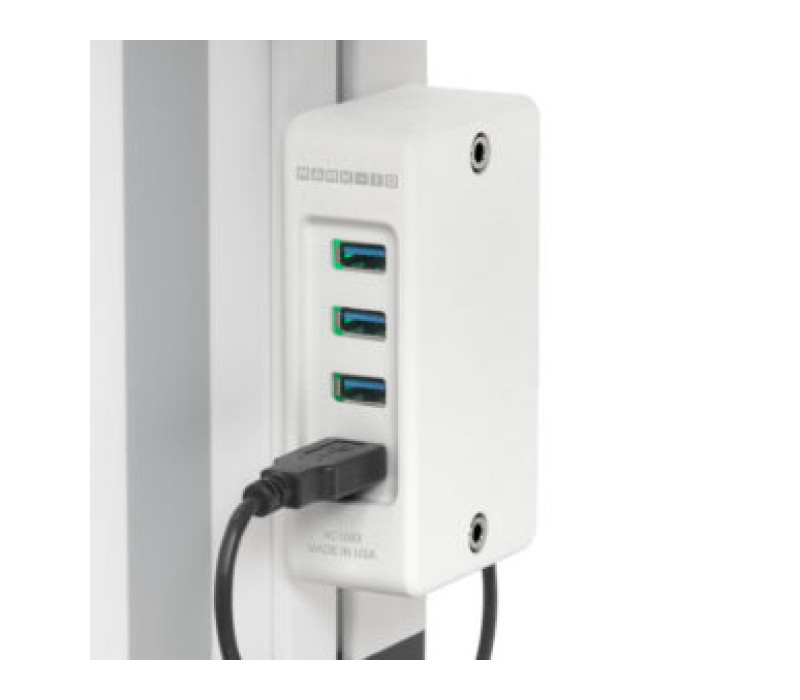

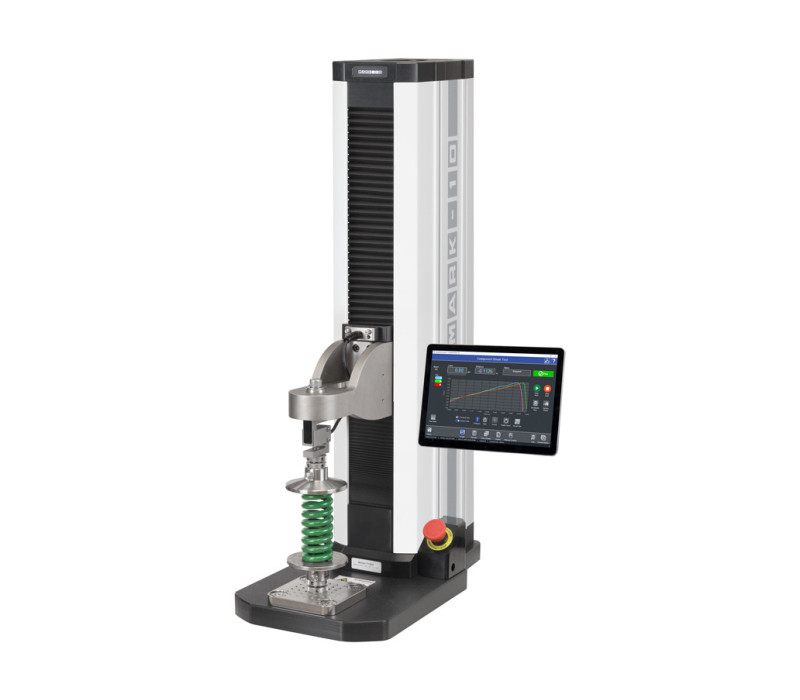

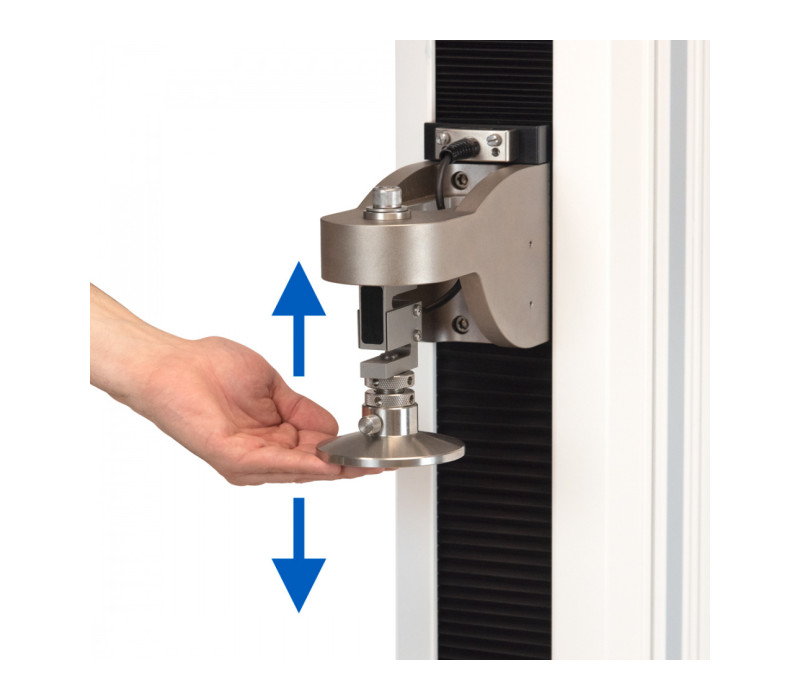

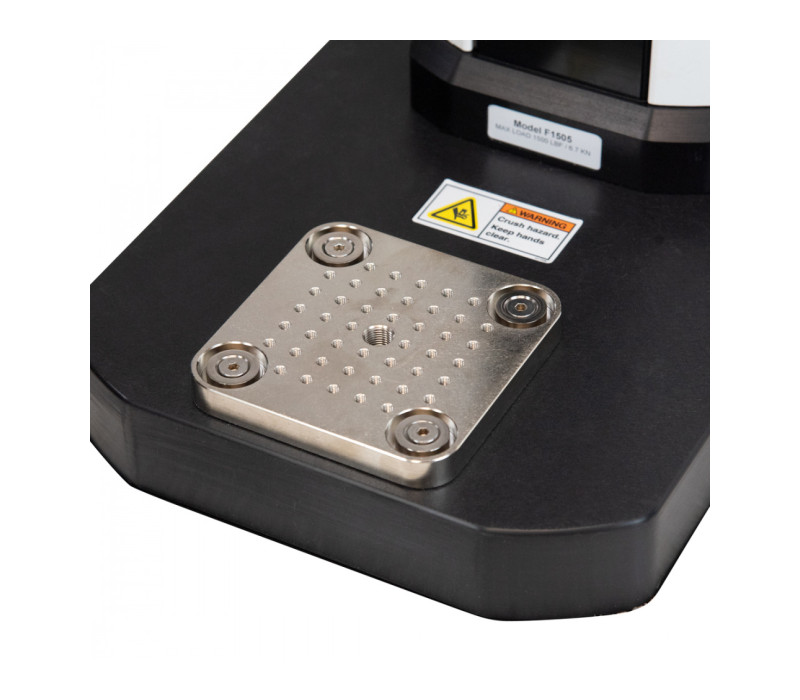

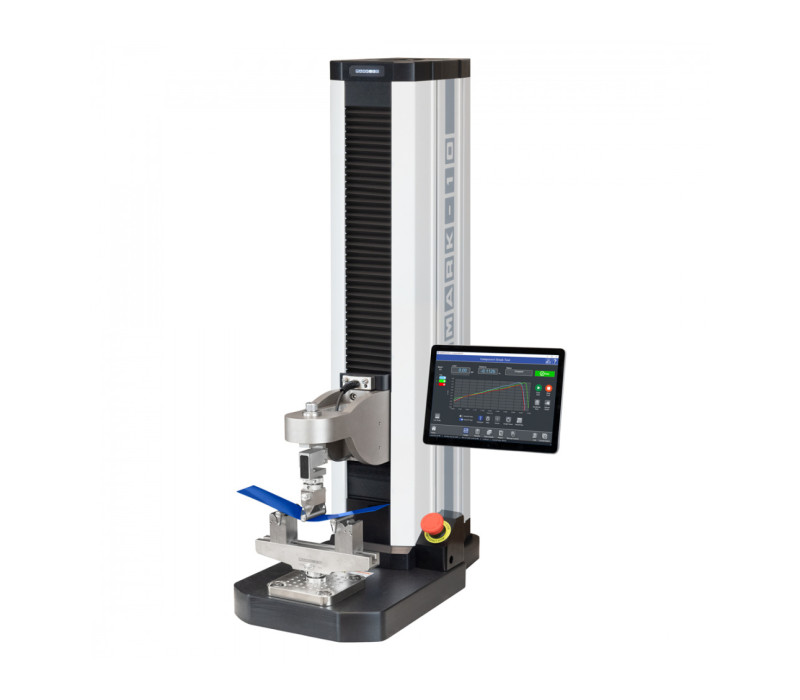

Test Stand with IntelliMESUR® F755 / F1505

The F series equipped with IntelliMESUR® offers advanced analysis capabilities and technical requirements for strength testing. It features options for a 10.1-inch display or screenless models for PC connection, ideal for advanced industrial research and development laboratories.

• Advanced Functions: Includes all the features of EasyMESUR® plus overlaying previous journeys and measuring the COF.
• Versatility and Precision: Capability to perform basic and complex tests, with options to extend columns and add screen protectors.

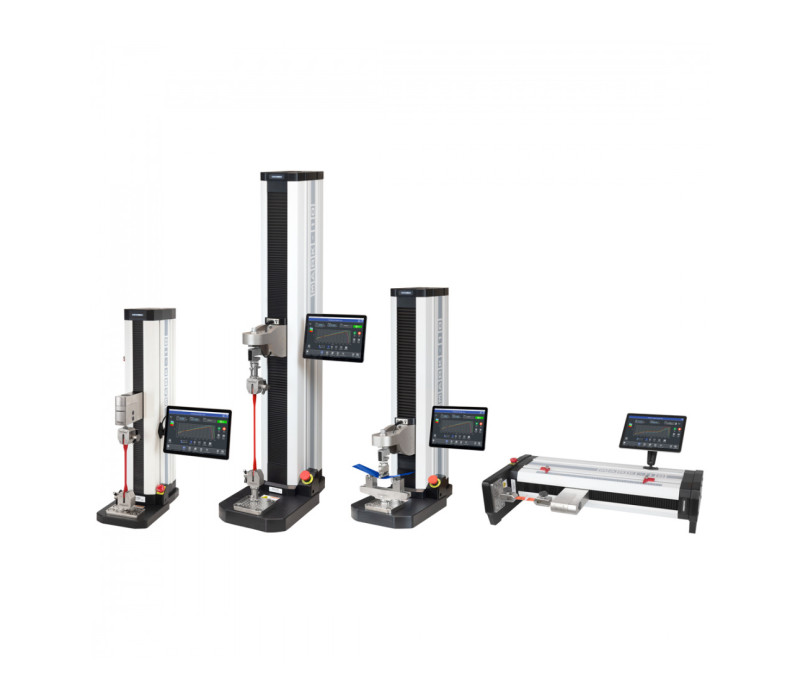

The Series F force testers from Mark-10 are available in 2 versions EasyMESUR® and IntelliMESUR®.

While both systems are designed for testing tensile and compression forces, the sytems serve a different user category. This is reflected in the size of the screen, the possibilities in complexity in setting up and running tests and analyzing the data.

EasyMESUR® is setup as a basic cost effective system that can be modular upgraded with required functionalities. Upgrades come a single functions like distance measurement, load holding, break detection etc., or as packages where functionalities are combined for specific tasks.

The system comes standard in evaluation mode where all functionalities are operational for the first 160 hours of use, aftir this only the purchased functionalities will remain operational. Additional functionalities can be purchased through a code.

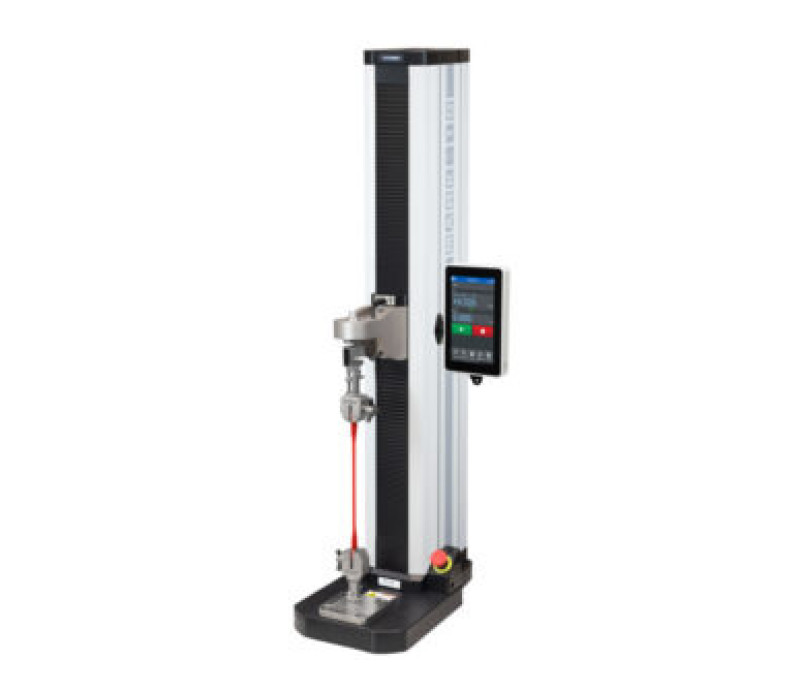

EasyMESUR® is operated from a 7”tablet that uses its own software and is not compatible with windows, the system can be operated from a pc using third party software.

IntelliMESUR® comes as a complete advanced platform with only a few available upgrades.
It uses a 10.1” Windows tablet to operate the test stand and it can handle Basic tests like

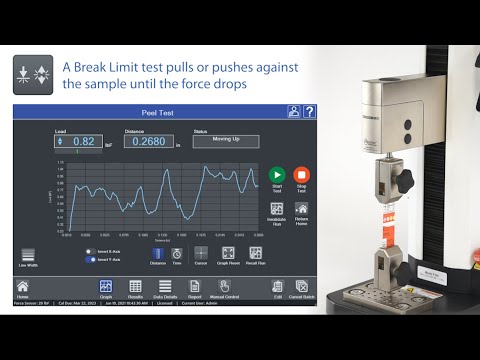

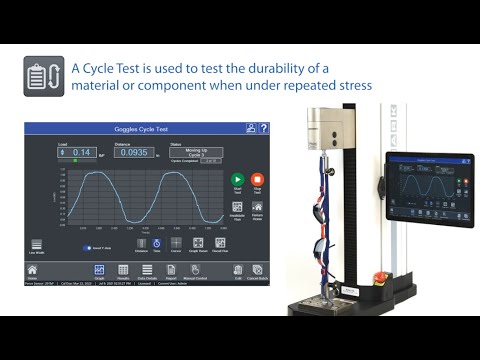

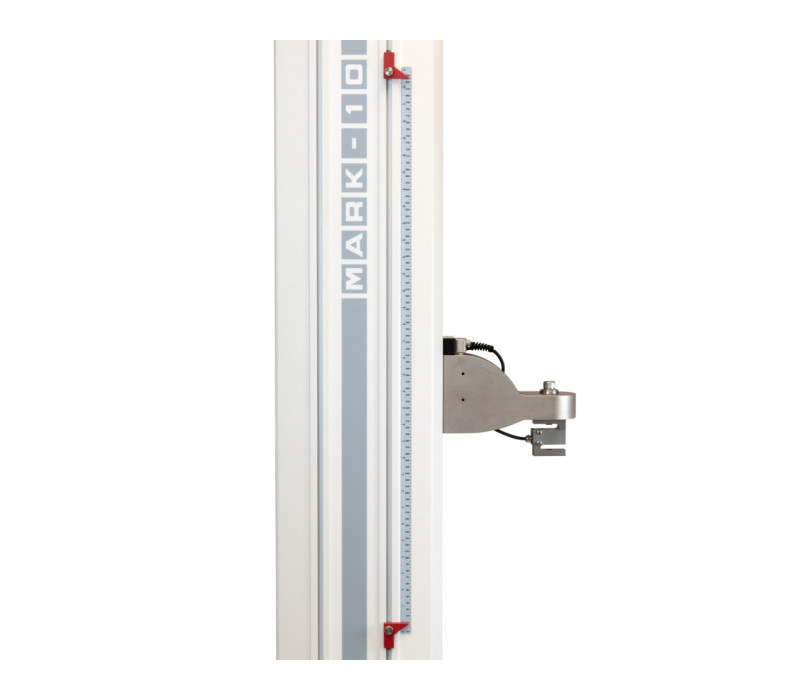

Limit testing to a load, break, or distance, Height measurement, Load holding, Cycle testing and multi step tests combining the basic tests. With a capture rate of 1000 Hz, a peak load capture rate of 20.000 Hz and a maximum amount of datapoints per run of 1.000.000 all test data is captured and stored.

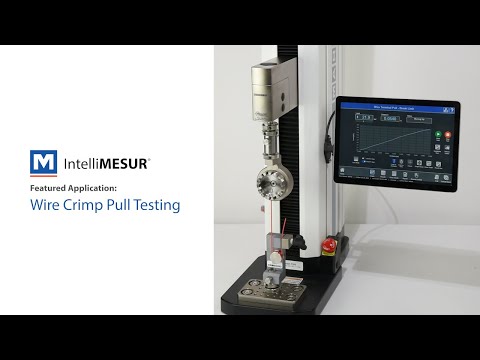

IntelliMESUR® comes with a test setup wizard and graphing and reporting standard.

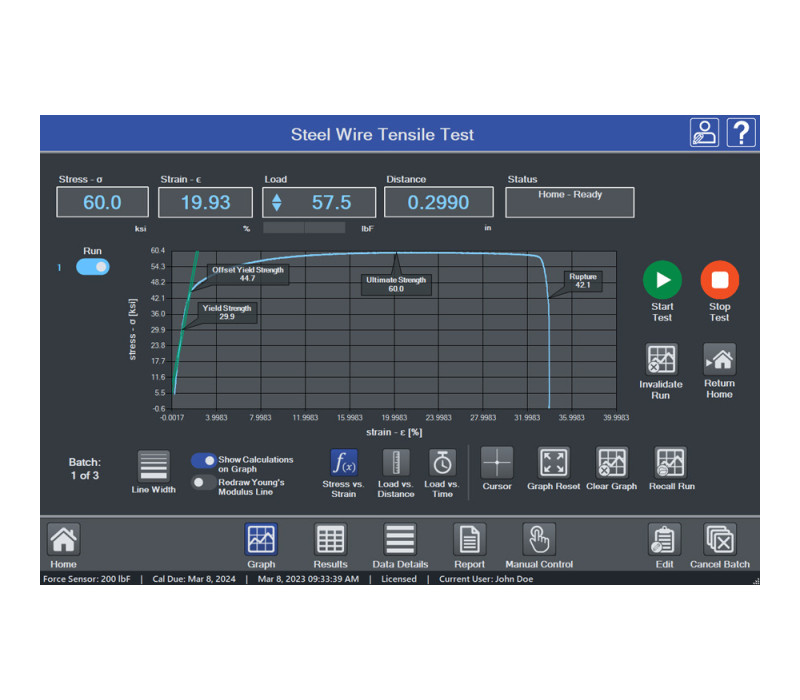

The optional materials testing calculations module can Characterize and analyze the behavior of materials, components, and assemblies with a suite of materials testing calculations.

The Coefficient of Friction Testing module measures static and dynamic COF for a wide range of materials according to relevant standards.

EasyMESUR® is the platform to chose when a basic test is required, the stand can be upgraded with specific functionalities to cater flexibility.

IntelliMESUR® is the best platform when advanced tests are required, this platform comes with extended test, analysis and reporting capabilities.

Plug & Test® Sensors for the Series F

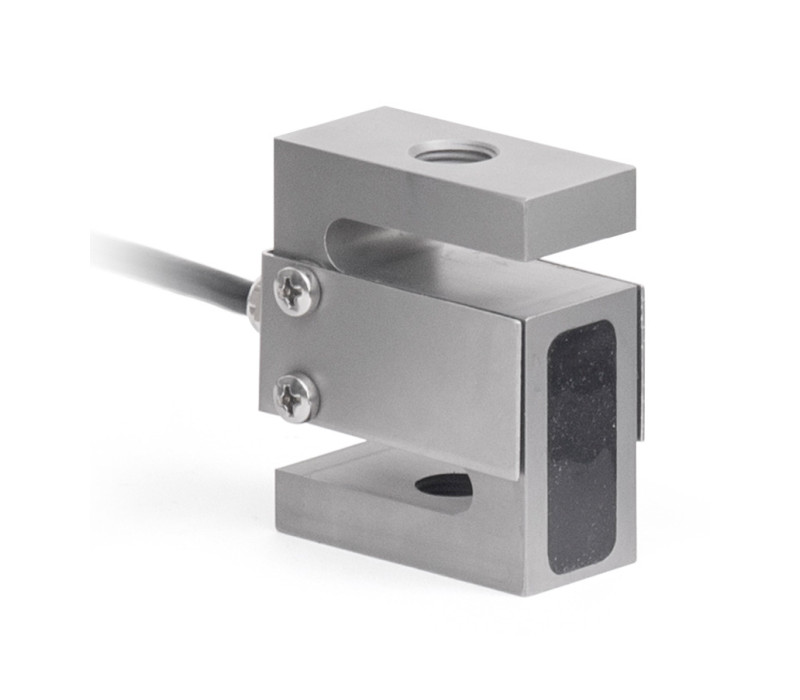

Mark-10’s Series F test stands employ a specialised version of Plug & Test® sensors for compression and tension testing. These sensors store calibration and configuration details within an internal PCB, allowing seamless interchangeability across multiple stands. Currently, the FS05, FS06, and R07 are available for use with the Series F range.

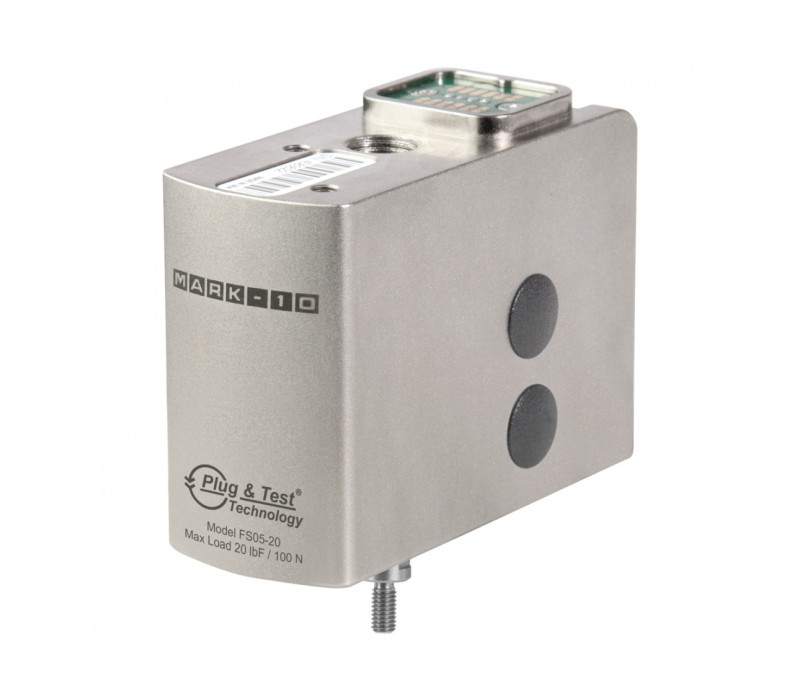

• FS05
  • Capacities range from 0.5 kN to 2.5 kN.
  • Connects directly to the F105, F305, and F505 test stands.
  • Requires the AC1083 adapter for use with the F755 or F1505 stands.
• FS06 and R07
  • Designed for both compression and tension applications.
  • Make use of the Mark-10 operating system within the Series F test stands.

Through Mark-10’s Plug & Test® technology, all sensors store their own configuration and calibration information on-board, ensuring consistent and accurate readings when moved from one test stand to another.

PTAF Adapter

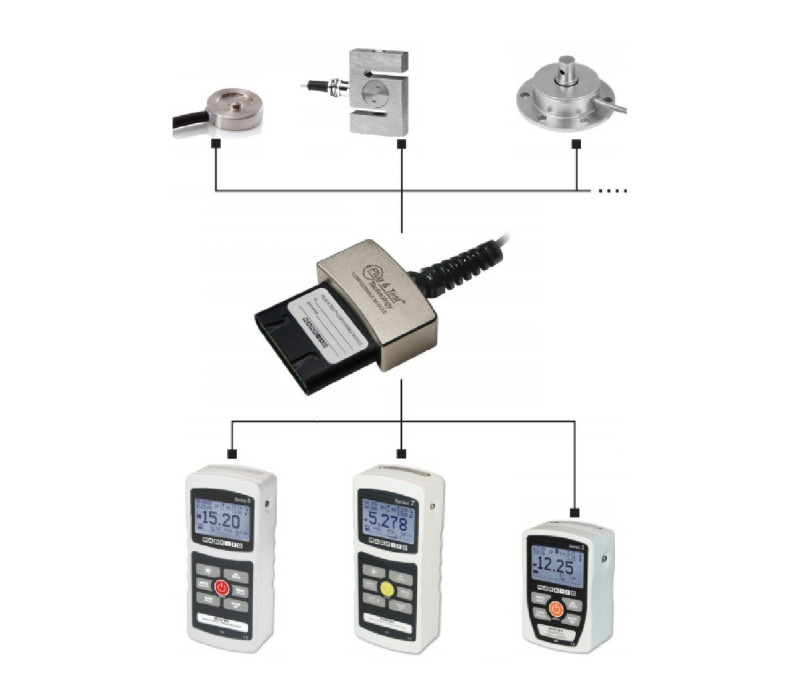

Designed for third-party strain gauge load cells, force, and torque sensors, the PTAF adapter offers exceptional flexibility for your Series F testing system:

• Direct Connectivity
  • Attaches to F105, F305, and F505 stands without additional hardware.
  • Compatible with the F755 and F1505 stands, as well as M5I and M7I indicators, using the AC1083 adapter.
• Configurable Capacities
  • A user-friendly software utility allows the PTAF to be programmed with a wide library of common capacities, from 0.5 N up to 4,000 kN in force measurement and from 7 Ncm up to 57,000 Nm in torque measurement.
• Identification and Interchangeability
  • Each adapter can be assigned an identification number, displayed upon power-up or on the test stand’s screen.
  • All calibration and configuration data is stored within the adapter’s PCB, enabling quick swapping between sensors and indicators without loss of accuracy.

Whether you require direct connectivity for Mark-10’s native Plug & Test® sensors or need to integrate existing third-party devices, the PTAF adapter provides a versatile, reliable solution for your force and torque measurement needs.

By removing the circuit board and side cover the third party sensor you can be connected to the PTAF adapter	Feed the cable through and connect the wires to the terminal block.
Replace the circuit board and side cover.	The sensor can now be configured using the included , Plug & Test Adapter Configuration software and used on the Series-7 test stands. An extra adapter (AC1083) is required to connect the PTAF to the F755(S)/F1505(S) range test stands.
