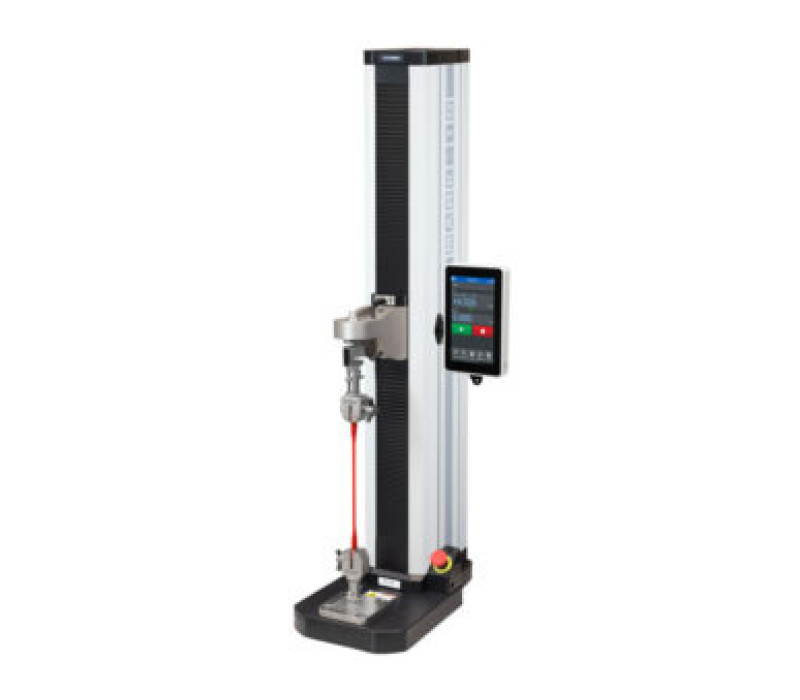

Series-F + EasyMESUR F755 / F755S / F1505 / F1505S Test stand with EasyMESUR® F755 / F755S / F1505 / F1505S

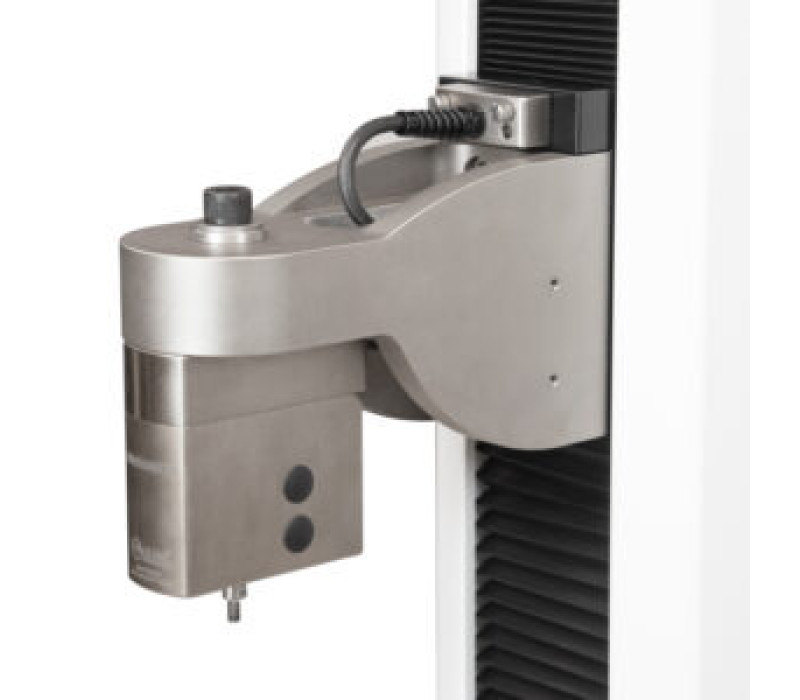

An F1505 Advanced Test Stand shown with an FS05-20 Force Sensor connect with an AC1083 adapter.

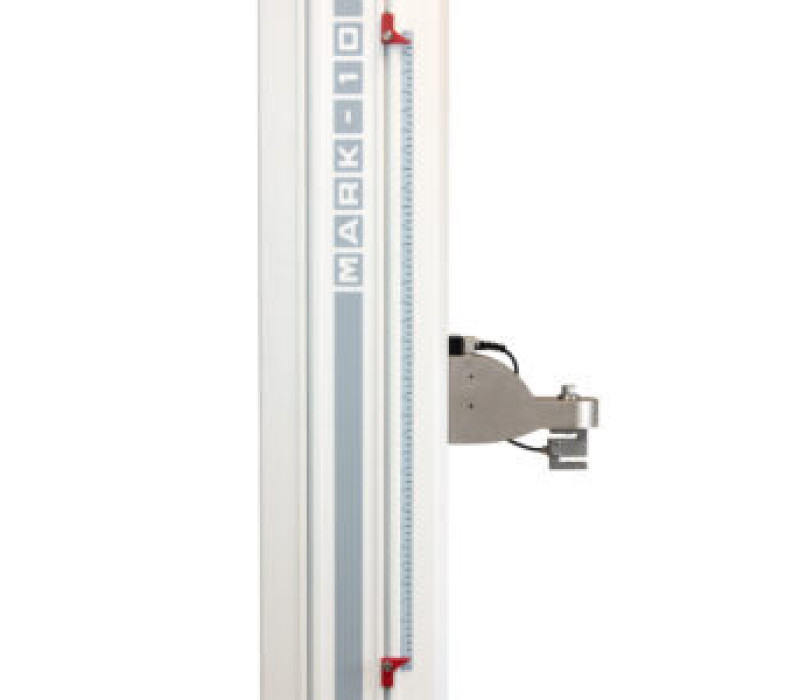

Solid-state upper and lower limit switches may be used as test limits or to prevent over-travel. An inch-mm ruler aids in switch placement.

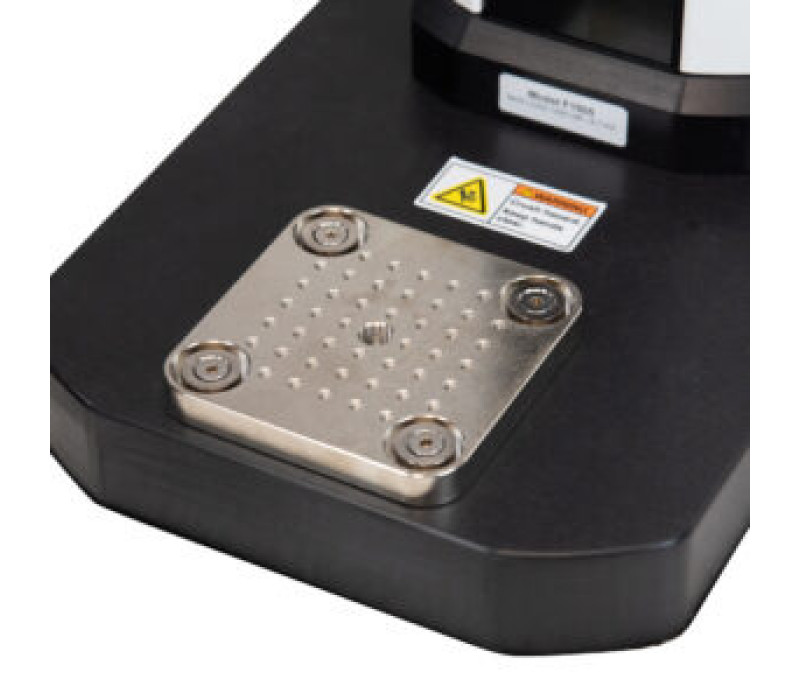

Base plate includes a matrix of threaded holes. Floating washers allow for precise x-y positoning.

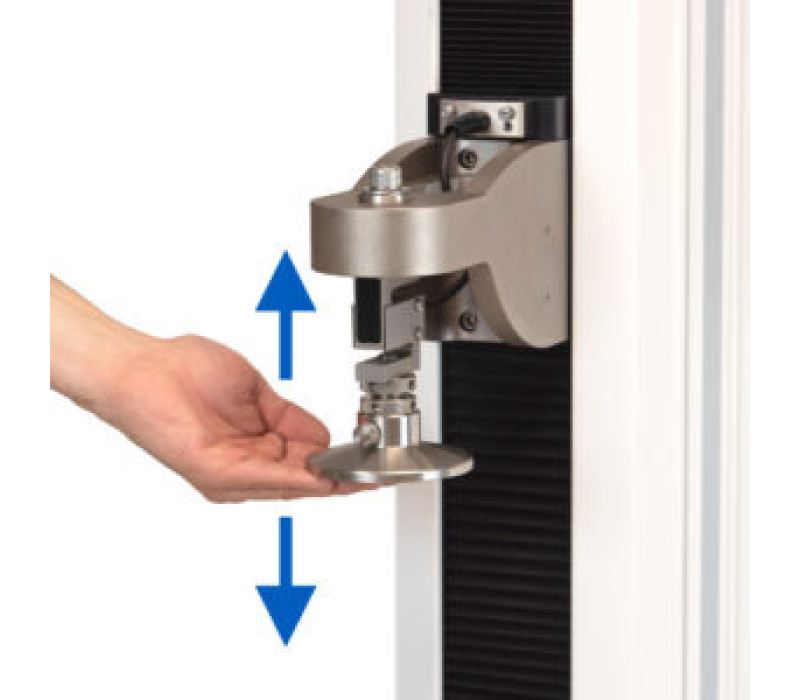

With Mark-10's innovative FollowMe® function, the user can push and pull on the force sensor to move the crosshead by hand. Responsive enough for quick positioning as well as fine adjustments.

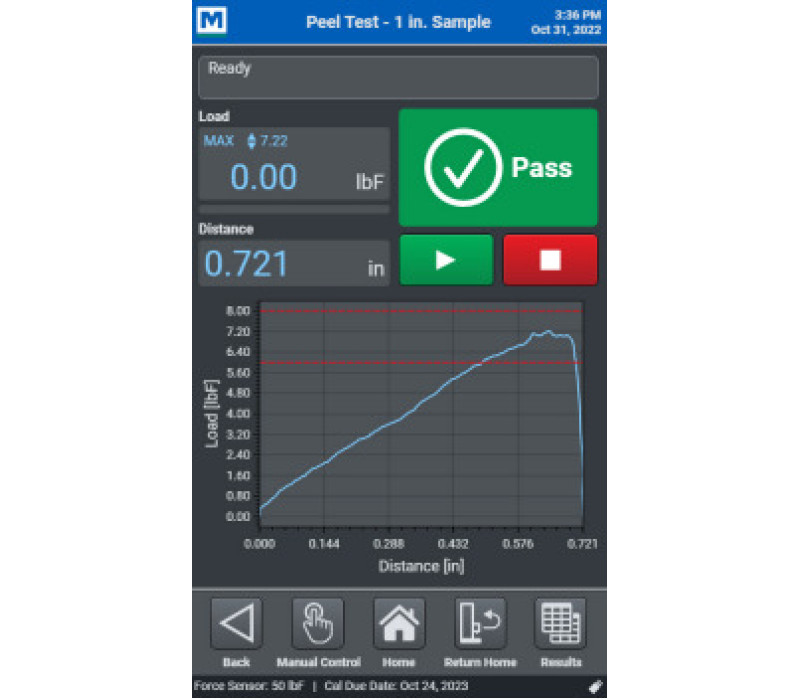

7" touchscreen with Graph display

Test stand with EasyMESUR® F755 / F755S / F1505 / F1505S

The Series F Easy MESUR® system integrates the functionality of a bench dynamometer with a modular, robust design, offering precise tension and compression measurements from 3.4 kN up to 6.7 kN. This system is ideal for industrial and research environments, combining advanced technology with ease of use thanks to its integrated 7-inch touchscreen panel and the Plug & Test® system.

Key Features:

Integrated Plug & Test® System: Simplifies connection of Mark-10 and third-party force sensors, ensuring easy installation and configuration.
7-Inch Touchscreen Panel: Provides an intuitive, guided interface for setting up and executing various tests, reducing the learning curve.
Wide Versatility in Testing: Capable of performing load, break, distance, holding, cyclic, and medium load tests, adapting to multiple applications.
Modular and Adaptable Design: Removable bases and optional column extensions offer customised mounting solutions in both vertical and horizontal orientations.
Advanced Connectivity: Equipped with USB-C ports for easy export and import of data and reports, facilitating analysis and decision-making.
Simplified Maintenance: Integration of electronic components in a removable module reduces maintenance times and simplifies repairs.

Key Benefits:

Intuitive Operation: The touchscreen interface and built-in configuration wizards make it simple for even non-specialist users to perform complex tests accurately.
Adaptability to Diverse Needs: Its modular design allows for system expansion and adjustment to specific application demands without incurring additional costs.
Accurate and Reliable Results: Advanced technology combined with robust construction ensures precise measurements essential for quality control.
Efficiency in Data Analysis: Easy export and detailed report generation optimise monitoring and decision-making in test processes.

The Easy MESUR® system is shipped in Evaluation Mode, with all functions enabled for 160 hours of operation so that you can assess its performance under real-world conditions.

Contact us to discover how these motorised test stands can transform your measurement and control processes and to receive personalised advice on the ideal configuration for your needs.

Price from € 8.837,00

Order now

Cable-Free FS05 Force Sensor Interface: Integrates a force sensor with an optimised cable-free interface for the FS05, ensuring interference-free measurements.
Independent USB-C Connections: Allows simultaneous connection to a PC and an external storage device, facilitating quick data transfer and backup.
Integrated Touchscreen Control Panel: Provides an intuitive user experience for centralised test setup, execution, and monitoring.
Comprehensive Management via EasyMESUR®: Enables configuration, execution, and analysis of data directly through the integrated system, optimising workflow.
Test Creation Wizards: Interactive guides simplify the test setup process and ensure consistent results.
Auto-Return Function: Automatically resets the probe to its default parameters after each test cycle.
Pass/Fail Limits: Establishes automatic acceptance or rejection criteria based on test results.
System Deviation Compensation: Automatically corrects measurement deviations to ensure precision.
On-Site Upgradable Software: Allows direct software updates on the device without external equipment.
Overload Protection: Incorporates safety mechanisms to prevent damage during overload conditions.
Total Password Protection: Secures system access, restricting it to authorised users via password.

The F755-EM, F755S-EM, F1505-EM, and F1505S-EM advanced test stands are shipped as shown, and include the following accessories:

Control panel, mounting bracket, and hardware
Eye end kit for base
Lock ring for eye end
Spanner wrench
Power cord
Allen wrench set

Individual functions

Function	Part Number	Description	Co-requirements
Distance Measurement	EMF001-2	Measure distance, with the ability to zero the reading.	-
Distance Limits	EMF002-2	Stop at user-defined upper and lower distance limits.	- Distance Measurement (EMF001-2)
Preload	EMF003-2	Zero the travel position automatically at a user-defined preload value.	- Distance Measurement (EMF001-2)
High Speed Extension	EMF004-2	Extend the high end of the speed range, dependent upon test stand model.	-
Low Speed Extension	EMF005-2	Extend the low end of the speed range, dependent upon test stand model.	-
Cycling	EMF006-2	Set up to 100.000 cycles, with user-defined upper and lower dwell times. Cycle between any combination of limit switches, travel limits, breaks, and load limits.	- If cycling to distance limits, add Distance Measurement (EMF001-2) and Distance Limits (EMF002-2) - If cycling to a break point, add Break Detection (EMF007-2)
Break Detection	EMF007-2	Stop when a user-defined drop in force occurs.	-
Load Holding	EMF008-2	Stop at, and maintain, a user-defined load for a specified period of time.	-
FollowMe®	EMF009-2	Push and pull on the sensor’s loading shaft to jog the crosshead up and down, ideal for manual positioning prior to a test. Speed increases with applied force.	-
Graphing & Reporting	EMF010-2	Graph load vs. time or distance, view statistics, and generate a report, including graph, results, run data, and other information.	- If graphing load vs. distance, add Distance Measurement (EMF001-2)
PC Control	EMF011-2	Control the test stand with your own application using a supplied library of motion control and data collection serial commands. While PC control is active, the control panel becomes a pendant, limited to basic, manual controls.	- AC1107 cable, test stand to PC
Coefficient of Friction Measurement	EMF012-2	Measure static and dynamic coefficients of friction, with user-defined sled weight.	- G1086 coeficient of friction fixture
Spring Rate Measurement	EMF013-2	Measure spring rate, with user-defined start and stop data collection triggers.	-Distance Measurement (EMF001-2) Suggested functions: -Distance Limits (EMF002-2) -Preload (EMF003-2)
These options are available when ordered or at a later date through code activation. A combination or complete options package is also available for a discounted price.

Packages

Package	Part Number	Includes
Distance Measurement	EMP001-2	Distance Measurement (EMF001-2) Distance Limits (EMF002-2) Preload (EMF003-2)
Speed Extension	EMP002-2	High Speed Extension (EMF004-2) Low Speed Extension (EMF005-2)
Advanced Functionality	EMP003-2	Cycling (EMF006-2) Break Detection (EMF007-2) Load Holding (EMF008-2) FollowMe® (EMF009-2)
Complete Options	EMP-COMP-2	All functions

Series-F EasyMESUR®

Discover the F series motorised test benches with EasyMESUR®, designed as standalone and efficient systems for a wide range of applications. Available in load capacities from 3.4 to 6.7kN, with configurations including three vertical and one horizontal for low loads and four vertical for high loads.

Touch Screen and Connectivity: Equipped with a 7-inch screen and two USB-C ports, allowing direct connections to PCs and external storage devices.
Optional Features: Include distance measurement, distance limits, pre-load, cycling and more, available in packages or individually.

EasyMESUR® vs IntelliMESUR®.

The Series F force testers from Mark-10 are available in 2 versions EasyMESUR® and IntelliMESUR®.

While both systems are designed for testing tensile and compression forces, the sytems serve a different user category. This is reflected in the size of the screen, the possibilities in complexity in setting up and running tests and analyzing the data.

EasyMESUR® is setup as a basic cost effective system that can be modular upgraded with required functionalities. Upgrades come a single functions like distance measurement, load holding, break detection etc., or as packages where functionalities are combined for specific tasks.

The system comes standard in evaluation mode where all functionalities are operational for the first 160 hours of use, aftir this only the purchased functionalities will remain operational. Additional functionalities can be purchased through a code.

EasyMESUR® is operated from a 7”tablet that uses its own software and is not compatible with windows, the system can be operated from a pc using third party software.

IntelliMESUR® comes as a complete advanced platform with only a few available upgrades.
It uses a 10.1” Windows tablet to operate the test stand and it can handle Basic tests like
Limit testing to a load, break, or distance, Height measurement, Load holding, Cycle testing and multi step tests combining the basic tests. With a capture rate of 1000 Hz, a peak load capture rate of 20.000 Hz and a maximum amount of datapoints per run of 1.000.000 all test data is captured and stored.

IntelliMESUR® comes with a test setup wizard and graphing and reporting standard.

The optional materials testing calculations module can Characterize and analyze the behavior of materials, components, and assemblies with a suite of materials testing calculations.

The Coefficient of Friction Testing module measures static and dynamic COF for a wide range of materials according to relevant standards.

EasyMESUR® is the platform to chose when a basic test is required, the stand can be upgraded with specific functionalities to cater flexibility.

IntelliMESUR® is the best platform when advanced tests are required, this platform comes with extended test, analysis and reporting capabilities.

EasyMESUR® and IntelliMESUR® Comparison Chart

Feature / Specification	IntelliMESUR®	EasyMESUR®
Basic test wizards	Included	Included
Multi-step tests	Included	-
Extended speed ranges	Included	Option
Distance measurement, distance limits, and preload	Included	Option
Auto-return and cycling	Included	Option
Break detection	Included	Option
Load holding	Included	Option
FollowMe® crosshead positioning	Included	Option
Batch testing	Included	-
Operator prompting	Included	-
Pass / fail limits	Included	Included
Report creator	Included	Option
Results	Large selection	1 per test
Graphing and statistics	Included	Option
Overlay previous runs on graph	Included	-
PC control via third-party application	-	Option
Coefficient of friction (COF) measurement	Option	Option
Overload protection	Included	Included
Accuracy - force sensor	±0,1% or ±0.15% of sensor full scale	±0,1% or ±0,15% of sensor full scale
Accuracy - test stand	±0,1% of sensor full scale	±0,1% of sensor full scale
Distance resolution	0.01 mm	0.02 mm
System deflection compensation	Included	Included
Accuracy - distance	±0.05 mm, at any load or position	±0,15 mm, at any load or position
Accuracy - speed	0,2% of setting	0,2% of setting
Peak load capture rate	20.000 Hz	5.000 Hz
Data acquisition rate	1.000 Hz	100 Hz
Number of data points per run	1.000.000	100.000
Users and permissions	3 permission tiers, unlimited users	1 tier (password access)
Runs on	Windows tablet or PC	Control panel only

7 inch control panel

The 7 inch control panel used with the EasyMESUR® can provide all kinds of data and has a number of specific features.


Control panel features The 7" tablet supports 2 USB-C ports for PC and external flash drive connection.	Standard view View load and distance values with clear, simple controls.

Graph view View a graph of load vs. distance or time, with pass/fail status.	Results view View results for each run, with corresponding statistics for the results.
	Secure user access Control user access to sensitive areas, such as test editing and calibration via password.

Series-F special features

	Rigid and precise by design The exceptionally rigid stands feature custom extrusion designs, engineered for stiffness. Factory compensation of test stands and force sensors ensure position accuracy of ±0,15 mm / 0.006 in under any load, at any position. Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.
	Limit switches Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.
	Easy-to-service electronics Most electronics are housed in an integrated module, easily replaced without special tools or processes.

Dimensions-Series-F + EasyMESUR F755 / F755S / F1505 / F1505S

F755 / F755S / F1505 / F1505S IN [MM]

Plug & Test® sensors and PTAF adapter

Plug & Test® Sensors for the Series F
Mark-10’s Series F test stands employ a specialised version of Plug & Test® sensors for compression and tension testing. These sensors store calibration and configuration details within an internal PCB, allowing seamless interchangeability across multiple stands. Currently, the FS05, FS06, and R07 are available for use with the Series F range.

FS05
- Capacities range from 0.5 kN to 2.5 kN.
- Connects directly to the F105, F305, and F505 test stands.
- Requires the AC1083 adapter for use with the F755 or F1505 stands.
FS06 and R07
- Designed for both compression and tension applications.
- Make use of the Mark-10 operating system within the Series F test stands.

Through Mark-10’s Plug & Test® technology, all sensors store their own configuration and calibration information on-board, ensuring consistent and accurate readings when moved from one test stand to another.

PTAF Adapter
Designed for third-party strain gauge load cells, force, and torque sensors, the PTAF adapter offers exceptional flexibility for your Series F testing system:

Direct Connectivity
- Attaches to F105, F305, and F505 stands without additional hardware.
- Compatible with the F755 and F1505 stands, as well as M5I and M7I indicators, using the AC1083 adapter.
Configurable Capacities
- A user-friendly software utility allows the PTAF to be programmed with a wide library of common capacities, from 0.5 N up to 4,000 kN in force measurement and from 7 Ncm up to 57,000 Nm in torque measurement.
Identification and Interchangeability
- Each adapter can be assigned an identification number, displayed upon power-up or on the test stand’s screen.
- All calibration and configuration data is stored within the adapter’s PCB, enabling quick swapping between sensors and indicators without loss of accuracy.

Whether you require direct connectivity for Mark-10’s native Plug & Test® sensors or need to integrate existing third-party devices, the PTAF adapter provides a versatile, reliable solution for your force and torque measurement needs.


By removing the circuit board and side cover the third party sensor you can be connected to the PTAF adapter	Feed the cable through and connect the wires to the terminal block.

Replace the circuit board and side cover.	The sensor can now be configured using the included , Plug & Test Adapter Configuration software and used on the Series-7 test stands. An extra adapter (AC1083) is required to connect the PTAF to the F755(S)/F1505(S) range test stands.

Specifications

	Model F755-EM	Model F755S-EM	Model F1505-EM	Model F1505S-EM
Load capacity	3,4 kN	3,4 kN	6,7 kN	6,7 kN
Maximum travel distance	813 mm	360 mm	813 mm	360 mm
Standard speed range	10 - 600 mm/min	10 - 600 mm/min	10 - 600 mm/min	10 - 600 mm/min
Optional speed range	0,02 - 1,525 mm/min	0,02 - 1,525 mm/min	0,02 - 1,800 mm/min	0,02 - 1,800 mm/min
Load accuracy (% of full scale)	Test stand: ±0,1% Force sensor: Series FS05: ±0,1% \| Series R07: ±0,15%	Test stand: ±0,1% Force sensor: Series FS05: ±0,1% \| Series R07: ±0,15%	Test stand: ±0,1% Force sensor: Series FS05: ±0,1% \| Series R07: ±0,15%	Test stand: ±0,1% Force sensor: Series FS05: ±0,1% \| Series R07: ±0,15%
Load sampling rate	5.000 Hz	5.000 Hz	5.000 Hz	5.000 Hz
Data acquisition rate	100 Hz	100 Hz	100 Hz	100 Hz
Speed accuracy	±0,2% of setting, virtually no variation with load	±0,2% of setting, virtually no variation with load	±0,2% of setting, virtually no variation with load	±0,2% of setting, virtually no variation with load
Position accuracy	±0,15 mm, at any load or position	±0,15 mm, at any load or position	±0,15 mm, at any load or position	±0,15 mm, at any load or position
Distance resolution	0,02 mm	0,02 mm	0,02 mm	0,02 mm
Limit switch repeatability	±0,03 mm	±0,03 mm	±0,03 mm	±0,03 mm
Power	Universal input 100-240 VAC, 50/60 Hz, 120W	Universal input 100-240 VAC, 50/60 Hz, 120W	Universal input 100-240 VAC, 50/60 Hz, 450W	Universal input 100-240 VAC, 50/60 Hz, 450W
Fuse type	4A, 3AG, SLO BLO	4A, 3AG, SLO BLO	4A, 3AG, SLO BLO	4A, 3AG, SLO BLO
Weight	83 kg (test stand) 107 kg (shipping weight)	68 kg (test stand) 88 kg (shipping weight)	89 kg (test stand) 112 kg (shipping weight)	71 kg (test stand) 93 kg (shipping weight)
Environmental conditions	Indoor use only Up to 2,000 m above sea level Temperature range: 5 – 35°C Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing Mains supply voltage fluctuations up to ±10 % of the nominal voltage Transient overvoltages up to the levels of Overvoltage Category II Use in environments up to Pollution Degree 2	Indoor use only Up to 2,000 m above sea level Temperature range: 5 – 35°C Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing Mains supply voltage fluctuations up to ±10 % of the nominal voltage Transient overvoltages up to the levels of Overvoltage Category II Use in environments up to Pollution Degree 2	Indoor use only Up to 2,000 m above sea level Temperature range: 5 – 35°C Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing Mains supply voltage fluctuations up to ±10 % of the nominal voltage Transient overvoltages up to the levels of Overvoltage Category II Use in environments up to Pollution Degree 2	Indoor use only Up to 2,000 m above sea level Temperature range: 5 – 35°C Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing Mains supply voltage fluctuations up to ±10 % of the nominal voltage Transient overvoltages up to the levels of Overvoltage Category II Use in environments up to Pollution Degree 2
Conformance	CE and UKCA mark	CE and UKCA mark	CE and UKCA mark	CE and UKCA mark
Warranty	3 years	3 years	3 years	3 years
Load capacity is reduced at higher speeds, as follows: - F755 / F755S: limited to 2,3 kN above 900 mm/min - F1505 / F1505S: limited to 4,5 kN above 1.525 mm/min

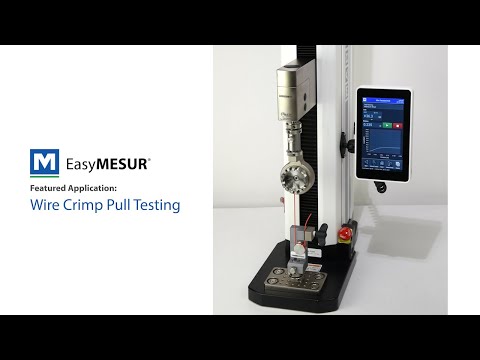

Video

IntelliMESUR® / EasyMESUR® Comparison Chart

Products

Item	Product	Price
140173	F755-EM - Test frame with EasyMESUR® control panel, vertical, 750 lbF / 3.4 Kn	€ 9.387,00
139148	F755S-EM Test frame with EasyMESUR® control panel, vertical, short, 750 lbF / 3.4 kN	€ 8.837,00
140179	F1505-EM Test frame with EasyMESUR® control panel, vertical, 1500 lbF / 6.7 kN	€ 10.701,00
140178	F1505S-EM Test frame with EasyMESUR® control panel, vertical, short, 1500 lbF / 6.7 kN	€ 10.044,00

Accessories

Item	Product	Price
140180	EMF001-2, Distance measurement function, F755/F755S/F1505/F1505S -EM	€ 1.758,00
140181	EMF002-2, Distance limits function, F755/F755S/F1505/F1505S -EM	€ 657,00
140182	EMF003-2, Preload function, F755/F755S/F1505/F1505S -EM	€ 657,00
140183	EMF004-2, High speed extension, F755/F755S/F1505/F1505S -EM	€ 551,00
140184	EMF005-2, Low speed extension, F755/F755S/F1505/F1505S -EM	€ 551,00
140185	EMF006-2, Cycling function, F755/F755S/F1505/F1505S -EM	€ 716,00
140186	EMF007-2, Break detection function, F755/F755S/F1505/F1505S -EM	€ 716,00
140187	EMF008-2, Load Holding function, F755/F755S/F1505/F1505S -EM	€ 716,00
140188	EMF009-2, FollowMe® function, F755/F755S/F1505/F1505S -EM	€ 496,00
140189	EMF010-2, Graphing & reporting function, F755/F755S/F1505/F1505S -EM	€ 1.538,00
140190	EMF011-2, PC control function, F755/F755S/F1505/F1505S -EM	€ 2.089,00
140191	EMF012-2, Coefficient of friction (COF) measurement function, F755/F755S/F1505/F1505S -EM	€ 716,00
140192	EMF013-2, Spring rate measurement function, F755/F755S/F1505/F1505S -EM	€ 716,00
140194	EMP001-2 Distance measurement package, F755/F755S/F1505/F1505S -EM	€ 2.915,00
140195	EMP002-2 Speed extension package, F755/F755S/F1505/F1505S -EM	€ 1.042,00
140196	EMP003-2 Advanced functionality package, F755/F755S/F1505/F1505S -EM	€ 2.525,00
140193	EMP-COMP-2 Complete options package, F755/F755S/F1505/F1505S -EM	€ 10.045,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

Test stand with EasyMESUR® F755 / F755S / F1505 / F1505S

Features

Dimensions

Individual functions

Packages

EasyMESUR® and IntelliMESUR® Comparison Chart

Control panel features

Standard view

Graph view

Results view

Secure user access

Rigid and precise by design

Limit switches

Easy-to-service electronics

Specifications

Test stand with IntelliMESUR® F105 / F305 / F505 / F505H

Test Stand with IntelliMESUR® F755 / F1505

Test Stand with EasyMESUR® F105 / F305 / F505 / F505H

Model-3I Force/Torque Indicator

Model-5I Advanced Digital Force/Torque Indicator

Model-7i Advanced Force/Torque Indicator

Series R07 Force Sensors for Series F Test Stands

PTA PTA/PTAF Plug & Test Load Cell Adapter

Series FS05 Series FS05 Force Sensors

AC1093 Series-F USB hub AC1093 USB Hub for Series-F test frames

Order Now

Test stand with EasyMESUR® F755 / F755S / F1505 / F1505S

Features

Dimensions

Individual functions

Packages

EasyMESUR® and IntelliMESUR® Comparison Chart

Control panel features

Standard view

Graph view

Results view

Secure user access

Rigid and precise by design

Limit switches

Easy-to-service electronics

Specifications

Related Products

Accessories

Order Now
