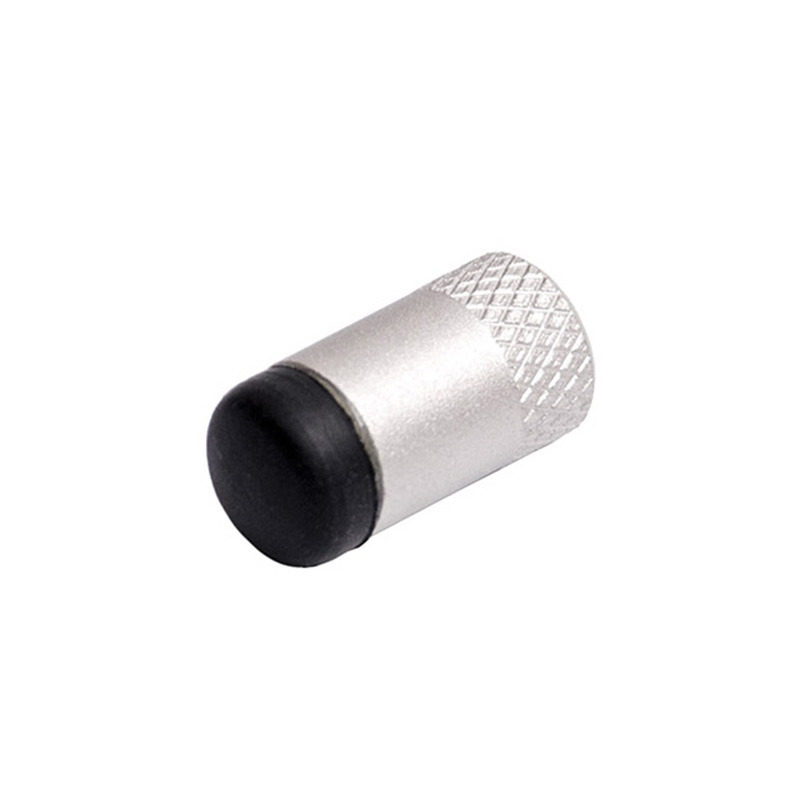

G1011 Rubber Tip


Made in the USAThe G1011 Rubber Tip is designed to act as a finger simulation when testing keyboards, membrane switches and other types of pushbuttons.

This attachment features a threaded hole for direct attachment to a force gauge or test stand.

The G1011 is supplied with a #10-32M/M threaded stud with jam nuts.




Features
  • Finger simulation for button tests
  • Capacity 250 N
  • Thread #10-32 UNF

Dimensions
G1011
Dimensions-G1011


All sizes are noted in inch with [mm] behind


Dimensions-G1011


Specifications
Capacity:50 lbF (250 N)
Size:24.4 mm x 12.4 mm (L x D)
(0.96" x 0.49")
Rubber material:Non-marking SBR, Durometer=70
Weight:0.01 lb (0.004 kg)
Thread:#10-32 UNF

Related Products

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G1019-G1020-G1021 -G1112 Ergonomic Padded Attachments


  • Padded surface for user comfort
  • Select from four shapes
  • The attachments Include a 5/16-18M to #10-32F thread adapter, 5/16-18 jam nut, and #10-32 jam nut.

More details

G1019-G1020-G1021 -G1112 Ergonomic Padded Attachments

G1009 Compression Plates


  • Available in two sizes, 51 mm and 76,8 mm,
  • Available with and without vented channels
  • G1009 and G1009-2 include a #10-32 M/M stud with jam nuts G1009-1 and -3 include a 5/16-18M/M stud with jam nuts

More details

G1009 Compression Plates

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

G1018 Swivel Adapters


  • Swiveling adapter, for use between certain grips and force gauges.
  • Capacity G1018-1: 1000 N
    Capacity G1018-2: 2500 N
  • Designed for tensile (pull) testing applications only.

More details

G1018 Swivel Adapters

Series-3 Digital Force Gauge


  • High-speed 2.000 Hz sampling rate
  • USB data output of continuous or individual data points

More details

Series-3 Digital Force Gauge

Series-5 Advanced Digital Force Gauge


  • ±0,1% accuracy
  • High-speed 7.000 Hz peak sampling rate
  • 1.000-point data memory with statistics and outputs

More details

Series-5 Advanced Digital Force Gauge

EK3 Basic Ergonomics Testing Kit


  • High-speed 2,000 Hz sampling rate
  • USB data output of continuous or individual data points
  • Ultra compact size

More details

EK3 Basic Ergonomics Testing Kit

F105 / F305 / F505 / F505H Force Test Frame with IntelliMESUR® controls


  • Set up, run, and analyze data via the integrated IntelliMESUR® control panel
  • Integrated motion control and data collection solution with seamless interface for FS05 force sensor without cables
  • Plug & Test® system can work with third-party load cells through PTAF adapter

More details

F105 / F305 / F505 / F505H Force Test Frame with IntelliMESUR® controls

Downloads

Buy Now
Product

Product
Price
Quantity
130800
G1011 Rubber tip, #10-32F
€ 43,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
