Mechanical Force Gauges


Analog force measurement

Mechanical force gauges for various compression and tensile force measurements. The analog force gauges are available in 3 different versions with capacities of up to 3000 N. Thanks to the robust aluminum housing, the force measuring devices are very robust and ideal for industrial environments. The force gauges are suitable for integration in test benches.

Click on one of the images for more information.
We would be happy to help you choose a mechanical force gauge.



PS Mechanical force gauge for accurate measurements

PS
  • Standard model
  • Capacity
    from 32 ozf to 500 N
  • Accuracy: ± 0,1% Full scale
  • Housing dimensions: 235 x 65 x 50 mm (L x W x H)
  • Weight, net (gross): approx. 530 g (1000 g)
  • Warranty: 1 year
Price from € 430,00
More information

FB Mechanical force gauge

FB
  • The most popular force gauge
  • Capacity
    from 0 - 10 N to 0 - 500 N
  • Accuracy: ± 0,3% Full scale
  • Housing dimensions: 235 x 65 x 50 mm (L x W x H)
  • Weight, net (gross): approx. 530 g (1000 g)
  • Warranty: 1 year
Price from € 365,00
More information

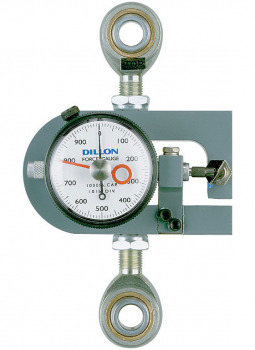

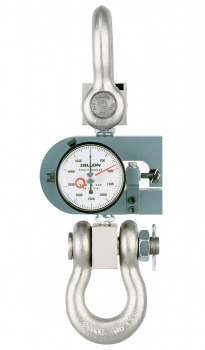

X-ST Analog Tensile Force Measuring Device

X-ST
  • Capacity: up to 5000 kg
  • Accuracy: ± 1% of the capacity
  • Units of measurement: kilograms or pounds
  • For tensile force measurements
Price from € 1.515,00
More information

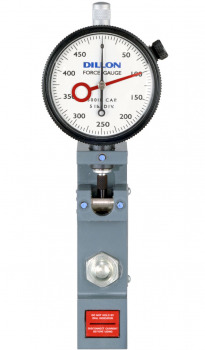

X-C Analog Pressure Force Measuring Gauge

X-C
  • Capacity: up to 10000 kg
  • Accuracy: ± 1% of the capacity
  • Units of measurement: kilograms or pounds
  • For pressure force measurements
Price from € 1.500,00
More information

X-PP Analog Force Gauge for tensile and compressive force measurement

X-PP
  • Capacity: up to 1000 kg
  • Accuracy: ± 4% of the capacity
  • Units of measurement: kilograms or pounds
  • For pressure and tensile force measurements
Price from € 1.820,00
More information

U-Force Mechanical Pressure Force Measurement Gauge

U-Force
  • Capacity: up to 500kg
  • Accuracy: ± 1% of the capacity
  • Units of measurement: kilograms or pounds
  • For pressure force measurements

PSH

PSH
  • For High forces
  • Accuracy: ± 0,1% Full scale
  • Intrinsically Safe for use in hazardous environments
  • Warranty: 2 years
Price from € 1.255,00
More information
