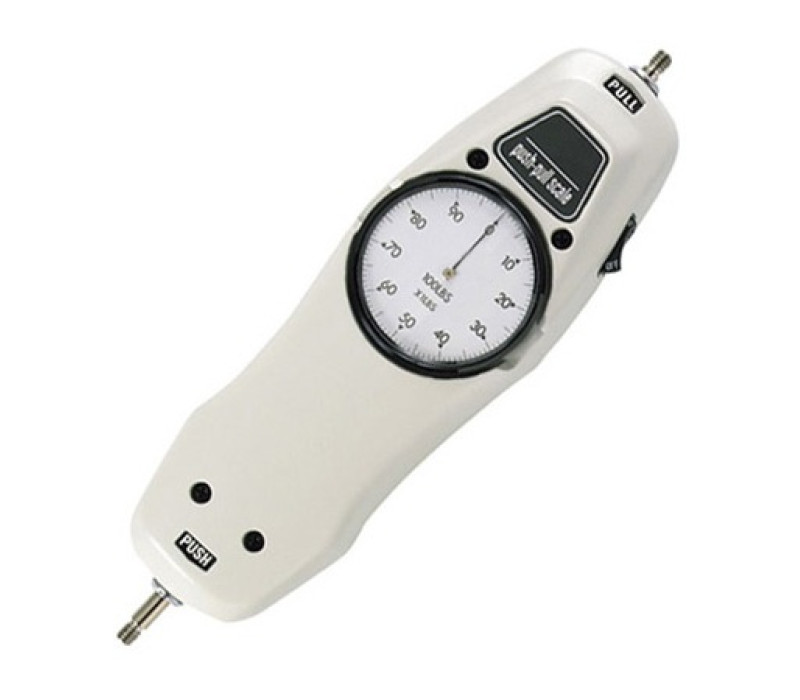

Name: PS Mechanical force gauge for accurate measurements
SKU: 125861

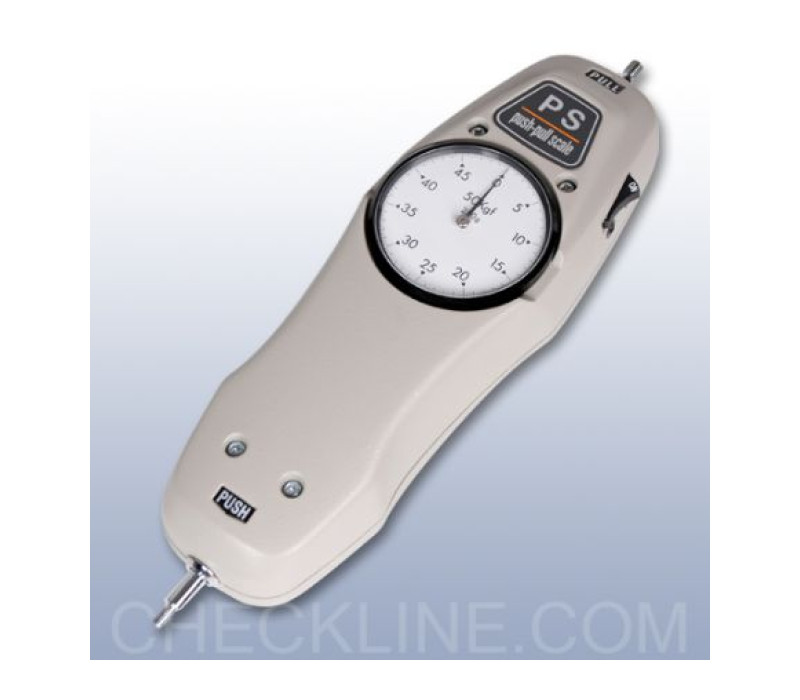

The rugged construction of the PS force gauges will withstand industrial environments and yet retain calibration for extended periods. Ergonomic design makes it ideal for hand held use, or it can be mounted to a test stand. The Zero-Tare ring allows you to zero the gauge to compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch allows you to observe transients or capture peaks. Many ranges are available to cover all of your measurement needs (also available in Newtons). The FB series is sold in kits complete with force gauge, hard carrying case, five measuring attachments (flat head, conical, chisel, notched, and small hook) as well as a 3 inch extension shaft. PS resolution is 2 times greater than FB and the kit includes everything in the FB kit plus a large hook and Y-hook.

Price from € 448,00

Order now

High accuracy mechanical gauge with ± 0.1 % full scale
Easy to use
Peak Force Hold function captures transient values and peaks
Simple, vitually maintance free

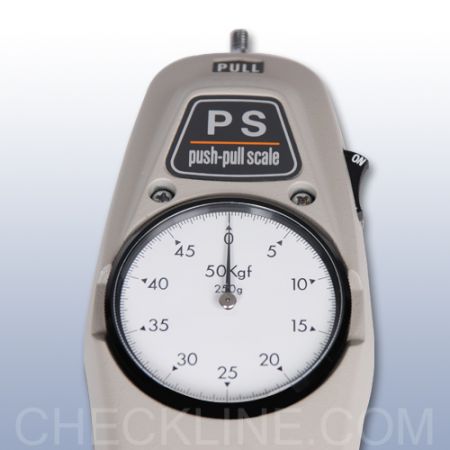

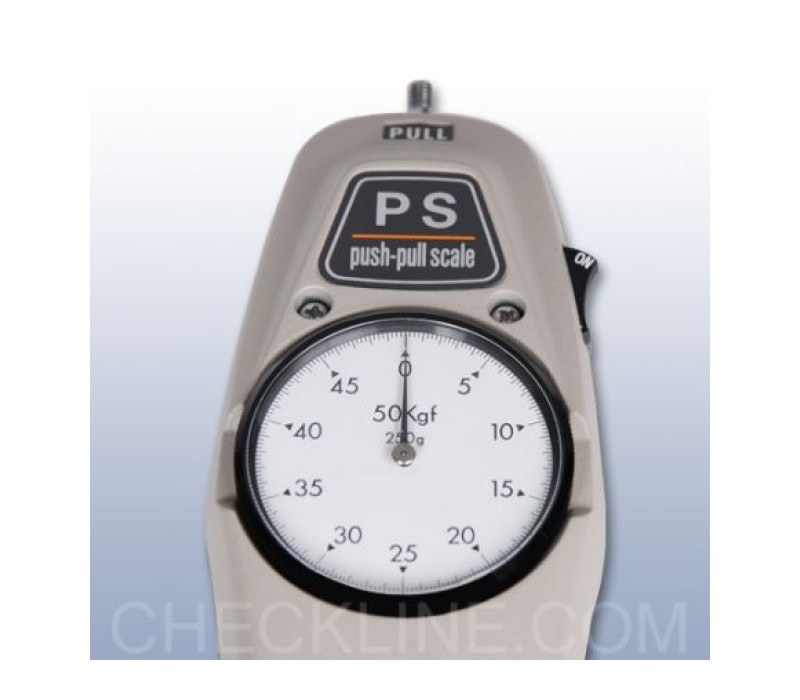

Easy to read dial
For hand-held use or mounting mounting on test stands
Ideal for precision tension and compression measuremnts in laboratory envirements
Real Time and Peak Force display
Free manufacturer´s calibration report
Ergonomic rugged die-cast aluminum housing
Zero Tare Ring to zero the gauge in each position
Full set of accessories and carrying case included

Tension Ranges

Model	Ranges	Resolution
PS-10 N	0 - 10 N	0.1 N
PS-20 N	0 - 20 N	0.2 N
PS-30 N	0 - 30 N	0.25 N
PS-50 N	0 - 50 N	0.5 N
PS-100 N	0 - 100 N	1 N
PS-200 N	0 - 200 N	2 N
PS-300 N	0 - 300 N	2.5 N
PS-500 N	0 - 500 N	5 N
PS-1KG	1 Kg	5 Gram
PS-3KG	3 Kg	20 Gram
PS-5KG	5 Kg	25 Gram
PS-10KG	10 Kg	50 Gram
PS-20KG	20 Kg	100 Gram
PS-30KG	30 Kg	200 Gram
PS-50KG	50 Kg	250 Gram

Delivery Includes:

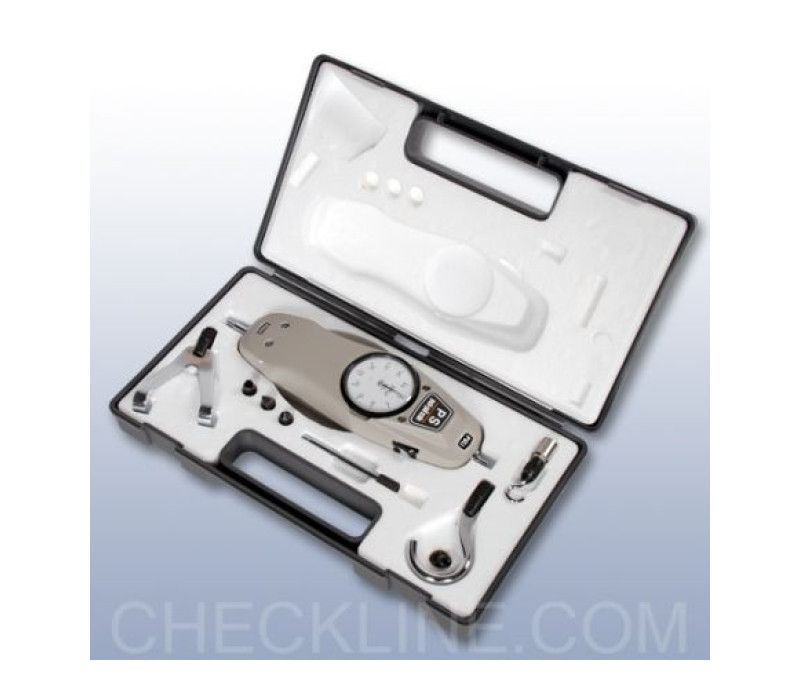

Force gauge, standard attachments, carrying case, manufacturer's calibration report, operating instructions in English or German as requested.

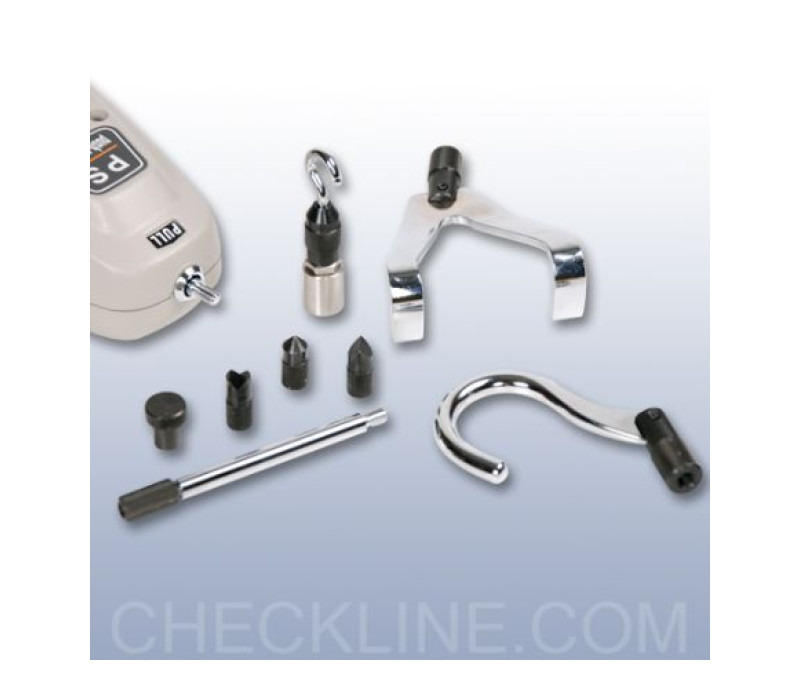

Standard Attachments

A-Series (aluminium,thread M 6) attachments are supplied for models with capacities up to 100 N
(1) Small hook A-1, S-1
(2) Flat tip A-2, S-2
(3) Conical tip A-3, S-3
(4) Chisel tip A-4, S-4
(5) Notched tip A-5, S-5
(6) Extension shaft A-6, S-6

S-Series (steel, thread M6) attachments are supplied for models with capacity from 100 N to 500 N
(7) Large hook S-7
(8) Y-hook S-8

Displacement:	10 mm
Accuracy:	± 0,2% Full scale
Temperature range:	5 - 45°C
Air humidity:	85% RH, max.
Housing dimensions:	325 x 65 x 50 mm (L x W x H)
Weight, net (gross)	approx. 530 g (1000 g)

Products

Item	Product	Price
125800	PS-10N High Precision Mechanical Force Gauge
131531	PS-20N High Precision Mechanical Force Gauge
131532	PS-30N High Precision Mechanical Force Gauge
130593	PS-50N High Precision Mechanical Force gauge
125866	PS-100N High Precision Mechanical Force gauge
130594	PS-200N High Precision Mechanical Force gauge
125868	PS-300N High Precision Mechanical Force gauge
125865	PS-500N High Precision Mechanical Force gauge
131649	PS-1KG High Precision Mechanical Force Gauge	€ 448,00
131651	PS-3KG High Precision Mechanical Force Gauge	€ 448,00
131652	PS-5KG High Precision Mechanical Force Gauge	€ 448,00
131653	PS-10KG High Precision Mechanical Force Gauge	€ 681,00
131655	PS-30KG High Precision Mechanical Force Gauge	€ 448,00
131656	PS-50KG High Precision Mechanical Force Gauge	€ 448,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
