Name: X-C Analog Pressure Force Measuring Gauge
SKU: 127375

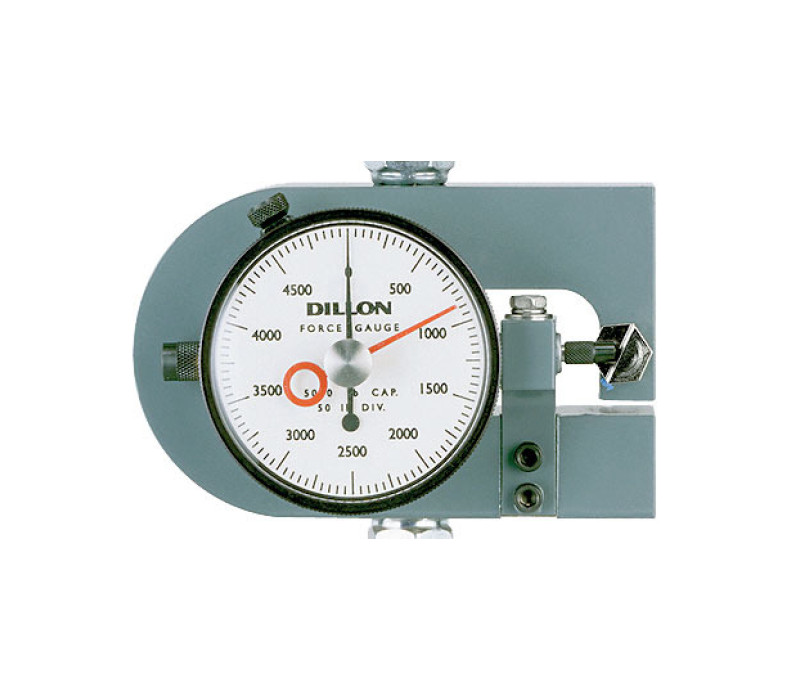

The analog Dillon X-C pressure force measuring devices are available in 9 capacities from 50 - 10000 kg or 50 - 25000 lb. The accuracy is ± 1% of the capacity.

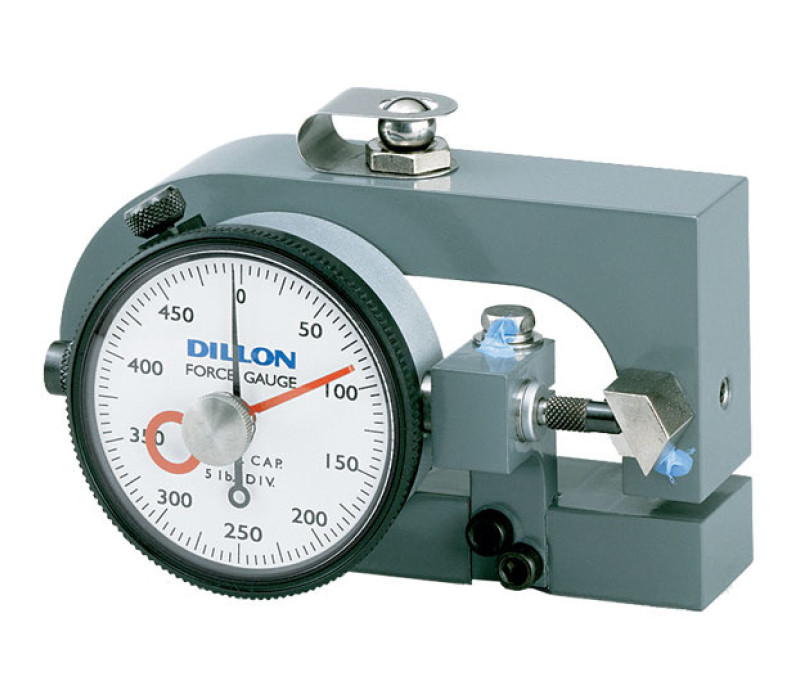

The load is placed against a hardened ball which rotates to maintain vertical alignment when the load is increased. The ball is held in position by a spring clip. On the underside of the X-C pressure force measuring device there is a threaded hole opposite the ball.

Certified accuracy and a robust design characterize the dynamometers of the X series. The stable D-shaped deflection beam is the heart of the X-C. Highly precise processed materials with low manufacturing tolerances and adequate heat treatment ensure optimal material strength and spring properties.

Available measurement scales in kilogram and pound units.

Price from € 1.600,00

Order now

Eclusively for pressure force measurements
Capacities up to 10000 kg
Accuracy ± 1% of the capacity
Versions with drag pointer available

The X-C force measuring devices are delivered in a complete set, consisting of:

X-C compression force measuring device
Robust carrying case
Calibration certificate
spherical connector for compressive force measurements

Models

Model	Capacity	Resolution
30386-0035	50 lb	0,5 lb
30386-0043	100 lb	1 lb
30446-0033	250 lb	2,5 lb
30446-0017	500 lb	5 lb
30444-0019	1000 lb	10 lb
30388-0017	2000 lb	20 lb
30389-0016	5000 lb	50 lb
30423-0014	10000 lb	100 lb

30386-0159	100 lb	1 lb
30446-0090	250 lb	2,5 lb
30446-0074	500 lb	5 lb
30444-0050	1000 lb	10 lb
30388-0058	2000 lb	20 lb
30389-0057	5000 lb	50 lb
30423-0055	10000 lb	100 lb
30449-0055	25000 lb	250 lb

30386-0183	50 kg	0,5 kg
30446-0181	100 kg	1 kg
30446-0082	200 kg	2 kg
30444-0068	500 kg	5 kg
30388-0066	1000 kg	10 kg
30389-0065	2000 kg	20 kg
30423-0063	5000 kg	50 kg
30449-0063	10000 kg	100 kg

Slight deflection of the carrier

Capacity	Deflection
25 - 100 kg	0,48 mm
200 kg	0,41 mm
500 kg	0,46 mm
1000 kg	0,28 mm
2000 & 5000 kg	0,25 mm
10000 kg	0,56 mm
Measured between the midpoints of the upper and lower attachment points

Options:

Bumpless dial gauge, for applications that involve an abrupt change in the applied force (the bumpless dial gauge cannot be combined with the drag pointer)

Drag pointer, the drag pointer remains at the highest measured value until it is reset manually.
At the customer's request, the rest position of the pointer can be set to 12, 3, 6 or 9 o'clock during production. The default position is 12 o'clock.

Datasheet

Product sheet

Precision:	± 1% of capacity
Operating temperature:	Up to 48°C
Warranty:	2 Years
Overload protection:	Accidental overloads of up to 30% of the capacity can be endured without damaging the dial gauge or the deflection bar.

Products

Item	Product	Price
137316	X-C 30386-0035 Compression Force Gauge 50 x 1/2 lb	€ 1.600,00
137317	X-C 30386-0043 Compression Force Gauge 100 x 1 lbs	€ 1.600,00
136941	X-C 30446-0033 Compression Force Gauge 250 x 2-1/2 lb	€ 1.600,00
137318	X-C 30446-0017 Compression Force Gauge 500 x 5 lb	€ 1.625,00
137319	X-C 30444-0019 Compression Force Gauge 1000 x 10 lb	€ 2.105,00
137320	X-C 30388-0017 Compression Force Gauge 2000 x 20 lb	€ 2.105,00
137277	X-C 30389-0016 - Compression Force gauge 5000 x 50 lb	€ 2.595,00
137321	X-C 30423-0014 Compression Force Gauge 10000 x 100 lb	€ 3.245,00
136958	X-C 30386-0159 Compression Force Gauge with Max Hand 100 x 1 lb	€ 1.775,00
137323	X-C 30446-0090 Compression Force Gauge with Max Hand 250 x 2-1/2 lb	€ 1.775,00
137324	X-C 30446-0074 Compression Force Gauge with Max Hand 500 x 5 lb	€ 1.775,00
137325	X-C 30444-0050 Compression Force Gauge with Max Hand 1000 x 10 lb	€ 2.245,00
137326	X-C 30388-0058 Compression Force Gauge with Max Hand 2000 x 20 lb	€ 2.245,00
137327	X-C 30389-0057 Compression Force Gauge with Max Hand 5000 x 50 lb	€ 2.760,00
137328	X-C 30423-0055 Compression Force Gauge with Max Hand 10000 x 100 lb	€ 3.870,00
137330	X-C 30386-0183 Compression Force Gauge with Max Hand 50 x 1/2 kg	€ 1.775,00
137331	X-C 30446-0181 Compression Force Gauge with Max Hand 100 x 1 kg	€ 1.775,00
137332	X-C 30446-0082 Compression Force Gauge with Max Hand 200 x 2 kg	€ 1.775,00
137333	X-C 30444-0068 Compression Force Gauge with Max Hand 500 x 5 kg	€ 2.245,00
137334	X-C 30388-0066 Compression Force Gauge with Max Hand 1000 x 10 kg	€ 2.245,00
137335	X-C 30389-0065 Compression Force Gauge with Max Hand 2000 x 20 kg	€ 2.760,00
137336	X-C 30423-0063 Compression Force Gauge with Max Hand 5000 x 50 kg	€ 3.870,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
