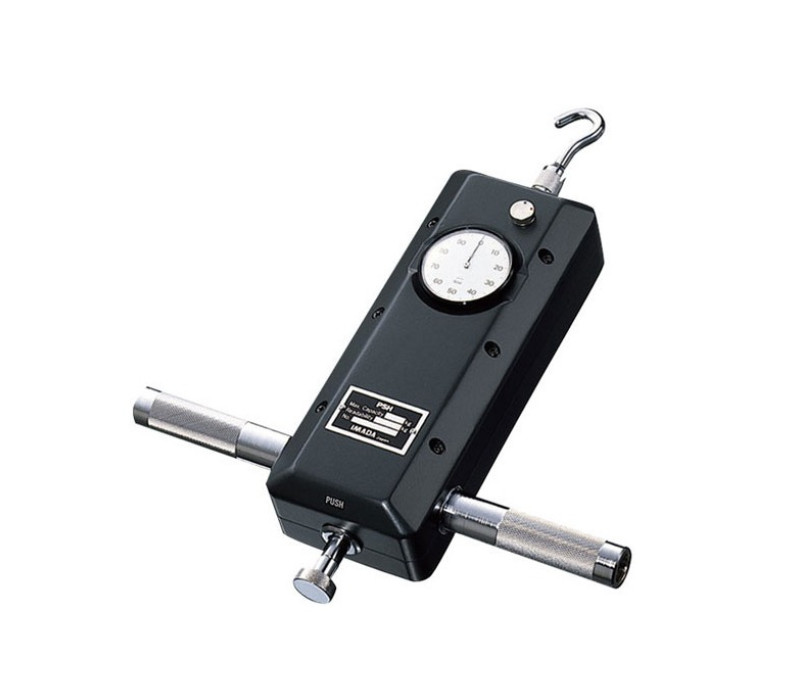

PSH High Precision Mechanical Force Gauge

PSH

Name: PSH
SKU: 125863

The PSH Series mechanical force gauge is designed for high capacity measurements from 1000N up to 3000N). The rugged metal housing and heavy duty springs will withstand the harsh rugged environment of a manufacturing plant, yet the highly accurate, matched springs will ensure reliable results and retain their accuracy over long periods. The tare ring allows you to zero the gauge and compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch enables you to observe transients or capture peaks. PSH force gauges are available in pounds, kilograms and Newtons. No batteries are needed and the unit is intrinsically safe in hazardous environments.

The PSH mechanical force gauge has an accuracy of 0.1 % of the full scale.

Price from € 1.255,00

Order now

Capacities up to 3000N (push and pull)
Heavy duty metal construction
Real time and peak mode
Easy to read dial
Full set of accessories and carrying case included
No batteries needed
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
Simple , vitually maintance free
Zero Tare Ring to zero the gauge in each position
2 Year Warranty

Tension Ranges

Model	Ranges
PSH-1000 N	1000 N
PSH-2000 N	2000 N
PSH-3000 N	3000 N
<B>M10p1.5 Threaded measuring shaft (top & bottom)</b><P>Displacement at full scale capacity is 10mm

Sold in kit form complete with force gauge, hard plastic carrying case, handles, measuring attachments (hook and flat head), and extension shaft. Four installation bolts are also included for mounting the gauge to a test stand or other permanent location.

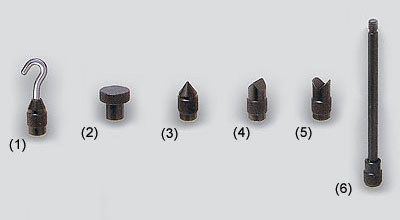

Standard Attachments

Displacement:	10 mm
Accuracy:	± 0.1% Full Scale
Weight, net (gross):	approx. 3100 g (4000 g)
Warranty	2 Years

Products

Item	Product	Price
131660	PSH-1000N High Precision Mechanical Force Gauge	€ 1.255,00
134069	PSH-2000N High Precision Mechanical Force Gauge	€ 1.255,00
137840	PSH-3000N High Precision Mechanical Force Gauge	€ 1.508,00

Accessories

Item	Product	Price	Quantity	Action
131527	ISO-17025 ISO/IEC 17025 Long-form Certificate & Test Data

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
