X-ST Analog Tensile Force Measuring Device

Name: X-ST Analog Tensile Force Measuring Device
SKU: 127372

The analog tensile force measuring device model X-ST is available in seven capacities from 25 - 5000 kg with an accuracy of ± 1% of the capacity.

For tensile force measurements that require larger measuring ranges, we recommend our crane scales/dynamometers. Measuring ranges of up to 250,000 kg are possible here.

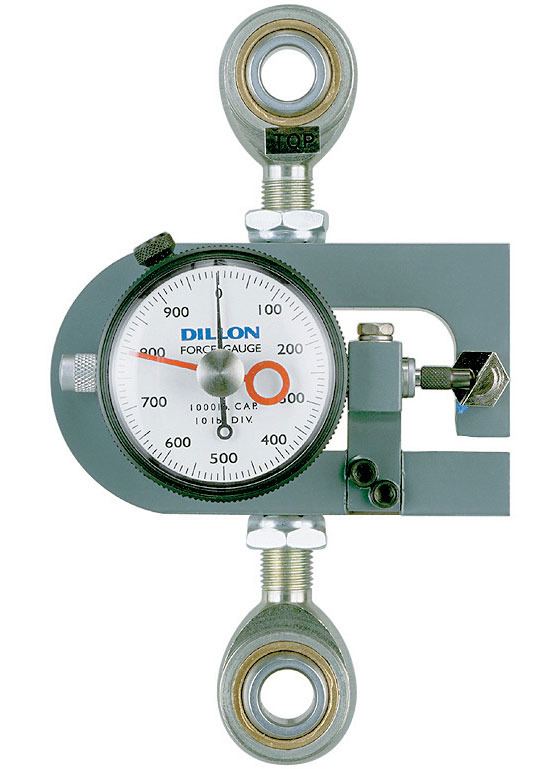

Certified accuracy and excellent resistance characterize the X-ST tensile force meter. The "D-shaped" deflection beam is the heart of the X-ST. High-tech materials with low manufacturing tolerances and proper heat treatment ensure optimal material strength and spring properties.

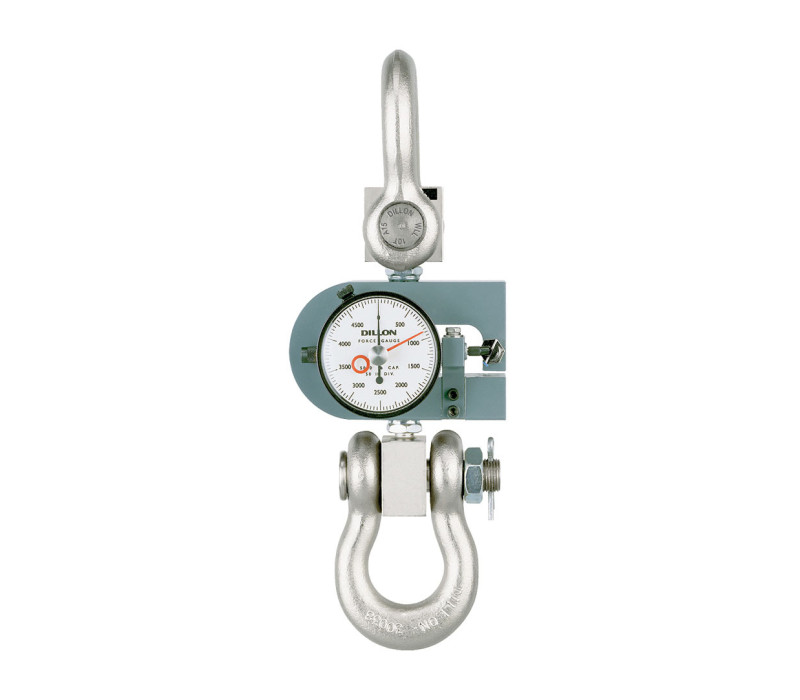

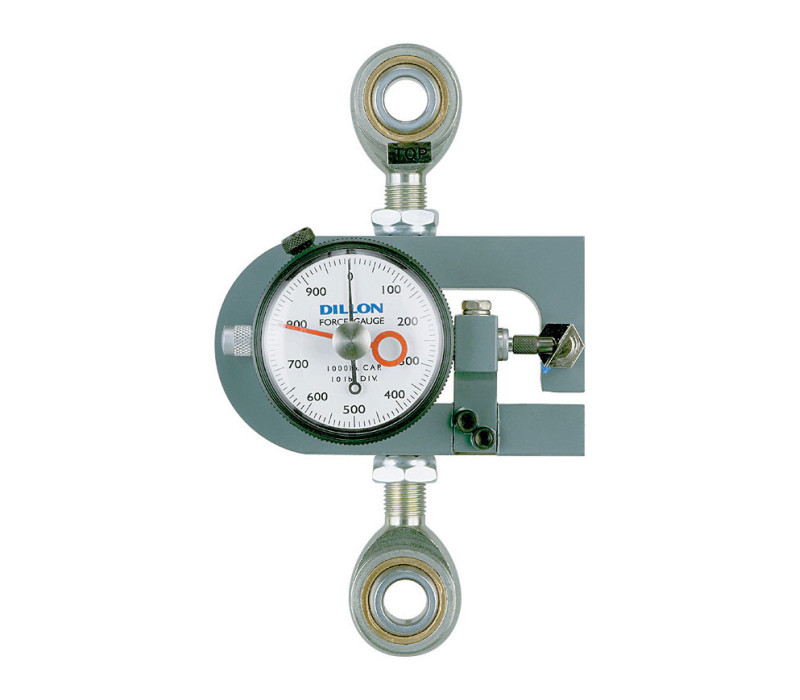

Force measuring device with capacities up to 1000kg are delivered with two ball joint heads. Higher measuring ranges are delivered with appropriate shackles and fastening bolts.

The measuring scales are available in kilograms and pounds.

Price from € 1.615,00

Order now

Exclusively for tensile force measurements
Capacity: up to 5000 kg
Accuracy ± 1% of the capacity
Versions with drag pointer available

The X-ST dynamometers are delivered in a complete set, consisting of:

X-ST tensile force measuring device
Robust carrying case
Calibration certificate
Ball joint heads for models under 1000kg capacity
Shackles and bolts on models from 1000kg capacity

D1 no header

Model	Capacity	Resolution
30443-0093	50 kg	0,5 kg
30445-0026	200 kg	2 kg

30443-0044	100 lb	1 lb
30445-0034	250 lb	2,5 lb
30445-0018	500 lb	5 lb
30276-0012	1000 lb	10 lb
30440-0013	2000 lb	20 lb

30443-0176	25 kg	0,25 kg
30443-0184	50 kg	0,5 kg
30445-0182	100 kg	1 kg
30445-0091	200 kg	2 kg
30276-0061	500 kg	5 kg
30440-0062	1000 kg	10 kg
30441-0061	5000 kg	50 kg

30443-0150	100 lb	1 lb
30445-0109	250 lb	2,5 lb
30445-0083	500 lb	5 lb
30276-0053	1000 lb	10 lb
30440-0054	2000 lb	20 lb
30442-0052	5000 lb	50 lb
30441-0053	10000 lb	100 lb

Options

Analog Tensile Force Measuring Gauge

Shockless dial gauge, for applications that involve an abrupt change in the applied force (the shockless dial gauge cannot be combined with the load pointer).
Drag pointer, the drag pointer remains at the highest measured value until it is reset manually.
At the customer's request, the rest position of the pointer can be set to 12, 3, 6 or 9 o'clock during production. The default position is 12 p.m.

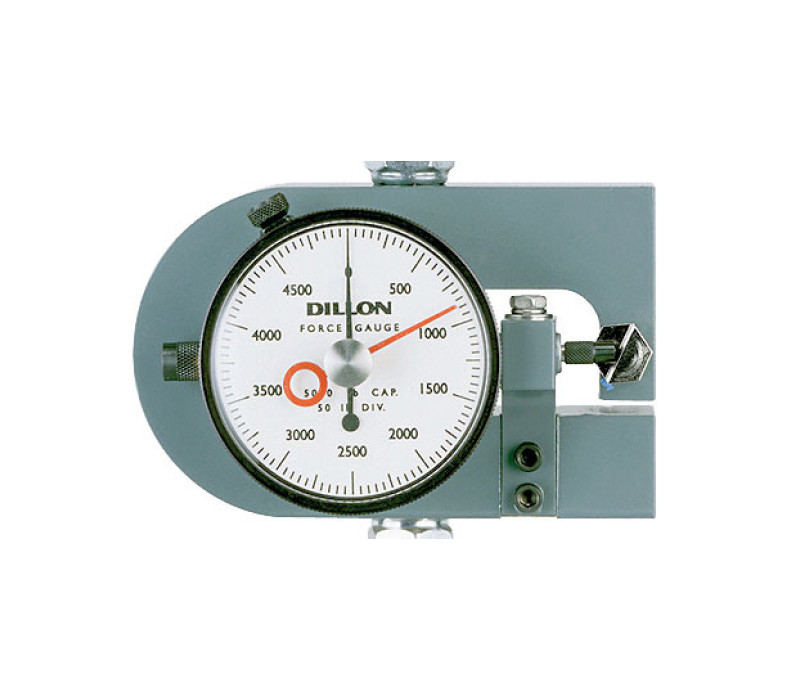

Model X Force-Gauge parts identification

1.	Deflection beam
2.	Dial indicator with zero at standard 12:00 position
3.	Bezel
4.	Maximum load pointer (optional)
5.	Pressure button
6.	Slanted Anvil
7.	Dial indicator plunger
8.	Anvil set screw
9.	Mounting bracket for dial indicator
10.	Screws for mounting bracket
11.	Bezel-locking screw
12.	Loading ball
13.	Spring retainer clip

Data sheet

Data sheet Z-Series Analog Force Gauges

Resolution:	± 1% of the capacity
Operating temperature:	Up to 48°C
Warranty:	2 Years
Overload protection:	Accidental overloads of up to 30% of the capacity can be endured without damaging the dial gauge or the deflection bar.

Products

Item	Product	Price
137352	X-ST 30443-0044 - Tension Force Gauge 100 x 1 lb	€ 1.615,00
137354	X-ST 30445-0034 - Tension Force Gauge 250 x 2-1/2 lb	€ 1.615,00
137353	X-ST 30445-0018 - Tension Force Gauge 500 x 5 lb	€ 1.660,00
137313	X-ST 30276-0012 - Tension Force Gauge 1000 x 10 lb	€ 2.030,00
137263	X-ST 30440-0013 - Tension Force Gauge 2000 x 20 lb	€ 2.135,00
137356	X-ST 30443-0093 - Tension Force Gauge 50 x 1/2 kg	€ 1.615,00
137355	X-ST 30445-0026 - Tension Force Gauge 200 x 2 kg	€ 1.660,00
137357	X-ST 30443-0150 - Tension Force Gauge with Max Hand 100 x 1 lb	€ 1.785,00
137358	X-ST 30445-0109 - Tension Force Gauge with Max Hand 250 x 2-1/2 lb	€ 1.785,00
137359	X-ST 30445-0083 - Tension Force Gauge with Max Hand 500 x 5 lb	€ 1.820,00
137360	X-ST 30276-0053 - Tension Force Gauge with Max Hand 1000 x 10 lb	€ 2.375,00
137278	X-ST 30440-0054 - Tension Force Gauge with Max Hand 2000 x 20 lb	€ 2.275,00
137361	X-ST 30442-0052 - Tension Force Gauge with Max Hand 5000 x 50 lb	€ 2.930,00
137362	X-ST 30441-0053 - Tension Force Gauge with Max Hand 10000 x 100 lb	€ 5.585,00
137363	X-ST 30443-0176 - Tension Force Gauge with Max Hand 25 x 1/4 kg	€ 1.785,00
137364	X-ST 30443-0184 - Tension Force Gauge with Max Hand 50 x 1/2 kg	€ 1.785,00
137365	X-ST 30445-0182 - Tension Force Gauge with Max Hand 100 x 1 kg	€ 1.785,00
137366	X-ST 30445-0091 - Tension Force Gauge with Max Hand 200 x 2 kg	€ 1.820,00
137367	X-ST 30276-0061 - Tension Force Gauge with Max Hand 500 x 5 kg	€ 2.200,00
137368	X-ST 30440-0062 - Tension Force Gauge with Max Hand 1000 x 10 kg	€ 2.275,00
137369	X-ST 30441-0061 - Tension Force Gauge with Max Hand 5000 x 50 kg	€ 5.160,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
