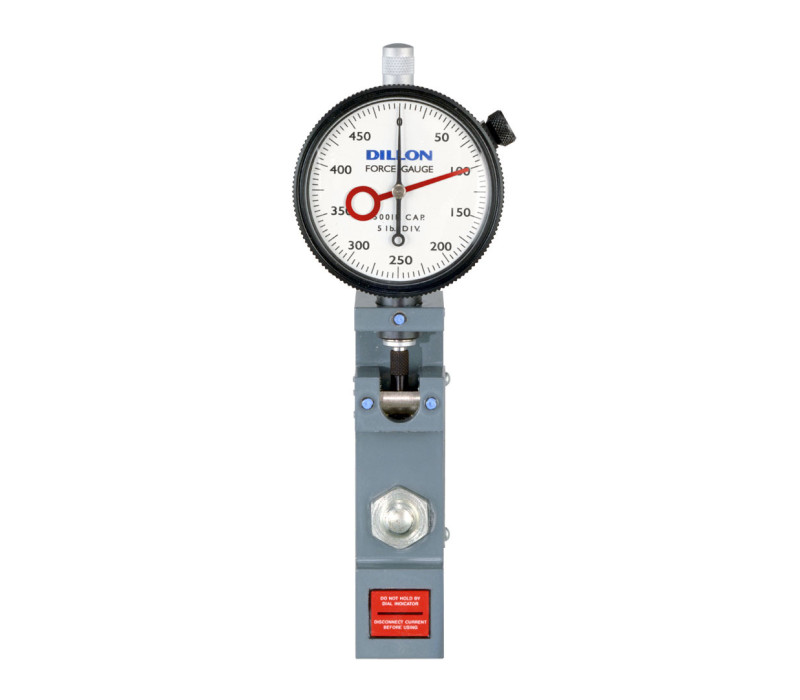

U-Force Mechanical Pressure Force Measurement Gauge

The mechanical Dillon U-Force pressure force measuring devices are precise, mechanical, force measuring gauges for pressure force measurements. The very flat design and the accuracy of ± 1% of the capacity have repeatedly proven themselves in all applications with limited space.

The versatility of this pressure force measuring device becomes clear when one looks at the different application possibilities. The U-Force force gauge can be used as a handheld device, stationary on a flat surface or used in a test bench.

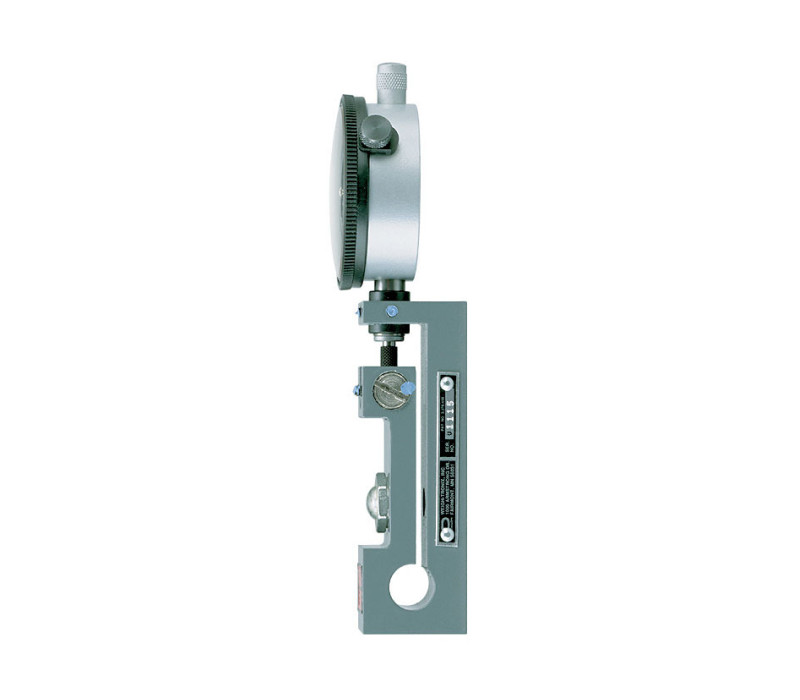

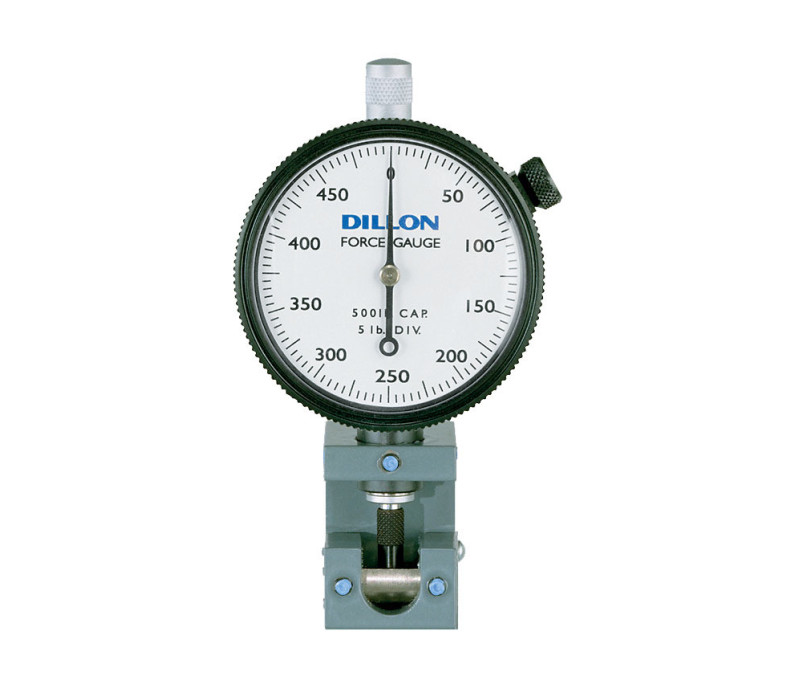

The measuring devices of the U-Force series consist of a heat-treated deflection beam, made of a high-quality aerospace steel alloy, in order to ensure the best stability and spring properties. A precision dial gauge is mounted in the zero point of this carrier.

The pressure force is regularly applied against a pressure connector, which is located on the upper half of the carrier. If pressure is then exerted, the carrier is deflected downwards, whereby an inclined measuring probe presses on the pin of the dial gauge. The measured value displayed on the dial gauge is therefore a direct representation of the applied load.

The connectors are to be purchased separately, there are several connectors with different geometries available for each measuring range.

U-Force force gauges are available in 4 kg capacities up to 500kg and in 6 pound capacities up to 5000lb.

We also offer force gauges for higher loads, please contact us for further details.

Request price >>

Calibrated for compressive force measurements
Capacity until 500 kg
Accuracy ± 1% of the capacity
Different pressure contact points available

The U-Force force measuring devices are delivered in a complete set, consisting of:

U-Force pressure force measuring device
Robust carrying case
Calibration certificate

Pressure fittings can be purchased separately in the desired geometry. Further details can also be found in the data sheet below.

Model overview:

Model	Capacity	Resolution
AWT05-100987	50 kg	0,5 kg
AWT05-100988	100 kg	1 kg
AWT05-100984	500 kg	5 kg

AWT05-100985	100 lb	1 lb
AWT05-100986	250 lb	2,5 lb
AWT05-100982	500 lb	5 lb
AWT05-100983	1000 lb	10 lb
AWT05-100989	5000 lb	50 lb

Data sheet

U-Force Pressure Force Gauge Datasheet

Accuracy:	± 1% of capacity
Operating temperature:	Up to 48°C
Warranty:	2 years

Products

Item	Product
137372	U-Force Flat Bottom Force Gauge 100 x 1 lb
137373	U-Force Flat Bottom Force Gauge 250 x 2-1/2 lb
137374	U-Force Flat Bottom Force Gauge 500 x 5 lb
137375	U-Force Flat Bottom Force Gauge 1000 x 10 lb
137378	U-Force Flat Bottom Force Gauge 50 x 1/2 kg
137379	U-Force Flat Bottom Force Gauge 100 x 1 kg
137380	U-Force Flat Bottom Force Gauge 500 x 5 kg

Accessories

Item	Product
137381	30160-0011 - Load fitting FLAT for U-Force 10 - 100kg
137383	30159-0014 - Load fitting DOME for U-Force 10 - 100kg
137384	30158-0015 - Load fitting NYLON for U-Force 10 - 100kg
137385	30483-0011 - Load fitting DOME for U-Force 500kg
137387	30484-0010 - Load fitting FLAT for U-Force 500kg
137388	30434-0011 - Load fitting DOME for U-Force 1000 - 2500 kg
137390	30475-0011 - Load fitting FLAT for U-Force 1000 - 2500 kg

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
