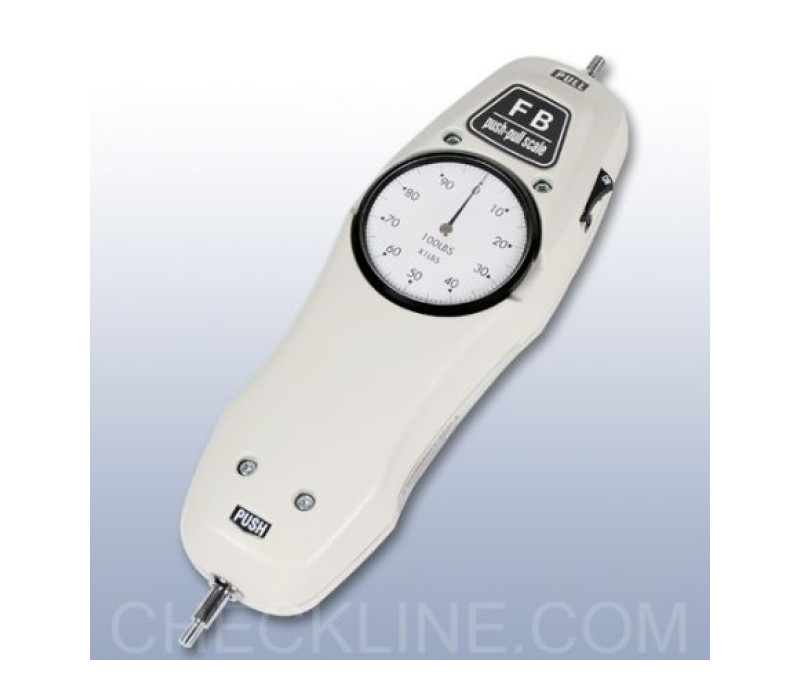

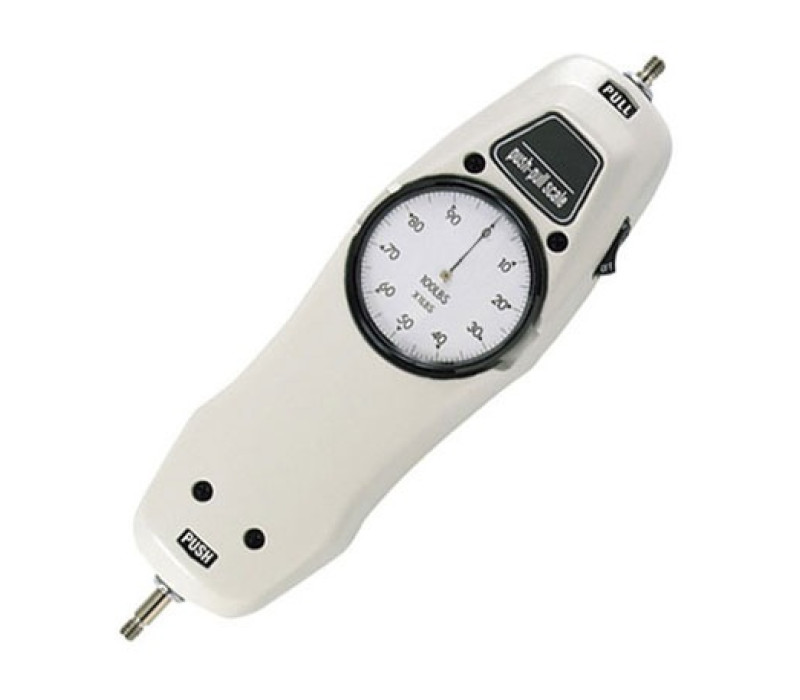

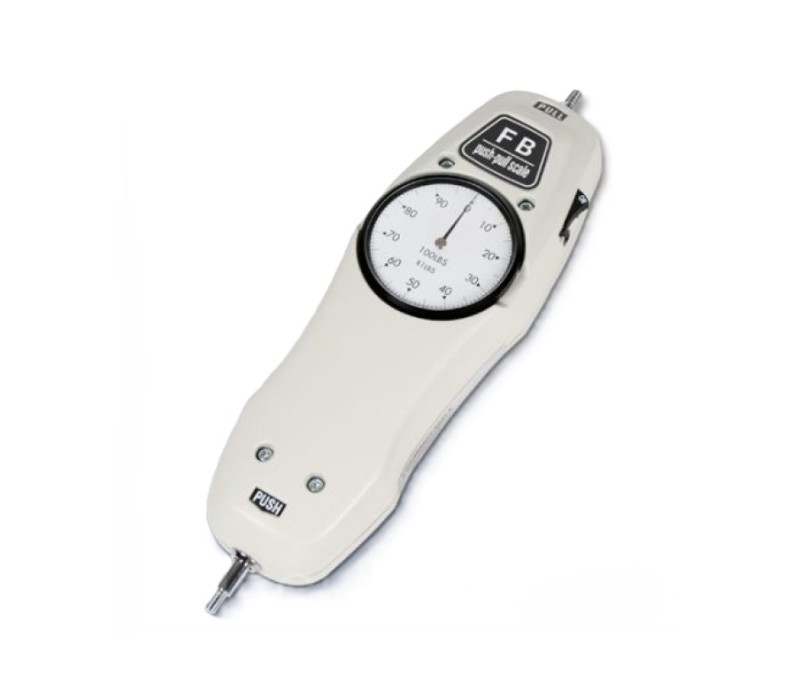

Name: FB Mechanical force gauge
SKU: 125862

The rugged construction of the FB mechanical force gauge will withstand industrial environments and yet retain calibration for extended periods. The ergonomic design makes it ideal for hand held use, or it can be mounted to a test stand. The zero tare ring allows you to zero the gauge to compensate for measuring attachments and changes in measuring position. The real time/peak hold selector switch allows you to observe transients or capture peaks. Many ranges are available to cover all of your measurement needs (also available in Newtons). The FB series is sold in kits complete with force gauge, hard carrying case, five measuring attachments (flat head, conical, chisel, notched, and small hook) as well as a 3 inch extension shaft.

€ 365,00

Order now

Ideal for precision tension and compression measurements in all environments
Real Time and Peak Force display
Free manufacturer´s calibration report
Ergonomic rugged die-cast aluminum housing
Zero Tare Ring to zero the gauge in each position
Full set of accessories and carrying case included
Easy to use
Peak Force Hold function captures tension values and peaks
Simple, vitually maintance free

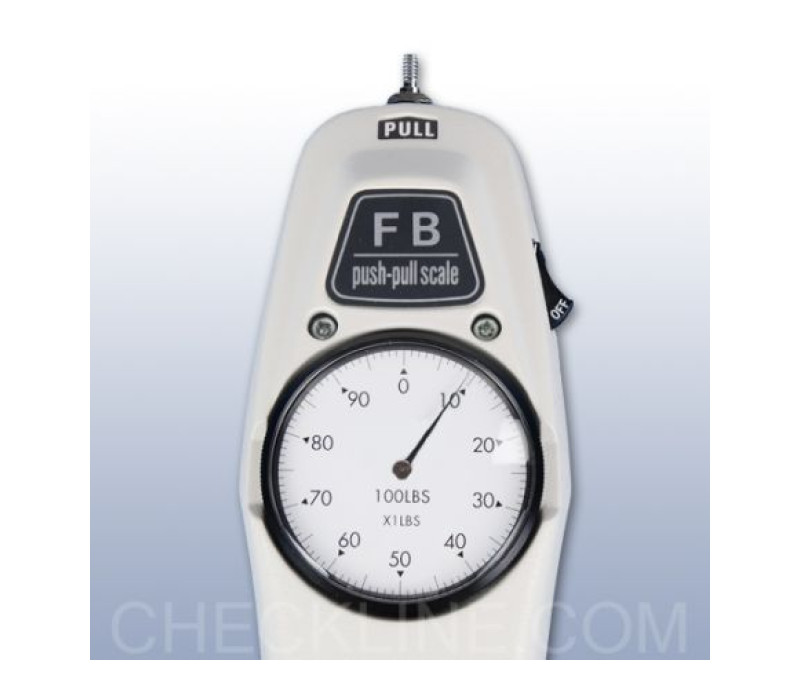

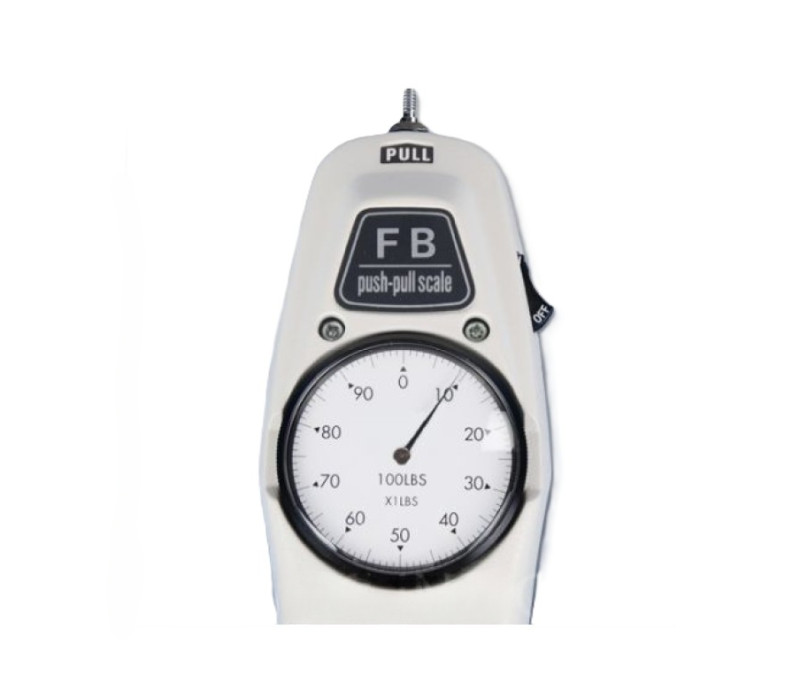

Easy to read dial
For hand-held use or mounting on test stands

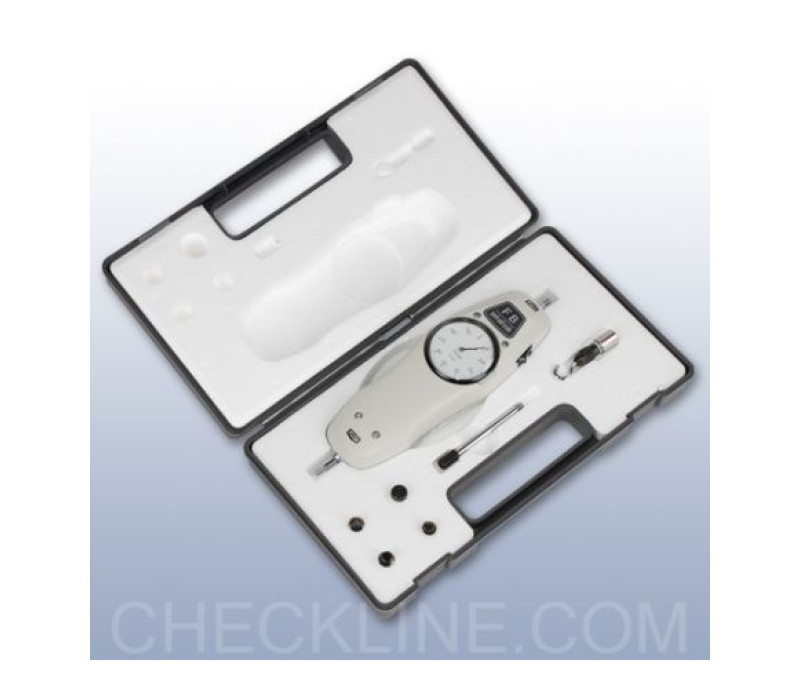

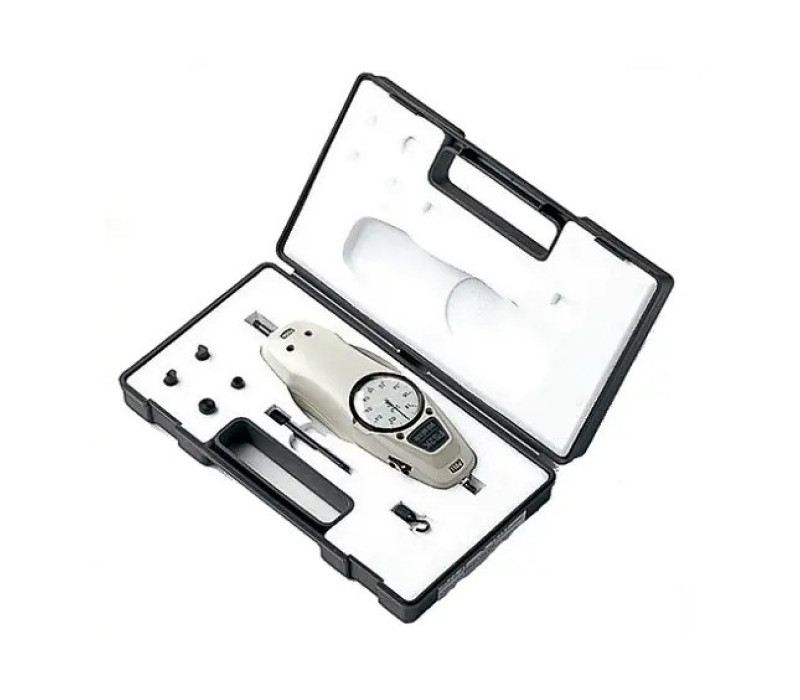

The FB mechanical force gauge will be delivered with standard attachments, carrying case, manufacturer's calibration report and operating instructions.

Tension Ranges

Model	Ranges	Resolution
FB-10 N	0 - 10 N	0.05 N
FB-20 N	0 - 20 N	0.1 N
FB-30 N	0 - 30 N	0.2 N
FB-50 N	0 - 50 N	0.25 N
FB-100 N	0 - 100 N	0.5 N
FB-200 N	0 - 200 N	1 N
FB-300 N	0 - 300 N	2 N
FB-500 N	0 - 500 N	2.5 N
FB-1 KG	0 - 1 KG	10 gf
FB-2 KG	0 - 2 KG	20 gf
FB-3 KG	0 - 3 KG	25 gf
FB-5 KG	0 - 5 KG	50 gf
FB-10 KG	0 - 10 KG	100 gf
FB-20 KG	0 - 20 KG	200 gf
FB-30 KG	0 - 30 KG	250 gf
FB-50 KG	0 - 50 KG	500 gf

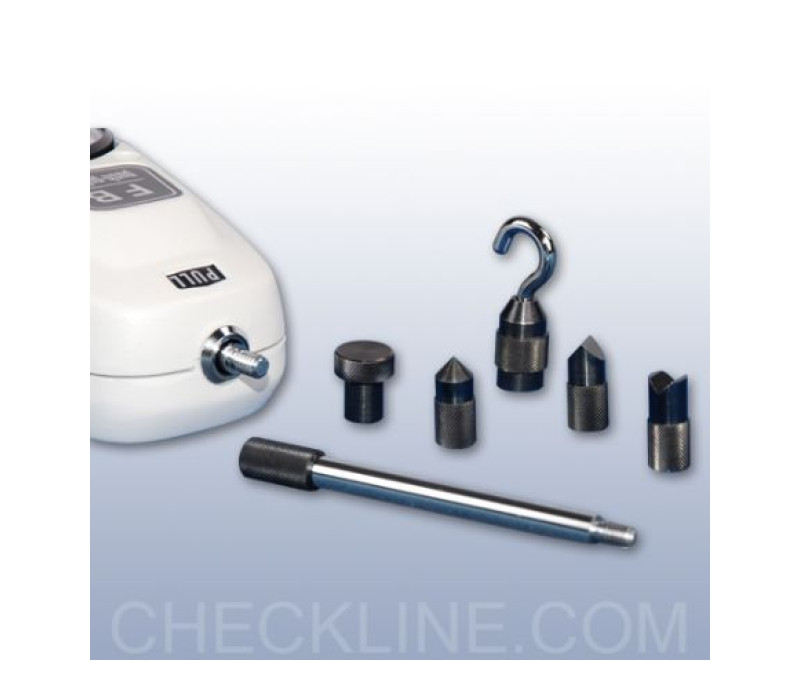

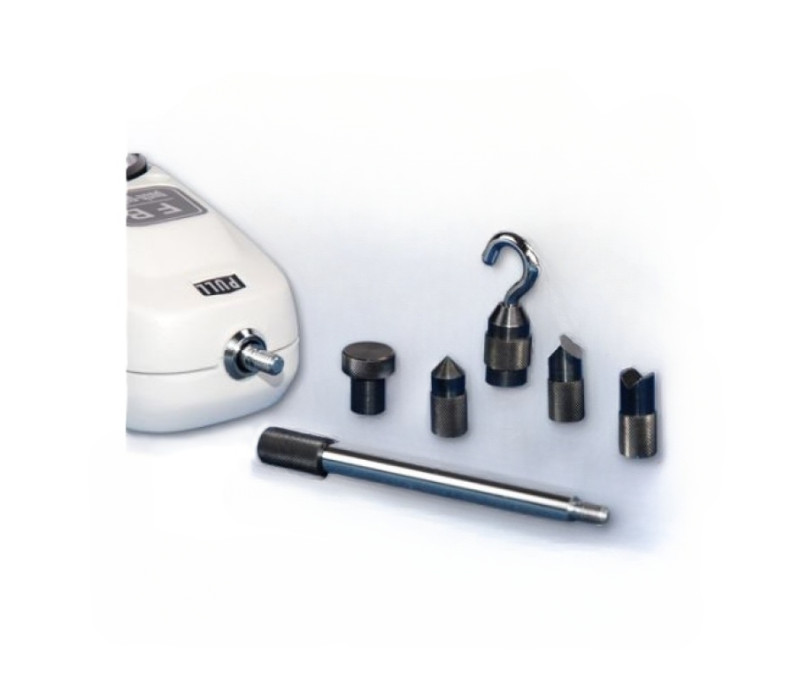

Standard Attachments

A-Series (aluminum,thread M 6) attachments are supplied for models with capacities up to 100 N
S-Series (steel, thread M6) attachments are supplied for models with capacity from 100 N to 500 N
(1) Small hook A-1, S-1
(2) Flat tip A-2, S-2
(3) Conical tip A-3, S-3
(4) Chisel tip A-4, S-4
(5) Notched tip A-5, S-5
(6) Extension shaft A-6, S-6

Displacement:	10 mm
Accuracy:	± 0,3% Full scale
Temperature range:	5 - 45°C
Air humidity:	85% RH, max.
Housing dimensions:	235 x 65 x 50 mm (L x W x H)
Weight, net (gross)	approx. 530 g (1000 g)

Products

Item	Product	Price
131518	FB-10N Mechanical Force Gauge	€ 365,00
131519	FB-20N Mechanical Force Gauge	€ 365,00
130270	FB-30N Mechanical Force Gauge	€ 365,00
131520	FB-50N Mechanical Force Gauge	€ 365,00
125875	FB-100N Mechanical Force Gauge	€ 365,00
130307	FB-200N Mechanical Force Gauge	€ 365,00
131522	FB-300N Mechanical Force Gauge	€ 365,00
131521	FB-500N Mechanical Force Gauge	€ 365,00
131511	FB-1KG Mechanical Force Gauge	€ 365,00
131512	FB-2KG Mechanical Force Gauge	€ 365,00
131513	FB-3KG Mechanical Force Gauge	€ 365,00
131514	FB-5KG Mechanical Force Gauge	€ 365,00
126757	FB-10KG Mechanical Force Gauge	€ 365,00
131515	FB-20KG Mechanical Force Gauge	€ 365,00
131516	FB-30KG Mechanical Force Gauge	€ 365,00
131517	FB-50KG Mechanical Force Gauge	€ 365,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

FB Mechanical force gauge

Features

Dimensions

Specifications

Cic-Force Calibration Force Gauge

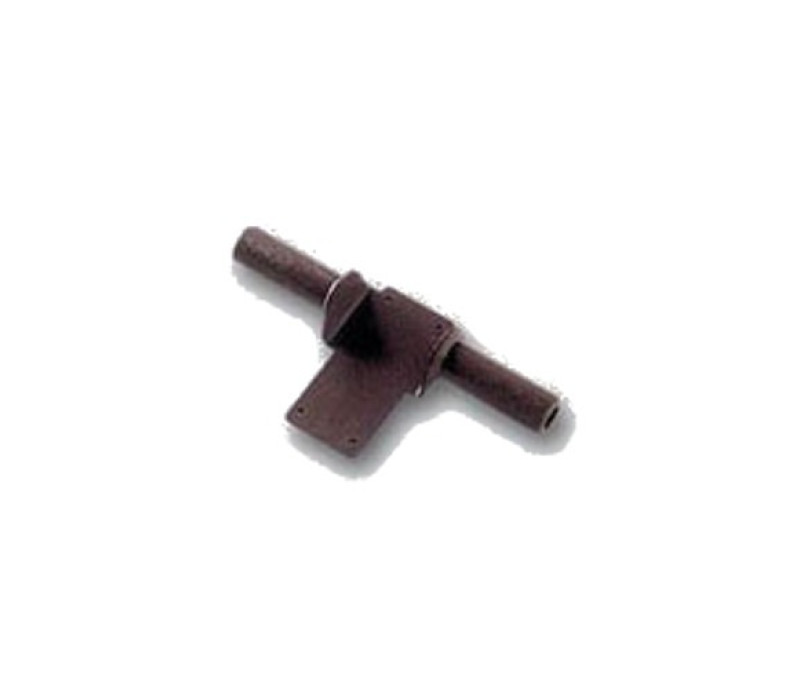

MOH-1 Optional Handle
