X-PP Analog Force Gauge for tensile and compressive force measurement

X-PP Analog Force Gauge for tensile and compressive force measurement

Name: X-PP Analog Force Gauge for tensile and compressive force measurement
SKU: 127373

The analog Dillon X-PP force gauges are calibrated for pressure and tensile force measurements and are available in four pound and three kilogram versions with capacities up to 1000 kg or 2500 lb. The accuracy is ± 4% of the capacity.

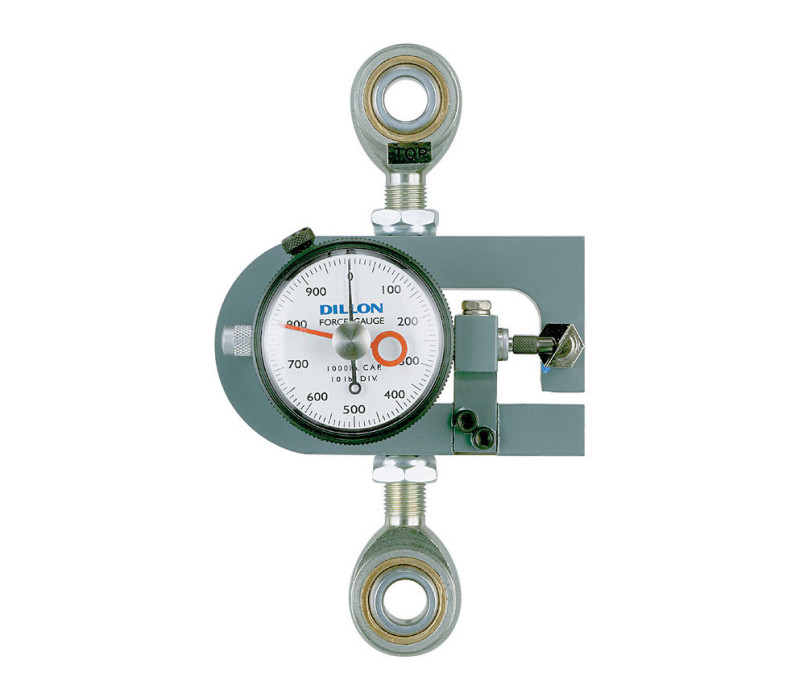

Model X-PP dynamometers with capacities up to 250 kg / 500 lb are supplied with two self-aligning ball joint heads for tensile force measurements. The force is transmitted with a connecting piece that has to be connected to the rod ends using a slip fit.

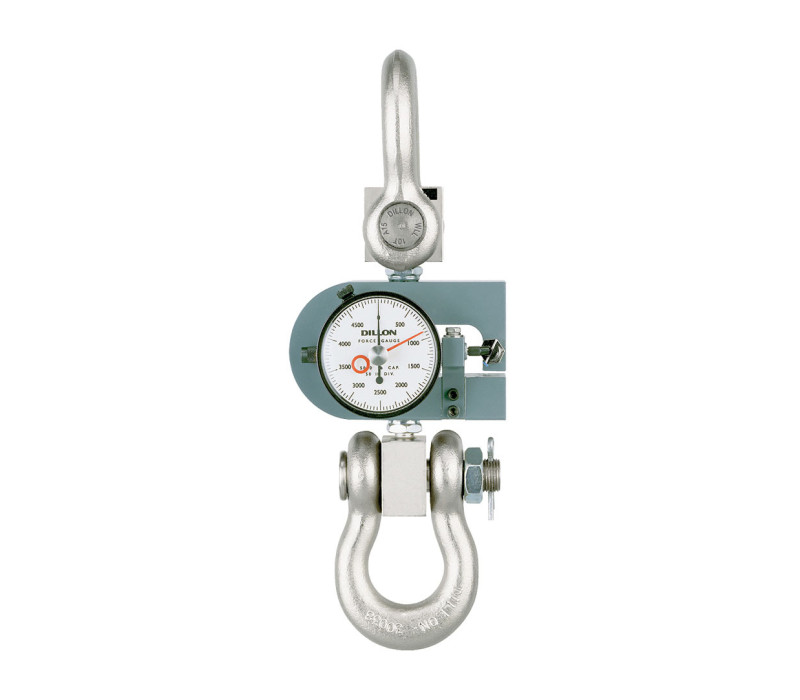

The 1000kg / 2500 lb versions are supplied with two shackle adapters, shackles and bolts. In this case, the tensile force is transmitted via the shackles.

The shackles must be removed for pressure force measurements. All X-PP pressure and tensile force measuring devices are delivered with a spherical connecting piece for compressive force measurements.
On the underside of the X-PP force measuring devices there is a threaded hole opposite the ball.

The measuring scales are available in kilograms and pounds.

Price from € 1.940,00

Order now

Accuracy ± 4% of the capacity
For pressure and tensile force measurements
Capacity up to 1000 kg

The X-PP force measuring devices are delivered in a complete set, consisting of:

X-PP tensile force measuring device
Robust carrying case>
Calibration certificate
spherical connector for pressure force measurements on all models
Ball joint heads for models under 1000kg capacity
Shackles and bolts on models from 1000kg capacity

Model overview

Model	Capacity	Resolution
30796-0021	50 kg	1 kg
30798-0029	250 kg	5 kg
30800-0025	1000 kg	20 kg

30795-0014	50 lb	1 lb
30796-0013	125 lb	2,5 lb
30798-0011	500 lb	10 lb
30800-0017	2500 lb	50 lb

Slight deflection of the carrier

Capacity	Deflection
25 - 100 kg	0,48 mm
200 kg	0,41 mm
500 kg	0,46 mm
1000 kg	0,28 mm
2000 & 5000 kg	0,25 mm
Measured between the centers of the upper and lower attachment points

Options

Shockless dial gauge, for applications that involve an abrupt change in the applied force (the bumpless dial gauge cannot be combined with the drag pointer)
At the customer's request, the rest position of the pointer can be set to 12, 3, 6 or 9 o'clock during production. The default position is 12 p.m.

Datasheet

Data sheet X-series Analogue Force Gauges

Precision:	± 4% of capacity
Operating temperature:	Up to 48°C
Warranty:	2 years
Overload protection:	Accidental overloads of up to 30% of capacity can be supported without damaging the comparator or the deflection bar.

Products

Item	Product	Price
137338	X-PP 30795-0014 - Push/Pull Force gauge 50 x 1 lb	€ 1.940,00
137339	X-PP 30796-0013 - Push/Pull Force gauge 125 x 2-1/2 lb	€ 1.940,00
137340	X-PP 30798-0011 - Push/Pull Force gauge 500 x 10 lb	€ 2.240,00
136933	X-PP 30800-0017 - Push/Pull Force gauge 2500 x 50 lb	€ 3.350,00
137341	X-PP 30796-0021 - Push/Pull Force gauge 50 x 1 kg	€ 1.940,00
137342	X-PP 30798-0029 - Push/Pull Force gauge 250 x 5 kg	€ 2.275,00
137343	X-PP 30800-0025 - Push/Pull Force gauge 1000 x 20 kg	€ 3.195,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
