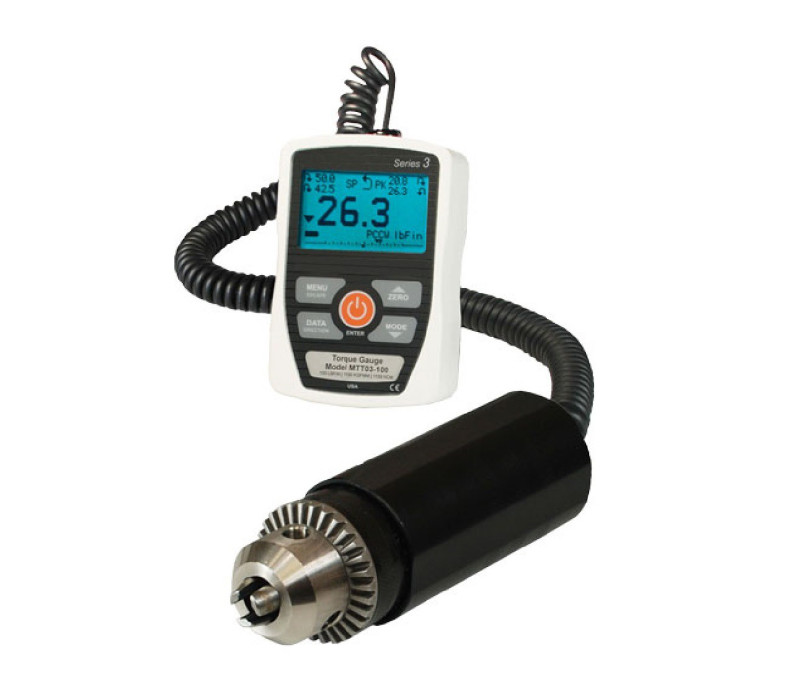

Series-TT03 Digital Torque Meter for torque testing applications

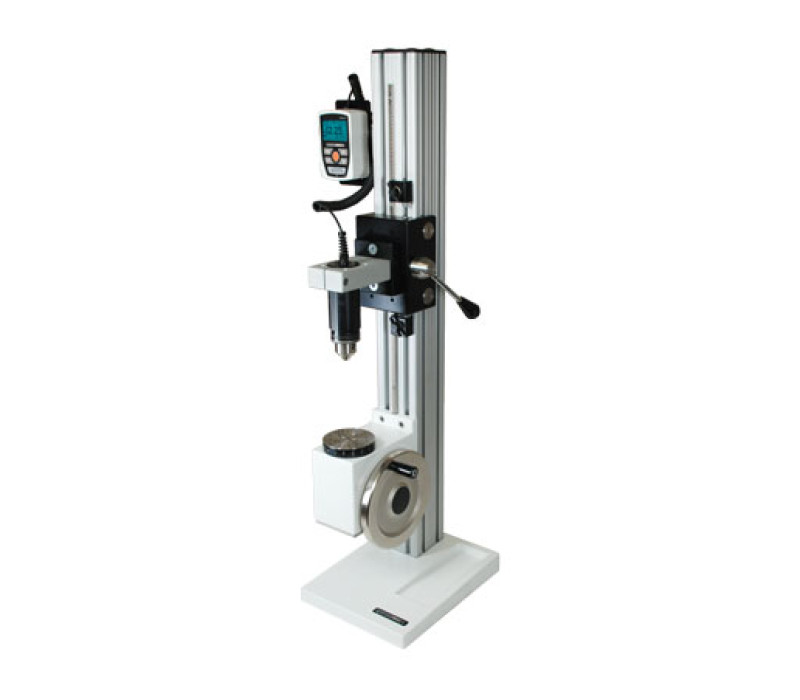

The TT03 Torque tester is a versatile device suitable for torque testing in a laboratory environment as for field testing applications. With its compact aluminum housing the TT03 can be used in a test stand setup or as handheld device depending on the circumstances and requirements. It can measure in clockwise and counter-clockwise torque testing applications.

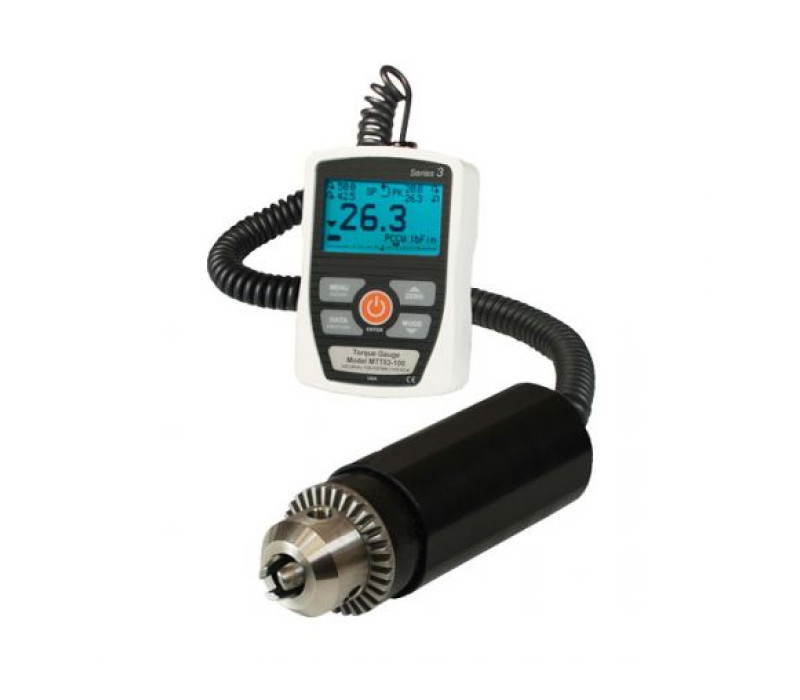

The TT03 consists of a digital indicator connected to a dedicated remote torque sensor that is available in a 6 type capacity range from 7 Ncm to 1150 Ncm. The device features a 2000 Hz sampling rate and has an accuracy of ±0.5% of full scale with a backlit display that shows current and peak torque readings for each direction, set points, pass/fail indicators, rotation direction, units of measurements and an analog load bar with setpoint markers.

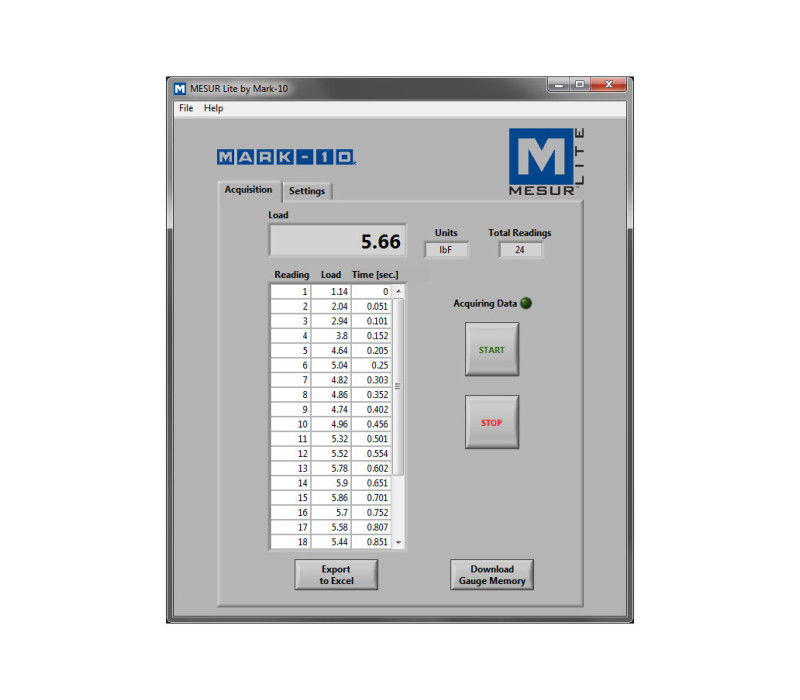

MESUR® Lite data acquisition software is included to exported the data through a USB connection with the included USB data cable for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.
Features
- Peak memory for clockwise and counter clockwise readings saved and displayed
- High-speed 2,000 Hz sampling rate
- Single Reading USB data output
- Programmable set points with pass/fail indicators
- Configurable audio alarms and key tones
- Live load bar graphs with set point markers
- CE mark
- Made in the USA
- Battery or AC operation

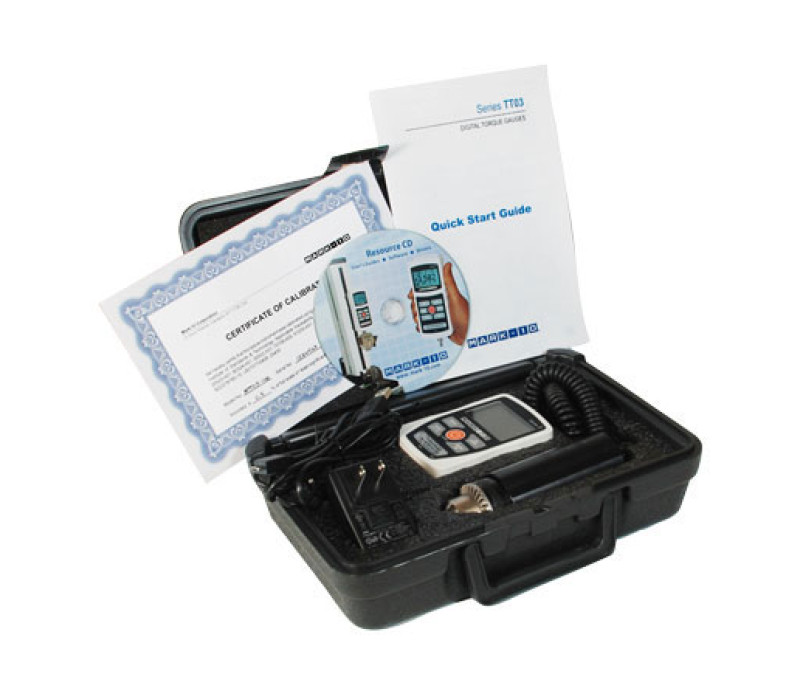

Series TT03 torque gauges include the following accessories:
- Chuck key
- Carrying case
- USB cable
- AC adapter
- Rechargeable battery
- Certificate of calibration without data
| Model | Ncm | kgFmm | lbFin | ozFin |
|---|---|---|---|---|
| MTT03-10Z | 7 x 0, 005 | 7 x 0,005 | - | 10 x 0.01 |
| MTT03-20Z | 14 x 0,01 | 14 x 0,01 | - | 20 x 0.02 |
| MTT03-50Z | 36 x 0,05 | 36 x 0,05 | - | 50 x 0.05 |
| MTT03-12 | 135 x 0,1 | - | 12 x 0.01 | 192 x 0.2 |
| MTT03-50 | 570 x 0,5 | - | 50 x 0.05 | 800 x 0.5 |
| MTT03-100 | 1150 x 1 | - | 100 x 0.1 | 1600 x 1 |
Dimensions
Dimensions of the TT03 Torque Tester ,
All dimensions are noted in Inches with metric sizes in [mm] behind.
Series-TT02 Torque Tool Tester for (Electric) Screw Drivers
- First / second peak capture for CW and CCW directions
- 3/8” square receptacle accommodates common bits and attachments
- High-speed 7000 Hz sampling rate accurately captures peak torque values
More details
TT3C Hand-held Cap Torque Meter
- For cap diameters of 16,5 - 39,0 mm
- High-speed 2000 Hz sampling rate
- Single Reading USB data output
More details
R50 Series Universal Torque Sensor with Jacobs chuck
- Rugged aluminum housing
- Unique Plug & TestTM connector holds all calibration and configuration data
More details
R51 Series Universal Torque Sensors for bi-directional torque testing
- Compatible with the Series 7i, 5i and 3i digital indicators
- Unique Plug & TestTM connector holds all calibration and configuration data
- Outstanding overload protection
More details
Model-3I Force/Torque Indicator
- Interchangeable force and torque sensors through Plug & Test® technology (sensors are sold separately)
- High-speed 2.000 Hz sampling rate
- Ultra-compact size
More details
Model-5I Advanced Digital Force/Torque Indicator
- Interchangeable force and torque sensors through, separately sold, Plug & Test® technology
- High-speed 7.000 Hz sampling rate
- USB, RS-232, Mitutoyo, and analog outputs
More details
Model-7i Advanced Force/Torque Indicator
- Interchangeable force and torque sensors through Plug & Test® technology (sensors are sold separately)
- High-speed 14.000 Hz sampling rate
- Continous data capture of up to 5.000 data points, at up to 14.000 Hz, downloadable to a PC
- 5 units of measurement, plus Coefficient of Friction and user-defined unit with configurable name
More details
Accessories

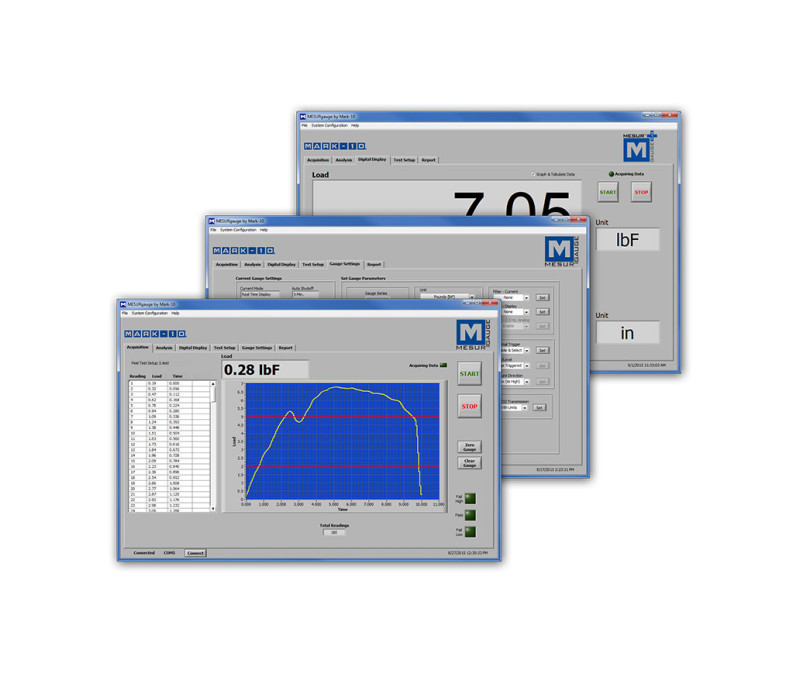

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software
- Sends data from a force or torque gauge and travel display to a PC for further analysis
More details
AC1008 Table Top Stand for 5I, 3I or TT03
- For mounting the 5I, 3I or TT03 Series displays on a table
More details
AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands
- Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands
More details
Category Force Gauge Accessories
Large assortment of grips, attachments and other accessories for analog and digital force gauges.
More details
Specifications
| Accuracy: | ±0.5% of full scale ±1 digit |
| Calibrated range | 10 - 100% |
| Sampling rate: | 2,000 Hz |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery Life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Measurement units: | lbFin, ozFin, kgFmm, Ncm (depending on model) |

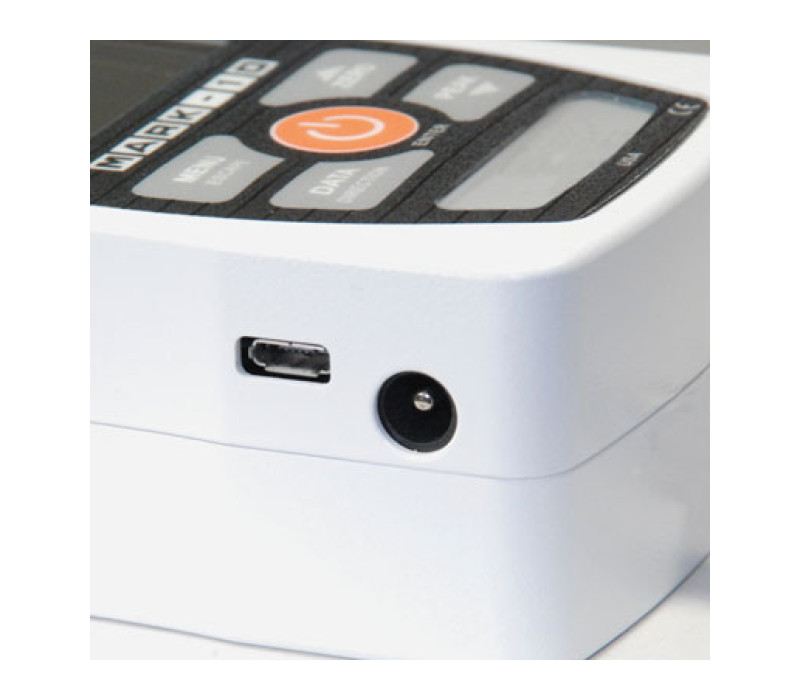

| USB Output: | Individual data point output by pressing DATA key. Configurable up to 115,200 baud. |
| Configurable Settings: | Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration |
| Safe overload: | 150% of full scale (display shows “OVER” at 110% and above) |
| Weight: | 1.8 lb [0.8 kg] |
| Environmental requirements: | 40°F - 100°F [5°C - 45°C], < 96% humidity (non-condensating) |
| Warranty: | 3 Years |
