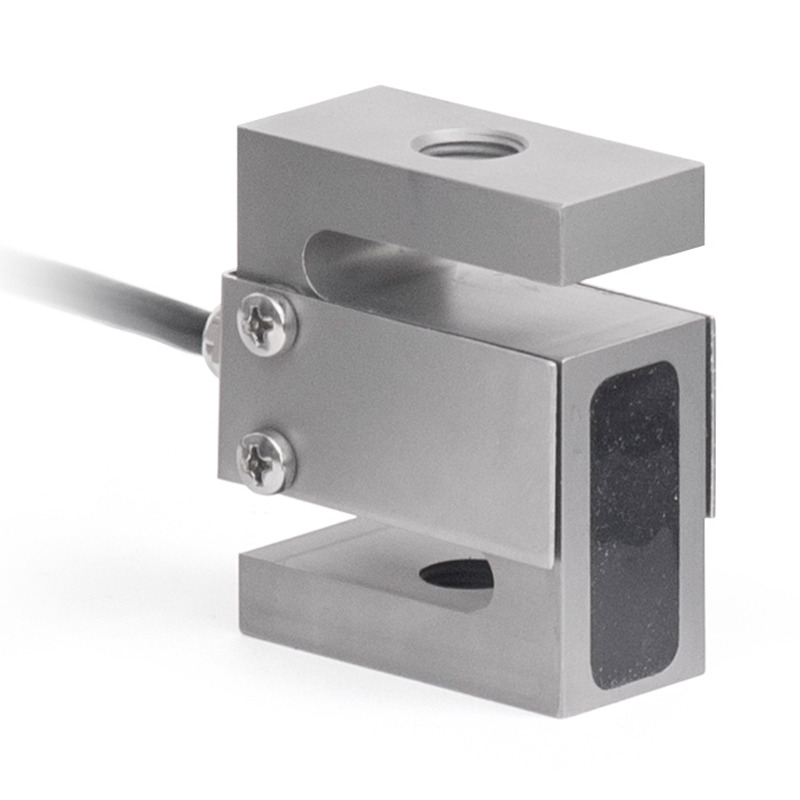

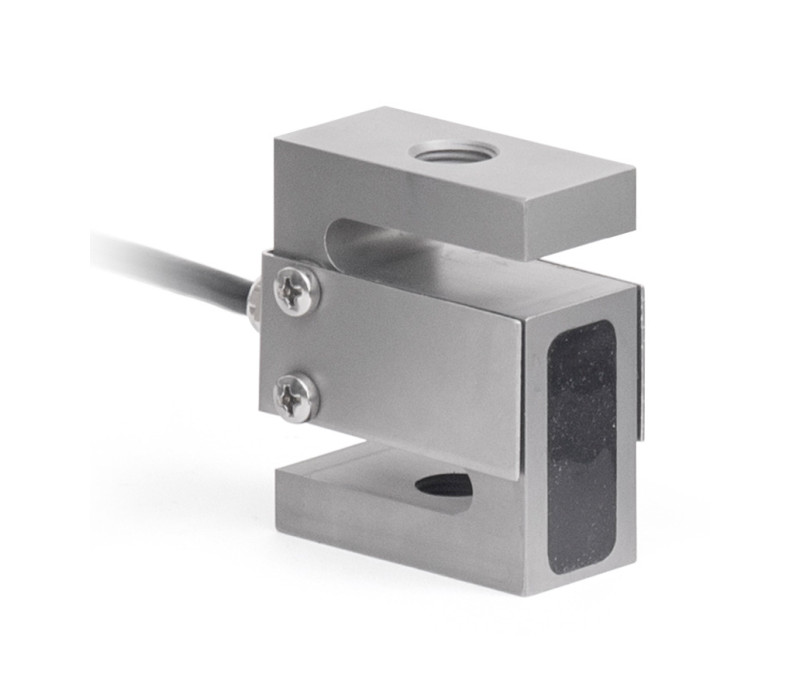

Series R07 Series R07 Force Sensors

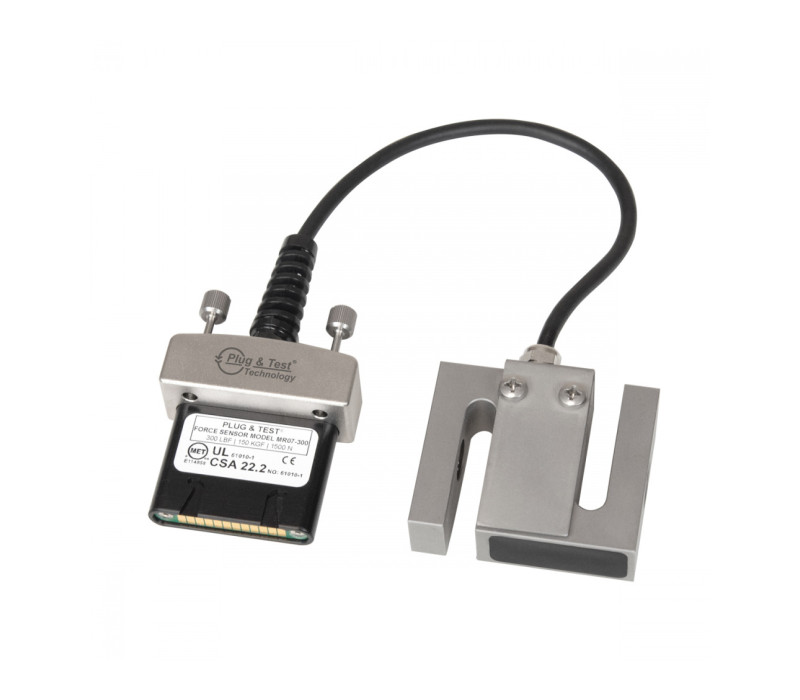

Series R07 Force Sensors are compatible with models F755, F755S, F1505, and F1505S test frames.

Series R07 Force Sensors are compatible with models F755, F755S, F1505, and F1505S test stands.

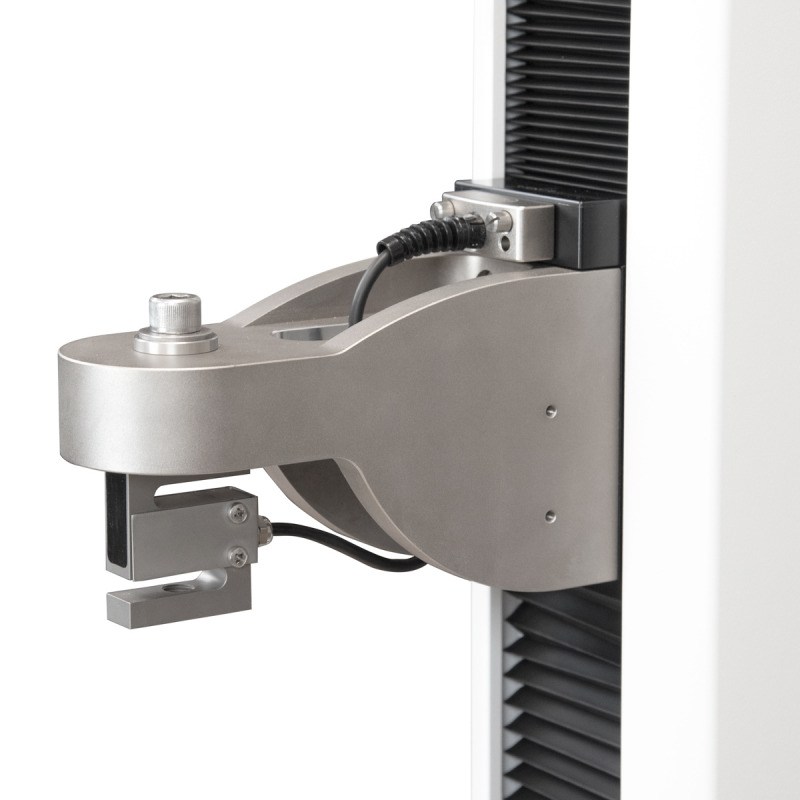

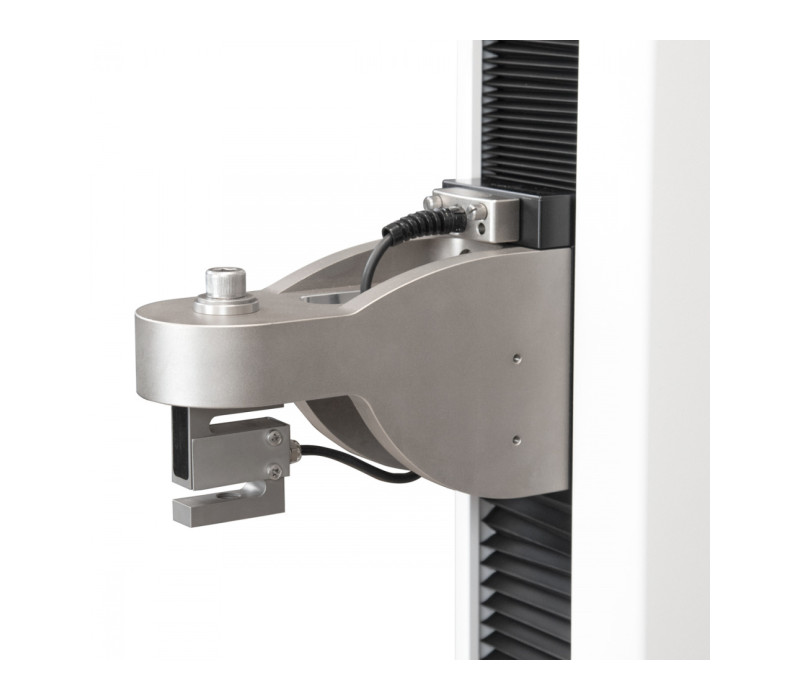

A Series R07 force sensor is shown installed onto a Model F1505-IMT test stand.

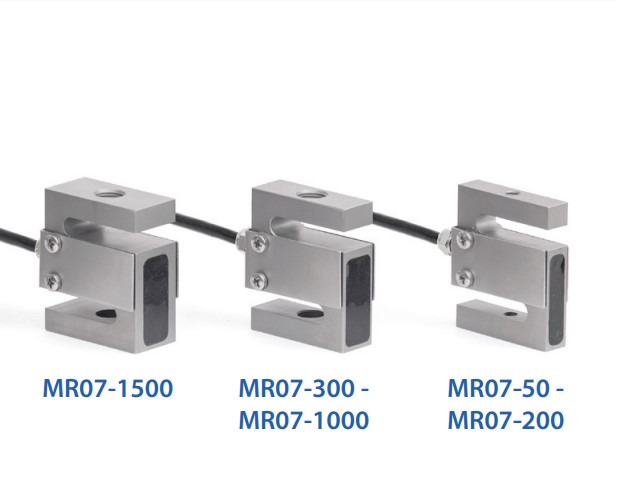

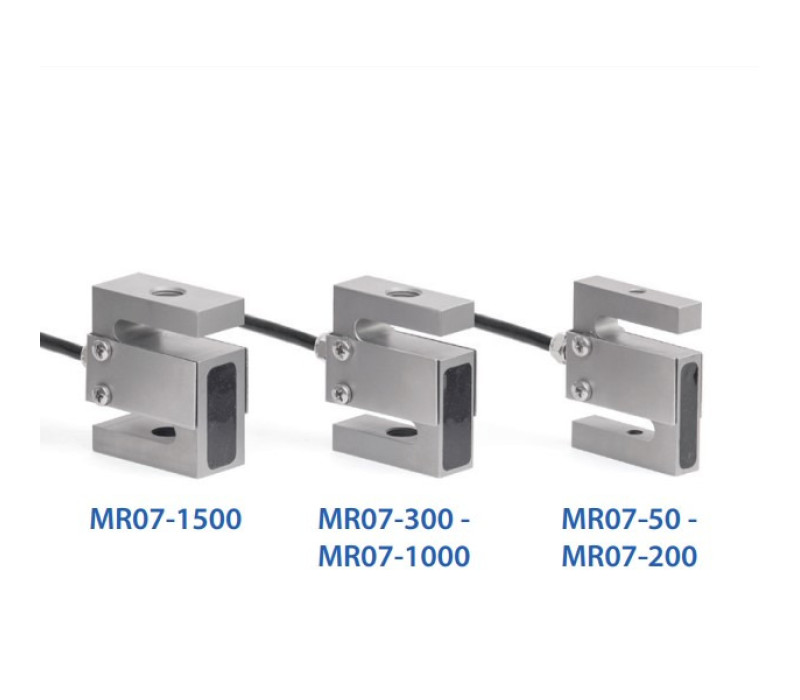

The three physical sized of the Series R07 Force Sensors.

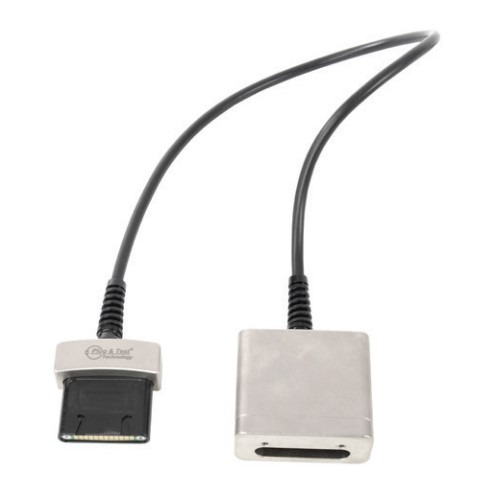

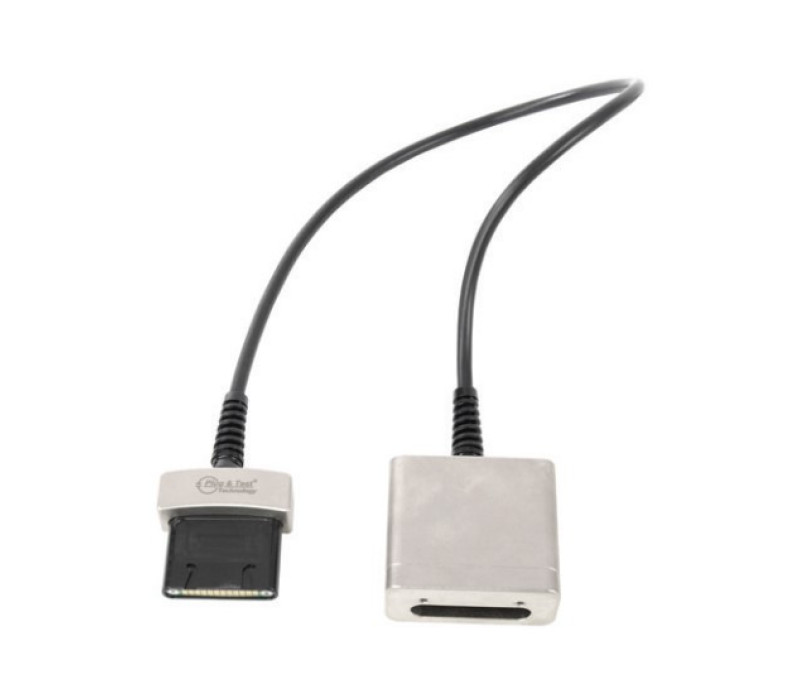

AC1084 extension cord for connecting R07 to a Mark-10 Indicator.

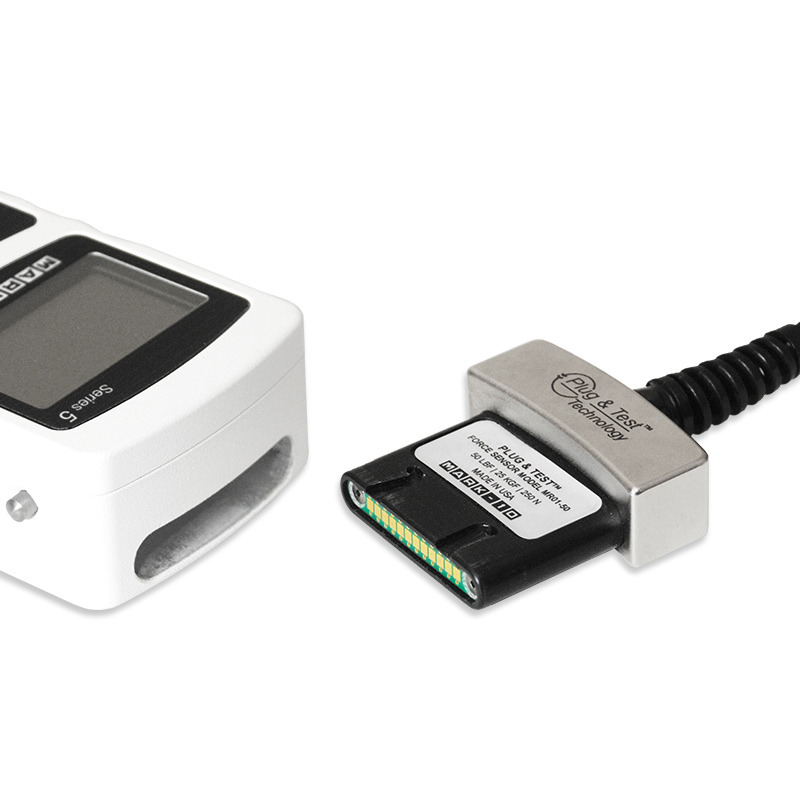

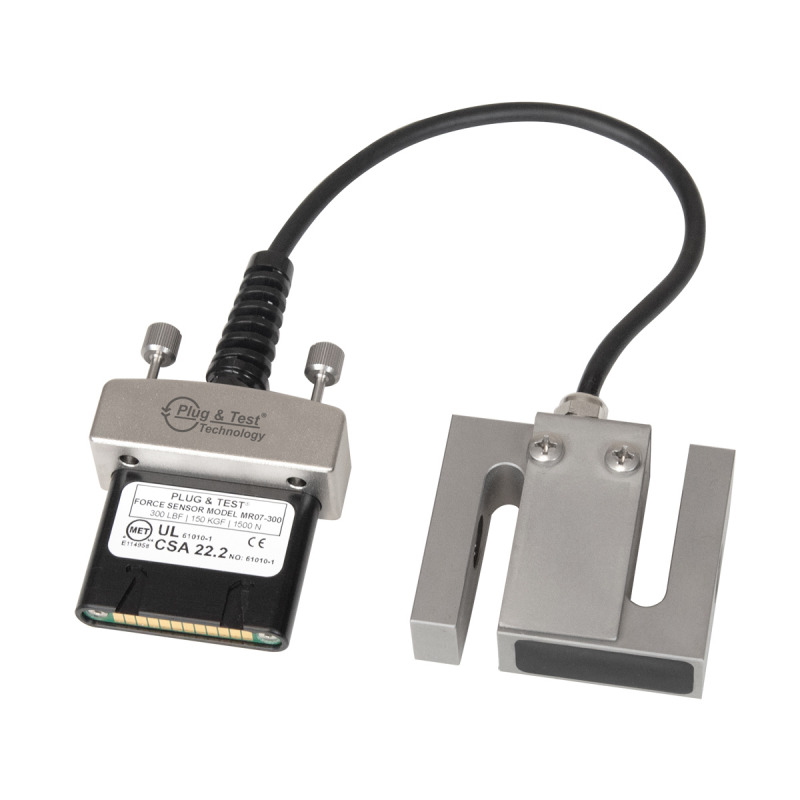

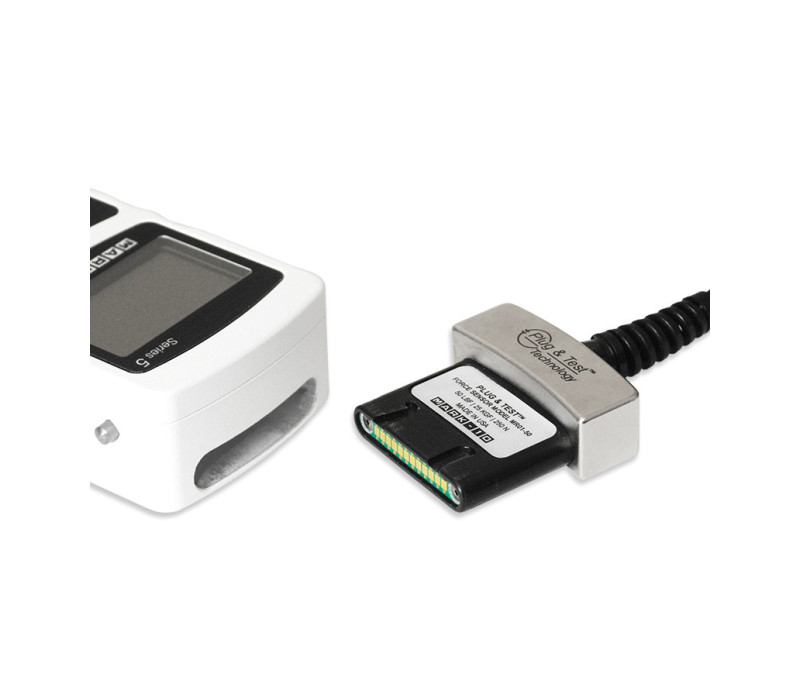

Unique Plug & Test® technology allows for interchangeable sensors to be used with a Mark-10 indicator. All calibration and configuration data is saved in the smart connector.

Series R07 Force Sensors for Series F Test Stands

Name: Series R07 Force Sensors for Series F Test Stands
SKU: 127404

The Series R07 Force Sensors are designed to work with the high range of the Series F Force Test Stands, models F755, F755S, F1505, and F1505S. They are equipped to measure tension and compression forces and come in a load range from 250 N to 7,5 kN.

The R07 Series use the unique Plug & Test® technology and are therefore also compatible with the 3I, 5I and 7I digital indicators by using an optional adapter AC1084. These sensors are not compatible with the low range, models F105, F305, F505, and F505H, test stands.

The R07 Force sensors come complete with a certificate of calibration with data.

€ 752,00

Order now

Compatible with Models F755, F1505, and F1505S test stands
Measure tension and compression force
Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required)
NIST-traceable certificate of calibration with data is included
Warranty: 3 years

Capacity x Resolution

Model	lbF	ozF	gF	kgF	N	kN
MR07-50	50 x 0,02	800 x 0,05	25000 x 10	25 x 0,01	250 x 0,1	-
MR07-100	100 x 0,05	1600 x 1	50000 x 20	50 x 0,02	500 x 0,2	-
MR07-200	200 x 0,1	3200 x 2	-	100 x 0,05	1000 x 0,5	1 x 0,0005
MR07-300	300 x 0,2	4800 x 5	-	150 x 0,1	1500 x 1	1,5 x 0,001
MR07-500	500 x 0,2	8000 x 5	-	250 x 0,1	2500 x 1	2,5 x 0,001
MR07-750	750 x 0,5	12000 x 10	-	375 x 0,2	3750 x 2	3,75 x 0,002
MR07-1000	1000 x 0,5	16000 x 10	-	500 x 0,2	5000 x 2	5 x 0,002
MR07-1500	1500 x 1	24000 x 20	-	750 x 0,5	7500 x 5	7,5 x 0,005

D2 no header

Model	A	B	C	D	E	F
MR07-50	2,40 [61,0]	2,00 [50,8]	0,46 [11,7]	0,90 [22,9]	1/4-28 UNF	10,00 [254,0]
MR07-100	2,40 [61,0]	2,00 [50,8]	0,46 [11,7]	0,90 [22,9]	1/4-28 UNF	10,00 [254,0]
MR07-200	2,40 [61,0]	2,00 [50,8]	0,46 [11,7]	0,90 [22,9]	1/4-28 UNF	10,00 [254,0]
MR07-300	2,40 [61,0]	2,00 [50,8]	0,71 [18,0]	1,10 [27,9]	1/2-20 UNF	10,00 [254,0]
MR07-500	2,40 [61,0]	2,00 [50,8]	0,71 [18,0]	1,10 [27,9]	1/2-20 UNF	10,00 [254,0]
MR07-750	2,40 [61,0]	2,00 [50,8]	0,71 [18,0]	1,10 [27,9]	1/2-20 UNF	10,00 [254,0]
MR07-1000	2,40 [61,0]	2,00 [50,8]	0,71 [18,0]	1,10 [27,9]	1/2-20 UNF	10,00 [254,0]
MR07-1500	2,40 [61,0]	2,00 [50,8]	0,96 [24,4]	1,40 [35,6]	1/2-20 UNF	10,00 [254,0]

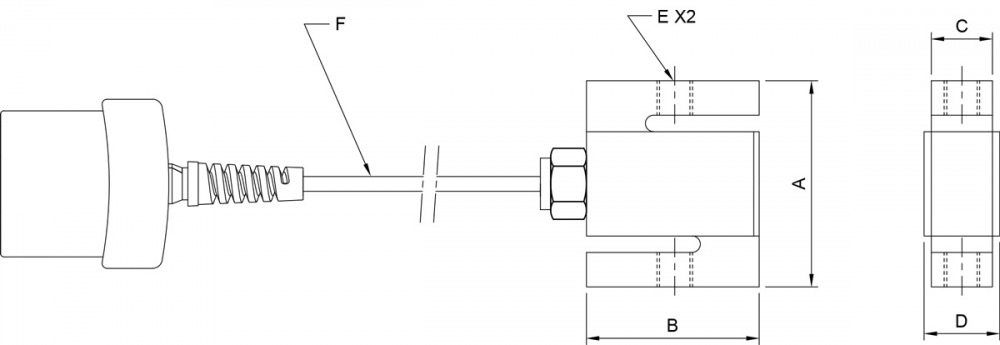

Dimensions for the Series R07 force sensors, all dimensions are in Inch with [mm] behind

Accuracy	± 0.15% of full scale + indicator or test stand
Safe Overload	150% of full scale
Weight	MR07-50 – MR07-200: 0.5 kg MR07-300 – MR07-1000: 0.9 kg MR07-1500: 1.4 kg
Shipping weight	MR07-50 – MR07-300: 0.9 kg MR07-500 – MR07-1000: 1.4 kg MR07-1500: 1.8 kg

R07 Datasheet

R07 User guide

R07 Solid Models

CE declaration of conformity

UKCA declaration of conformity

Products

Item	Product	Price
138832	MR07-50 Force Sensor - 25 kgF / 25000 gF / 250 N	€ 752,00
138833	MR07-100 Force Sensor - 50 kgF / 50000 gF / 500 N	€ 752,00
138834	MR07-200 Force Sensor - 100 kgF / 1000 N / 1 kN	€ 752,00
138835	MR07-300 Force Sensor - 150 kgF / 1500 N / 1.5 kN	€ 752,00
138836	MR07-500 Force Sensor - 250 kgF / 2500 N / 2.5 kN	€ 752,00
138837	MR07-750 Force Sensor - 375 kgF / 3750 N / 3.75 kN	€ 752,00
138838	MR07-1000 Force Sensor - 500 kgF / 5000 N / 5 kN	€ 752,00
138839	MR07-1500 Force Sensor - 750 kgF / 7500 N / 7.5 kN	€ 752,00

All prices shown exclude VAT and shipping costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

Series R07 Force Sensors for Series F Test Stands

Features

Dimensions

Specifications
