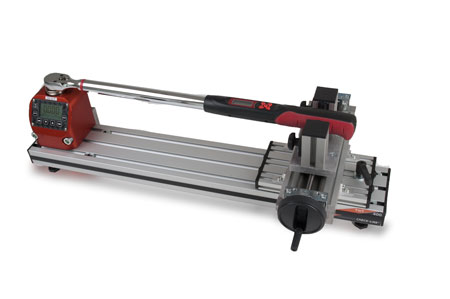

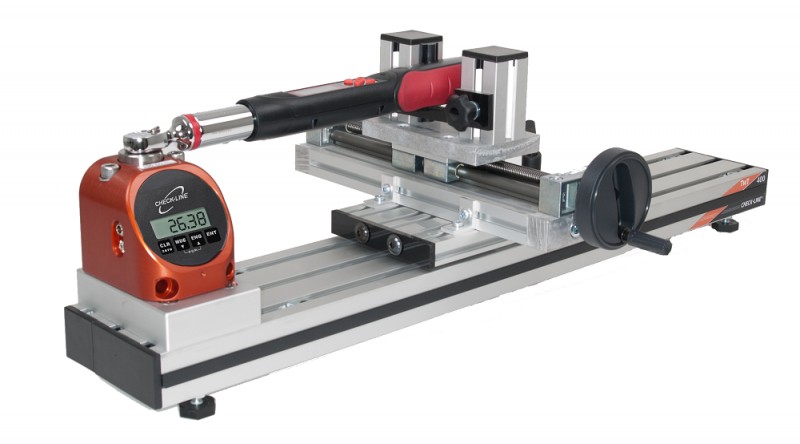

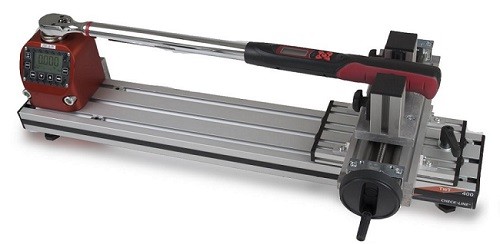

TWT-400 Torque Wrench Test Stand


The Torque Wrench Test Stand TWT-400 is the perfect tool to calibrate of verify torque wrenches with torque display (either analog or digital). The test stand has a measuring range of up to 340 Nm. The flexible design of the TWT-400 is easy to use and is suitable for various torque wrench lengths and brands.
The torque wrench test bank can also be used for standard torque wrenches without a display. With the optional test stand mounting kit, you can easily attach the TWT-400 to your work-bench. Besides, you can test all conventional torque wrenches such as click torque wrenches, analog and digital wrenches, most power tools including impulse and DC electric tools...

TWT-400-28 - Measurement range 3 - 28 Nm
TWT-400-340 - Measurement range 34 - 340 Nm
(Optional measuring ranges on request)



Features

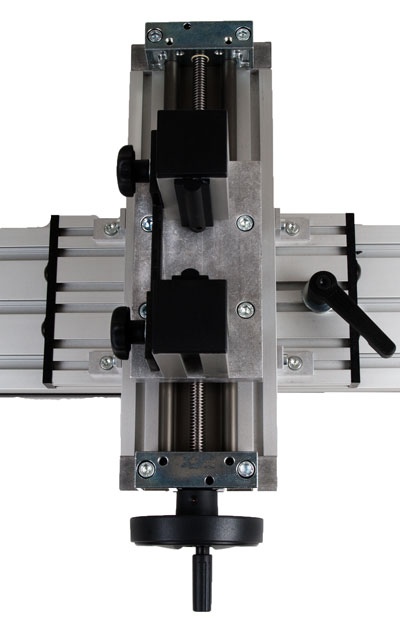

  • The flexible design of the TWT-400 is easy to use and is suitable for various torque wrench lengths and brands
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • Bidirectional accuracy of ±0,25% of indicated reading
  • NiMH rechargeable batteries provide 8-10 hours continuous use
  • CE Certified and NIST Calibration Certificate

Torque ranges
Oz-in Lb-in Lb-ft N-m N-cm Kgf-m Kgf-cm Gf-cm

ModelRange Drive
Size
Run-Down
Fixture
TWT-400-16 1.6 - 16 N-m 1/4" Optional
TWT-400-28 2.8 - 28 N-m 3/8" Optional
TWT-400-340 33 - 338 N-m 1/2" Optional

Specifications
Calibrated Range10-100% Full Scale, bi-directional
Accuracy±0,5% of indicated reading (Bidirectional)
Resolution4 Active Digits
FilteringSelectable - 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Operating Temperature32 - 122 °F / 0-50 °C
Operating ModesTrack, Peak, 1st Peak
Data OutputRS-232
Alarm LimitsPanel Mounted LED for Visual Alarm Limits
PowerNiMH rechargeable batteries provide 8-10 hours continuous use
Warranty1 Year
Weight11,02 kg
Calibration CertificateIncludes NIST Traceable calibration certificate with data
CE certificationYes
Dimensions 76cm x 23cm x 35cm (LxHxW)

Related Products

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details

Cic-Torque Torque Instrument Calibration

Buy Now
Products

Product
Price
Quantity
TWT-400-16 Torque wrench Tester (1.6 -16 N-m)
€ 3.695,00
TWT-400-28 Torque Wrench Tester (2.8 - 28 N-m)
€ 3.695,00
TWT-400-340 Torque wrench Tester (34 -340 N-m)
€ 3.895,00
TWT-400 Torque Wrench Teststand
€ 1.695,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
