Torque Transducers


Torqueleader Torque Transducers, Displays and Torque Testing Systems

Controlling torque is quintessential for companies to ensure their product's quality, safety and reliability isn't compromised. The failure of a three-cent fastener that isn’t properly tightened can lead to catastrophic or latent failures. Fasteners that are insufficiently torqued can vibrate loose and excessive torque can strip threaded fasteners. Using a quality torque analyzer has become increasingly important for many companies to ensure that proper torque is being applied and maintains gauge requirements associated with the ISO 9001 Quality Standard.

Torqueleader offers a variety of torque analyzers, transducers run down adapters and calibration equipment. Listed below is a brief overview.

PTT Torque Analyzer - the new generation of hand-held torque analyzer

PTT PTT Torque Analyzer
  • Torque Analyzer
  • Operates with Torque Sensors
  • Real time graph of torque vs. time using associated PC Windows software.

LTT Torque and Angle Analyzer with integrated Bench Stand

LTT Torque and Angle Analyzer with USB Output
  • Torque Transducer with Integrated Bench Stand
  • Ideal for checking torque on hand and non-geared power tools
  • 16 Ranges up to 5000 Lb-ft

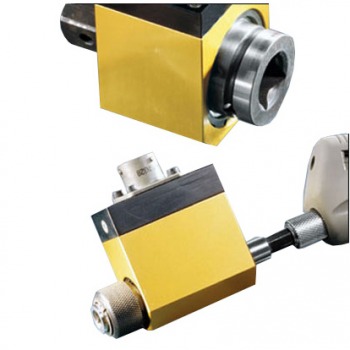

RTSX Rotary Torque Transducer for hand & power tools

RTSX Rotary Torque Transducer
  • Rotary Torque Transducer
  • Various models that range from 1 Lb-in to 1500 Lb-ft.
  • For use with most hand tools, power tools or rotational measurement applications.

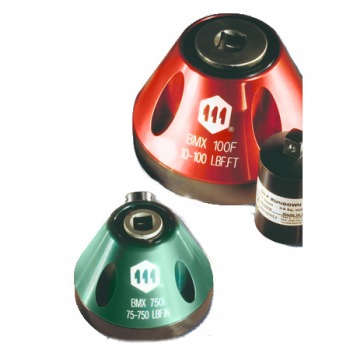

BMX Torque Reaction Sensor for calibrating tools

BMX Torque Reaction Sensor
  • Torque Transducer
  • Various models that range from 2 ozf.in to 20000 lbs-ft.
  • For calibrating hand screwdrivers, wrenches, and power tools.

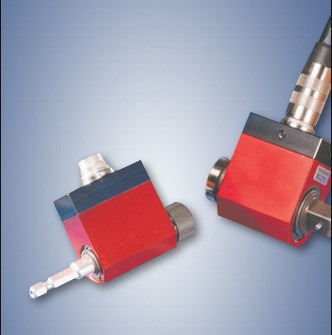

BLRTSX Brushless Rotary Torque Transducer

BLRTSX Brushless Rotary Torque Transducer
  • Brushless Rotary Torque Transducer
  • Various models that range from 1 Lb-in to 750 Lb-ft.
  • For use with most power tools, pulse tools, high RPM tools or rotational measurement applications.

BLRTSX-R Compact Brushless Rotary Torque & Angle Shaft Transducer

BLRTSX-R Brushless Rotary Torque & Angle Shaft Transducer
  • Brushless Rotary Angle Shaft Transducer
  • Various models that range from 1 Lb-in to 750 Lb-ft.
  • For use with most power tools, pulse tools, high RPM tools or rotational measurement applications.

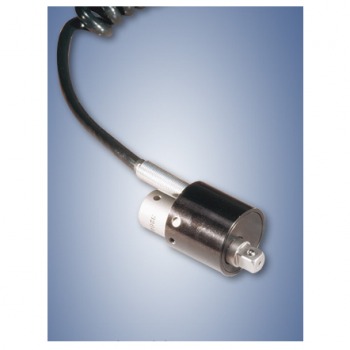

SMX Torque Socket Transducer for space constraints

SMX Torque Socket Transducer
  • Converts any ratchet wrench into a torque sensor
  • Various models that range 2.5 lb-in to 500 lb-ft
  • Ideal for applications with limited space accessibility

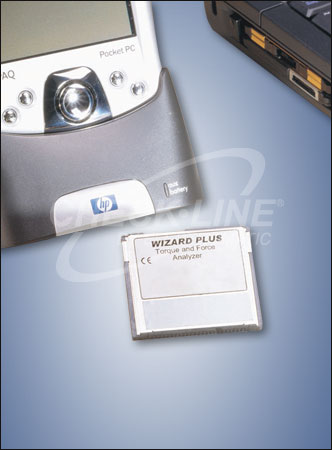

CF2 Card Wizard Plus PDA Torque & Force Analyzer

Wizard Plus PDA Torque & Force Analyzer
  • Easy to use “Windows” and “Pocket PC” software for Torque and Force measurement
  • Seamless transfer of data, graphs and SPC results to Microsoft Excel
