Wood Chip Moisture Meters


Our biomass moisture meters are very accurate meters that determine the moisture content of materials in the bio-energy industry. The BM and BM2 models have a stainless steel container to enable accurate measurements. The BM and BM2 work with an electrical field that is influenced by the moisture content in the material. Using this method, the moisture content can be determined. In contrast to the BM model, the BM2 moisture meter has a USB output and comes with software for data processing.

The BP1 was specially developed and calibrated for the moisture determination of wood pellets, elephant grass etc. It has a smaller container and can determine moisture contents up to 20%. The BP1 uses the same method as the BM and BM2.

Please select one of the following images to get more information about the products.



HGF woodchip moisture meter for biomass

HGF
  • Woodchip moisture meter with optional USB interface & software
  • Measuring range: 5% - 50% water content
  • 12.5 liter sample volume for deciduous and coniferous wood
  • Data memory for up to 10,000 measured values
  • Very fast measuring results

BMA Moisture meter for determining the water content of biomass

BMA
  • Professional determination of water content, bulk density and ATRO tons/m³
  • High measuring range: up to 70% water content
  • 12 liter sample volume
  • For measuring wood chips, wooden pellets, wood shavings, barks, elephant grass, sawdust and corn cobs.
Price € 3.530,00 - € 3.820,00
More information

BL2 Universal Biomass Moisture Meter

BL2
  • Biomass moisture meter suitable for wood chips, pellets, saw dust, round wood, split wood, hay bales and straw bales
  • Measuring range: up to 60% water content
  • Accuracy: < 2.5%
  • Instant measuring results
Price € 1.395,00 - € 1.740,00
More information

BLL Moisture Meter with 1 meter insertion probe

BLL
  • Wood Chip Moisture Meter With Long Probe
  • Measuring range: up to 50% water content
  • 1 meter long moisture probe
  • For testing water content deep inside the material
Price € 955,00 - € 1.215,00
More information

BLO Online Moisture Measuring System

BLO
  • Online Moisture Measuring System
  • Moisture measuring system with separate sensor(s)
  • Provides linear 4-20 mA output for both moisture and temperature
  • Sensors can be mounted at various points in the process, for instance in augers or conveyor-belts
Price € 730,00 - € 3.575,00
More information

BM Biomass Moisture Meter

BM
  • Biomass Moisture Content Meter
  • Measuring range: 5 to 60% water content
  • 13 liter sample volume
  • For fast and easy determination of water content of wood chips, barks, wooden pellets, elephant grass, wood shavings and sawdust

BM2 Biomass Moisture Meter with USB Output & Software

BM2
  • Biomass Moisture Meter with USB Output & Software
  • Measuring range: 5 to 60% water content
  • 13 liter sample volume
  • For fast and easy determination of water content of wood chips, barks, wooden pellets, elephant grass, wood shavings and sawdust

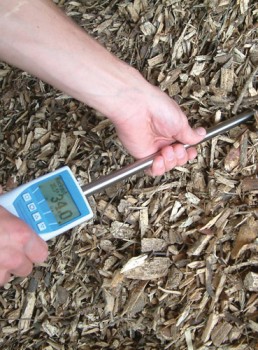

FS200 Wood Chip Moisture Tester

FS200
  • Wood Chip Moisture Tester
  • Measuring range: up to 30% water content
  • Measuring Depth: max. 200 mm
  • press the instrument firmly onto the wood chips and the absolute moisture content value will be displayed on the LCD display
