Force Sensors / Indicators

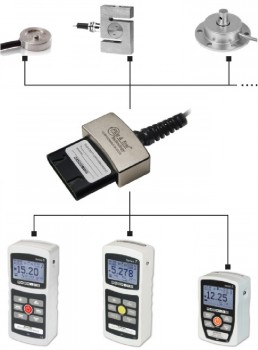

The Series 3i, 5i and 7i force indicators are unique products designed for working in conjunction with a series of interchangeable remote force and torque sensors.

The sensors do not require calibration or any settings. You can just connect them with the included plug and start a measurement.
The torque / force gauges automatically recognize the sensor and displays the appropriate capacity and unit of measure.

Simply plug and play!




Model-3I Force/Torque Indicator

Series-3I
  • Force/Torque Indicator
  • To be used in combination with a separate force or torque sensor
  • 2.000 Hz sampling rate
  • Ultra-compact form factor
  • ±0,2% accuracy
Price € 658,00
More information

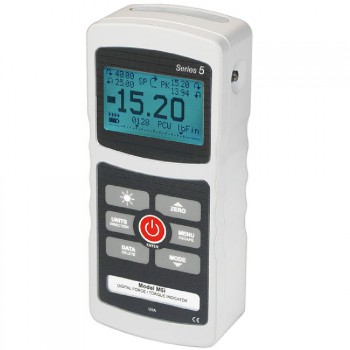

Model-5I Advanced Digital Force/Torque Indicator

Series-5I
  • Advanced Force/Torque Indicator
  • To be used in combination with a separate force or torque sensor
  • 7.000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs
  • ±0,1% accuracy
  • 1.000 point data memory and statistics
Price € 999,00
More information

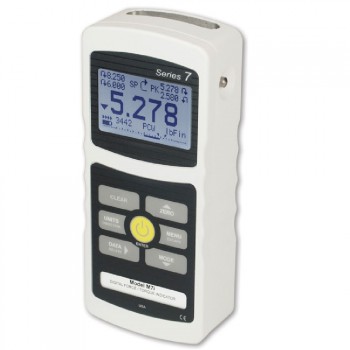

Model-7i Advanced Force/Torque Indicator

Series-7I
  • Advanced Force/Torque Indicator
  • To be used in combination with a separate force or torque sensor
  • 14.000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs
  • ± 0,1% of full scale
  • 5.000 point data memory and statistics
Price € 1.696,00
More information

PTA

PTA
  • Plug & Test Load Cell Adapter
  • Suitable for 3i, 5i indicator

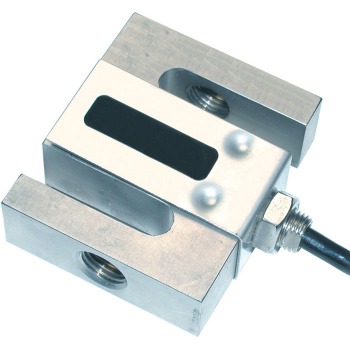

R01 Series S-Beam Force Sensor

R01 Series
  • Compression and tension testing
  • External sensor to be used with the 3i or 5i series force/torque displays
  • Threaded holes for attachments
  • Capacities from 250 N to 50 kN
Price from € 682,00
More information

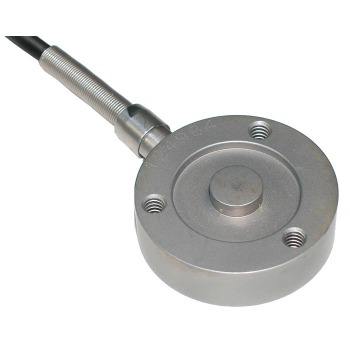

R02 Series Sensor for Compression Force

R02 Series
  • Compression testing
  • External sensor to be used with the 3i or 5i series force/torque displays
  • Capacities from 500 N to 50 kN
  • Compact and rugged design
Price from € 858,00
More information

R03 Series Smart sensor for tension and compression force

R03 Series
  • Inline compression and tension testing
  • Capacities from 1 to 500 N
  • External sensor to be used with the 3i or 5i series force/torque displays or Series F test stand
  • Threaded holes for attachments
Price from € 746,00
More information

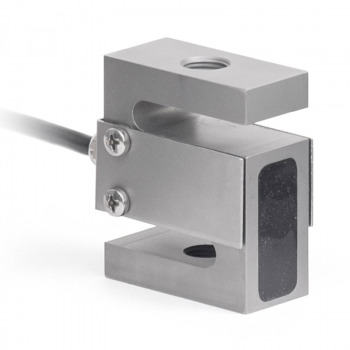

R04 Series Miniature S-Beam Force Sensor

R04 Series
  • Compression and tension testing
  • External sensor to be used with the 3i or 5i series force/torque displays
  • Miniature dimensions
  • Threaded holes for attachments
  • Capacities from 0.25 lb to 100 lb
Price € 1.706,00
More information

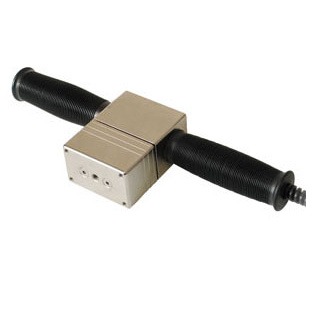

R05 Series Push/Pull Sensors

R05 Series
  • Push / pull testing
  • Capacity 2500 N
  • External sensor to be used with the 3i or 5i series force/torque displays
  • Threaded hole for attachments
Price € 853,00
More information

R50 Series Universal Torque Sensor with Jacobs chuck

R50 Series
  • General bi-directional torque testing
  • Capacities from 7 to 1150 Ncm
  • External sensor to be used with the 3i or 5i series force/torque displays
  • 3 years warranty
Price from € 916,00
More information

R51 Series Universal Torque Sensors for bi-directional torque testing

R51 Series
  • Universal Torque Sensors
  • External sensor to be used with the 3i or 5i series force/torque displays
  • Interchangeable chucks
  • Bi-directional torque testing
  • 3 years warranty
Price from € 858,00
More information

R52 Series Torque Sensor for calibrating tools

R52 Series
  • Torque tool testing
  • External sensor to be used with the 3i or 5i series force/torque displays
  • Mounting holes for bench mounting
  • Capacities from 10 ozFin to 100 lbFin (7 to 1150 Ncm)
  • Bi-directional
Price from € 887,00
More information

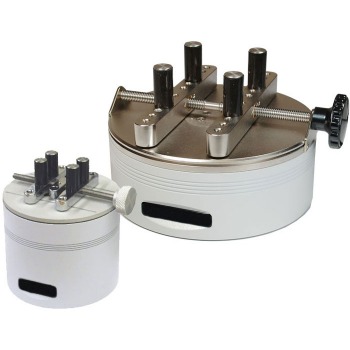

R53 Series Closure Torque Sensors

R53 Series
  • Closure, bottle cap testing
  • External sensor to be used with the 3i or 5i series force/torque displays
  • Capacities from 10 ozFin to 100 lbFin (7 to 1150 Ncm)
  • Bi-directional

R54 Series Wrench Extension Torque Sensor

R54 Series
  • Torque wrench testing
  • External sensor to be used with the 3i, 5i or 7i series force/torque displays
  • Capacities from 20 lbin to 5,000 lbin (220 Ncm to 550 Nm)
  • Bi-directional

R55 Series robust Square Drive Torque Sensor

R55 Series
  • Torque wrench testing
  • External sensor to be used with the 3i, 5i or 7i series force/torque displays
  • Capacities from 20 lbin to 5,000 lbin (220 Ncm to 550 Nm)
  • Square drives on each end
Price € 1.340,00
More information

MR06-200 Hand-held Wire Crimp Pull Sensor

MR06-200
  • Manual Wire Crimp Pull Testing Sensor
  • Accuracy: ±0.5% of full scale
  • Range: 0-100 Kg / 0-1000N
  • External sensor to be used with the 3i, 5i or 7i series force/torque displays
Price € 1.794,00
More information

Series R07 Force Sensors for Series F Test Stands

Series R07
  • Compatible with Models F755, F755S, F1505, and F1505S
  • Accuracy: ± 0.15% of full scale + indicator or test frame
  • Safe Overload: 150% of full scale
  • Weight: From 0,9 kg, depending on model
Price € 780,00
More information

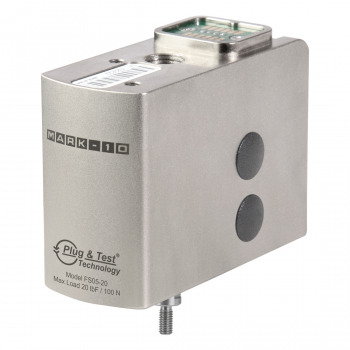

Series FS05

Series FS05
  • Accuracy: ± 0.1% of full scale + indicator or test frame
  • Safe Overload: 150% of full scale
  • Weight: From 0,9 to 1,4 kg
Price from € 1.253,00
More information
