Electronic Counters

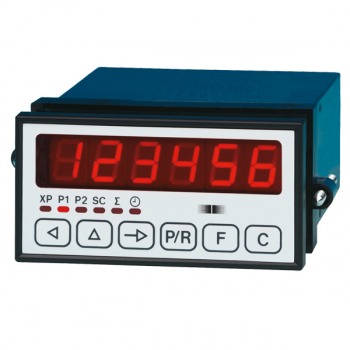

NE131 Electronic preselection counter with one or two presets

NE131 Electronic preselection counter with one or two presets
  • IVO Multifunctional Counter with 1 or 2 presets
  • Sensor Supply: n.a.
  • Inputs: 12...260 VAC/VDC
  • Counting Rate: 25 / 1000 Hz
  • Output: 1 or 2 relay
  • Interface: n.a.
  • Counting Mode:
    adding or substracting
  • Front Dimensions: 48 x 48 mm

NE134 Multifunctional Counter with one or two presets

NE134 Multifunctional Counter with one or two presets
  • IVO Multifunctional Counter with 1 or 2 presets
  • Sensor Supply: Max. 60 mA
  • Inputs: A,B, 3 contr. inp
  • Counting Rate: 3 / 25 / 10000 Hz
  • Output: 2 electr. or relay
  • Interface: RS485
  • Counting Mode:
    A90°B, A-B, etc.
  • Front Dimensions: 48 x 48 mm

NE210 IVO Multifunctional Counter

NE210 IVO Multifunctional Counter
  • IVO Multifunctional Counter with 1 preset
  • Sensor Supply: Max. 50 mA
  • Inputs: A,B, 1 contr. inp
  • Counting Rate: 15 / 10000 Hz
  • Output: 1 electr. a. relay
  • Interface: n.a.
  • Counting Mode:
    A90°B, A-B, etc.
  • Front Dimensions: 48 x 48 mm

NE212 Multifunctional Counter with two presets

NE212 Multifunctional Counter with two presets
  • IVO Multifunctional Counter with 2 presets
  • Sensor Supply: Max. 100 mA
  • Inputs: A,B, 3 contr. inp
  • Counting Rate: 15 / 25 / 10000 Hz
  • Output: 3 electr. or relay
  • Interface: RS232 / 422 / 485
  • Counting Mode:
    A90°B, A-B, etc.
  • Front Dimensions: 72 x 72 mm

NE213 Multifunctional Counter with 2 presets and print interface

NE213 Multifunctional Counter with 2 presets and print interface
  • IVO Multifunctional Counter with 2 presets and print interface
  • Sensor Supply: Max. 100 mA
  • Inputs: A,B, 3 contr. inp
  • Counting Rate: 15 / 25 / 10000 Hz
  • Output: 3 electr. or relay
  • Interface: RS232 / 422 / 485
  • Counting Mode:
    A90°B, A-B, etc.
  • Front Dimensions: 72 x 72 mm

NE214 Multifunctional Counter with two presets

NE214 Multifunctional Counter with two presets
  • IVO Multifunctional Counter with 2 presets
  • Sensor Supply: Max. 100 mA
  • Inputs: A,B, 2 contr. inp
  • Counting Rate: 3 / 25 / 10000 Hz
  • Output: 2 electr. a. relay
  • Interface: RS232 / 422 / 485
  • Counting Mode:
    A90°B, A-B, etc.
  • Front Dimensions: 96 x 48 mm

NE215 Multifunctional Counter with 2 presets and Preliminary testing by PTB

NE215 Multifunctional Counter with 2 presets and Preliminary testing by PTB
  • IVO Multifunctional Counter with 2 presets and Preliminary testing by PTB
  • Sensor Supply: Max. 80 mA
  • Inputs: A,B, 2 contr. inp
  • Counting Rate: 10000 Hz
  • Output: 3 relays
  • Interface: RS232 / 422 / 485
  • Counting Mode:
    A90°B, B x 1
  • Front Dimensions: 72 x 72 mm

NE216 Multifunctional Counter with two presets

NE216 Multifunctional Counter with two presets
  • IVO Multifunctional Counter with 2 presets
  • Sensor Supply: Max. 60 mA
  • Inputs: A,B, 2 contr. inp
  • Counting Rate: 3 / 25 / 10000 Hz
  • Output: 2 electr. or relay
  • Interface: RS485
  • Counting Mode:
    A90°B, A-B, etc.
  • Front Dimensions: 48 x 48 mm

NE218 Multifunctional Counter with two presets

NE218 Multifunctional Counter with two presets
  • IVO Multifunctional Counter with 2 presets
  • Sensor Supply: Max. 85 mA
  • Inputs: A,B, 2 contr. inp
  • Counting Rate: 3 / 25 / 10000 Hz
  • Output: 2 relays
  • Interface: RS422 / 485
  • Counting Mode:
    A90°B, A-B, etc.
  • Front Dimensions: 96 x 48 mm
