The TT-QC torque tool tester is easy to install and perfectly suitable for quick tool inspection.
Small and light to be used everywhere, this device can also be deployed alongside any other measuring device. It represents our currently smallest and cheapest torque calibrator and is designed for fast equipment testing at the workplace.
It measures clock, dial and digital keys, screwdrivers and many other similar electronic tools, including impulse and DC electronics.

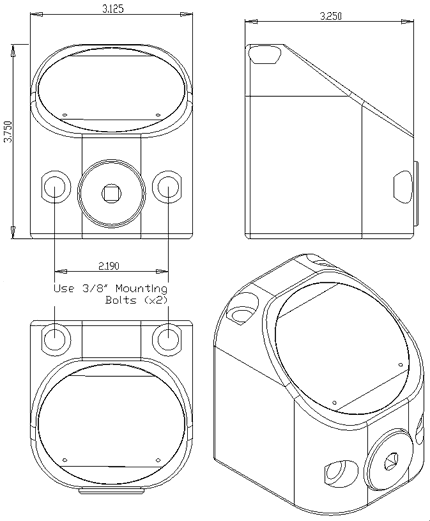

The unique rotating display (optional) and dual bolt pattern allow for applications in both horizontal and vertical configurations, enabling an almost effortless switching between the two modes and between the "pistol grip" and "inline tool control".
The TT-QC torque meter test parameters only takes seconds to change and the change works in two ways, either with the control knob or in automatic mode. Reliability and user-friendliness are enhanced by features such as: Sign Lock, Peak Blanking, Auto Clear.
Please note that a screw simulator is required for the use of electrical, hydraulic and pneumatic tools: run-down-fixture
This torque tester is not suitable for testing impact wrenches, nor for use with force multipliers.
| Model | Range | Drive | Run-down fixture | ||
| TT-QC-50z-1/4 | 0.03 - 0.35 N-m | 1/4" | Included | ||
| TT-QC-100z-1/4 | 0.07 - 0.7 N-m | 1/4" | Included | ||
| TT-QC-10i-1/4 | 0.11 - 1.12 N-m | 1/4" | Included | ||
| TT-QC-200z-1/4 | 0.14 - 1.4 N-m | 1/4" | Included | ||
| TT-QC-25i-1/4 | 0.28 - 2.8 N-m | 1/4" | Included | ||
| TT-QC-50i-1/4 | 0.56 - 5.6 N-m | 1/4" | Included | ||
| TT-QC-100i-1/4 | 1.12 - 11 N-m | 1/4" | Included | ||
| TT-QC-150i-1/4 | 1.6 - 16 N-m | 1/4" | Included | ||
| TT-QC-250i-3/8 | 2.8 - 28 N-m | 3/8" | Included | ||
| TT-QC-500i-3/8 | 5.6 - 56 N-m | 3/8" | Included | ||
| TT-QC-750i-3/8 | 8.4 - 84 N-m | 3/8" | Included | ||
| TT-QC-1000i-3/8 | 11.2 - 112 N-m | 3/8" | Included | ||
| TT-QC-100f-1/2 | 13.5 - 135 N-m | 1/2" | Optional | ||
| TT-QC-150f-1/2 | 20 - 203 N-m | 1/2" | Optional | ||
| TT-QC-250f-1/2 | 33 - 338 N-m | 1/2" | Optional | ||
| TT-QC-500f-3/4 | 67 - 670 N-m | 3/4" | Optional | ||
| TT-QC-600f-3/4 | 81 - 810 N-m | 3/4" | Optional | ||
| TT-QC-750f-3/4 | 101 - 1016 N-m | 3/4" | Optional | ||
Don't see the range you need? Custom ranges are available, please call us to discuss your application.
| Calibrated Range | 10-100% Full Scale, bi-directional |
| Accuracy | ±1% of indicated reading (Bidirectional) |
| Resolution | 4 Active Digits |
| Overload Protection | 200% Full Scale bi-directional |
| Filtering | Selectable - 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 1500 Hz and 2000 Hz |
| Data Output | RS-232 |
| Alarm Limits | Panel Mounted LED for Visual Alarm Limits |
| Power | Internal NiMH battery, 9V Charger (included) |
| Weight | 2.5 lbs |
| Operating Temperature | 32 - 122°F / 0-50°C |
| Warranty | 1 Year |
| Calibration Certificate | Includes NIST Traceable calibration certificate with data |
| Standard Accessories | Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger |
| Optional Accessories | Joint Simulators for 1/2", 3/4" & 1" Transducers |
