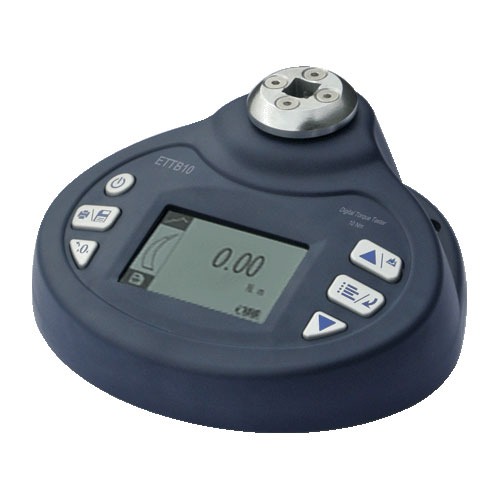

TTC Torque Tool Tester
The Checkline TTC Torque Tool Tester is easy to install and perfectly suitable for quick tool inspection. It comes in 9 Torque ranges from 2 N-cm up till 800 N-m.
The models TTC-I up till 100 N-m come with an integrated sensor. The models TTC-E from 200 up till 800N-m come with an external sensor.
- Bidirectional accuracy is ± 0,3% of reading over 5 to 100% capacity
- 6 modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak
- Selectable engineering units: N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range)
Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a period of time, Auto First Peak which resets the first peak after a period of time, Double Peak which provides two separate peak readings from programmed decreases. Preset operation with programmable tolerance thresholds for quick pass fail tool test is available in all modes.
The TTC Torque Tool Tester Series is accurate and can be used to test the torque on wide range of torque tools. Such as:
- Torque wrenches,
- Manual screwdrivers,
- Electric screwdrivers,
- Pneumatic screwdrivers
- Other torque controlled power tools. (Not suitable for impact torque tools)
The TTC Torque Tool Tester Series can be used with the integrated rechargeable battery (Battery Life Approx. 16 Hours continuous on full charge) or with the included AC adapter.
The analog bar graph on the backlit, reversible LCD shows the current torque position compared to the full scale range. in CW and CCW direction. Pass/fail icons produce live test feedback allowing instant determination of the results.
The TTC Torque Tool Tester comes standard with USB and RS-232 outputs. The TTC’s software enables the uploading of data and the additional statistical analysis with its auto-calculation of the selected values.
Features
- Solid lightweight aluminum housing
- 6 modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak
- 0.3% accuracy and measuring ranges up to 800 N-m
- Pass / Fail Testing with LED indication
- Data storage for up to 1000 readings
- USB and RS232 communication for data export
- Runs on rechargeable batteries or using the AC adapter
The TCC-I Torque Tool Tester comes with:
- USB cable
- Charger adapter
- Calibration certificate with data
- Printer cable
- Square driver adapter connector (Ranges to 200 N-m only)
- Instruction manual English
- Free Software
| Model | N-m | Resolution N-m | N-cm | Resolution N-cm | kgf-cm | Resolution kgf-cm | in-lbf | Resolution in-lbf | ft-lbf | Resolution ft-lbf | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TTC-I-2 | 0.0020 | 0.0002 | 0.20 -200 | 0.02 | 0.020 - 20 | 0.002 | 0.025 - 17.7 | 0.002 | 0.0020 - 1.48 | 0.0002 | |
| TTC-I-5 | 0.0050 - 5 | 0.0005 | 0.50- 500 | 0.05 | 0.050 -50 | 0.005 | 0.045 - 43.3 | 0.005 | 0.0040 - 3.7 | 0.0005 | |
| TTC-I-10 | 0.010 - 10 | 0.001 | 1.0 - 1000 | 0.1 | 0.10 - 10 | 0.01 | 0.09 - 88.5 | 0.01 | 0.007 - 7.4 | 0.001 | |
| TTC-I-20 | 0.020- 20 | 0.002 | 2.0- 2000 | 0.2 | 0.20 -200 | 0.02 | 0.18 - 177 | 0.02 | 0.014 - 14.8 | 0.002 | |
| TTC-I-50 | 0.050 - 50 | 0.005 | 5.0 - 5000 | 0.5 | 0.50 - 500 | 0.05 | 0.45 - 443 | 0.05 | 0.035 - 36.8 | 0.005 | |
| TTC-I-100 | 0.10 - 100 | 0.01 | 10- 10000 | 1 | 1.0 -1000 | 0.1 | 0.9 - 885 | 0.1 | 0.07 - 74 | 0.01 | |
| TTC-E-200 | 0.20 - 200 | 0.02 | - | - | 2.0 -2000 | 0.2 | 1.8 - 1770 | 0.2 | 0.14 - 148 | 0.02 | |
| TTC-E-500 | 0.50- 500 | 0.05 | - | - | 5.0 -5000 | 0.5 | 4.5 -4425 | 0.5 | 0.35 - 368 | 0.05 | |
| TTC-E-800 | 1.6 - 800 | 0.1 | - | - | 16 -8000 | 1 | 14 -7080 | 1 | 1.1 - 590 | 0.1 |
Dimensions
Accessories
TWT-410 Torque Wrench Test Stand
- The flexible design of the TWT-410 is easy to use and is suitable for various torque wrench lengths and brands
- Compatible with TT-QC, TT-QCM, TTC and TC-DT torque testers and IT Torque sensors
- Capacity up to 340 Nm
More details
TWT-2000-Series Torque Wrench Loader
- Tool for torque wrench calibration/verification
- Compatible with many torque tool testers and wrenches
- Manually operated by hand wheel
More details
Specifications
| Calibrated Range | 5-100% Full Scale, bi-directional |
| Accuracy | ±0.3% of measured value over 5 to 100% capacity |
| Tool Socket Size | TTC-2/5/10: 1/4” & 1/2” (6.3 & 12.5 mm) TTC-20/50/100/200: 3/8” & 1/2” (10 & 12.5 mm) TTC-500/800: 3/4” (19 mm) |
| Selectable measuring units | N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range) |
| Overload Protection | 120% of Full Scale |
| Sampling Rate | 2000 Hz |
| Peak Capture Rate | 0.05 s |
| Display | Pantalla LCD retroiluminada de matriz de 160 x 128 puntos |
| Display Update Rate | 10 times/sec |
| Memory | 1000 data |
| Set Point | Programmable High and Low Limits |
| Battery Indication | Battery icon flashes when low |
| Charger/Adapter | Universal USB charger, input 100 to 240 V ac 50/60 Hz |
| Operating Temperature | -10 to 40°C |
| Humidity Limit | 20 to 80% RH |
| Power | 3.6 V dc 1600 mAH Ni-MH |
| Battery Life | Approximately 16 Hours continuous on full charge |
| Output | USB, serial port RS-232, High and low limit NPN |
| Dimensions | 197 x 180 x 83 mm |
| Weight | TTC-I models: 1.5 kg / TTC-E models: Display 1,2 kg & TTC-E-200/500/800 External Sensor: 2 kg |
| Certification | CE |
| Warranty | 1 year |
| Shipping Weight | TTC-I models: 3,0 kg / TTC-E models: 4,6 kg |
