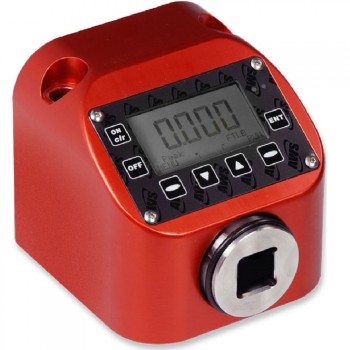

TT-QCM Torque Tool Tester for torque tool calibration


Made in the USA

The TT-QCM Torque Calibrator is perfect for testing and calibrating click, dial and digital keys, as well as most electrical tools, including pulse and DC electronics, various torque wrenches and torque devices.

The memory of the TT-QCM test device is designed for up to 999 data points, which can be stored in the device for later viewing, or can be transmitted to a printer or PC via the RS232 interface.

A large LCD display with an easy menu control enables a quick set up. High and low limits can be set easily and the front mounted LED lamp gives a visual indication as soon as the torque reaches the set limits.The system is also equipped with internal transducers in vertical or horizontal configuration that can easily be switched by the user.


*Please note that a screw simulator is required for the use of electrical, hydraulic and pneumatic tools. This device is not suitable for the inspection of impact wrenches or for use with force multipliers.


Features

  • Bidirectional accuracy of ± 0.5% of indicated reading (± 0.25% is optional)
  • NiMH rechargeable batteries provide up till 10 hours continuous use
  • CE Certified and NIST Calibration Certificate
  • Rugged Aluminum Housing
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm

Torque ranges

Oz-in Lb-in Lb-ft N-m N-cm Kgf-m Kgf-cm Gf-cm

Model Range Drive
Size
Run-down fixture
TT-QCMIO-50* 0.0 - 0.3 N-m 1/4" Inbegriffen
TT-QCMIO-100* 0.07 - 0.7 N-m 1/4" Inbegriffen
TT-QCM-10i 0.11 - 1.2 N-m 1/4" Inbegriffen
TT-QCMIO-200 0.14 - 1.4 N-m 1/4" Inbegriffen
TT-QCM-25i 0.28 - 2.8 N-m 1/4" Inbegriffen
TT-QCM-50i 0.56 - 5.6 N-m 1/4" Inbegriffen
TT-QCM-100i 1.12 - 11.2 N-m 1/4" Inbegriffen
TT-QCM-150i 1.6 - 16 N-m 1/4" Inbegriffen
TT-QCM-250i 2.8 - 28 N-m 3/8" Inbegriffen
TT-QCM-500i 5.6 - 56 N-m 3/8" Inbegriffen
TT-QCM-750i 8.4 - 84 N-m 3/8" Inbegriffen
TT-QCM-1000i 11.2 - 112 N-m 3/8" Inbegriffen
TT-QCM-100F 13.5 - 135 N-m 1/2" Optional
TT-QCM-150F 20 - 203 N-m 1/2" Optional
TT-QCM-250F 33 - 338 N-m 1/2" Optional
TT-QCM-500F 67 - 670 N-m 3/4" Optional
TT-QCM-600F 81 - 810 N-m 3/4" Optional
TT-QCM-750F 101 - 1016 N-m 3/4" Optional
TT-QCM-1000F** 135 - 1350 N-m 1" Optional
TT-QCM-2000F** 271 - 2710 N-m 1" Optional

*QCMIO-50 + 100 accuracy is +/-1% from 10-100% of capacity
**Ranges over 1000 N-m are supplied as cable connected external sensors. Please contact us for more information.

All 1/4" and 3/8" Drive transducers are supplied with run-down fixtures.


Don't see the range you need? Custom ranges are available, please call us to discuss your application.

ER - Extended Range Option increases certified range to 5-100% (instead of 10-100%)


Specifications

Calibrated Range
10-100% Full Scale, bi-directional
Accuracy
±0.5% of indicated (within calibrated range) (±0.25% is optional)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Data Output
RS-232
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Memory
data storage of up to 999 readings
Power
Internal NiMH battery, AC Adapter / Charger (included)
Weight
Aproximately 1,5 kg, depending on transducer
Operating Temperature
0-50 °C
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Standard Accesories
Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional Accessories
Joint Simulators for 1/2", 3/4" & 1" Transducers

Related Products

TWT-400 Torque Wrench Test Stand


  • The flexible design of the TWT-400 is easy to use and is suitable for various torque wrench lengths and brands
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • Bidirectional accuracy of ±0,25% of indicated reading

More details

RDF Joint Simulators / Run Down Fixtures


  • Required for accurate torque measurement for power-driven torque controled tools (electric, hydraulic or pneumatic)

More details

TT-QC-CC Waterproof Carrying Case


  • Meets ATA 300 specifications for transit cases and rigorous standards for military use (STANAG 4280, DS 81-41, IP67)
  • Injection molded using an advanced patented light-weight high-strength plastic

More details


Buy Now

Products


Product name
Price
Quantity
TT-QCMIO-50-1/4T-E Torque Tester - 0,0-0,3 Nm
€ 1.920,00

TT-QCMIO-100-1/4T-E Torque Tester - 0,07-0,7 Nm
€ 1.920,00

TT-QCM-10i-1/4T-E Torque Tester - 0.1-1,2 Nm
€ 1.920,00

TT-QCMIO-200-1/4T-E Torque Tester - 0,14-1,4 Nm
€ 1.920,00

TT-QCM-25i-1/4T-E Torque Tester - 0,3-2,8 Nm
€ 1.920,00

TT-QCM-50i-1/4T- - TT-QCM-50i-1/4-E Torque Tester - 0.5-5,6 Nm
€ 1.920,00

TT-QCM-100i-1/4T-E Torque Tester - 1-11 Nm
€ 1.920,00

TT-QCM-150i-1/4T-E Torque Tester - 1,6-16 Nm
€ 1.920,00

TT-QCM-250i-3/8T-E Torque Tester - 2,8-28 Nm
€ 1.920,00

TT-QCM-500i-3/8T-E Torque Tester - 5,6-56 Nm
€ 1.920,00

TT-QCM-750i-3/8T-E Torque Tester - 8,4-84 Nm
€ 1.920,00

TT-QCM-1000i-3/8T-E Torque Tester - 11,2-112 Nm
€ 1.920,00

TT-QCM-100F-1/2T-E Torque Tester - 13,5-135 Nm
€ 2.098,00

TT-QCM-150F-1/2T-E Torque Tester - 20-203 Nm
€ 2.098,00

TT-QCM-250F-1/2T-E - TT-QCM-250F-1/2-E Torque Tester - 33-338 Nm
€ 2.098,00

TT-QCM-500F-3/4T-E Torque Tester - 67-670 Nm
€ 2.098,00

TT-QCM-600F-3/4T-E Torque Tester - 81-810 Nm
€ 2.098,00

TT-QCM-750F1 - TT-QCM-750F-3/4 Torque Tester - 101 - 1016 Nm
€ 2.098,00

TT-QCM-1000F-1 Torque Tester - 135-1350 Nm
€ 2.098,00

TT-QCM-2000F-1 Torque Tester - 271-2710 Nm
€ 2.098,00



Accessories


Product name
Price
Quantity
TT-SOFT Software for TT-Series with cable
€ 118,00

TT-QC-CC, Waterproof Carrying Case
€ 127,00

ER - Extended Range option, increases certified range to 5-100% (instead of 10-100%)
€ 107,00

UPG-25 - Upgrade accuracy from ± 0.5% to ± 0.25% - PER TRANSDUCER
€ 107,00

TT-QCM-World-Replacement AC-Adapter/Charger for QCM
€ 47,00

All mentioned prices are excluding VAT & excluding shipment costs.
