Ultrasonic Thickness Gauges


Advantages of wall thickness measurement with a wall thickness gauge

With a wall thickness gauge, you determine the wall thicknesses of objects that cannot be measured with a micrometer due to their geometry or location. In addition to complex applications, wall thickness gauges are of course also suitable for simple, precise measurements in easily accessible places. The wall thickness measuring devices found here can be divided into two subcategories.

Ultrasonic wall thickness gauges

Ultrasonic thickness gauges are designed to measure thickness of materials from one side using ultrasonic sound waves. When an ultrasonic wave is sent through the material, this signal is reflected by the back wall of the material and received by the wall thickness gauge. The delay between sending and receiving the signal can be used to calculate the wall thickness of the material. Common applications where ultrasonic thickness gauges are used are measuring corrosion on ship hulls or inside pipes from the outside. Other common applications are measurement of wall thickness of plastic and glass bottles and metal cans or containers. Ultrasonic thickness gauges can be used for all kinds of quality control or inspection purposes.

Steel and most other metals are suitable for measurement with a wall thickness gauge, but other materials such as glass, some plastics and even rubber can be measured as well with Checkline Europe's ultrasonic thickness gauges.

Magnetic wall thickness gauges

Magnetic wall thickness measurement has a measuring probe on one side and a small steel ball on the other side of the material. With this method, the wall thickness measuring device can be used on all non-magnetic materials such as glass, plastic, ceramics, non-ferrous metals and much more. be used. It is particularly practical here that no specific calibration must be carried out for the respective material.

The right solution for you

What is the optimal solution for your application depends on many factors, please contact us so that we can work out the right solution for you.



Choose your model


Measuring Range

Measurement of coated materials

Resolution

Data Storage

Features

Material thickness & wall thickness measurement information page

Wanddickenmessung Informationsseite
  • General information on our wall thickness measurement gauges
  • Useful information for choosing the right measuring gauge and probe

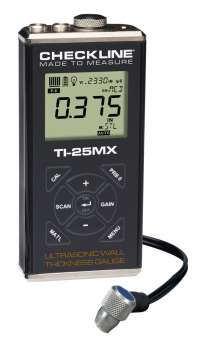

TI-25MX Adjustable Wall Thickness Gauge

TI-25MX
  • Wall thickness gauge with adjustable sound velocity and 2-point calibration
  • Measuring range:
    0.63 - 150 mm (with probe) - 0.63 - 914 mm (depending on probe and material)
  • Resolution: 0,01 mm
  • Velocity range:
    305 - 18,542 m / s
  • High speed surface scan mode
Price € 1.155,00 - € 1.330,00
More information

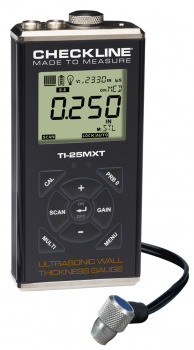

TI-25MXT Thickness gauge through paint and coating

TI-25MXT
  • Compact measuring device for determining the material thickness while suppressing the layer thickness
  • Total Measurement range: Pulse Echo 0.63 - 914.4 mm & Echo Echo 2.54 -25.4 mm
  • Resolution: 0,01 mm
  • Adjustable sound velocity: 305 - 18,542 m / s
  • Measurement of the wall thickness without the layer thickness
  • Measurement in the pulse echo or echo-echo method
Price € 1.390,00 - € 1.722,00
More information

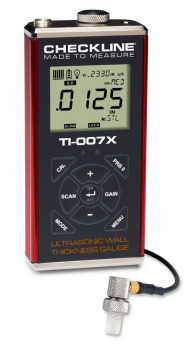

TI-007X Precision Ultrasonic Wall Thickness Gauge

TI-007X
  • Ultrasonic wall thickness gauge with high precision & resolution.
  • Measurement range with standard probe:
    0.15 - 25.4 mm
  • Resolution: 0.001 mm / 0.01 mm
  • Measurement Mode:
    Echo Echo and Interface Echo
  • Special "PLAST" mode for thin plastics
Price € 1.700,00
More information

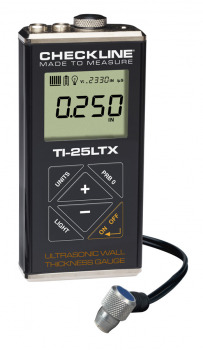

TI-25LTX Steel Only Ultrasonic Wall Thickness Gauge

TI-25LTX
  • Simple wall thickness gauge for measurements on steel only
  • Measurement range:1 - 150 mm
  • Resolution: 0.05 mm
  • Fixed sound velocity of 5920 meters/second
Price € 901,00
More information

TI-25PX Economical Ultrasonic Wall Thickness Gauge

TI-25PX
  • Thickness gauge with adjustable sound velocity
  • Measurement range:1 - 150 mm (with standard probe T-102-2000)
    0.63 - 914 mm (depending on probe and material)
  • Resolution: 0,01 mm
  • Sound velocity:
    305 - 18542 m/s
Price € 987,00
More information

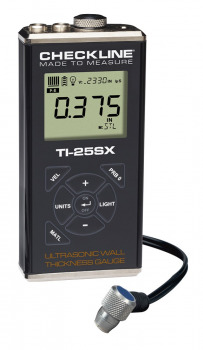

TI-25SX Ultrasound Thickness Gauge

TI-25SX
  • Ultrasonic thickness gauge with adjustable sonic speed and preset materials
  • Standard measuring range: 0.63 - 150 mm
  • Resolution: 0.01 mm
  • Velocity range:
    305 - 18542 m/s
  • 8 preset materials and 2 customer storage spaces
Price € 833,00 - € 1.090,00
More information

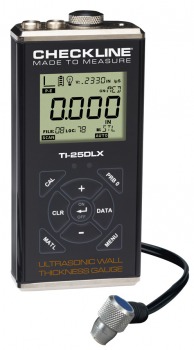

TI-25DLX Ultrasonic wall thickness gauge with data memory & USB output

TI-25DLX
  • Ultrasonic wall thickness gauge with data memory & USB output
  • Measuring range:
    0.63 - 150 mm (with probe on steel) - 0.63 - 914 mm (depending on probe and material)
  • Resolution :0,01 mm
  • Data storage: for 10,000 readings
Price € 1.570,00
More information

TI-25DLXT Ultrasonic Thickness Gauge with data memory

TI-25DLXT
  • Wall thickness gauge for steel
  • Measuring range:1 - 150 mm
  • Resolution: 0.05mm
  • Velocity range fixed at 5920 meters/second
Price € 1.465,00 - € 1.722,00
More information

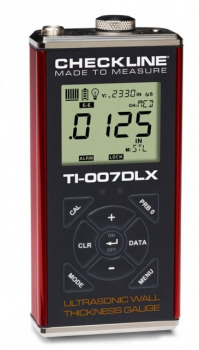

TI-007DLX for high-resolution measurements on thin-wall materials

TI-007DLX
  • Material thickness gauge ultrasound with data memory
  • Measuring range with standard probe on steel:
    0.15 - 25.4 mm
  • Data storage for 10,000 readings in 40 batches
  • Resolution: 0.001 mm / 0.01 mm
  • Data storage: Yes
  • Measurement Mode:
    Echo Echo and Interface Echo
  • Special "PLAST" mode for thin plastics
Price € 1.914,00
More information

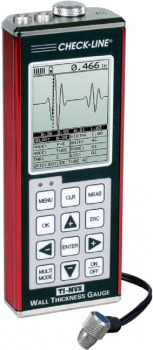

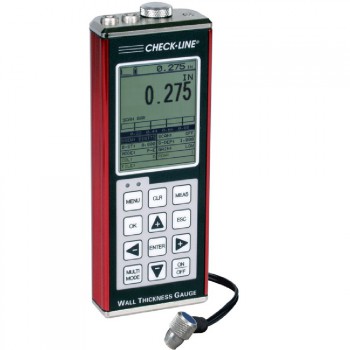

TI-MVX Ultrasonic Thickness Gauge with Enhanced Display and adjustable gain

TI-MVX
  • Top Model which Measures through paint and coatings with Data Logging, Adjustable Gain and an enhanced display
  • Range:
    Pulse-Echo Mode
    (Pit & Flaw Detection)
    0.63 - 254 mm (0.025 - 9.999 inch)
    Echo-Echo Mode
    (Through Paint & Coatings)
    2.54 - 102 mm (0.1 - 4.0 inch)
  • Resolution: 0.01 mm (0.001")
  • Memory for 12,000 pages with 1 value and waveform
  • Housing Material: Aluminium
  • Warranty:
    Gauge: 2 Years
    Probe: 90 Days
Price € 2.061,00
More information

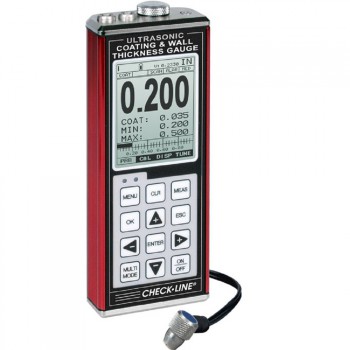

TI-CMX Ultrasonic Coating & Wall Thickness Gauge

TI-CMX
  • Ultrasonic COATING & WALL Thickness Gauge which measures wall thickness through coatings as well as coating thickness
  • Range:
    0.63 - 254.0 mm
    0.025 - 9.999 inches
  • Resolution: 0.01 mm (0.001")
  • Housing Material: Aluminium
  • Warranty:
    Gauge: 2 Years
    Probe: 90 Days
  • Automatic probe detection
Price € 1.652,00 - € 1.873,00
More information

MiniTest FH Series Precision Magnetic Thickness Gauge

MiniTest FH Series
  • Precision Thickness Gauge for measuring thin walls of bottles, tubes, plates and more. With automatic data logger and optional statistics
  • Range: 0.00 - 10.00mm
  • Datalogging: YES

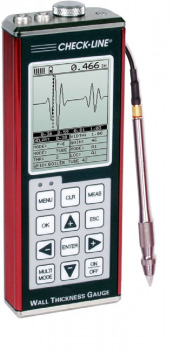

TI-PVX Precision Ultrasonic A-scan Wall Thickness Gauge

TI-PVX
  • Top model for high precision measurement, ideal for applications with minimum access or contact areas
  • Range:
    Interface-Echo Mode:
    Steel 1.27 - 25.4 mm
    (0.05 - 1.0 inch)
    Plastics from 0.127 mm
    (0.005 inch)
    Echo-Echo Mode:
    Steel 0.15 - 12.7 mm
    (0.006 - 0.500 inch)
    Pulse-Echo Contact Mode:
    Steel 1 - 254 mm
    (0.040 - 10.0 inch)
    Plastics from 0.254 mm
    (0.010 inch)
    Echo-Echo Contact mode:
    Steel thru-paint 2.54 - 76.2 mm
    (0.100 - 3.0 inch)
  • Resolution: 0.001 mm (0.0001")
  • Memory for 12.000 pages with 1 value and waveform
  • Housing Material: Aluminium
  • Warranty:
    Gauge: 2 Years
    Probe: 90 Days
Price € 2.769,00 - € 2.905,00
More information

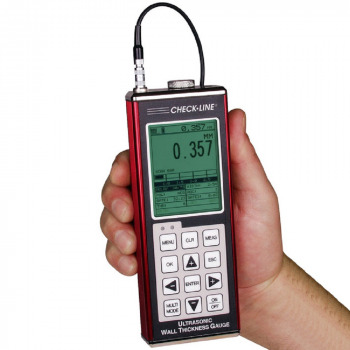

TI-MMX-SDL High Performance Data Logging Wall Thickness Gauge

TI-MMX-SDL
  • Top High Performance Data Logging (12000 Measurements) Wall Thickness Gauge which Measures through paint and coatings with Data Logging and enhanced display
  • Equipped with multiple viewing options to provide users with a complete set of inspection tools: (RF waveform, +/- Rectified waveform and Large Digits).
  • The TI-MMX-SDL has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
  • Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated.
  • The TI-MMX-SDL also comes complete with our Windows® PC software for transferring data to and from a PC.
  • Warranty:
    Gauge: 2 Years
    Probe: 90 Days
Price € 1.889,00
More information

TI-CMXDL Data-Logging Ultrasonic Coating & Wall Thickness Gauge

TI-CMXDL
  • Ultrasonic COATING & WALL Thickness Gauge with datalogging, measures wall thickness through coatings as well as coating thickness
  • Range:
    0.63 - 254.0 mm
    0.025 - 9.999 inches
  • Resolution: 0.01 mm (0.001")
  • Housing Material: Aluminium
  • Warranty:
    Gauge: 2 Years
    Probe: 90 Days
Price € 2.001,00 - € 2.088,00
More information

TI-CMXDLP Data-Logging Ultrasonic Coating & Wall Thickness Gauge

TI-CMXDLP
  • The top-of-the-line model in the CMX Series of Gauges that measures both coating and wall thickness quickly and accurately from only one side - with datalogger
  • Range:
    0.60 - 254.0 mm
    0.025 - 9.999 inches
  • Resolution:0.01 mm (0.001")
  • Housing Material: Aluminium
  • Warranty:
    Gauge: 2 Years
    Probe: 90 Days
Price € 2.611,00 - € 2.959,00
More information

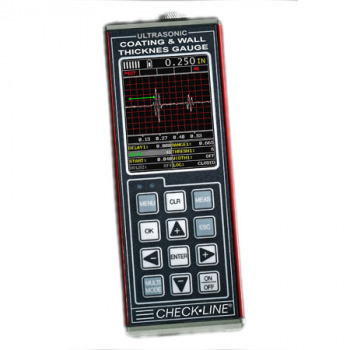

TI-CMXDLP-C Ultrasonic Thickness Gauge - Coulour Version with A-scan function

TI-CMXDLP-C
  • Special color model also suitable for accurate fault checking
  • A-Scan – Rectified +/- (flaw view), RF (full waveform view)
  • Range:
    0.60 - 254 mm
  • Guarantee:
    Gauge: 2 Years
  • Data storage for more than 200,000 measurements
Price € 2.872,00
More information

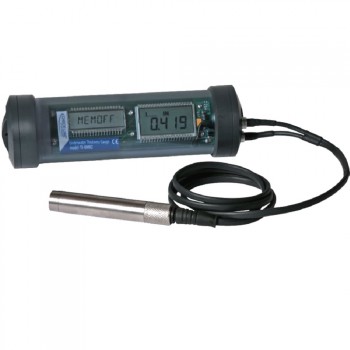

TI-UMX2 Underwater Ultrasonic Thickness Gauge

TI-UMX2
  • UNDERWATER Ultrasonic Coating & Wall Thickness Gauge with datalogging
  • Range:
    0.63 - 254.0 mm
    0.025 - 9.999 inches
  • Resolution: 0.01 mm (.001")
  • Rated for dive depths up to 300 meters (1000 ft)
Price € 3.046,00
More information

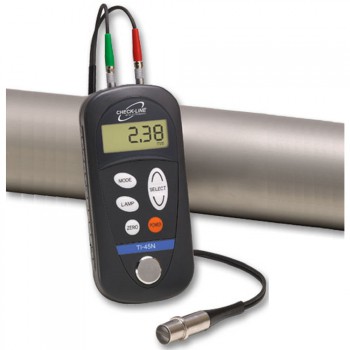

TI-45N Ultrasonic Wall Thickness Gauge

TI-45N
  • Economical gauge for all applications
  • Range:
    1.00 - 200.00 mm
    0.040 - 8.00 inches
  • Resolution: 0.01 mm (0.001")
  • Datalogging: no
  • Warranty:
    Gauge: 1 Year
    Probe: 90 Days
Price € 1.390,00
More information

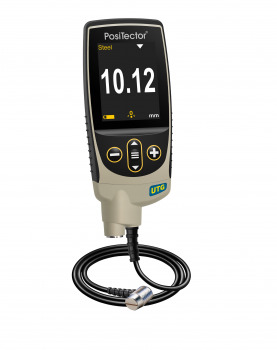

PT-UTG PosiTector UTG Ultrasonic Wall Thickness Gauge

PT-UTG
  • Measuring Range: 0.040" - 5.000" (1.00 - 125 mm)
  • Available in Standard and Thru-Paint models
Price € 947,00 - € 1.993,00
More information

Dakota Ultrasonics

Dakota Ultrasonics
  • Precision Ultrasonics
  • Ultrasonic Thickness Gauges

Ultrasonic Thickness Gauge Accessories

Ultrasonic Thickness Gauge Accessories
  • Accessories for wall thickness gauges

Wall Thickness Probes

Wall Thickness Probes
  • Accessories
  • (Spare) probes for wall thickness gauges

Cic-Wall | Wall Thickness Gauge Calibration

Cic-Wall
  • Calibration of your wall thickness gauge
Price € 99,00
More information
