Analog Tension Meters


Mechanical Tension Meters for all purposes

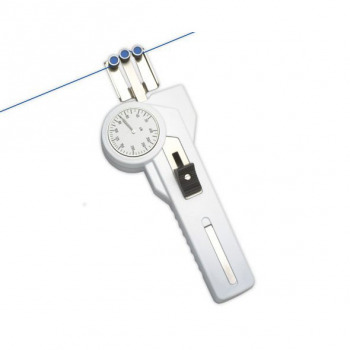

ZF2 Economical tension meter for fiber, yarn and wire testing

ZF2 Economical tension meter for fiber, yarn and wire testing
  • Most popular tension meter in the textile industry with small rollers
  • Economical low tension measuring instrument for checking fibers, yarns and fine wires
  • Tension ranges
    from 1 - 5 cN
    to 10 - 100 cN

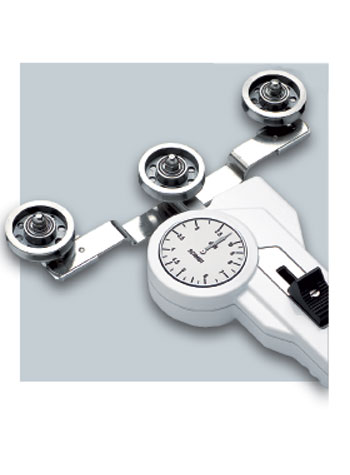

ZD2 Universal tension meter for checking fibers, yarns and fine wires

ZD2 Universal tension meter for checking fibers, yarns and fine wires
  • Tension meter with bigger rollers for universal use
  • Economical low tension measuring instrument for checking fibers, yarns and fine wires
  • Tension ranges
    from 3 - 30 cN
    to 20 - 300 cN

WT-100 Warp Tension Meter

WT-100 Warp Tension Meter
  • For textile warps
  • 0-100 emperical unit scale
  • Metal Housing
  • Spring Loaded Operation

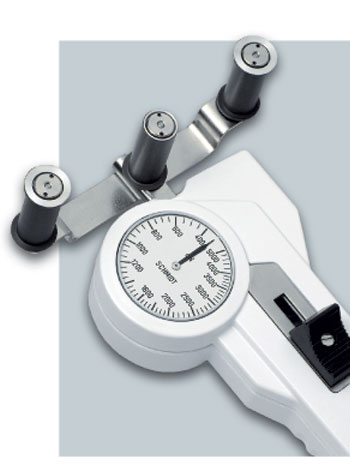

DX2-EDM Wire EDM Tension Meter

DX2-EDM Wire EDM Tension Meter
  • Most popular EDM tension meter
  • Mechanical tension meter for most EDM machines for wire diameter approximately 0.25 mm
  • Tension ranges
    from 50 - 2000 cN
    to 200 - 4000 cN

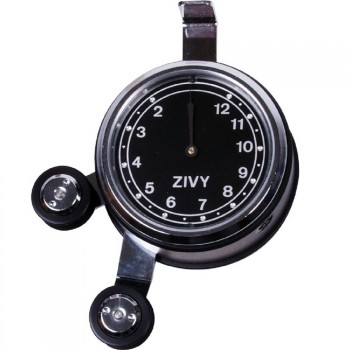

Zivy Hand-held Tension Meter

Zivy Hand-held Tension Meter
  • Hand-held Tension Meter for yarns and filaments
  • 11 measuring ranges from 0.5 - 3 cN up to 50 - 170 cN
  • Large enlacement of thread
  • Extremely compact and light weight
  • V-grooved aluminium guide rollers, ball-bearing mounted

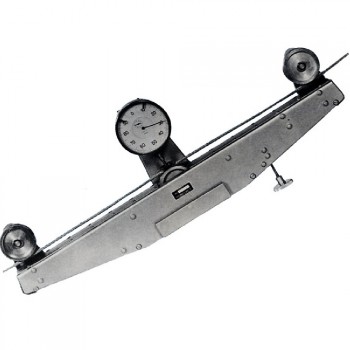

SY Cable, Wire, Rope Tension Meter

SY Cable, Wire, Rope Tension Meter
  • Lightweight portable field tension meter
  • 2 Ranges:
    500 - 1500 daN
    900 - 3000 daN
  • Accuracy:
    ± 5% of the reading
  • Cable Thickness:
    4 - 20 mm (0.16 - 0.79 inch)

MKM Mechanical Tension Meter

MKM Mechanical Tension Meter
  • Mechanical Tension Meter
  • Motorized Take-up Wheel
  • Designed for setting yarn tension devices

STM Screen Tension Meter

STM Screen Tension Meter
  • Screen Tension Meter
  • Designed to measure tension on a screen printing frame

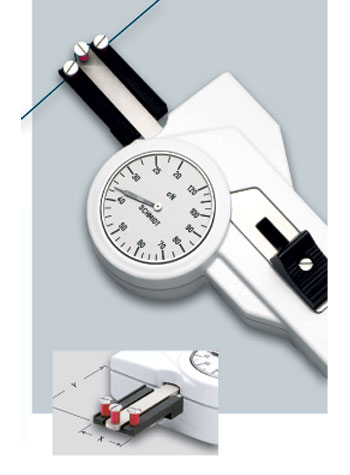

DXE Special tension meter for limited access space

DXE Special tension meter for limited access space
  • For limited access space
  • Tension meter with small measuring head, where access space is limited or where filaments run close together
  • Tension ranges
    from 10 - 50 cN
    to 200 - 2000 cN

DXP Tension meter with smallest measuring head possible

DXP Tension meter with smallest measuring head possible
  • Ceramic pins permit line speeds up to 6000 m/min
  • Tension meter with small measuring head, where access space is limited or where filaments run close together
  • Tension ranges
    from 10 - 50 cN
    to 20 - 200 cN

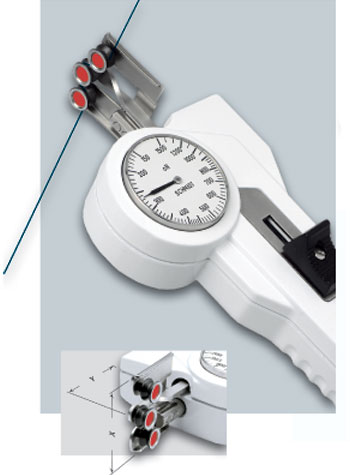

DXV Tension meter with measuring head rotated by 90º

DXV Tension meter with measuring head rotated by 90º
  • With measuring head rotated by 90º
  • Tension meter with small measuring head, where access space is limited or where filaments run close together
  • Tension ranges
    from 10 - 50 cN
    to 200 - 2000cN

DXF Tension meter with large rollers for minimized material deflection

DXF Tension meter with large rollers for minimized material deflection
  • With large rollers 32 mm Ø
  • Tension meter with large rollers to minimize bending of materials like fiber optics, carbon and technical fibers
  • Tension ranges
    from 20 - 120 cN
    to 50 - 1000 cN

DXL Tension meter with large rollers for minimized material deflection

DXL Tension meter with large rollers for minimized material deflection
  • With large rollers 30 mm Ø
  • Tension meter with large rollers to minimize bending of materials like fiber optic cables and buffer tubes up to 8 mm Ø
  • Tension ranges
    from 200 - 2000 cN
    to 2.5 - 10 daN

DXB Tension meter with Cylindrical rollers pointing toward the operator

DXB Tension meter with Cylindrical rollers pointing toward the operator
  • Cylindrical rollers pointing toward the operator
  • Tension meter for measuring all kinds of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc.
  • Tension ranges
    from 10 - 50 cN
    to 5 - 20 daN

DXT Tension meter with Cylindric rollers pointing away from the operator

DXT Tension meter with Cylindric rollers pointing away from the operator
  • Cylindrical rollers pointing away from the operator
  • Tension meter for measuring all kinds of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc.
  • Tension ranges
    from 10 - 50 cN
    to 5 - 20 daN

DN1 Durable tension meter for high tensions

DN1 Durable tension meter for high tensions
  • For high tensions up to 50 daN -- large easy to read scale
  • Durable tension meters for a wide range of applica-tions in the textile, fiber and wire industries
  • Tension ranges
    from 20 - 120 cN
    to 5 - 50 daN

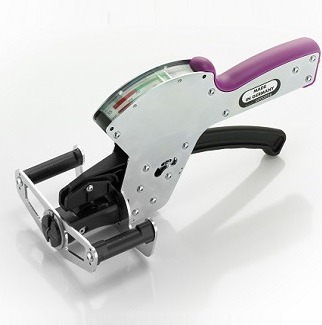

STF-3550 Strap Tension Meter

STF-3550 Strap Tension Meter
  • Strap Tension Meter
  • Scale values ​​at straps width 35 mm:
    150 daN, 250 daN, 350 daN, 450 daN
  • Scale values ​​at straps width 50 mm:
    250 daN, 350 daN, 450 daN,550 daN, 650 daN
