Stroboscopes


Stroboscopes are mainly used for industrial applications, specifically in the analysis and observation of high-speed machinery, like printing presses, cutting machines or machines in the textile industry. As the strobe flash rate has been set to match the machine cycle, the machine appears to be standing still.

Stroboscope tachometer

Our stroboscopes also allow you to take rpm- and speed measurements. Thanks to the adjustable flash frequency, an optimal phase shift is possible. Some of our devices are equipped with the practical “slow motion” function. When using the "slow motion" function with an external signal, you can gradually move the “frozen” image forward. From an economic perspective, an inspection with a stroboscope is ideal because production does not have to be stopped for machine testing.

Portable or stationary & LED or Xenon flash

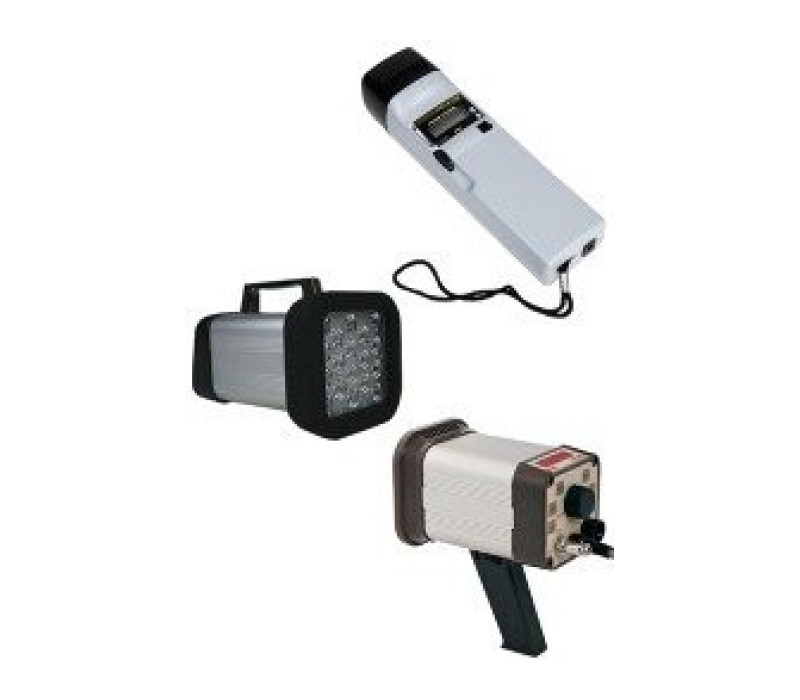

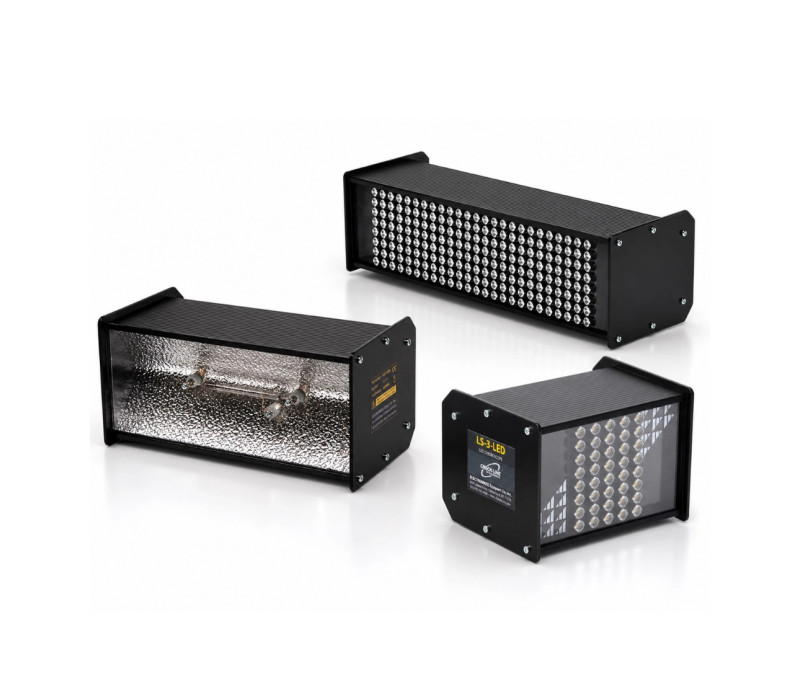

The measuring devices can be divided into two main- and subcategories. The first distinction is made between handheld, portable, battery operated devices and stationary devices. The second division is made in the type of flash: both xenon and LED flashes are available. Xenon stroboscopes are only suitable for measurements up to a maximum of 35,000 flashes per minute, while LED devices can reach higher speeds without any problems. On the other hand, a xenon flash is more centered than that of an LED device and therefore often easier to set, especially for inexperienced technicians.

Finally, when choosing the right stroboscope, the amount of lighting required is to be considered. This may for example depend on indoor or outdoor applications. The devices also differ in their IP protection classes, IP64, IP65 etc.

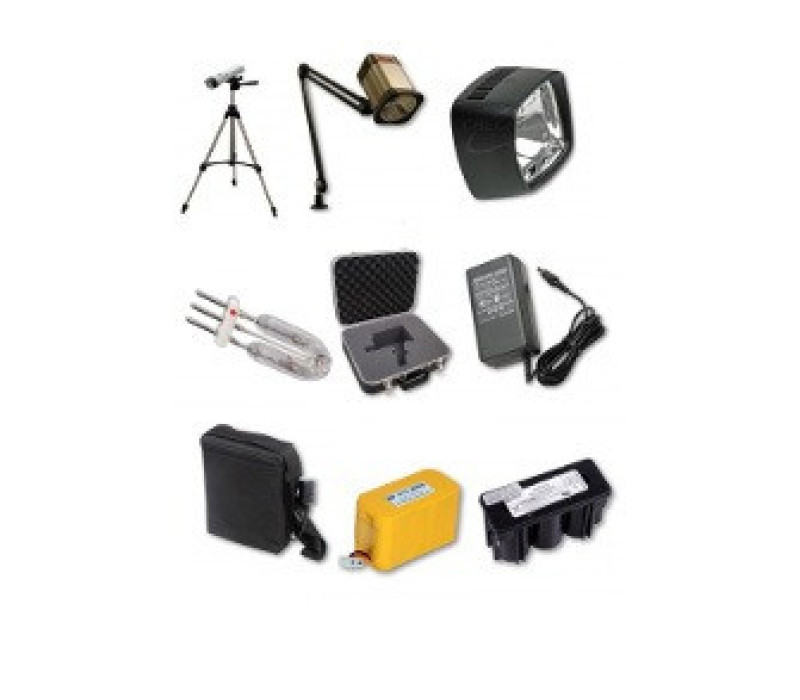

In order to optimally match your stroboscope to your needs, we also offer a large range of accessories, consisting of mounting options, remote controls, sensors etc. For the xenon stroboscopes, we also always have many replacement flash tubes available from stock.

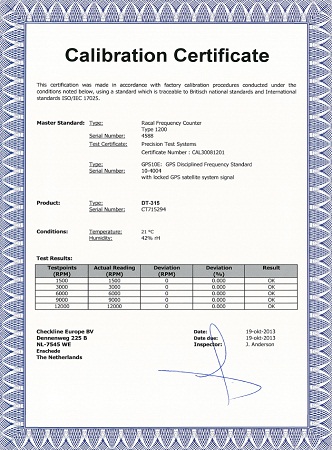

Stroboscope calibration

Of course, we offer calibration services for our stroboscopes as well.

If you need help with buying the right stroboscope feel free to contact us for an individual advise.



PK2X Stroboscope - Portable Pocket-Size Xenon Strobe

PK2X
  • Pocket size portable stroboscope
  • Range: 30 - 12.500 RPM/FPM
  • Weight: 550g (1.1 lbs)
  • Display: 5-digit LCD
  • Power: Internal Battery
Price € 675,00
More information

PK2X-OT Pocket Stroboscope With Output Signal

PK2X-OT
  • Pocket size stroboscope with output signal
  • Range: 30 - 12.500 RPM/FPM
  • Weight: 550g (1.1 lbs)
  • Display: 5-digit LCD
  • Power: Internal Battery
Price € 825,00
More information

DS-2000LED LED Stroboscope

DS-2000LED
  • Advanced LED stroboscope
    with very high flash rate
  • IP65 (Protection from Dust and Water Jets)
  • Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
  • Range: 30 - 300.000 RPM/FPM
  • Weight: 400g
  • Display: Multiple lines LCD
  • Power: 3x AA size batteries or 3x NiMH rechargeable batteries
Price from € 625,00
More information

DS-2000LED-UV UV LED Stroboscope with external trigger input/output

DS-2000-LED-UV
  • UV Light Spectrum 380-390 nm
  • Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
  • Lifetime LEDs do not wear-out or need replacement
Price € 825,00
More information

DS-2000LED-LSR Laser Stroboscope Tachometer, A4-3005

DS-2000LED-LSR
  • DS-2000LED-LSR - Laser Stroboscope Tachometer
  • The DS-2000LED-LSR combines the observational features of an LED stroboscope with convenience of a laser tachometer
  • Produces the brightest flash and sharpest image over the entire range to 300,000 FPM
  • Lifetime LEDs do not wear-out or need replacement
Price from € 675,00
More information

DT-311D AC Powered Digital Xenon Stroboscope

DT-311D
  • Digital Stroboscope, AC Powered
  • Range: 60-12,000 RPM/FPM
  • Power: Universal 85-240 VAC
  • - external trigger input
    - detachable pistol grip
    - switches between Hz and FPM
Price from € 536,00
More information

DT-3015N Portable Xenon Stroboscope with Rechargeable Battery

DT-3015N
  • Xenon Stroboscope with rechargeable Battery
  • Range: 40 - 35.000 FPM
  • Weight: 1,90 kg
  • Display: 6 digits
Price from € 1.252,00
More information

DT-735 Xenon Stroboscope with rechargeable Battery

DT-735
  • Xenon Stroboscope with rechargeable Battery
  • Range: 60 - 12.000 FPM
  • Weight: 1,25 kg
  • Display: 5 digits
Price from € 587,00
More information

DT-326B light weight LED Stroboscope

DT-326B
  • High-Speed LED Stroboskop
  • Up to 120.000 FPM
Price € 710,00
More information

DT-365 LED Stroboscope IP65 DT-365 LED Stroboscope (Battery Powered & IP65)

DT-365 LED Stroboscope IP65
  • Splashproof High-Intensity LED Stroboscope
  • Range: 60 - 120.000 RPM/FPM
  • Water & Dustproof housing (IP65)
  • Weight: 1,8 Kg
  • Display: 6-digit LED (red)
  • Power: Built-in NiMH battery
  • - phase shift adjustment
    - external trigger input

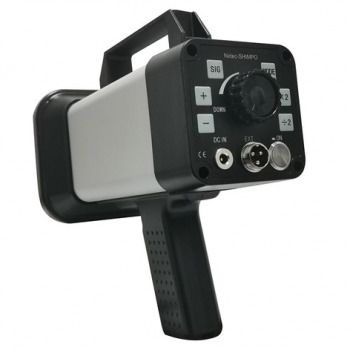

DT-366 Battery Powered LED Stroboscope

DT-366
  • Portable High-Intensity LED Stroboscope
  • Range: 30 - 120.000 RPM/FPM
  • Power: Built-in Lithium battery
  • - phase shift adjustment
    - external trigger input
Price € 1.323,00
More information

DT-900 Digital Pocket Stroboscope

DT-900
  • Advanced stroboscope
    with replaceable battery
  • Range: 40 - 12.500 RPM/FPM
  • Weight: 640g (1.4 lbs)
  • Display: 8-digit LCD
  • Power: Internal Battery
  • - phase shift adjustment
    - external trigger input

LS-36-LED LED stroboscope for inspection

LS-36-LED
  • High performance stroboscope
  • Illumination area: 1200mm and wider
  • Light intensity: 14,000 lux
  • Flash rate: up to 120,000 FPM
Price € 6.820,00
More information

ESL-200 LED Stroboscope

ESL-200
  • Hand-held LED Strobe
  • Flash Range: 6.0 - 150,000 fpm/rpm
  • 6 hours of continuous use at 6,000 fpm/rpm
Price € 625,00
More information

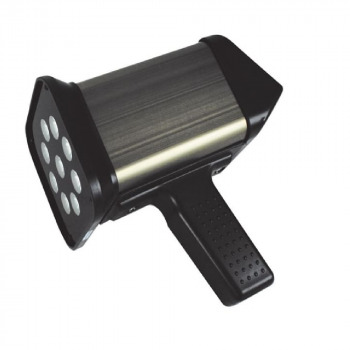

NS-600 Compact LED Stroboscope with Selectable Flash Duration

NS-600
  • Compact LED Stroboscope with Selectable Flash Duration
    (LED Technology)
  • High efficiency LED solid-state light source – never needs replacement
  • Wide measuring range – up to 120,000 fpm/rpm
Price € 413,00
More information

QB-LED Portable Battery powered LED Stroboscope

QB-LED
  • Battery Powered LED Stroboscope with 40 High-Powered LEDs
  • Range: 30 - 300.000 RPM/FPM
  • Weight: 1,0 Kg
  • Display: LCD, Multiple lines
  • Power: Internal Battery
  • - phase shift adjustment
    - internal/external trigger selection,
    - flash delay,
    - divider and "Slow Motion
  • Peak Brightness of 5,000 LUX
Price € 1.070,00
More information

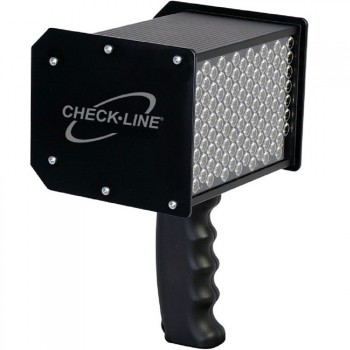

QBS-LED Portable Battery powered LED Stroboscope

QBS-LED
  • Battery Powered LED Stroboscope with 118 High-Powered LEDs
  • Range: 30 - 300.000 RPM/FPM
  • Weight: 1,15 Kg
  • Display: LCD, Multiple lines
  • Power: Internal Battery
  • - phase shift adjustment
    - internal/external trigger selection,
    - flash delay,
    - divider and "Slow Motion
  • Peak Brightness of 10,000 LUX
  • Equipped with an auto-sync laser function
Price € 2.560,00
More information

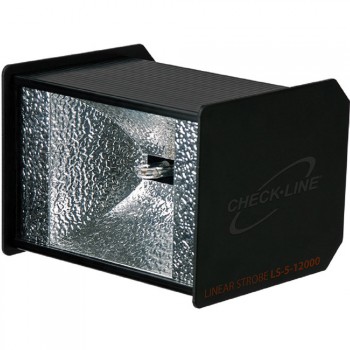

LS-5-12000 Compact Linear Stroboscope

LS-5-12000
  • Compact Linear Stroboscope
  • For process inspection including, rewinders, slitters and similar equipment
Price € 565,00
More information

LS-5-LED LED Fixed-Mount Linear Stroboscope

LS-5-LED
  • 80 LED's provide uniform light distribution with adjustable brightness and image sharpness
  • Extremely bright and uniform light distribution for web widths up to 12" (300mm) and wider.
  • Flash rates up to 120,000 fpm (2000 Hz) for even the highest speed applications
Price € 1.260,00
More information

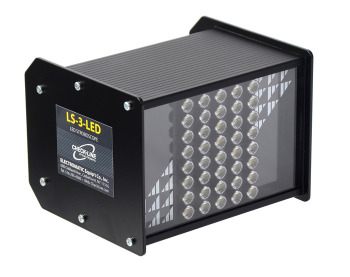

LS-3 compact LED industrial stroboscope

LS-3
  • 40 LEDs for uniform light distribution with up to 5000 lux
  • Suitable for web widths up to 25cm
  • Flash rates up to 5000 Hz
Price € 860,00
More information

LS-9-12000 Linear Xenon Stroboscope

LS-9-12000
  • Xenon Linear Stroboscope
  • Bright, sharp and uniform light output: 2500 Lux
  • Short flash duration of less than 10 microseconds for sharp images
Price from € 135,50
More information

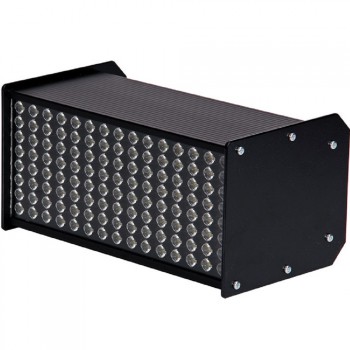

LS-9-LED LED Fixed-Mount Linear Stroboscope

LS-9-LED
  • 120 LED's provide uniform light distribution with adjustable brightness and image sharpness
  • LED's provide lifetime light source and never require replacement
  • Flash rates up to 120,000 fpm (2000 Hz) for even the highest speed applications
Price from € 1.690,00
More information

LS-18-LED LED Fixed-Mount Linear Stroboscope

LS-18-LED
  • LED Fixed-Mount Linear Stroboscope200 LEDs in 25 x 8 array
  • Extremely bright and uniform light distribution for web widths up to 20" (500mm) and wider.
  • Flash rates up to 120,000 fpm (2000 Hz) for even the highest speed applications
Price from € 340,00
More information

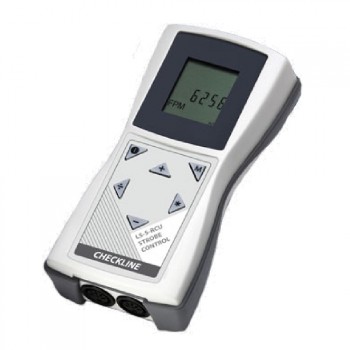

LS-SCU Remote Control Unit

LS-SCU
  • Remote Control Unit for LS-5-12000
  • Create a trigger signal or influence a signal generated externally
Price € 340,00
More information

DT-326 LED Stroboscope

DT-326
  • 60-120,000 flashes per minute, can be applied to meet almost any HIGH-SPEED application
