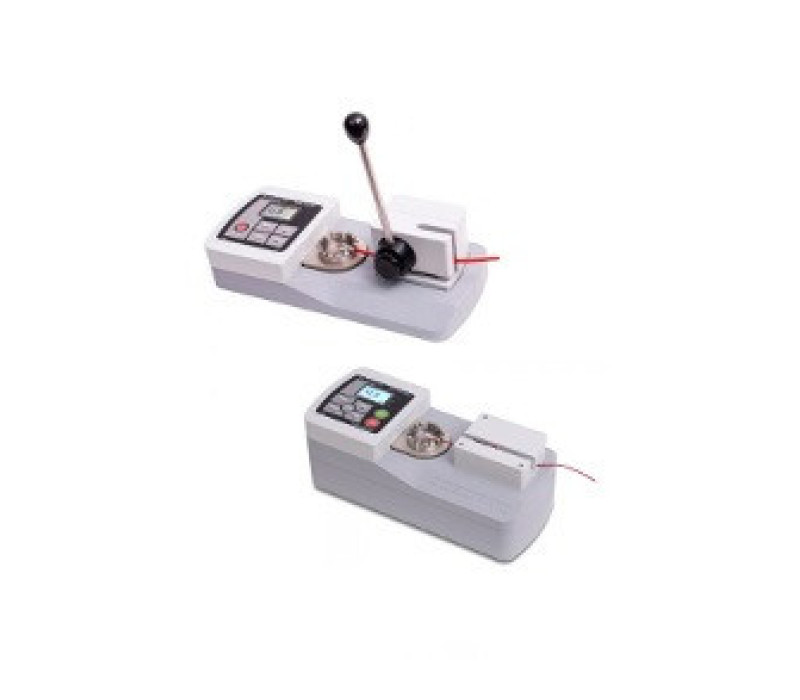

Wire Crimp Pull Testers / Wire Terminal Testers


A wire crimp pull tester is a force gauge for measuring the pull-out force of crimp connections. A wire terminal tester determines the force required to pull the crimp connector from wire connections by capturing the peak force for this process. We offer both motorized and manual wire terminal testers.

Wire terminal strength test

The compact measuring devices mainly shown here are only one way of determining the strength of cable connections. Another option is the individual configuration of a test system based on a force test stand. This does not only offer a higher measuring ranges, but also an individual adaptation to the respective test situation.

Please click on one of the images for more information.

We would be happy to help you choose a suitable measuring device.



WT3-201 Wire Crimp Pull Tester

WT3-201
  • Wire Terminal Tester
  • Accuracy: ±0.2% of full scale
  • Range: 0-100 Kg / 0-1000N
  • USB, RS-232, Mitutoyo (Digimatic), analog outputs
  • 1,000-point data memory and statistics
  • Auto output / data storage / zero upon sample break
Price € 2.087,00
More information

WT3-201M Motorized Wire Pull Tester

WT3-201M
  • Motorized Wire Terminal Tester
  • Accuracy: ±0.2% of full scale
  • Range: 0-100 Kg / 0-1000N
  • USB, RS-232, Mitutoyo (Digimatic), analog outputs
  • 2,000-point data memory with optinal time stamp and statistics
  • Auto output / data storage / zero upon sample break
  • For Destructive or optionally Non-destructive testing
Price € 3.755,00
More information

WTT-ESM Motorized Wire Terminal Tester with Programmable Active Force Control

WTT-ESM
  • Motorized Wire Terminal Tester with Programmable Active Force Control
  • Accuracy: ±0.2% of full scale
  • Range: 0-100 Kg / 0-1000N
  • USB, RS-232, Mitutoyo (Digimatic), analog
Price € 4.141,00 - € 5.147,00
More information

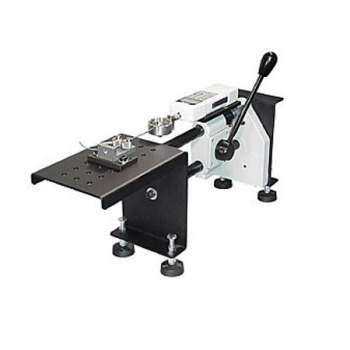

WTT-HD Horizontal Wire Terminal Tester

WTT-HD
  • Horizontal Wire Terminal Tester
  • Accuracy: ±0.2% of full scale
  • Range: 0-100 Kg / 0-1000N
  • RS-232, Mitutoyo Digimatic and ±1 VDC analog output
  • Measures in "Continuous" or "Peak" mode
  • Overload capacity: 200%
Price € 2.376,00
More information

WTT-FGS Digital Wire Terminal Tester

WTT-FGS
  • Wire Terminal Tester
  • Range: 0-110 lbs / 0-50 Kg / 0-500N
  • Measures in "Continuous" or "Peak" mode
Price € 1.850,00
More information

MR06-200 Hand-held Wire Crimp Pull Sensor

MR06-200
  • Wire Crimp Pull Testing
  • Accuracy: ±0.5% of full scale
  • Range: 0-100 Kg / 0-1000N
  • External sensor to be used with the 3i, 5i or 7i series force/torque displays
Price € 1.395,00
More information

WTT Wire pull tester for cable lugs

WTT
  • Wire Terminal Tester,/b>
  • Accuracy: ± 0.3% of full scale
  • Range: 0-50 Kg / 0-500N or 0-100 Kg / 0-1000N
  • Data Sampling Rate: 1000 Hz
  • USB, RS-232
Price € 1.385,00
More information
