TWT-2000-MTM4 Torque Wrench Loader
TWT-2000-MTM4 Torque Wrench Loader

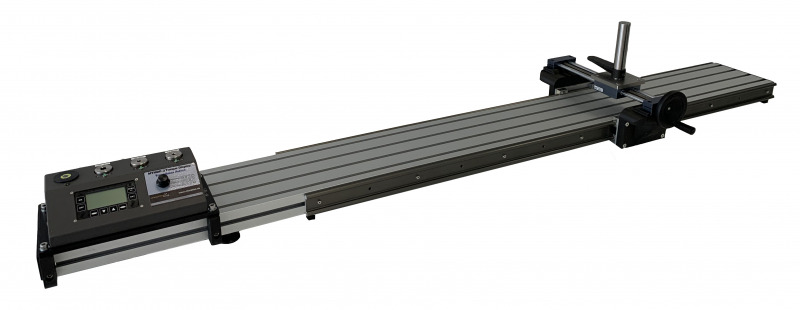

Checkline’s TWT-2000-MTM4 Torque Wrench Loader is developed as an aid for the calibration and/or verification of digital as well as mechanical torque wrenches. The attachment for the torque wrench is adjustable in height and length, for precise alignment with different torque wrenches. The torque wrench loader is suitable for the calibration and testing of torque wrenches with a range up to 1500 Nm.
The TWT-2000-MTM4 does not operate as a stand-alone calibration device and must be used in combination with one of our torque tool testers, e.g. the TT-QC Torque Tool Tester, the TT-QCM Torque Tool Tester or the MTM Multi-Range Torque Tester. The torque tool tester can be attached onto the frame of the TWT-2000-MTM4.
The TWT-2000-MTM4 is compatible with the MTM Multi-Rage Torque Tester, but is easily adjustable to function with the TT-QC and the TT-QCM Torque Tool Tester. The torque tool tester is not included.
The Torque Wrench Loader is manually operated by the use of a hand wheel.
The TWT-2000-MTM4 torque wrench test stand will be available in different models, corresponding with different torque capacities.
The TWT-2000-MTM4 torque wrench loader is developed by Checkline Europe B.V., and allows customized models to be supplied. For more information and inquiries, please contact us.
- Tool for torque wrench calibration/verification
- Compatible with many torque tool testers and wrenches
- Manually operated by hand wheel
- Torque tool tester not included
- Adjustable in height and length
- Capacity up to 1500 Nm
- Developed by Checkline Europe
| Capacity | Up to 1500 Nm |
| Operation | Manual |
MTM Multi-Range Torque Tester
- Available with 2, 3 or 4 torque transducers
- LED Indicator Shows Active Transducer
More details
TT-QC Torque Tool Tester
- Bidirectional accuracy of ±1% of indicated reading
- 3 modes of operation: Track, Peak and 1st Peak
- Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
More details
TT-QCM Torque Tool Tester
- Bidirectional accuracy of ± 0.5% of indicated reading (± 0.25% is optional)
- 3 modes of operation: Track, Peak and 1st Peak
- Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
More details
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
