MTM Multi-Range Torque Tester

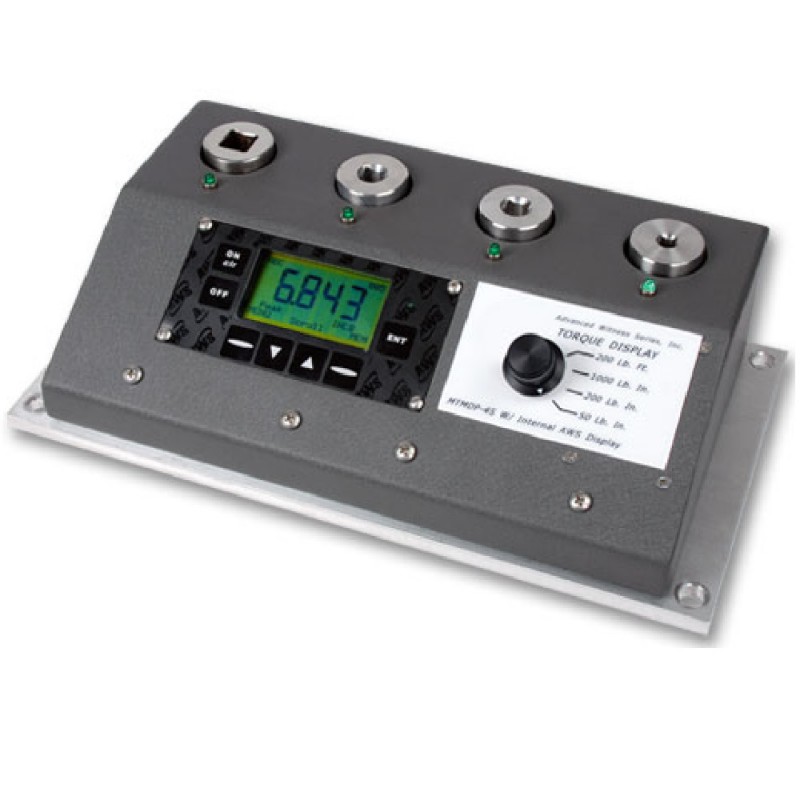

Made in the USAThe MTM Series of torque transducers are designed to provide an economical way to measure and calibrate multiple torque tools. The MTMDP models (MTMDP-2S pictured) have an integrated display for a fully integrated tester.

Historically, transducers had to be purchased individually and then connected to a display via a switch box or a group of cables. With the MTM series, this has become much easier: up to 4 transducers can be integrated in one compact housing.

There is a small footprint that allows clean, well-organized work space. This helps eliminate the endless searching for cables, adapters, and other accessories that may be needed.

Features such as independent CW and CCW calibration, multi-point linearization, metrology grade transducer shafts, and overload protection to 200% of full scale are standard. All of the above translate to a better product for you at an unbeatable price.

* MTMDP-2 coupled with an MTM-4.


Features
  • Available with 2, 3 or 4 torque transducers
  • Selectable units of: Ft-lb, IN-lb, IN-oz, KGF-m, KGF-cm, GF-cm, CN-m, N-m
  • Small footprint of the MTM allows for a clean, well-organized work space
  • 200% Overload protection
  • LED Indicator Shows Active Transducer
  • External transducers can be connected with cable input
  • Includes NIST Traceable calibration certificate with data for each transducer
  • Replaceable shaft design. If one shaft is damaged, replace that shaft, not the entire unit.
  • Hi-Lo Limits for Go-NoGo testing of tools

Torque ranges
Lb-in Lb-ft N-m N-cm Kgf-m Kgf-cm Gf-cm

ModelRangeDrive
Size
Run-Down
Simulator
ITIO-10* 0.007 - 0.07 N-m Included
ITIO-50 0.04 -0.35 N-m 1/4" Included
ITIO-100 0.07 - 0.70 N-m 1/4" Included
ITI-10 0.11 - 1.1 N-m 1/4" Included
ITI-25 0.28 - 2.8 N-m 1/4" Included
ITI-50 0.56 - 5.6 N-m 1/4" Included
ITI-100 1.12 - 11.2 N-m 1/4" Included
ITI-2502.8 - 28 N-m 3/8" Included
ITI-500 5.6 - 56 N-m 3/8" Included
ITF-100 13.56 - 135.6 N-m 1/2" Optional
ITF-150 20 - 200 N-m 1/2" Optional
ITF-250 33- 330 N-m 1/2" Optional
ITF-600 81 - 810 N-m 3/4" Optional
ITF-750101 - 1016 N-m3/4Optional
ITF-1000** 135 - 1350 N-m 1" Optional
ITF-2000** 271- 2710 N-m 1" Optional
ITF-3000** 406 - 4060 N-m 1 1/2" Optional
ITF-5000** 677- 6770 N-m 1 1/2" Optional

*ITIO-10 accuracy is +/-1% from 10-100% of capacity
**Ranges over 750 ft-lbs are supplied as cable connected external sensors. Please contact us for more information.

All 1/4" and 3/8" Drive transducers are supplied with run-down fixtures.


Related Products

RDF Joint Simulators / Run Down Fixtures


  • Required for accurate torque measurement for power-driven torque controled tools (electric, hydraulic or pneumatic)

More details

RDF Joint Simulators / Run Down Fixtures

TT-3000 TT-3000 Torque Tester


  • Bidirectional accuracy of ±0.5% of indicated reading

More details

TT-3000 TT-3000 Torque Tester

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details

Cic-Torque Torque Instrument Calibration

AWS-1000 Series Torque Wrench Loader


  • Adjustable length and height for precise alignment with calibration mark

More details

AWS-1000 Series Torque Wrench Loader

Specifications
Calibrated Range
10-100% Full Scale, bi-directional (Standard)
Extended Range
5-100% Full Scale, bi-directional (ER Option)
Accuracy
±0.5% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
NiMH rechargeable batteries provide 8-10 hours continuous use
Weight
6-12 lbs, depends on number of transducers and configuration
Operating Temp
0-50 °C (32 - 120 °F)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data for each transducer
Standard Accesories
Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional Accessories
Joint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option

MTM Model Selection Guide

S Models Any transducer 1/4" or 3/8" Drive (up to 1000 lb-in / 112 Nm Capacity)

L Models Any transducer 1/2" Drive or larger (100 lb-ft / 135 Nm Capacity)


Buy Now
Products

Product name
Price
Quantity
MTMDP-2S - Torque Tester with any 2 Transducers up to 1000 lb-in / 112 Nm
€ 2.700,00
MTMDP-2L - Torque Tester with any 2 Transducers up to ITF-750 / 1015 Nm
€ 3.101,00
MTMDP-3S - Torque Tester with any 3 Transducers up to 1000 lb-in / 112 Nm
€ 3.501,00
MTMDP-3L - Torque Tester with any 3 Transducers up to ITF-750 / 1015 Nm
€ 3.702,00
MTMDP-4S - Torque Tester with any 4 Transducers up to 1000 lb-in / 112 Nm
€ 3.702,00
MTMDP-4L - Torque Tester with any 4 Transducers up to ITF-750 / 1015 Nm
€ 3.902,00

Accessories

Product name
Price
Quantity
ER - Extended Range Option, Increased Certified Range of 5-100% (instead of 10-100%) PER TRANSDUCER
€ 106,00
TT-Soft - Data Transfer Software for TT Series, Including RS232 Output Cable
€ 125,00
Cal-MTM - Recalibration per Transducer
€ 145,00
TT-QCM-World - Replacement AC-Adapter/Charger for MTM
€ 46,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
