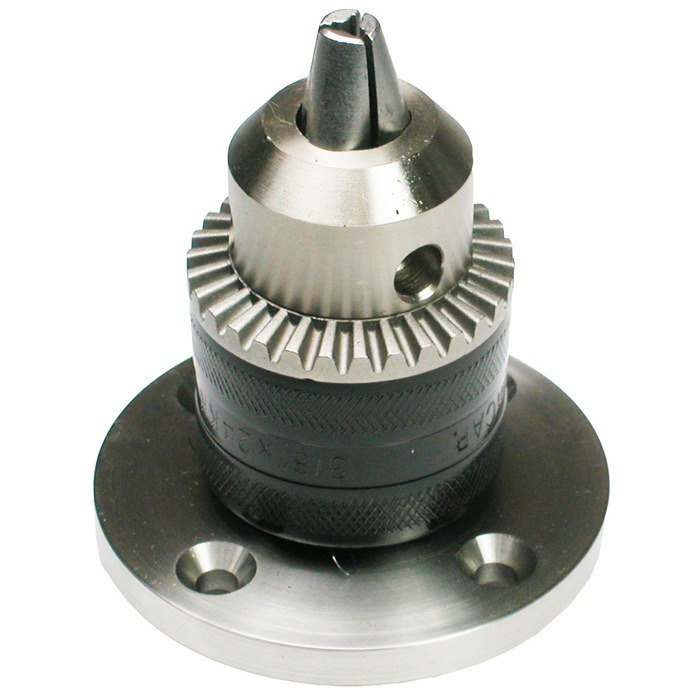

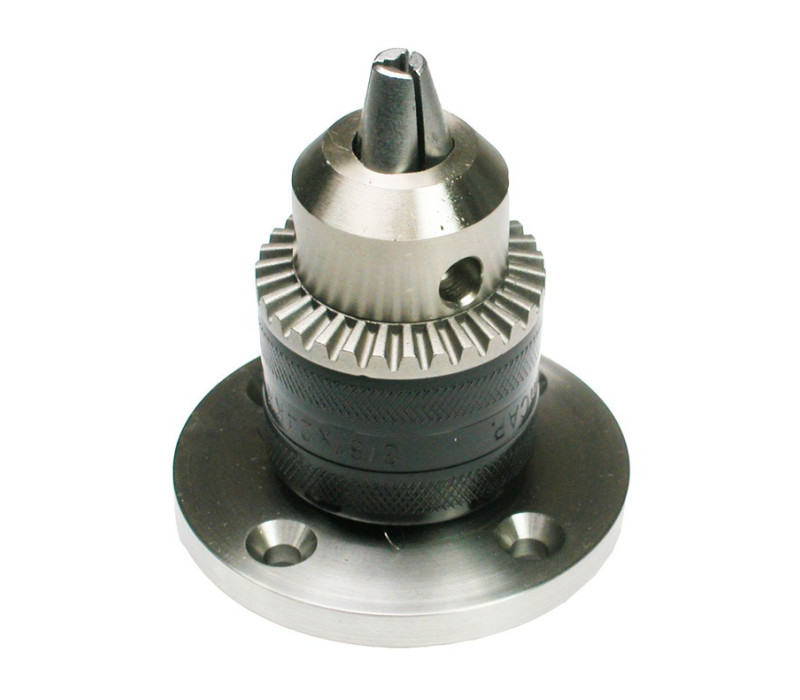

G1022 Jacobs Chuck Grips For TSTM


Made in the USAThe G1022 Series Jacobs Chuck Grips are designed for use with the TST(M) test stands for torque testing.

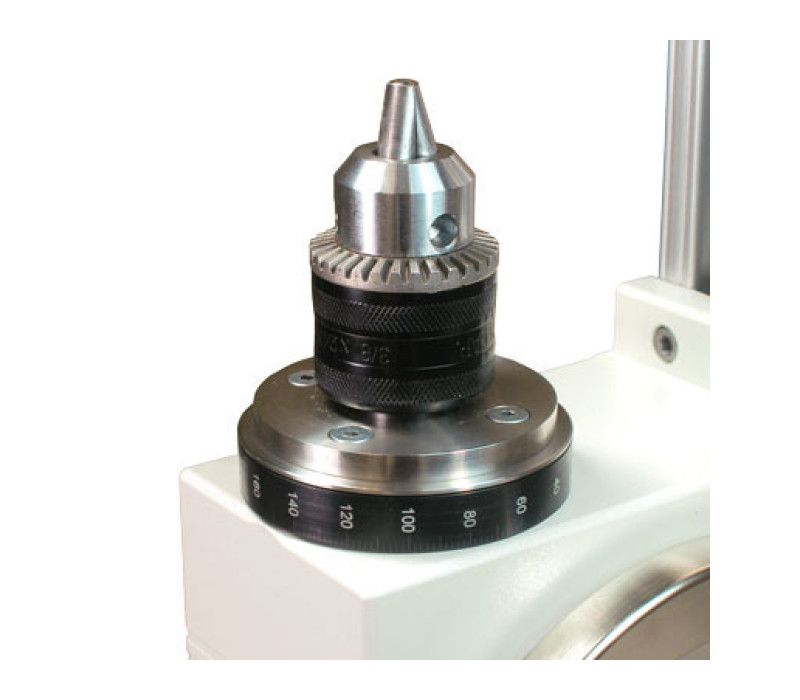

They mount directly to the threaded holes in the mounting plate and can hold samples or attachments up to 11,3 Nm.

G1022 Jacobs chuck grips come in three sizes with a sample capacity from 0,7 to 12,7 mm.

A chuck key is included with each G1022.


Features
  • Select from three chuck sizes
  • Capacity 11,3 Nm
  • Mounts directly to series TST torque test stands
  • Includes a chuck key

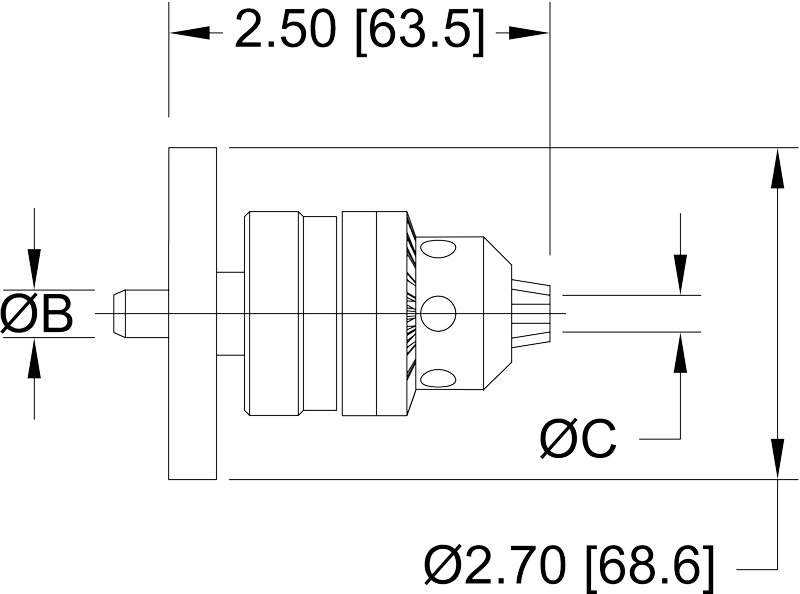

Dimensions
G1022-1,-2,-3
Dimensions-G1022-1,-2,-3


Model ØB ØC
G1022-1 0.188 [4.7] 0.028 - 0.250 [0.7 - 6.3]
G1022-2 0.188 [4.7] 0.062 - 0.375 [1.6 - 9.5]
G1022-3 0.188 [4.7] 0.078 - 0.500 [2 - 12.7]

Specifications
Capacity 11,3 Nm [100 lbFin]
Sample size G1022-1: 0,7-6,3 mm diameter (0.028"-0.25")
G1022-2: 1,6-9,5 mm diameter (0.062"-0.375" )
G1022-3: 2,0-12,7 mm diameter (0.078"-0.5")
Weight230 g [0.5 lb]
IncludedChuck key

Related Products

TST Manual Torque Test Stand


  • Adjustable travel stops
  • Smooth hand wheel operation

More details

TST Manual Torque Test Stand

TSTM-DC Advanced Motorized Vertical Torque Test Stand


  • No speed variation with load
  • Maximum load: 11.5 Nm / Upgrade to 22.0 Nm is optional
  • Speed range: 0.01 - 15.00 RPM (0.05-90°/s)

More details

TSTM-DC Advanced Motorized Vertical Torque Test Stand

TSTH Manual Horizontal Torque Test Stand


  • Smooth hand wheel operation

More details

TSTH Manual Horizontal Torque Test Stand

Series-TT03 Digital Torque Meter


  • Peak memory for clockwise and counter clockwise readings saved and displayed
  • High-speed 2,000 Hz sampling rate

More details

Series-TT03 Digital Torque Meter

G1053 Universal V-Jaw Grip


  • Reversible serrated jaws secure bottle caps and other round objects
  • Precision Acme screws provides durability and longevity
  • May be used for force and torque measurements

More details

G1053 Universal V-Jaw Grip

G1058 Universal Cap Grip


  • Adjustable posts and vise-action mechanism accommodate a wide range of sample shapes and sizes
  • May be used in torque and force measurement applications
  • Works manualy and in combination with torque and force test stands

More details

G1058 Universal Cap Grip

G1023 Universal Bottle Grip For TST


  • Individually adjustable rubber-edged gripping arms
  • May be used in torque and force measurement applications
  • Adapts to a variety of shapes

More details

G1023 Universal Bottle Grip For TST

Downloads

Buy Now
Products

Product
Price
Quantity
130803
G1022-1 Jacobs chuck grip for TST-Series, 0.028"-0.25"dia
€ 214,00
131921
G1022-2 Jacobs chuck grip for TST-Series, 0.062"-0.375"dia
€ 239,00
131922
G1022-3 Jacobs chuck grip for TST-Series, 0.078"-0.5"dia
€ 263,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
