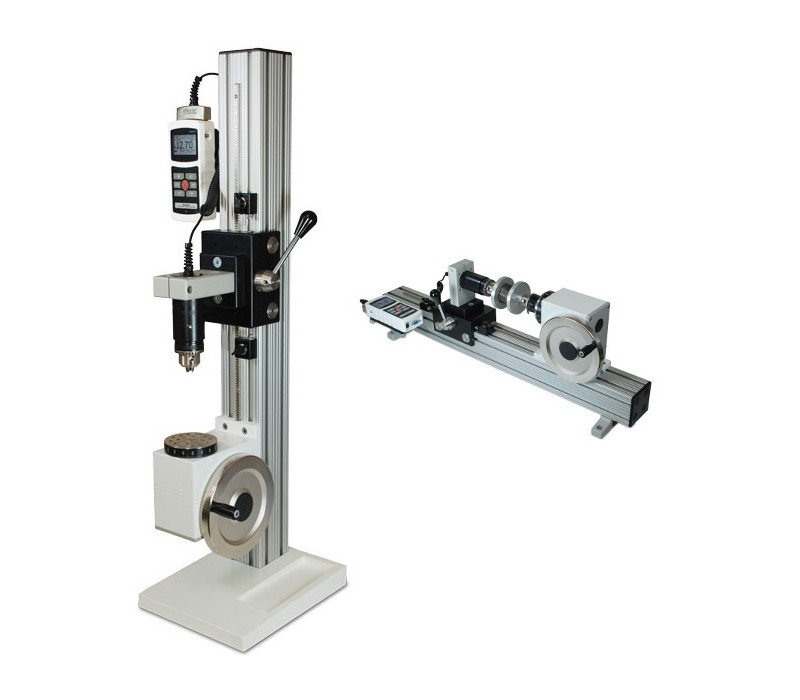

TST Manual Torque Test Stand

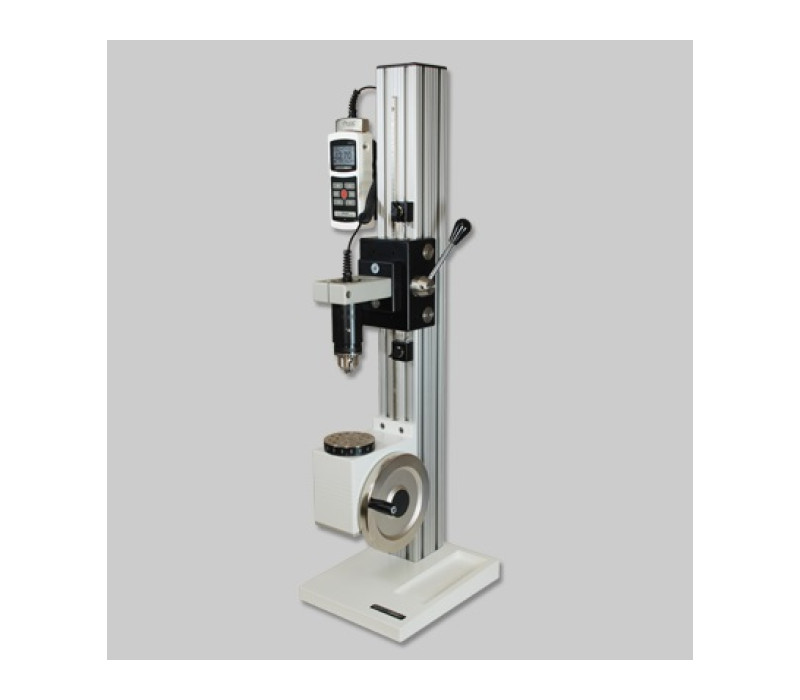

The TST vertical manual torque test stand is shown with a Model 5I force/torque indicator and Series R50 torque sensor.

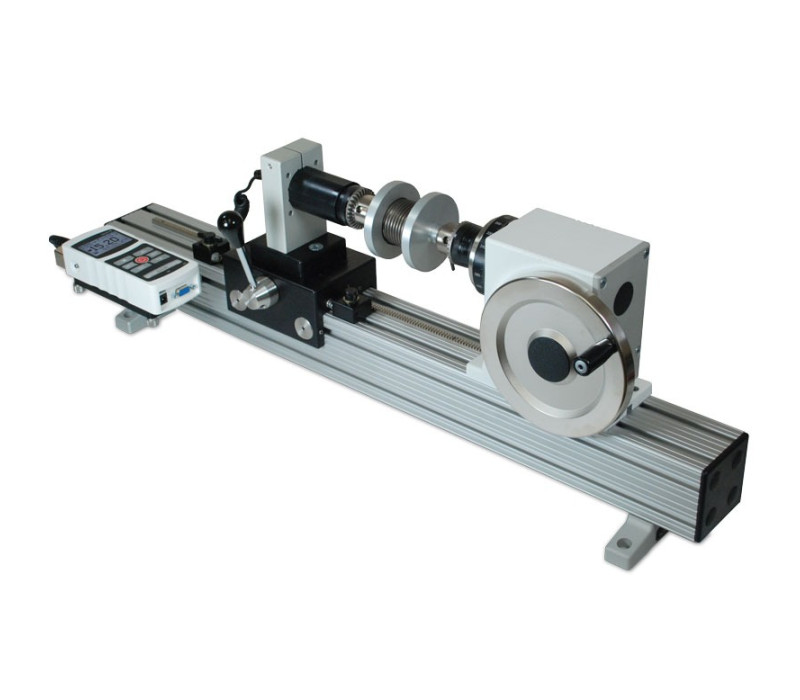

The TSTH horizontal manual torque test stand is shown with a Model 3I force/torque indicator and Series R50 torque sensor.

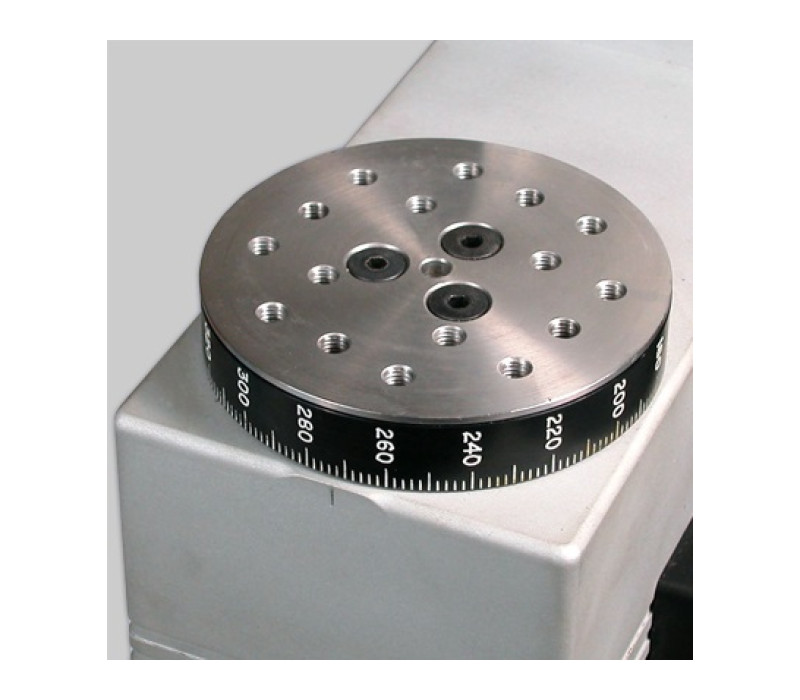

Rotating mounting plate contains a matrix of threaded holes for grip and fixture mounting.

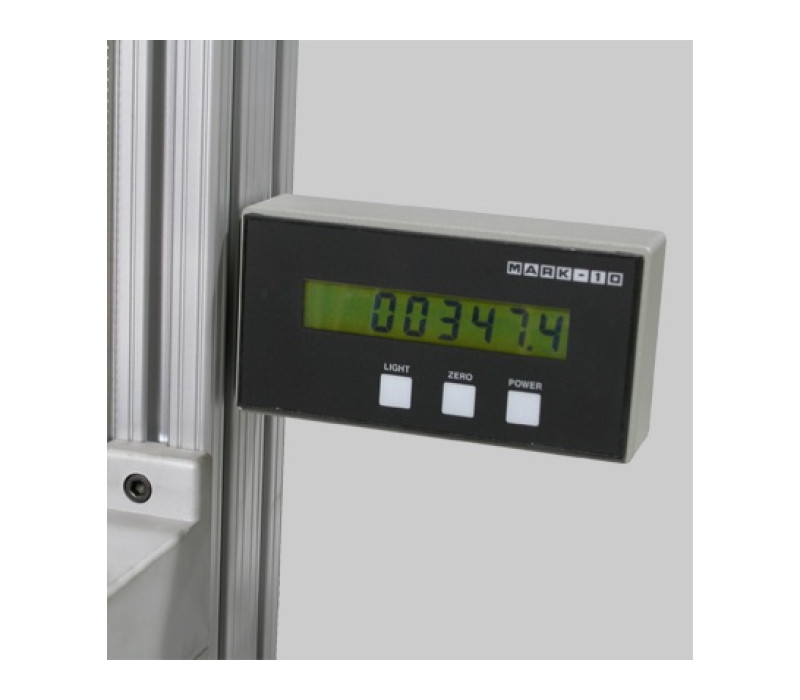

Optional digital angle indicator is useful for torsion spring testing, medical device testing and other applications

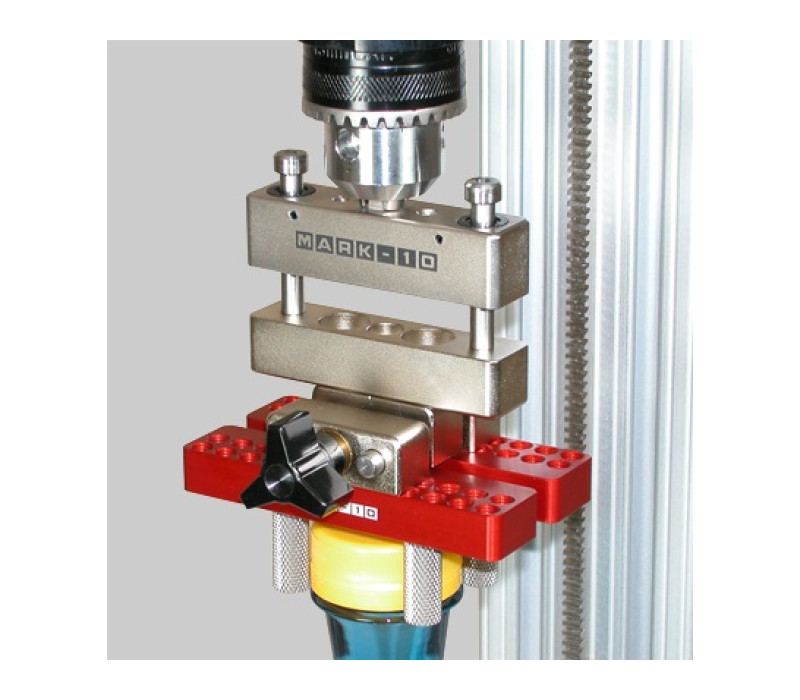

Optional axial compensator allows for vertical movement in the sample during a torque test.

Manual Torque Test Stands

Name: Manual Torque Test Stands
SKU: 126065

The TST vertical and TSTH horizontal manual torque test stands are developed for a variety of test applications up to 11,5 Nm, and measures clockwise and counter-clockwise. Like the TSTM-DC test stands they can be used for fastener torque testing, bottle cap testing, torsion spring testing and more.

The TST torque test stand is lever operated to support the up and down movement, torque transfer is generated through a smooth hand wheel operation that turns the torque loading plate with tapped holes. Torque sensors are mounted directly to the column of the test stand and are available in various models and capacities.

An optional digital angle indicator is useful for torsion spring testing, medical device testing, and other applications.

The TST(H) requires a torque indicator like the Model 3I, 5I or 7I, that displays the torque value measured by a torque sensor. The TST(H) is a test stand only, In order to measure torque, a torque sensor, display and appropriate test fixtures are needed.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.

€ 3.287,00

Order now

Adjustable travel stops
Load capacity: 11,5 Nm
Travel rate: 12° per wheel revolution
Torque plate with tapped holes for grip and fixture mounting
Smooth hand wheel operation
Lever operated slider for engaging and disengaging samples
Maximum angular travel: no limit
Throat: 104 mm

Video

▶

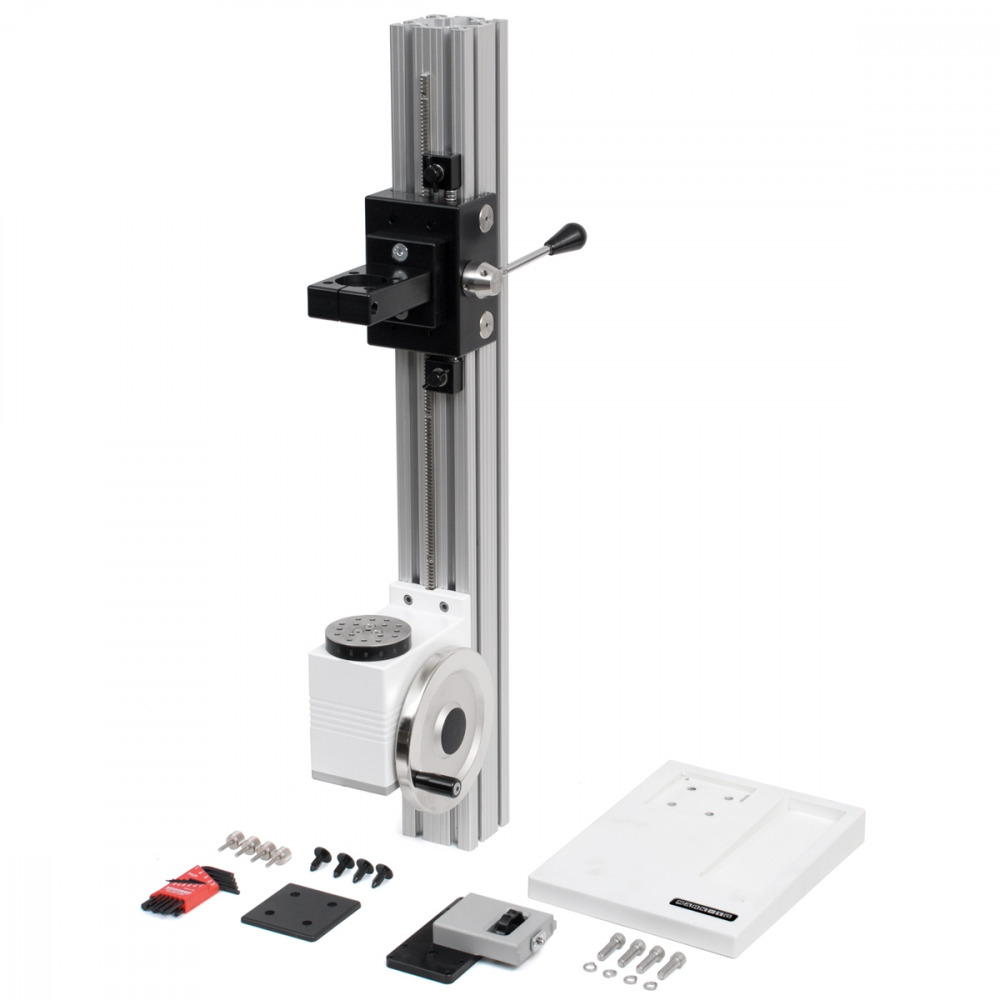

The TST and/or TSTH Torque Test Stands include:

Torque measurement test stand
Base (TST)
Mounting leg with hardware (TSTH)
Column cap
4x thumb screws for base installation
Mounting hole drill template (TST)
Additional column cap with hardware (TSTH)
Allen wrench set

TST

Dimensions of the TST vertical torque test stand,
all dimensions are in inch with [mm] behind.

TSTH

Dimensions of the TSTH horizontal torque test stand,
all dimensions are in inch with [mm] behind.

Maximum torque:	11,5 Nm
Maximum angular travel:	no limit
Throat:	104 mm
Angular rate:	12° per wheel revolution
Maximum slider travel:	394 mm
Slider travel rate:	26,6 mm / lever revolution
Weight (test stand only):	15 kg

TST/TSTH Data Sheet

TST/TSTH User Manual

Products

Item	Product	Price	Quantity	Action
131917	TST Handwheel-operated Torque Test Stand, 11.5 Nm, Vertical	€ 3.287,00
131407	TSTH Handwheel-operated Torque Test Stand, 11.5 Nm, Horizontal	€ 3.287,00

Accessories

Item	Product	Price	Quantity	Action
131902	TST001 - Digital Angle Indicator for TST-Series stands, 220V	€ 1.093,00
131904	TSF002 Horizontal/wall mounting kit for Series TSF and TST stands	€ 248,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
