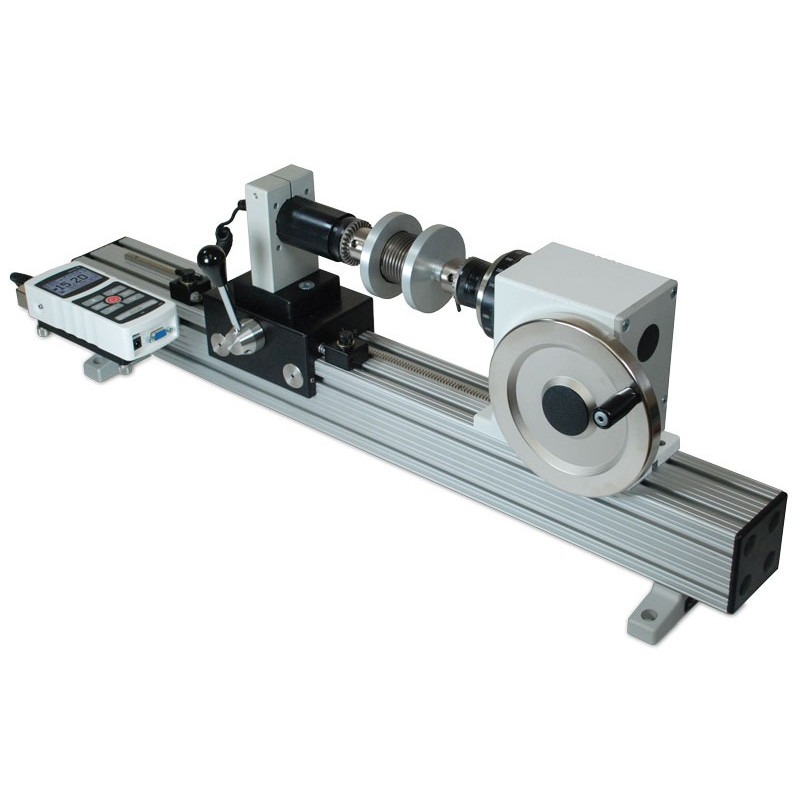

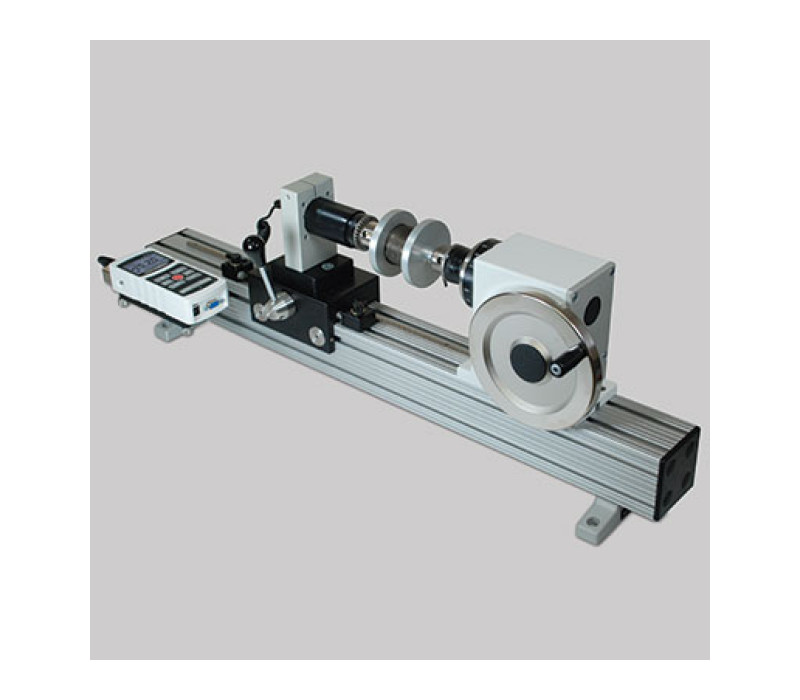

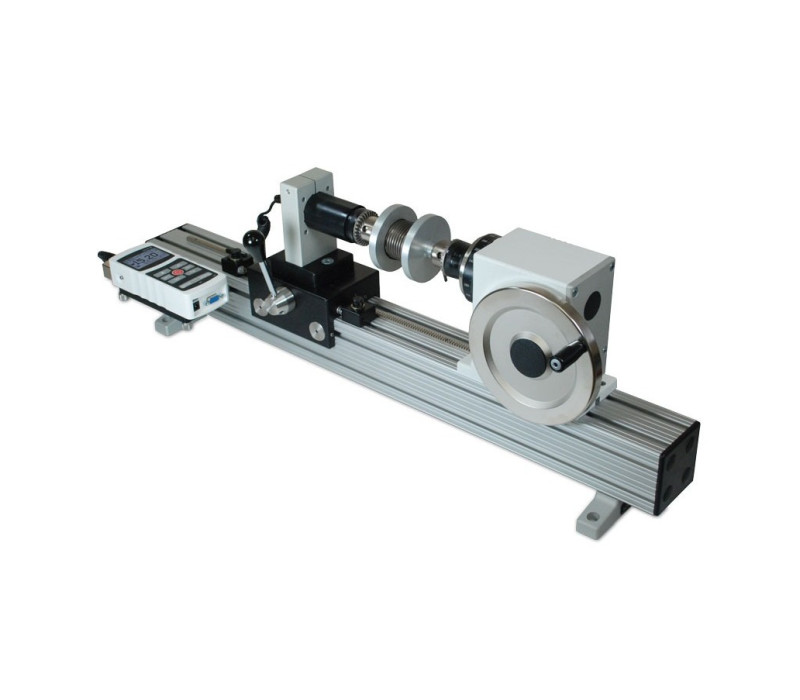

    TSTH Manual Horizontal Torque Test Stand

    The TSTH Torque Measurement Test Stand has been developed for torque testing up to 11.5 Nm. Typical applications are for example among others closure torque and fastener torque testing.

    Please note that the TSTH is a test stand only. Choose a complementary torque sensor, display and appropriate test fixtures to built a complete torque testing system.

    The TSTH’s versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures. Ultra-smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient.

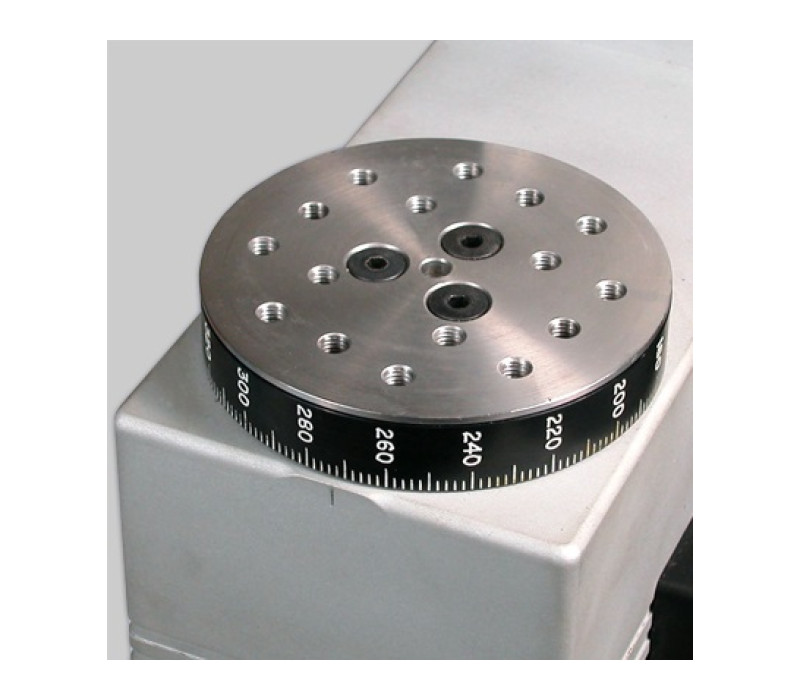

    The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resettable angle indicator.





    € 3.287,00
    Order now
    • Adjustable travel stops
    • The TSTH is supplied with a wrench set
    • Travel rate: 12°/ wheel rev.
    • Torque plate with tapped holes for grip and fixture mounting
    • Smooth hand wheel operation
    • Lever operated slider for engaging and disengaging samples
    • Maximum torque: 11.5 Nm
    Dimensions-TSTH
    Maximum torque:11.5 Nm
    Maximum angular travel:no limit
    Throat:104 mm
    Angular rate:12° per wheel revolution
    Maximum slider travel:394 mm (15.5")
    Slider travel rate:26.6 mm / lever revolution
    Weight12.3 kg

    The TSTH-Torque Test Stand includes:

    • Torque measurement test stand
    • Base
    • Column cap
    • 4x screws for base installation
    • Mounting hole drill template
    • Wrench set


    The TSTH is a test stand only.
    In order to measure torque, a torque sensor, display and appropriate test fixtures are needed.


    Related Products

    Browse Related Products

    Digital Torque Meter for torque testing applications

    Digital Torque Meter for torque testing applications

    Model-3I Force/Torque Indicator

    Model-3I Force/Torque Indicator

    Model-5I Advanced Digital Force/Torque Indicator

    Model-5I Advanced Digital Force/Torque Indicator

    Manual Torque Test Stands

    Manual Torque Test Stands

    Accessories

    Browse Accessories

    Jacobs Chuck Grip For TST Test Stand
    Jacobs Chuck Grip For TST Test Stand
    AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands
    AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands

    Order Now

    Products
    Item Product Price  Quantity Action
    131407TSTH Handwheel-operated Torque Test Stand, 11.5 Nm, Horizontal € 3.287,00
    Accessories
    Item Product Price  Quantity Action

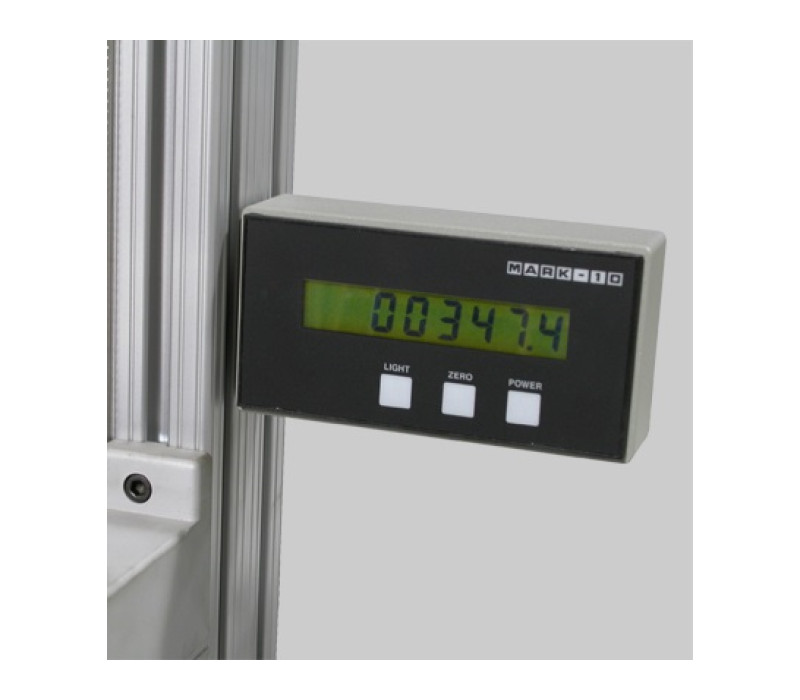

    131902TST001 - Digital Angle Indicator for TST-Series stands, 220V € 1.093,00
