    Mechanical Force Gauges

    Mechanical force gauges use a calibrated spring and dial to show applied force without batteries or electronics, making them simple, robust and well suited to field work and basic go/no-go checks. They trade data output and peak capture for reliability and low cost.

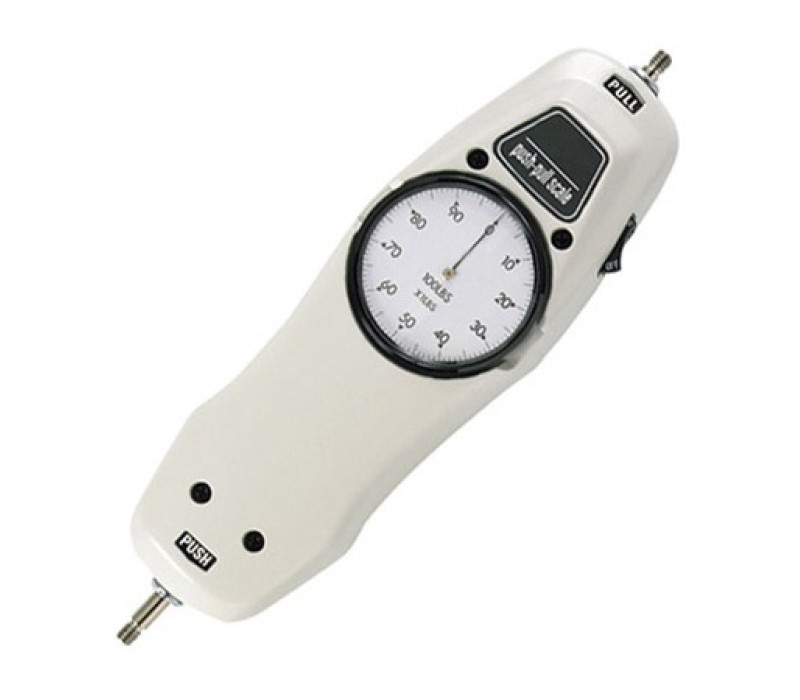

    Product: PS Product: PS

    PS Mechanical force gauge for accurate measurements

    • Standard model
    • Capacity
      from 32 ozf to 500 N
    • Accuracy: ± 0,1% Full scale
    • Housing dimensions: 235 x 65 x 50 mm (L x W x H)
    • Weight, net (gross): approx. 530 g (1000 g)
    • Warranty: 1 year

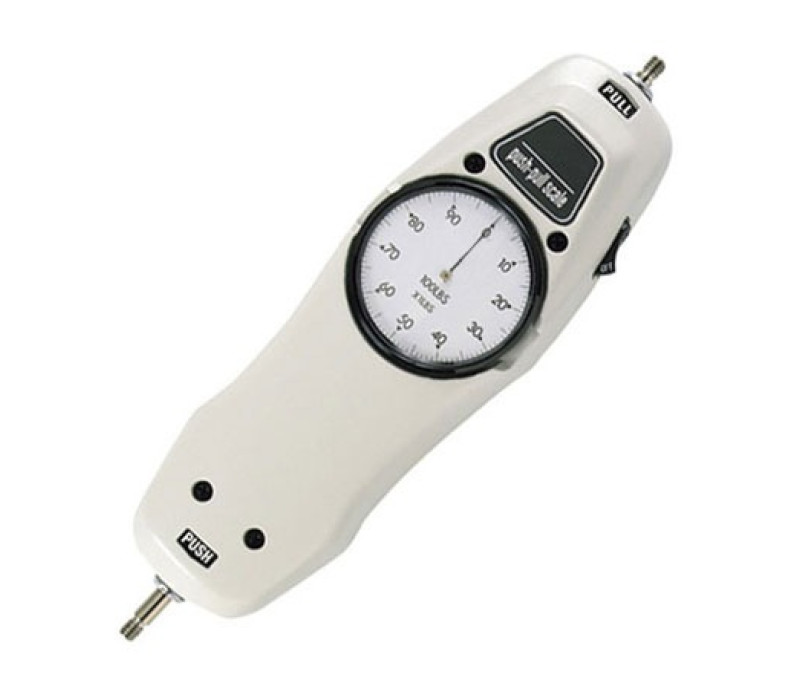

    Product: FB Product: FB

    FB Mechanical force gauge

    • The most popular force gauge
    • Capacity
      from 0 - 10 N to 0 - 500 N
    • Accuracy: ± 0,3% Full scale
    • Housing dimensions: 235 x 65 x 50 mm (L x W x H)
    • Weight, net (gross): approx. 530 g (1000 g)
    • Warranty: 1 year

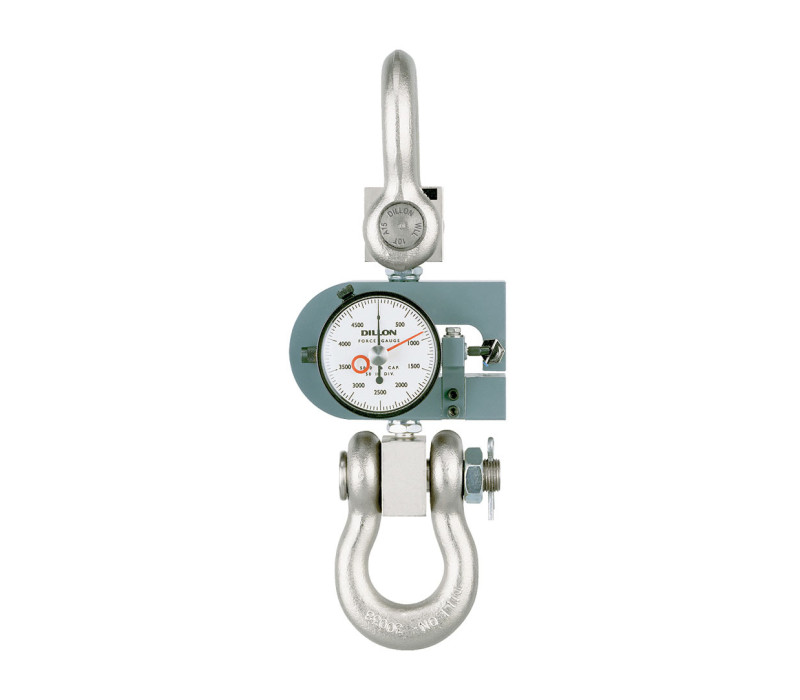

    Product: X-ST Product: X-ST

    X-ST Analog Tensile Force Measuring Device

    • Capacity: up to 5000 kg
    • Accuracy: ± 1% of the capacity
    • Units of measurement: kilograms or pounds
    • For tensile force measurements

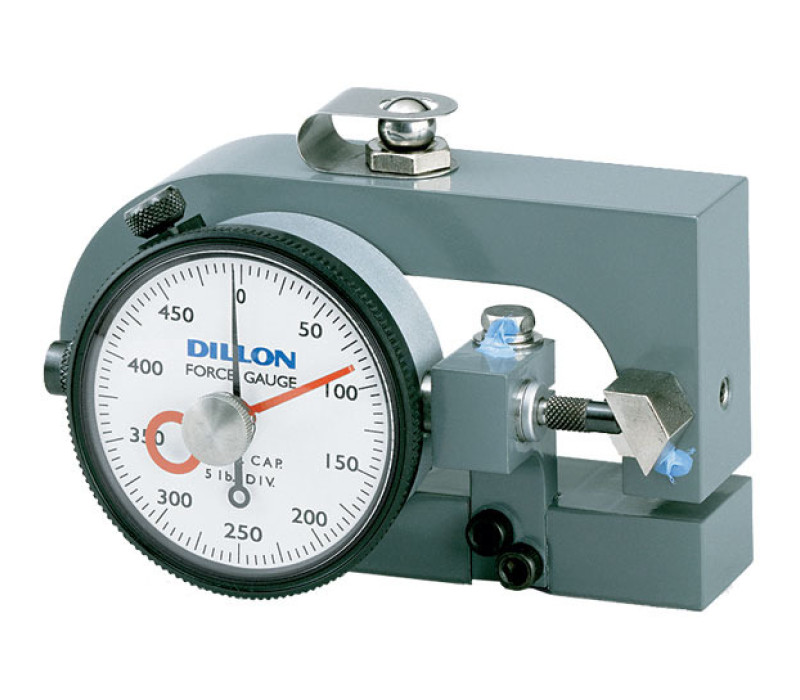

    Product: X-C Product: X-C

    X-C Analog Pressure Force Measuring Gauge

    • Capacity: up to 10000 kg
    • Accuracy: ± 1% of the capacity
    • Units of measurement: kilograms or pounds
    • For pressure force measurements

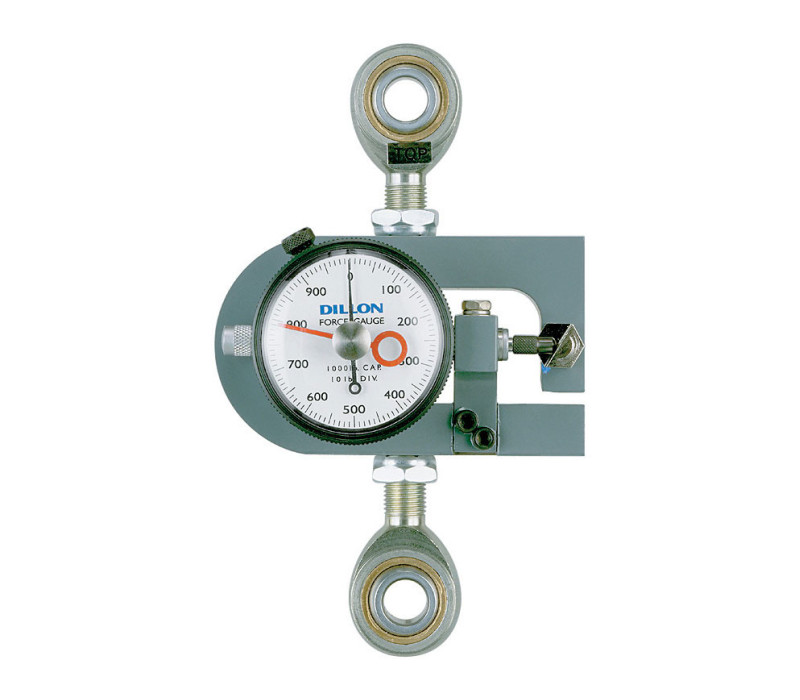

    Product: X-PP Product: X-PP

    X-PP Analog Force Gauge for tensile and compressive force measurement

    • Capacity: up to 1000 kg
    • Accuracy: ± 4% of the capacity
    • Units of measurement: kilograms or pounds
    • For pressure and tensile force measurements

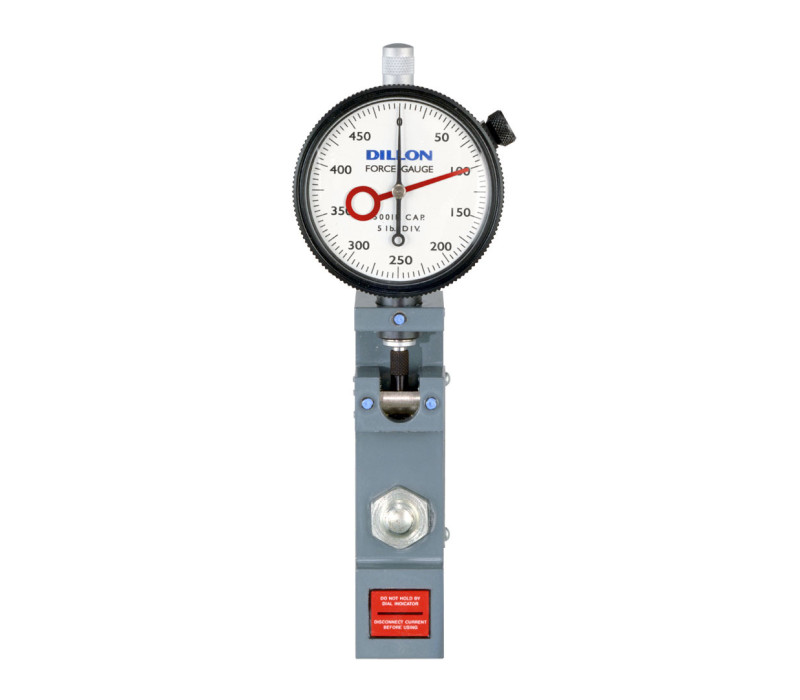

    Product: U-Force Product: U-Force

    U-Force Mechanical Pressure Force Measurement Gauge

    • Capacity: up to 500kg
    • Accuracy: ± 1% of the capacity
    • Units of measurement: kilograms or pounds
    • For pressure force measurements

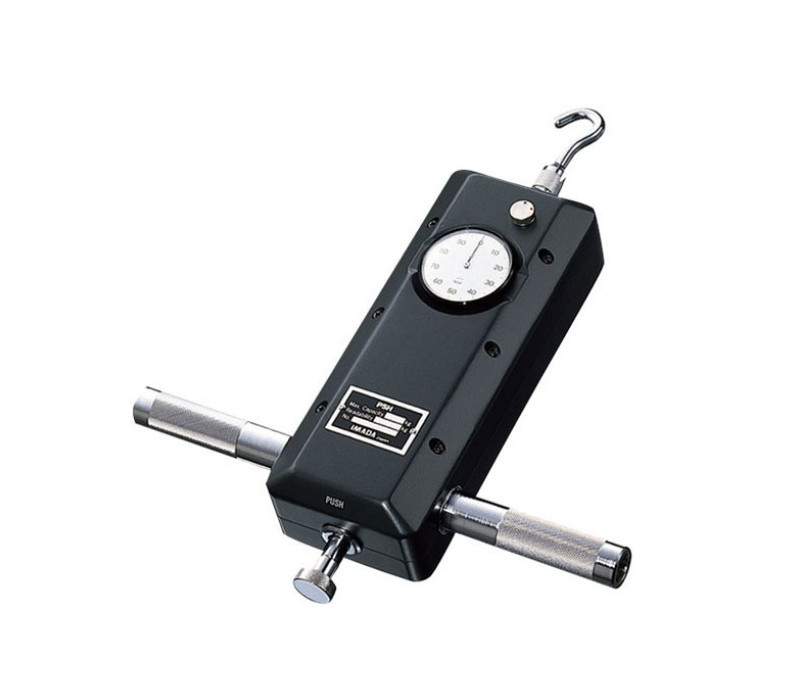

    Product: PSH Product: PSH

    PSH

    • For High forces
    • Accuracy: ± 0,1% Full scale
    • Intrinsically Safe for use in hazardous environments
    • Warranty: 2 years
    Showing 7 item(s)
